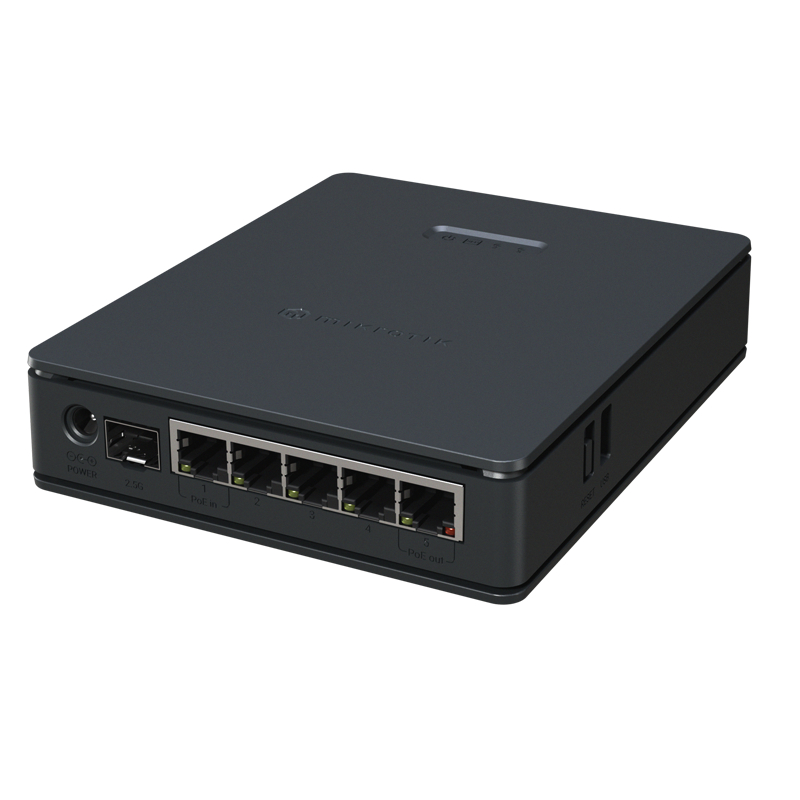

hAP ax S[E62iUGS-2axD5axT] รุ่นใหม่2026 Mikrotikส่งด่วน ของแท์100% รองรับระบบ Load balancing ไมโครติก เร้าเตอร์

hAP ax S[E62iUGS-2axD5axT] Specifications Product codeE62iUGS-2axD5axT ArchitectureARM 32bit CPUEN7562CT CPU core count2 CPU nominal frequency950 MHz CPU Threads count2 Switch chip modelEN7523 RouterOS license4 Operating SystemRouterOS v7 Size of RAM512 MB Storage size128 MB Storage typeNAND MTBFApproximately 100'000 hours at 25C Tested ambient temperature-40°C to 70°C Wireless capabilities Wireless 2.4 GHz Max data rate574 Mbit/s Wireless 2.4 GHz Number of chains2 Wireless 2.4 GHz standards802.11b/g/n/ax Antenna gain dBi for 2.4 GHz5.5 Wireless 2.4 GHz chip modelMT7916 Wireless 2.4 GHz generationWi-Fi 6 Wireless 5 GHz Max data rate1800 Mbit/s Wireless 5 GHz Number of chains3 Wireless 5 GHz standards802.11a/n/ac/ax Antenna gain dBi for 5 GHz6.5 Wireless 5 GHz chip modelMT7976 Wireless 5 GHz generationWi-Fi 6 WiFi speedAX2400 Ethernet 10/100/1000 Ethernet ports5 Number of 1G Ethernet ports with PoE-out1 Fiber SFP ports1 (2.5G supported) Peripherals Number of USB ports1 USB Power ResetYes USB slot typeUSB type A Max USB current (A)1 Powering Number of DC inputs2 (DC jack, PoE-IN) DC jack input Voltage12-28 V Max power consumption34 W Max power consumption without attachments11 W PoE inPassive PoE Cooling typePassive PoE in input Voltage18-28 V PoE-out PoE-out portsEther5 PoE outPassive PoE Low voltage PoE-Out current limit0.6 A Max total out (A)0.6 A Total output current0.6 Total output power16.8 Certification & Approvals CertificationCE, FCC, IC, EAC, ROHS IP20 Other CPU temperature monitor Yes Note The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase. Ethernet test results E62iUGS-2axD5axTEN7562CT 1G all port testModeConfiguration1518 byte512 byte64 bytekppsMbpskppsMbpskppsMbpsBridgingnone (fast path)340.34132.43891593.5402.6219Bridging25 bridge filter rules190.62315.1197806.8193.9105.5Routingnone (fast path)300.33646.6340.51394.7342.2186.1Routing25 simple queues173.12102.6174.3713.8171.993.5Routing25 ip filter rules117.81430.3121.6498.111763.6
