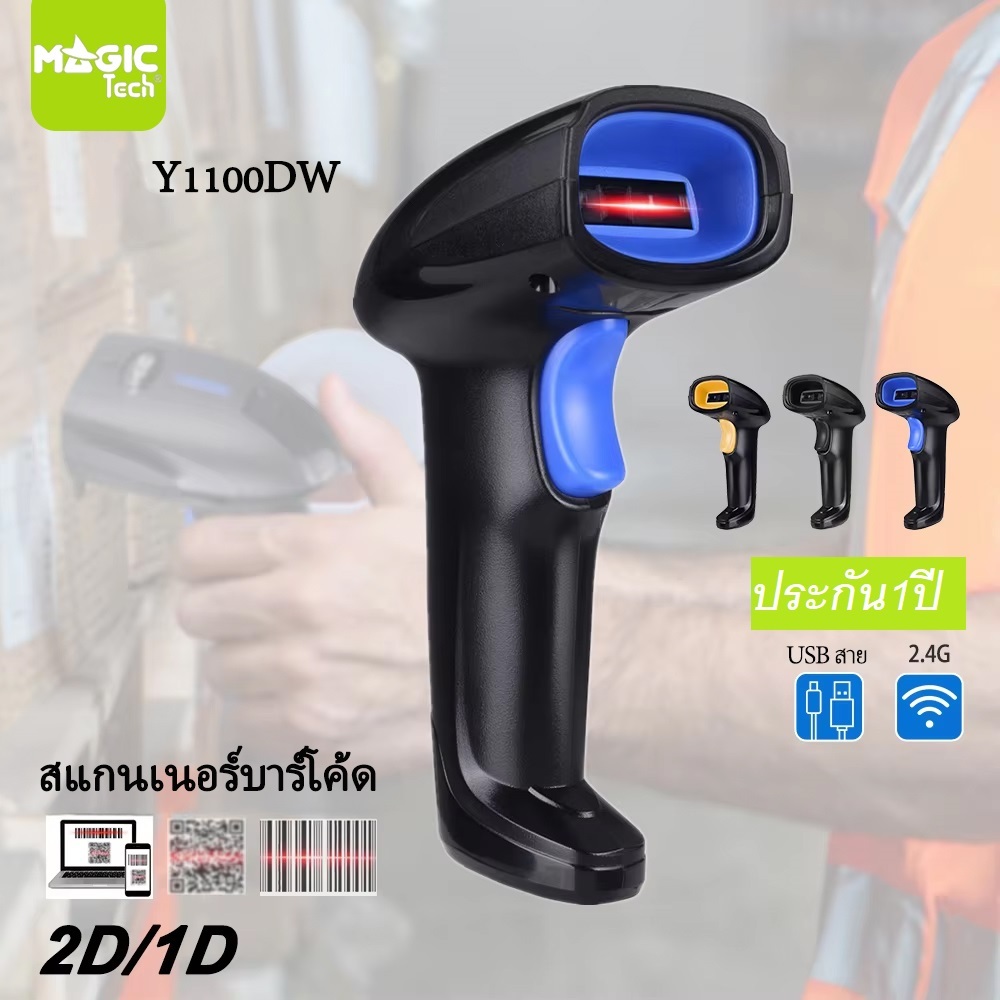

Brand MAGICTECH
Model
YHD-1100DW มีฟั่งชั่นใร้สาย / YHD-1100D ไม่มีฟังชันใร้สาย
Support Barcode Type
1D, 2D
Interface
USB Wireless (2.4G)
Light Source
6500K LEDs
617nm LED
Anti inference : 0-100000Lux Max
Sensor Resolution
4mil
Scan Rate
500scans/sec
Scan Angle
Angle of rotation360°
Inclination± 65°
Declination ± 60°
Field of View
100m/1.5m
Depth of Field
13mil-EAN13 : 50-240mm
4mil-code39 : 50-90mm
20mil-QR : 40-280mm
10mil-PDF417 : 40-250mm
PCS
≥25%
Support Symbol
1D : UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, RSS, Codabar, ISBN, ISSN, GS1 DataBar(RSS14)etc.
2D : QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.
Trigger Mode
Handheld, Continuous, Auto-Induction
Sensor
Buzzer & LED
Brand : MAGICTECH
Model : YHD-1100D+
Support Barcode Type : 1D, 2D
Interface : USB
Light Source : 624nm LED
Anti inference 0-100000Lux Max
Sensor Resolution : CMOS 640x480, 4mil
Scan Rate : 500scans/sec
Scan Angle : Angle of rotation 360°
Inclination ± 65°
Declination ± 60°
Field of View : N/A
Depth of Field : 13mil-EAN13 : 40-250mm
4mil-code39 : 50-90mm
20mil-QR : 40-290mm
10mil-PDF417 : 40-260mm
PCS : Printing Contract : ≥25%
Support Symbol : 1D : UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, RSS, Codabar, ISBN, ISSN, GS1 DataBar(RSS14)etc.
