Forza350-ADV350 Intake pipe VelocityStack [KSPP] International

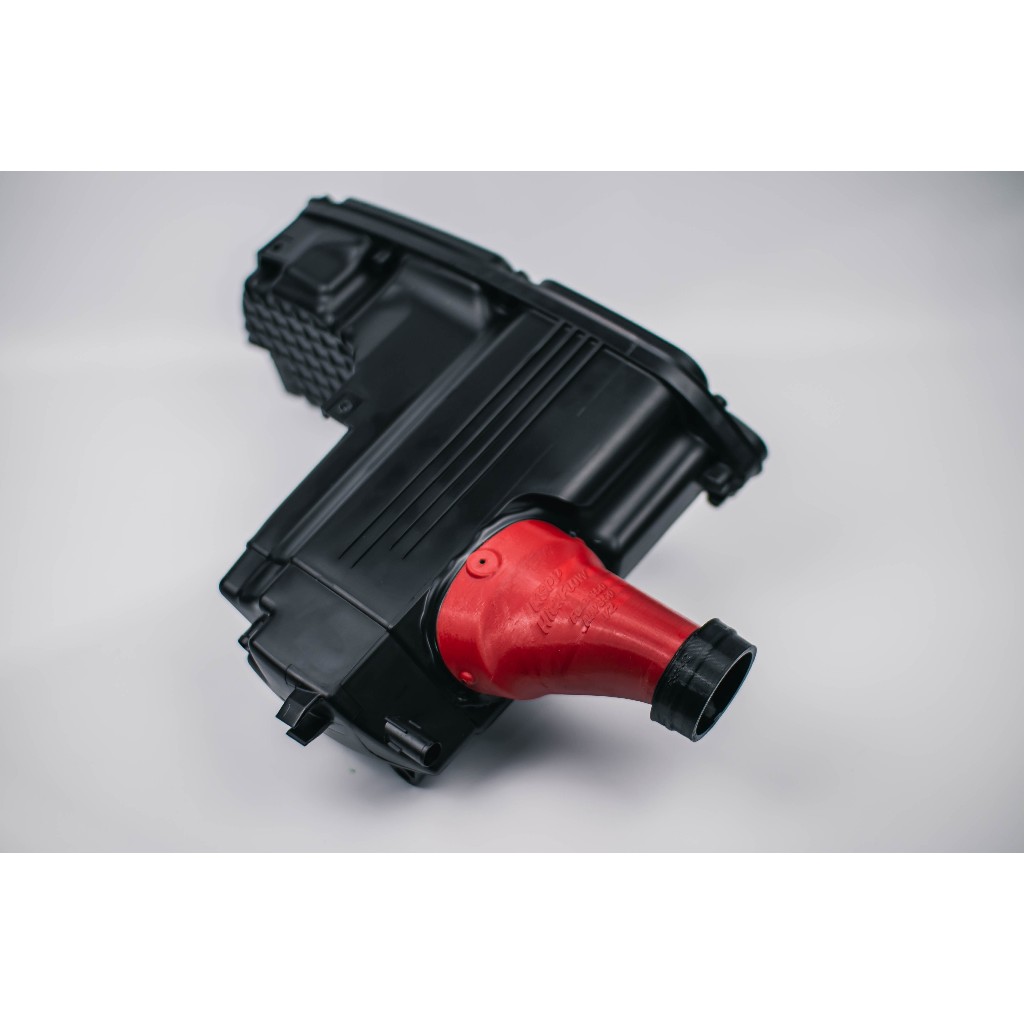

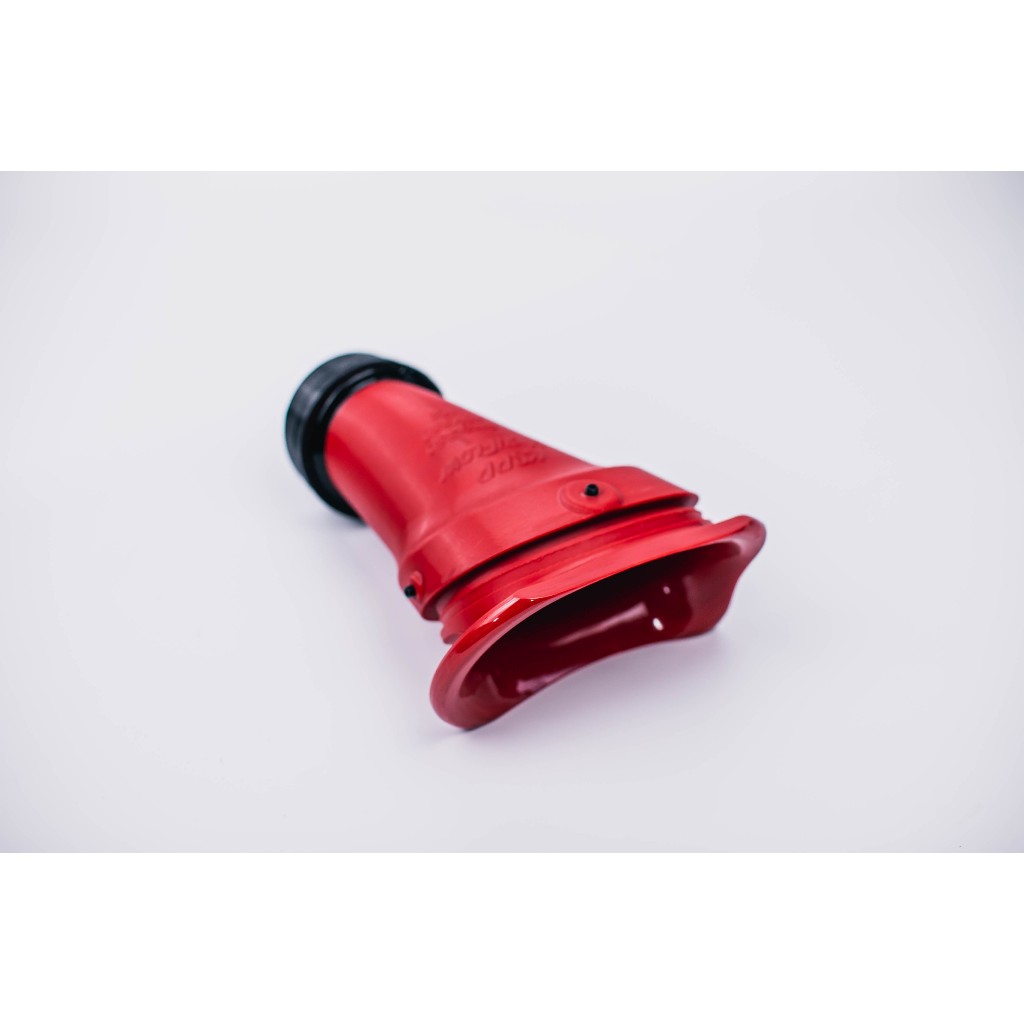

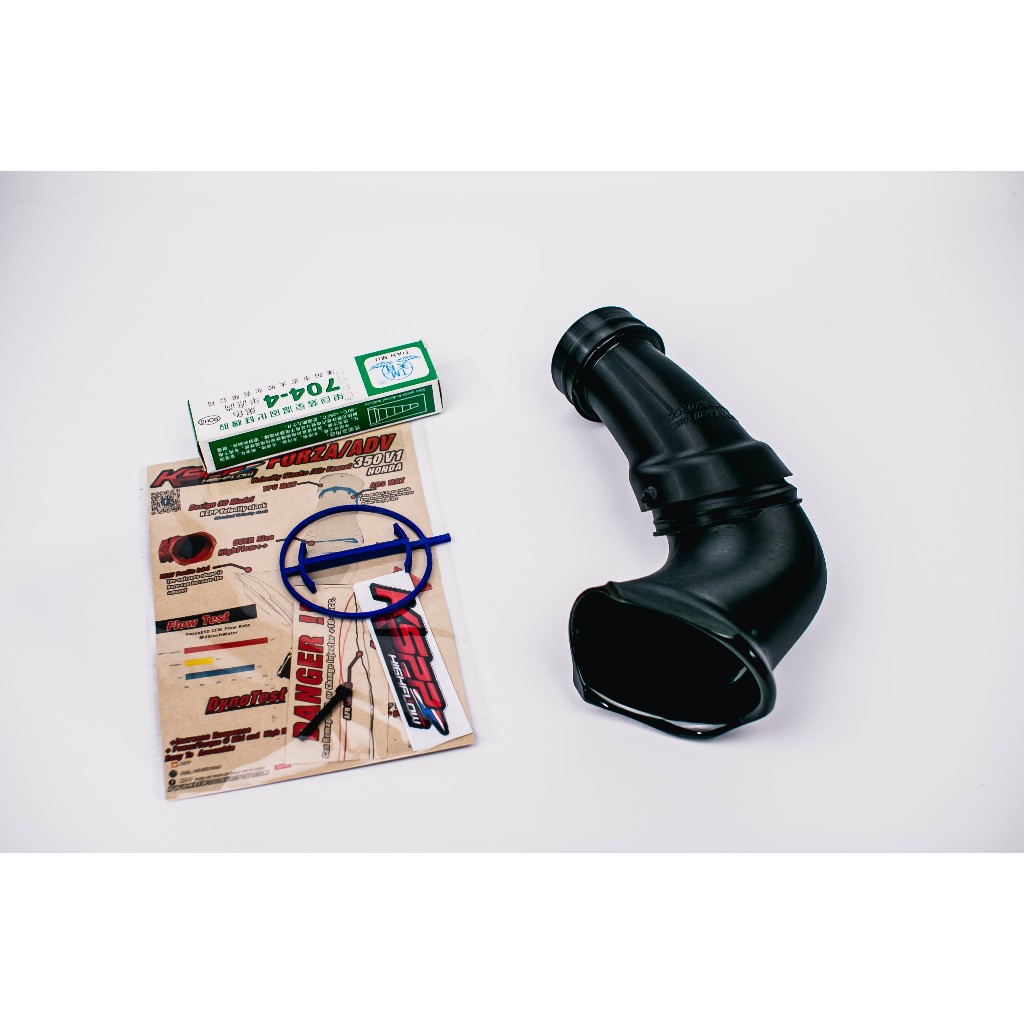

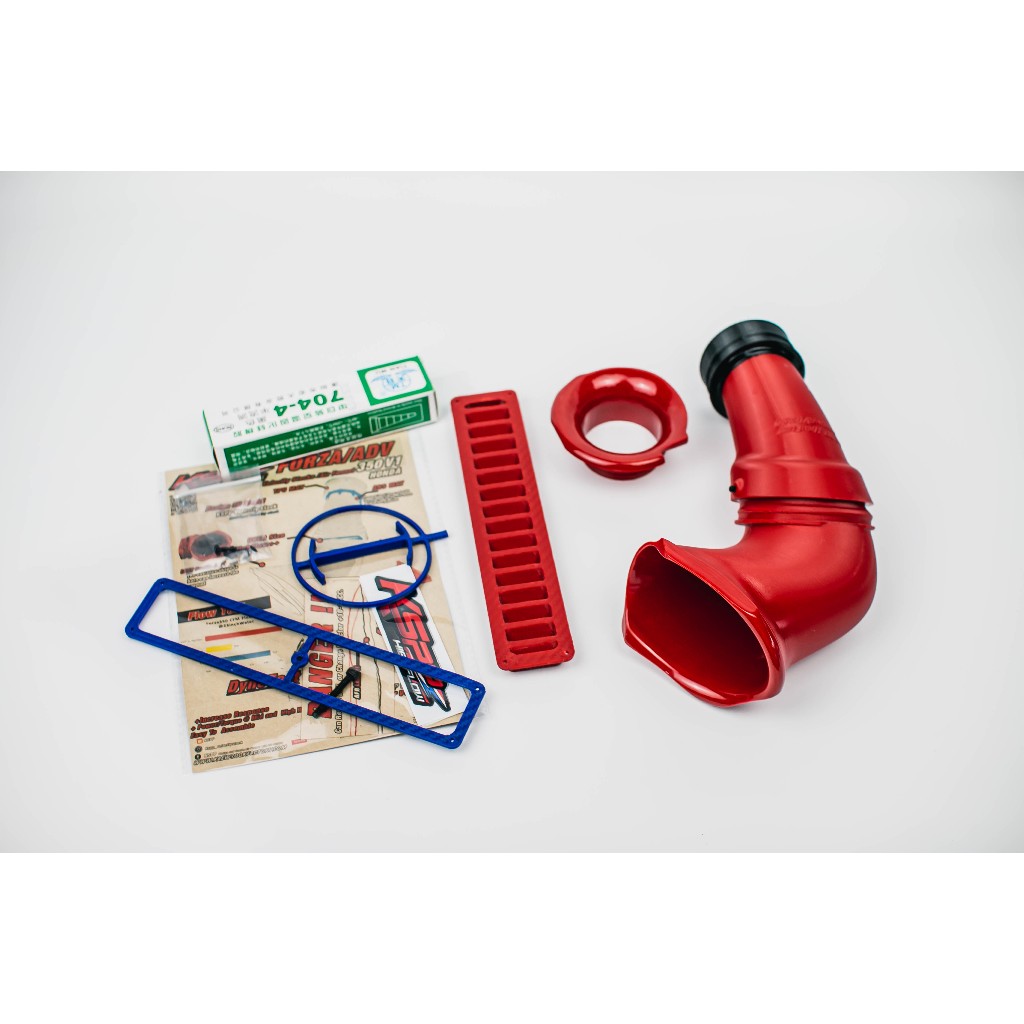

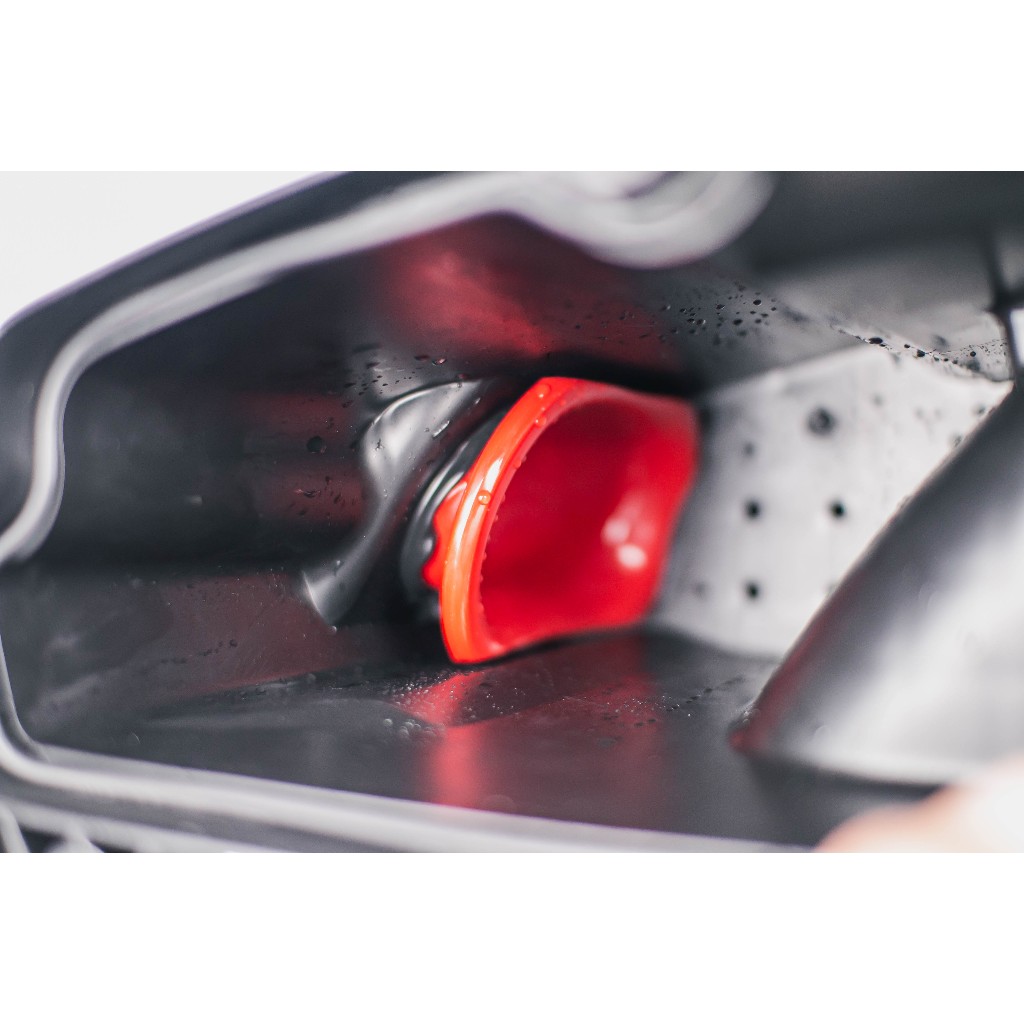

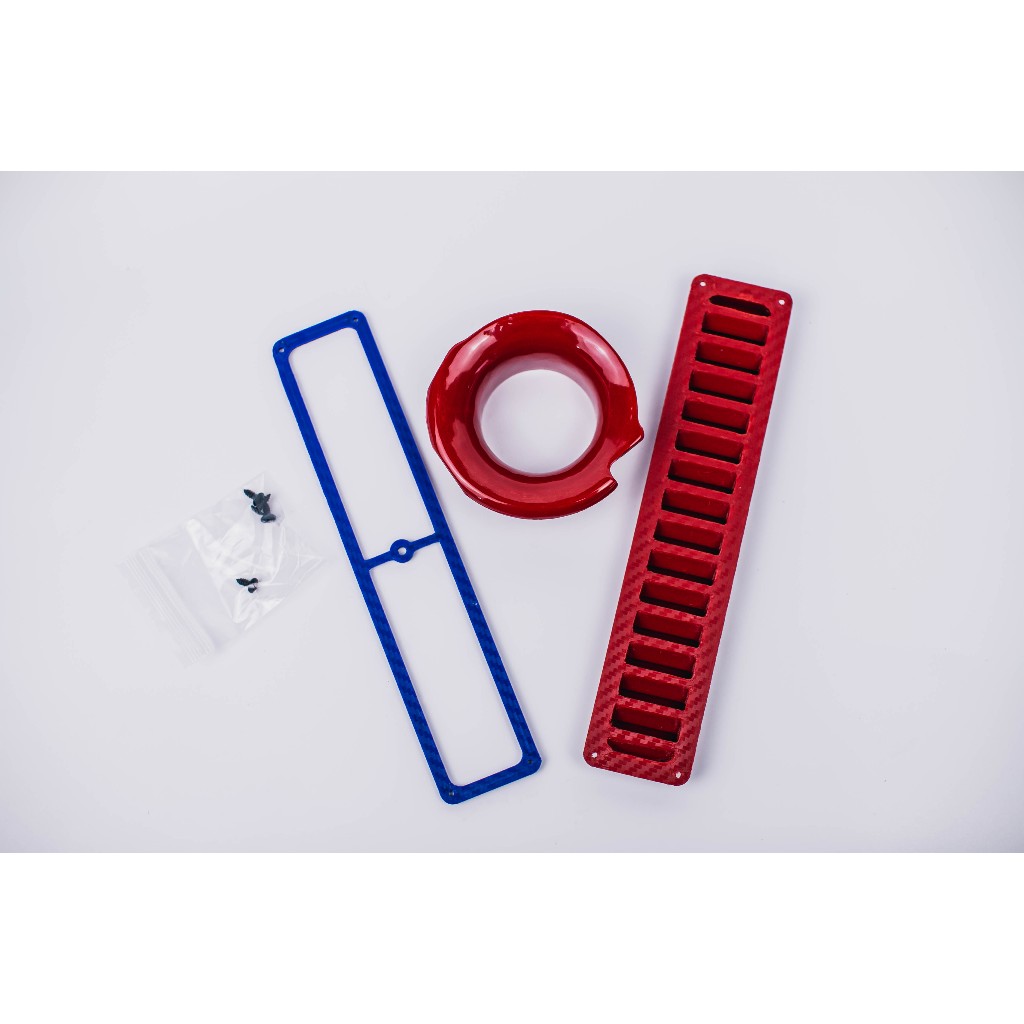

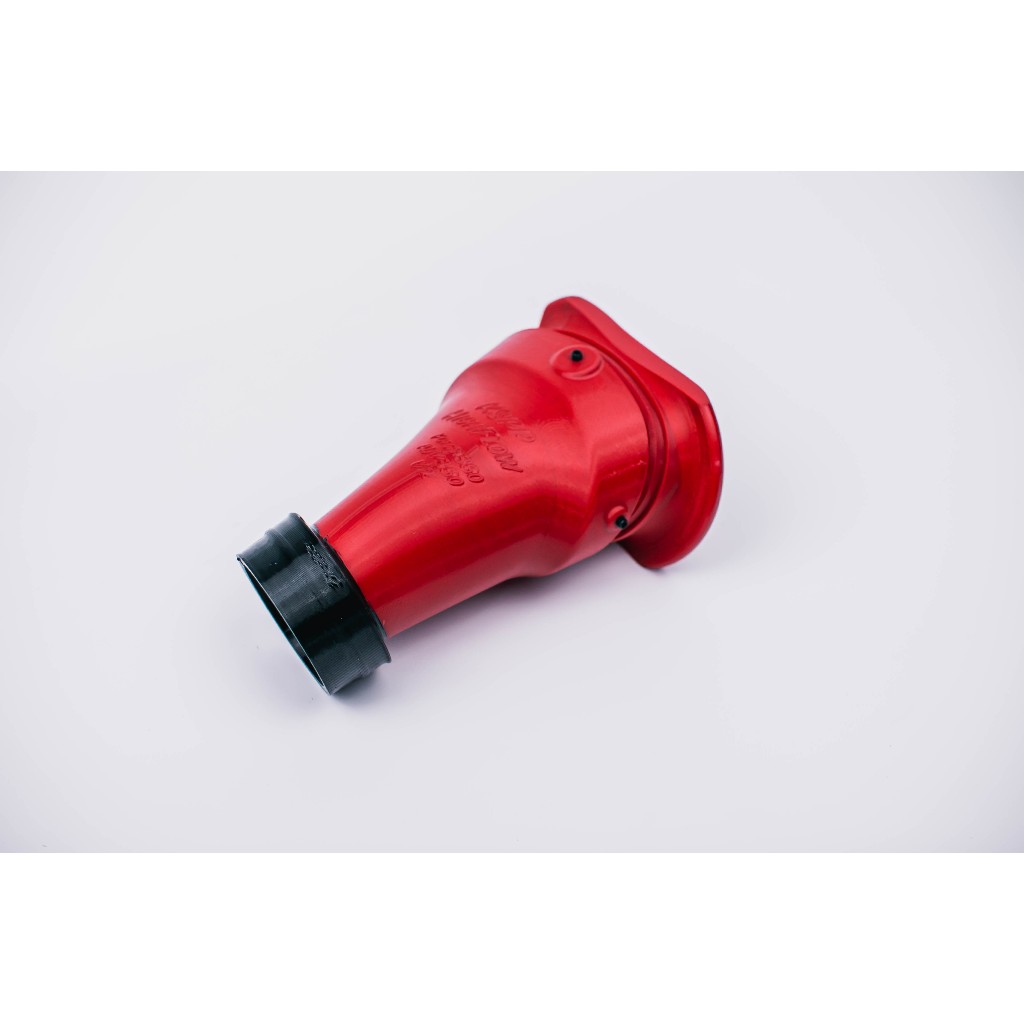

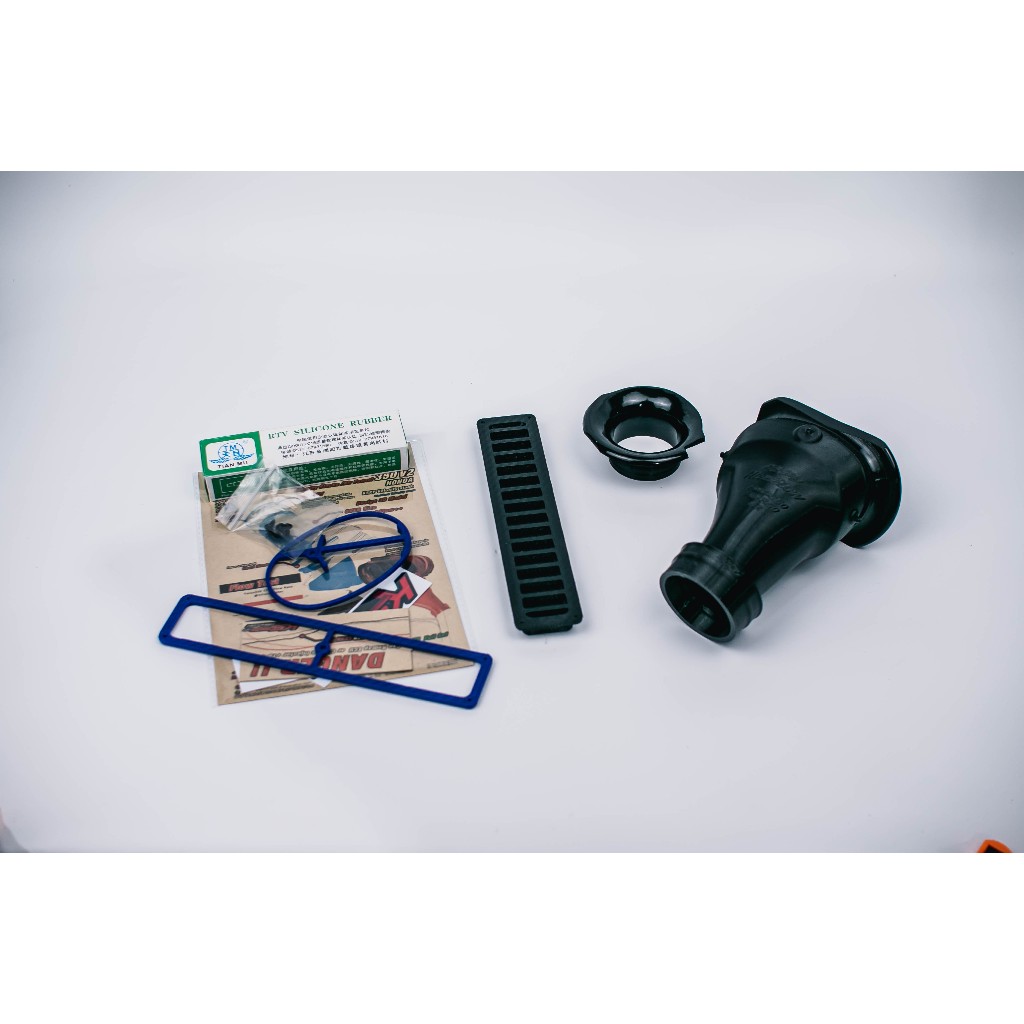

The FULL SET includes: - Filter housing set, available in two styles: V1 and V2. - Airbox cover set includes the inlet trumpet and air intake. Installation requires expanding the filter housing holes, requiring considerable installation expertise. To address this issue, customers can order the expanded filter housing set, which is already installed. Flow Test Results: Air Flow Rate Measurement at 25 inches of Water Flow - STD = 222 CFM - Stainless Steel = 209 CFM - KSPP V1 = 227 CFM - KSPP V2 = 229 CFM 👑 Horsepower Test Results on the Dyno Test MAXPOWER - STD = 24.5 HP - Stainless Steel = 24.2 HP - KSPP V1 = 24.7 HP - KSPP V2 = 24.7 HP 👑 Test Results Summary 1. Horsepower from the test - STD vs. stainless steel: The horsepower graph of the stainless steel coil will be lower from 0-110 km/h, but after that, the graph will rise more than the STD until the cutoff box. This results in better power flow in the lower rev range, but there will be a loss of power during the operating phase. - STD vs. KSPP V1: The KSPP's horsepower graph will rise more clearly from the throttle opening and reaching 106 km/h, but thereafter, the graph will rise more than the STD's. This results in better power flow in the lower rev range, but there will be no loss of power during the operating phase. - STD vs. KSPP V2: The KSPP's horsepower graph will be clearly lower from the throttle opening and reaching 110 km/h, the same as the stainless steel coil, but thereafter, the graph will rise more than the STD's. After 90 km/h, the graph will rise more than the stainless steel coil. The graph will rise more clearly than the KSPP V1 and stainless steel coil, resulting in the best power flow in the lower rev range, but there will be a loss of power during the operating phase. However, installing the FULL SET KSPP significantly reduces the loss of initial power, eliminating the need to worry about waiting for revs. For consideration: The KSPP V1 is suitable for daily and touring vehicles, using a leaner cam angle and weight for high revs. The KSPP V2 is suitable for vehicles requiring high power output. It can be set from an OPEN Cam to an 80 mm piston. **After installing the AFR, the fuel mixture will be leaner in the final rpm range. A remap or an additional 10-15 cc injector is recommended. For more information, please contact: 📄 Facebook: KSPP Design and Create Air Funnel with 3D Printer 📱 LINE: kaewsooka 📞 Call: 087-467-4594 https://www.kaewsookfactory.com/ #KSPP #velocitystack #Airfunnel #Forza350 #Avd350 #Forza350AirFilter #Avd350AirFilter
