FNIRSI Diode Triode Capacitance Resistance Transistor Tester LCR-P1

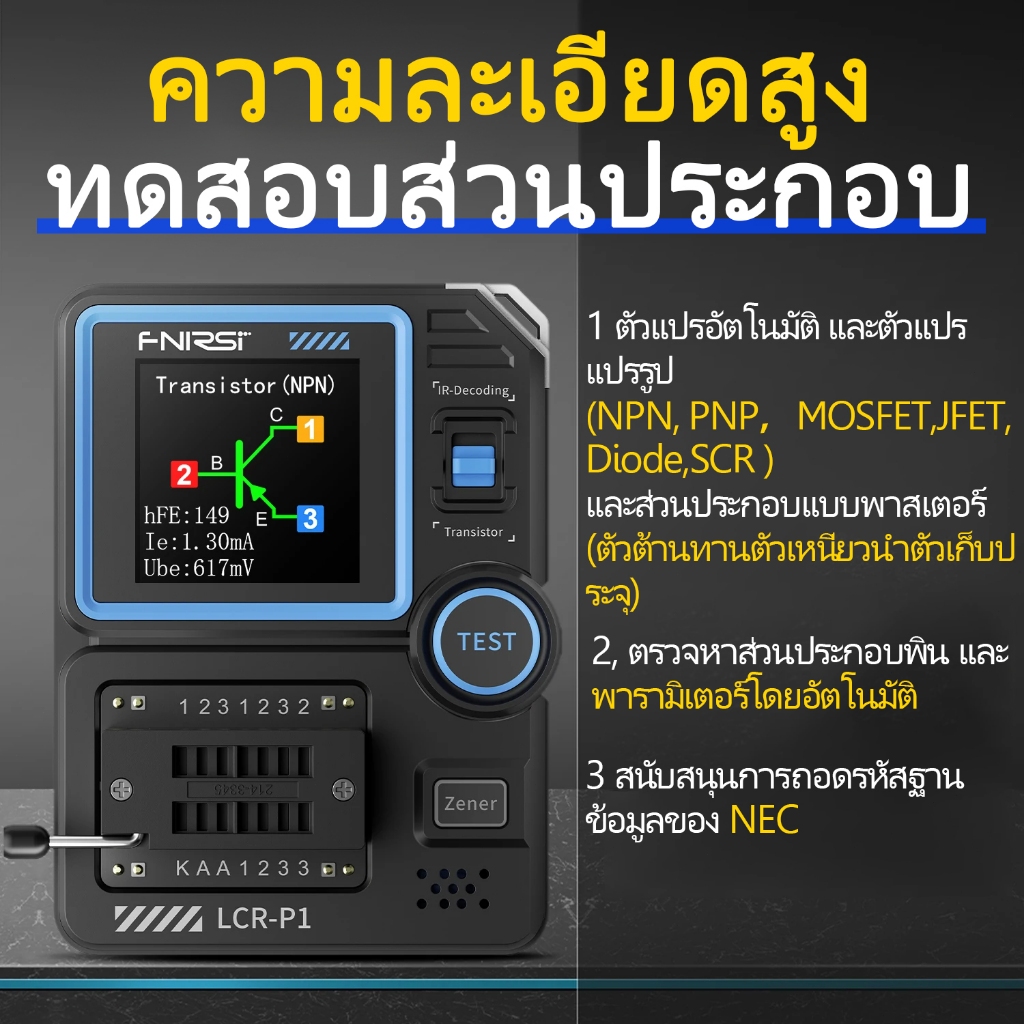

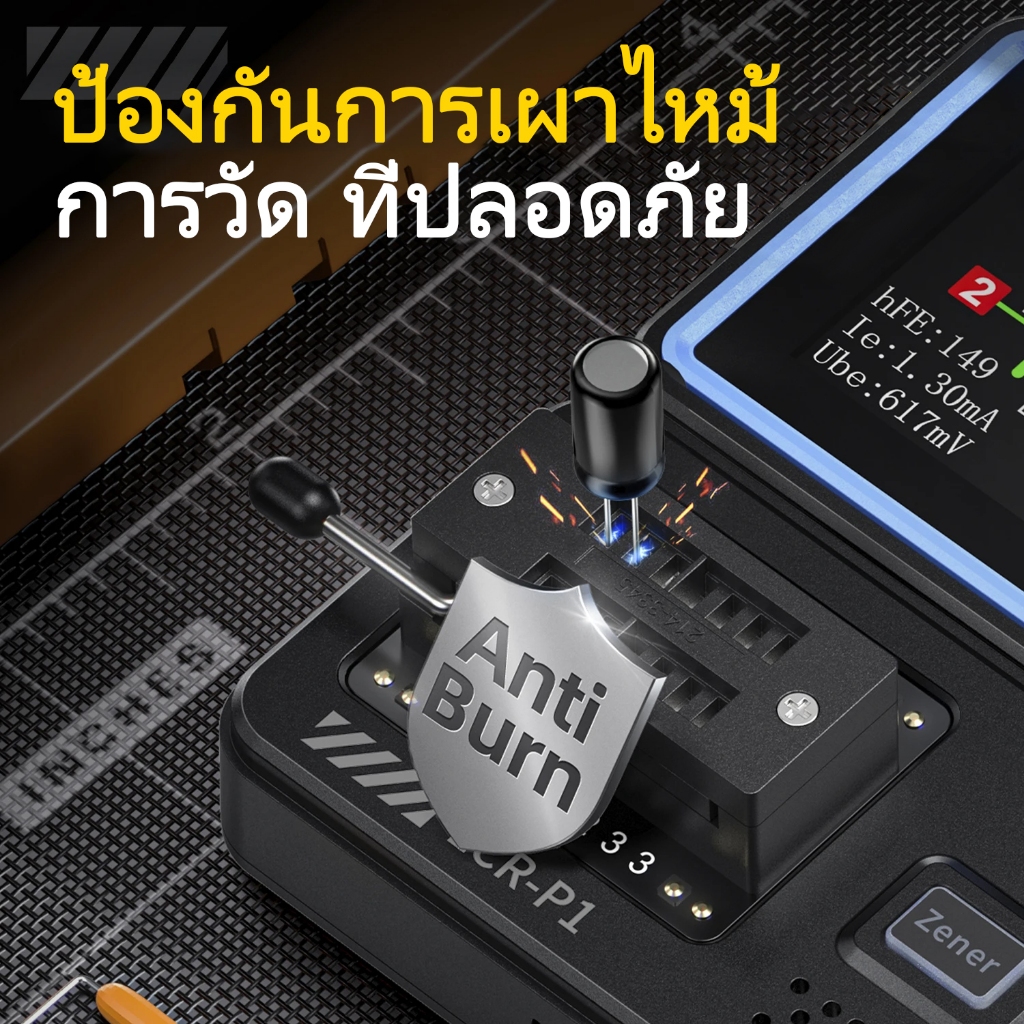

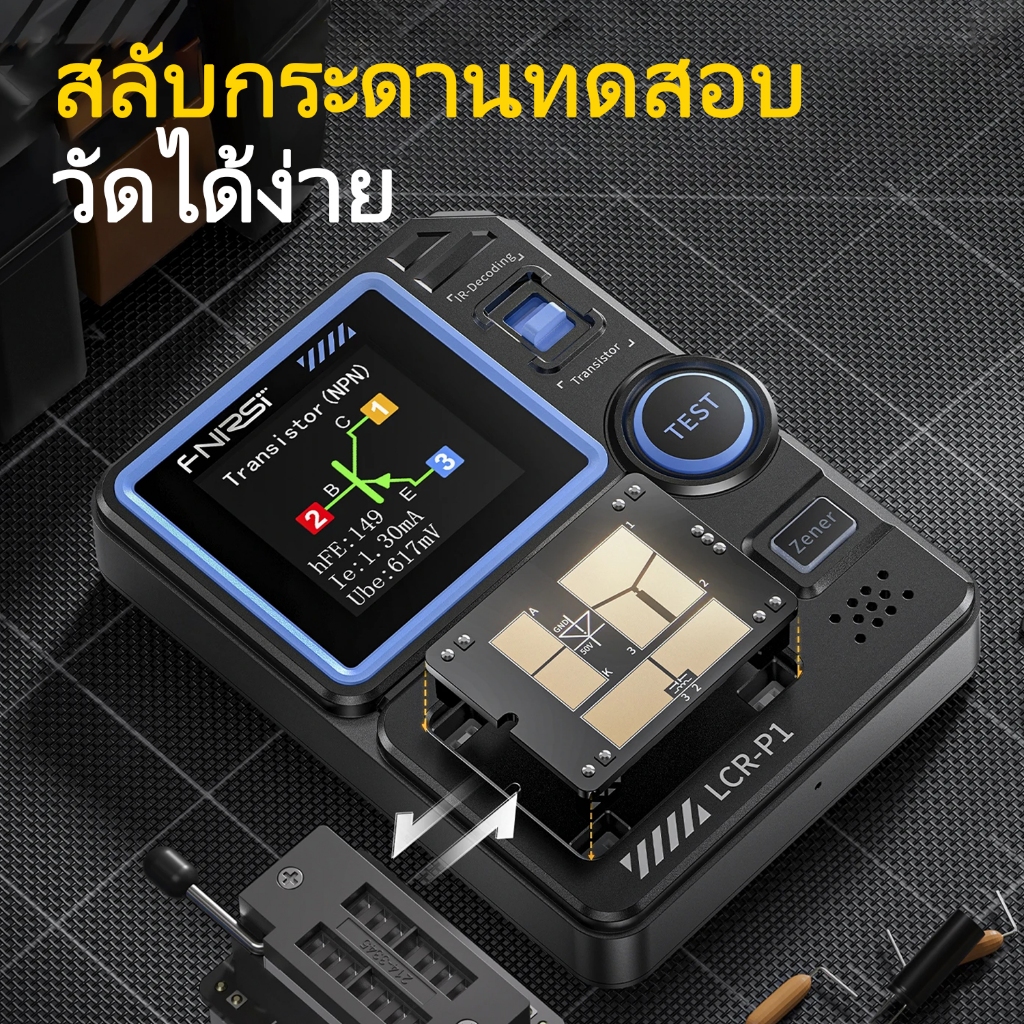

Product Description：The LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and enthusiasts.This device is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs).Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency. Key Features: 1. Intelligent anti-burning design: Uncharged capacitors automatically discharge upon insertion, with a user-friendly protection mechanism to prevent damage. 2. Data export: Supports connecting to a computer to export data, easily transferring the collected measurement data to facilitate further in-depth analysis on the computer. 3. Alternate Measuring Modes: Innovatively incorporates replaceable test boards, easily tackling diverse test needs for unprecedented convenience and efficiency. 4. Intelligent Recognition Components：Simply Plug & Clamp, One-Button Quick Identification of Component Parameters, Saving Time and Effort. 5. Zener diode independent measurement: Independent measurement channel for measure diodes, measuring 0.01-32V with pre-measurement Product Parameters： 1．Product Model：LCR-P1 2．Screen Display：1.44 Inch Color Screen 3．Charging Specification: USB Type-C, 5V/1A 4．Power supply: 300mAh lithium battery 5．Operating Temperature：0~40℃ 6．Resistance: 0.01Ω-50MΩ 7．Capacitance: 25pF~100mF 8．Inductance: 10uH-1000uH 9．Transistor: 10＜β＜600 10．Diode: Forward voltage drop＜4.5V 11．Voltage Regulator Diode: 0.01-4.5V, 0.01-32V 12．Field-Effect Transistor: JFET, IGBT, MOSFET 13．One-way/Bidirectional thyristor: Turn-on voltage < 5V, gate trigger current < 6mA 14．Battery: 0.1-4.5V 15．IR remote decoding: NEC protocol infrared code 16．Battery Capacity: 300mAh lithium battery 17．Anti-burn protection: yes 18．Data Export: supported 19．Firmware upgrade: supported Packing list： 1. LCR-P1 host 2. Replaceable test board 3. USB data cable 4. User manual 5. Packing box 6. Test hook*3
