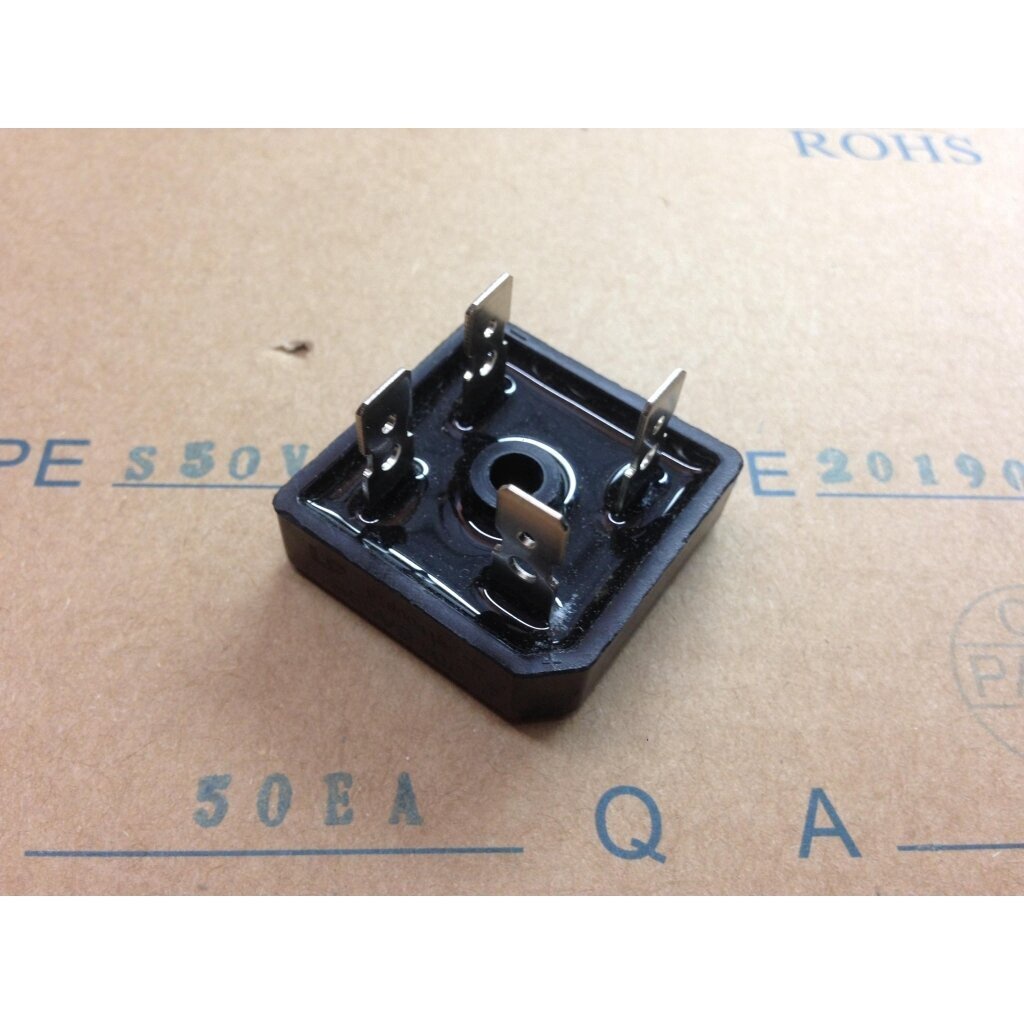

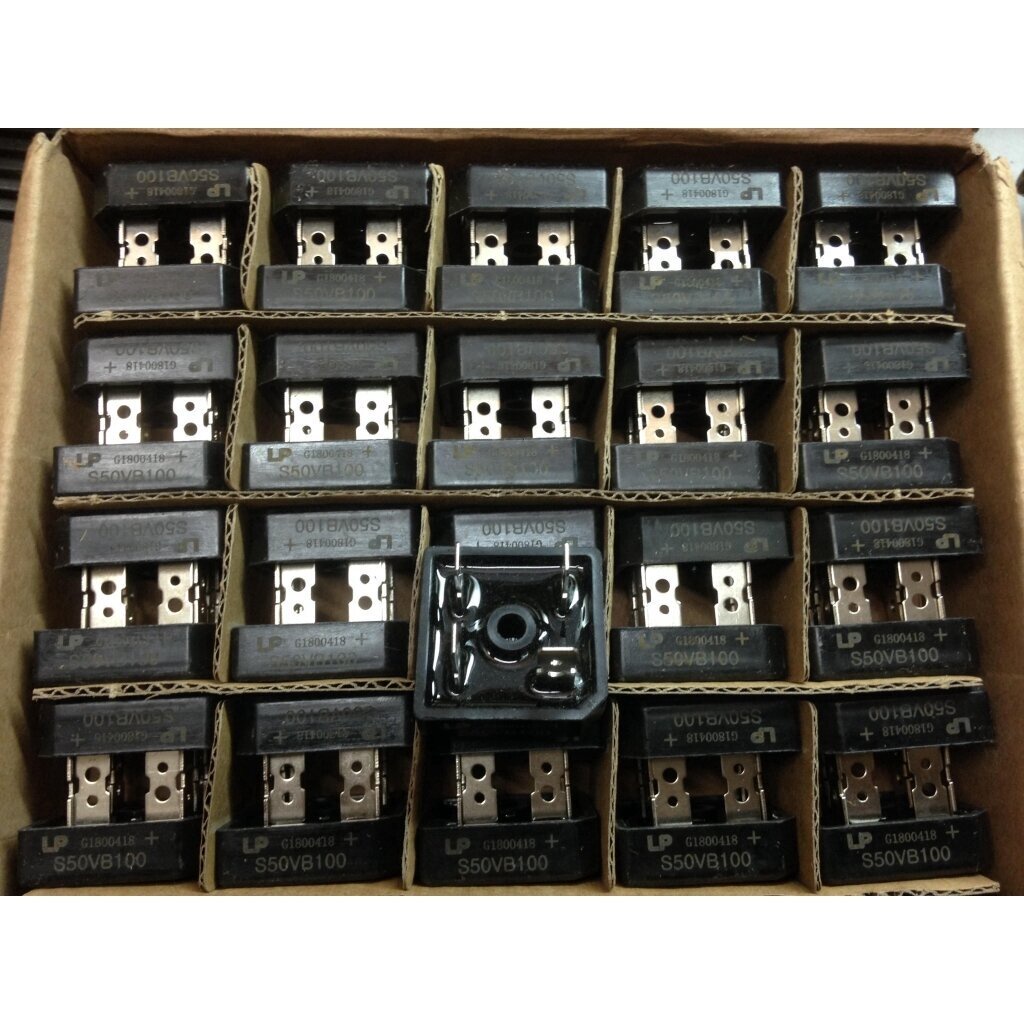

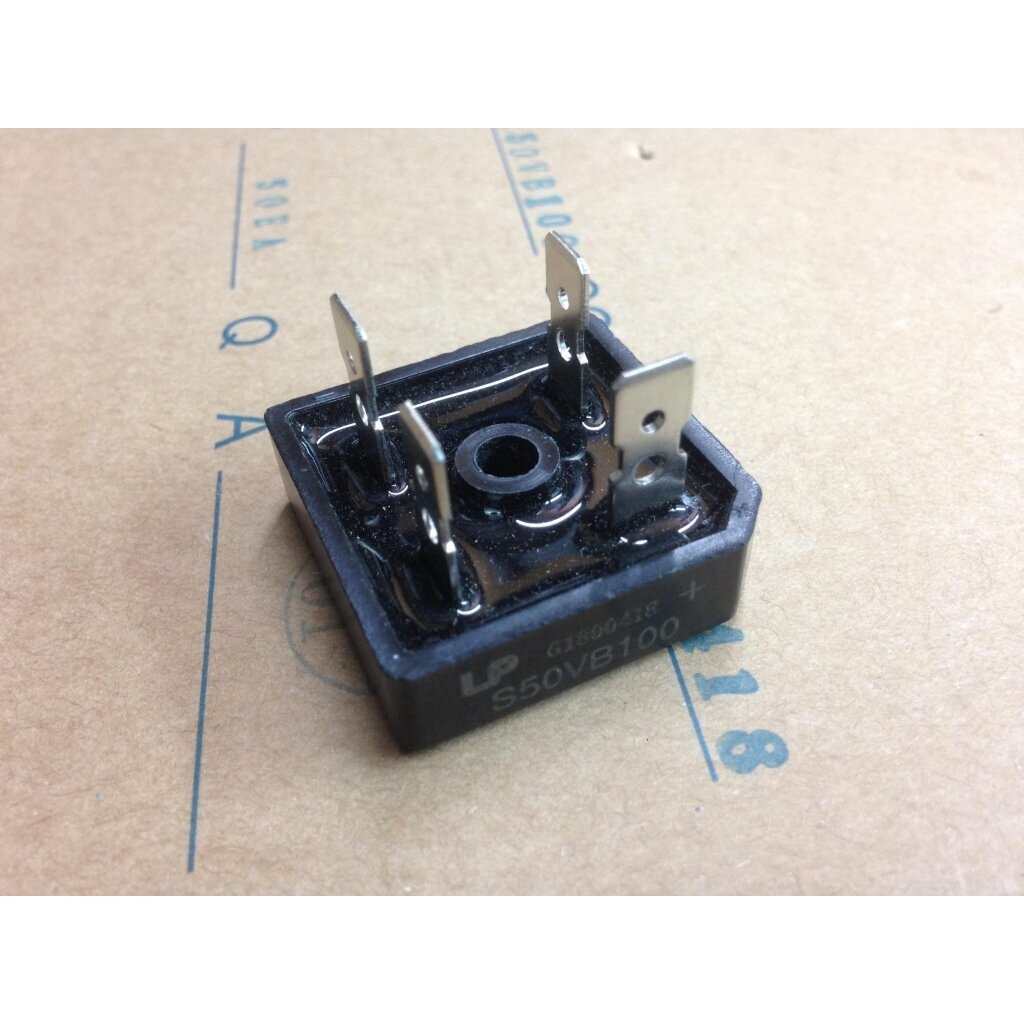

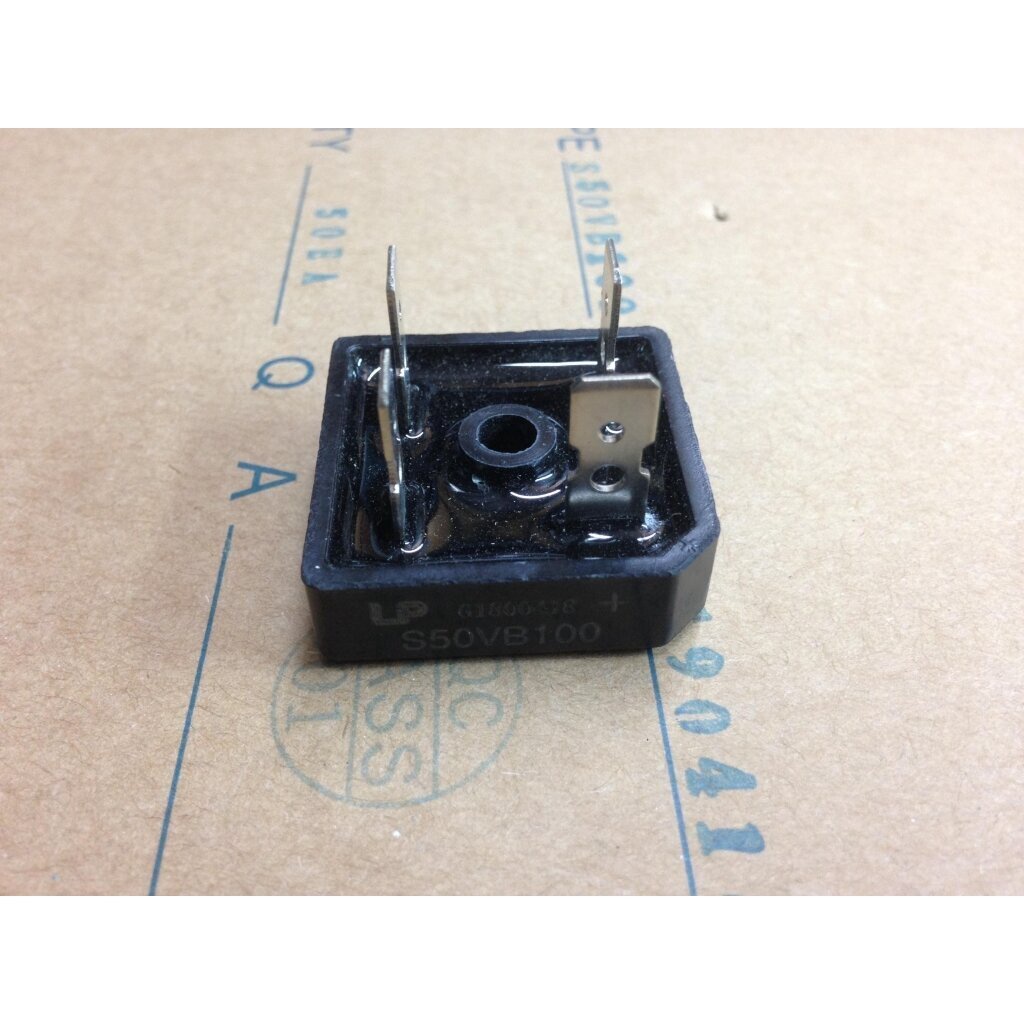

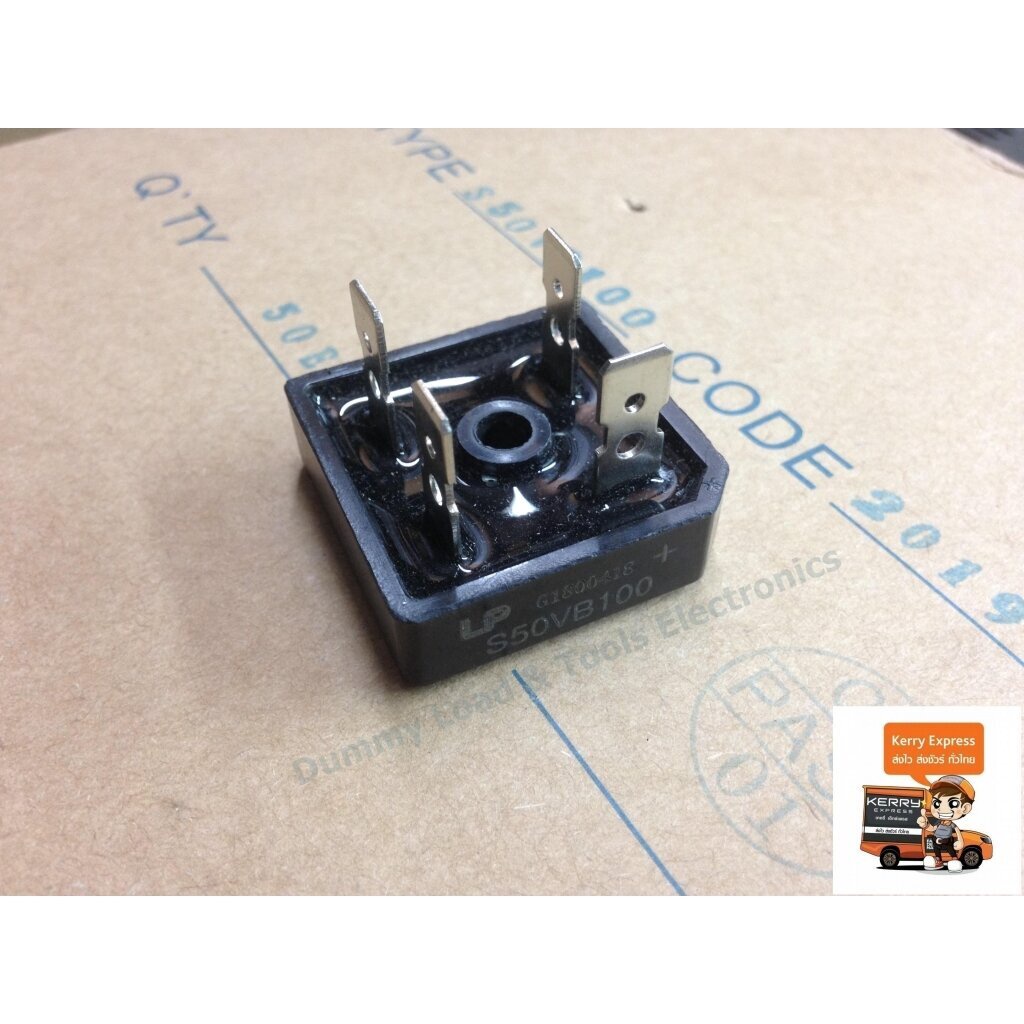

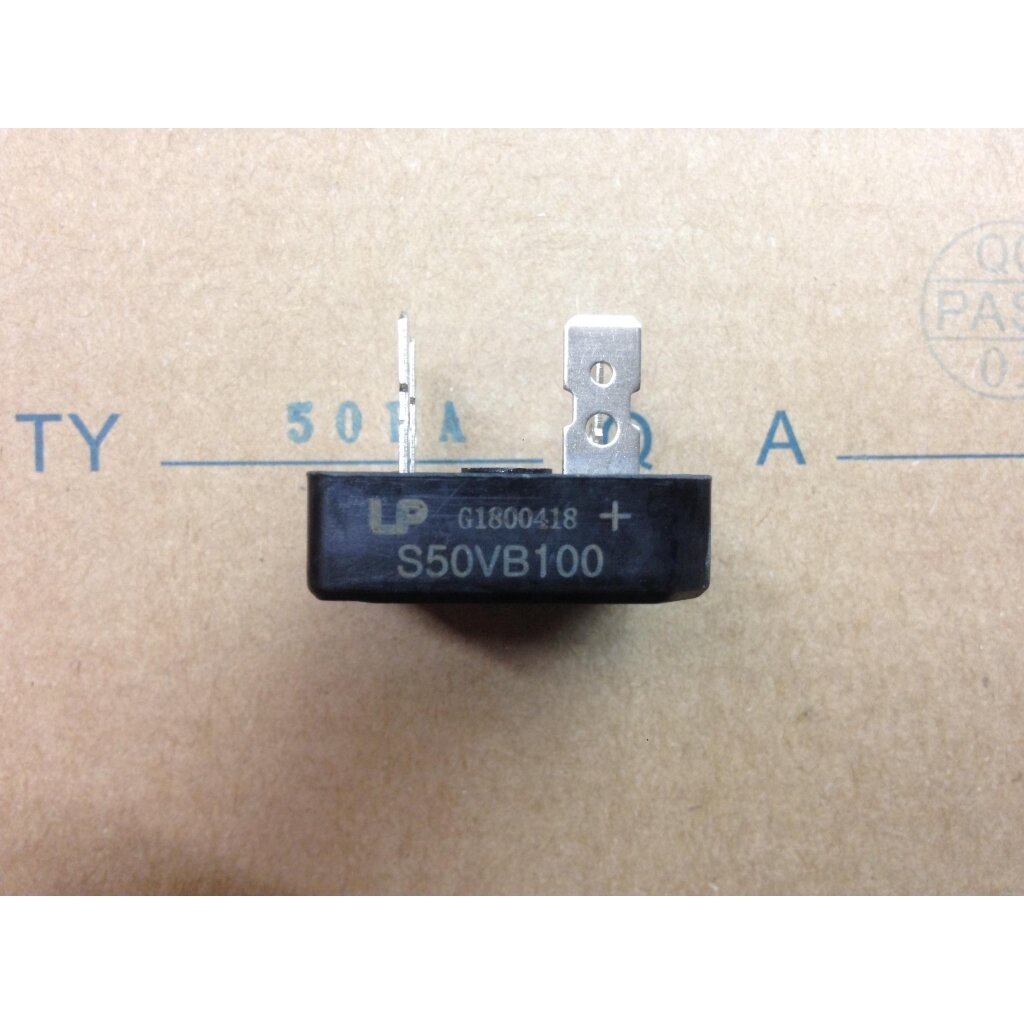

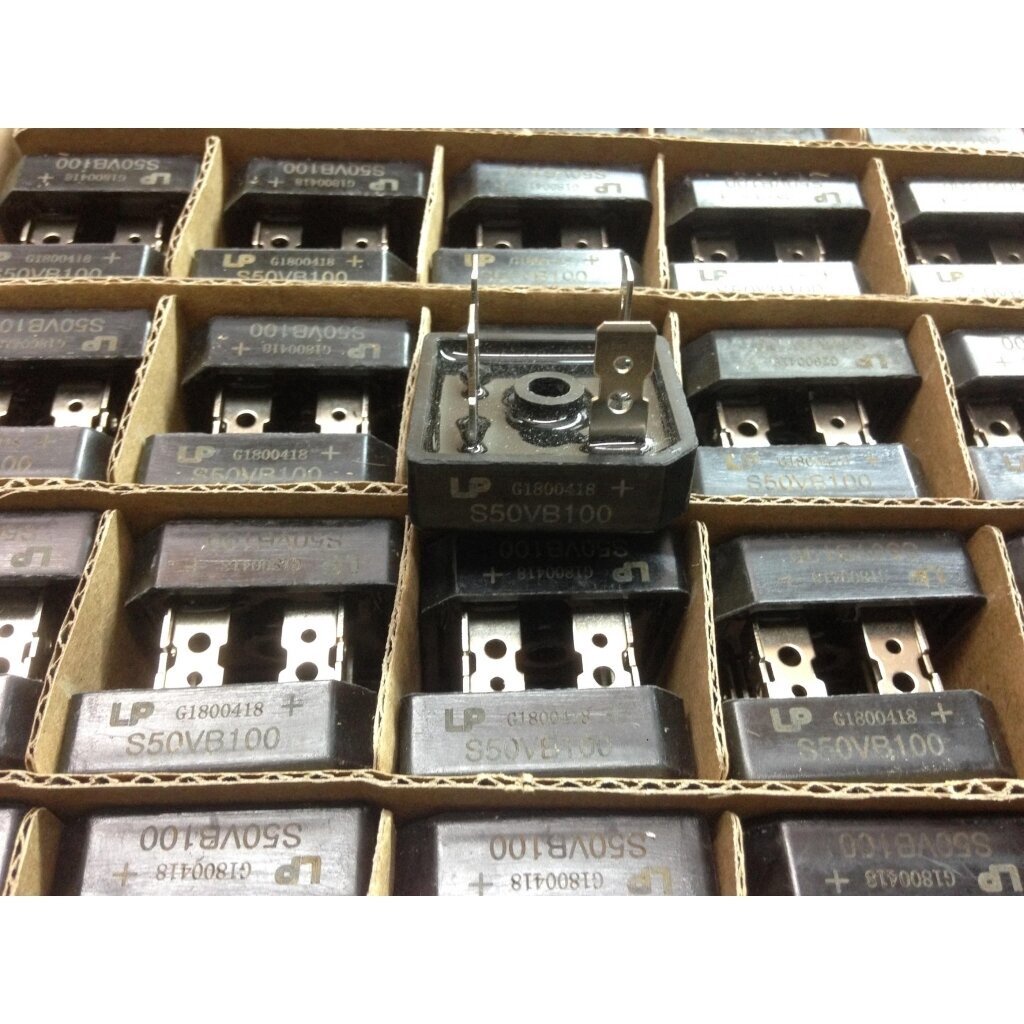

S50VB100 บริดจ์ไดโอด 50A 1000V Bridge Rectifier ไดโอดเรกติไฟร์ 50แอมป์ 1000โวลต์

S50VB100 (1pcs) บริดจ์ ไดโอด คุณภาพสูง 50แอมป์ 1000โวลต์ S50VB100 50A1000Volt SINGLE-PHASE BRIDGE RECTIFIER GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 50 Ampere FEATURES: Rating to 1000V PRV High efficiency Glass passivated chip junction Electrically isolated metal case for maximum heat Dissipation The plastic material has UL flammability classification 94V-0 Electrically isolated base-2500 Vlots MECHANICAL DATA: Case : Molded plastic with Heatsink internally mounted in the bridge encapsulation Polarity : As marked on Body Mounting : Hole for # 10 screw Weight : 0.70 ounces , 20 grams (terminal)
