ART ZDirect Passive Direct Box กล่องไดเร็คบ็อกซ์แบบพาสซีฟ เสียงคมชัด ลดเสียงรบกวน

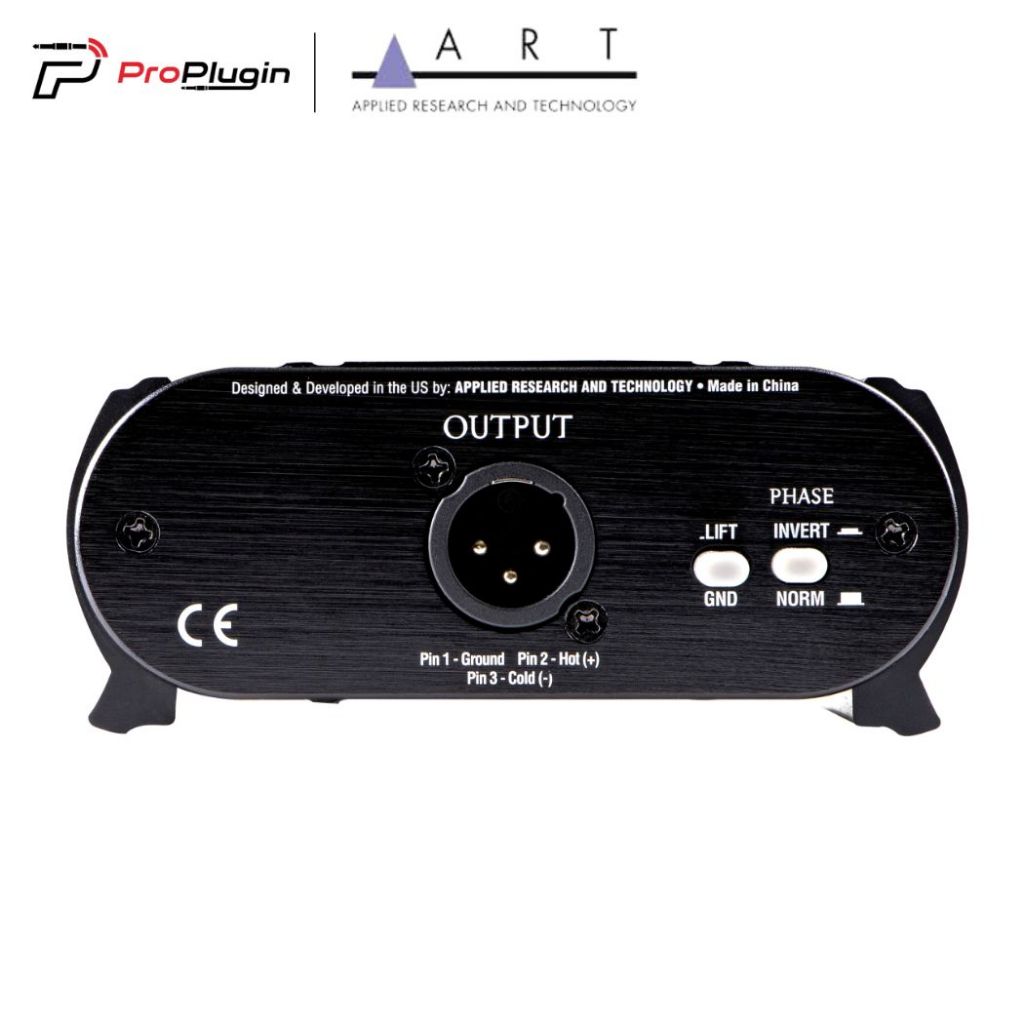

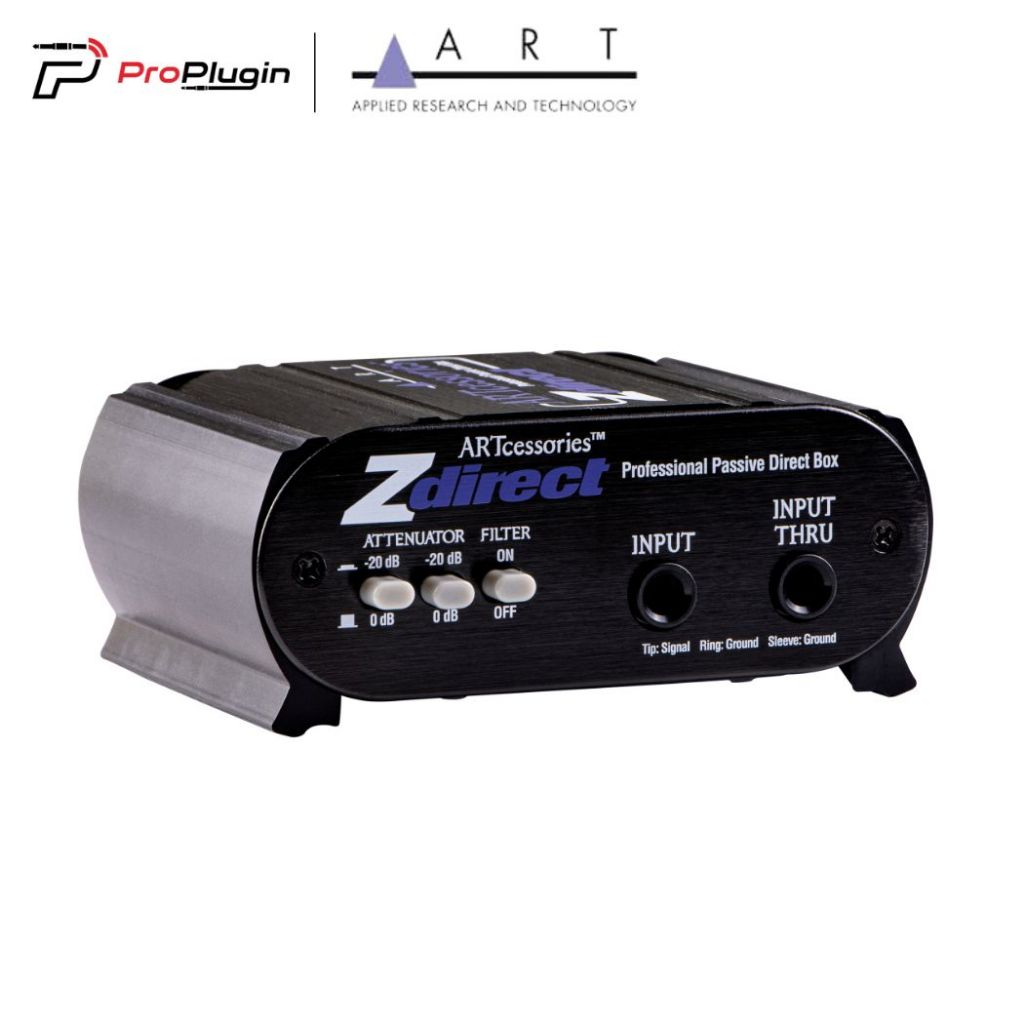

ZDirect Passive Direct Box The ZDirect is a passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs. The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage. Simple and durable, the ZDirect is a compact DI in a rugged aluminum enclosure with a versatile feature set. Front panel switches engage up to 40 dB of attenuation to accommodate high-level signals, and a low-pass Bessel filter to eliminate high-frequency interference. Rear switches activate a ground lift to reduce hum and invert the signal polarity to resolve phase issues, such as those which can occur when combining DI and mic sources. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps, and don’t require an external power source. Need stereo inputs? Check out the DualZDirect. Features -1/4" TRS Input and Thru Connector -Balanced XLR Output -Switchable Attenuation (0 dB, -20 dB, -40 dB) per Channel -Switchable Low-Pass Filter, Ground Lift, and Phase Invert -Passive Design - No Power Required Specifications Active or Passive: Passive Inputs: 1x 1/4" TRS Outputs: 1x XLR, 1x 1/4" TRS Thru Input Impedance: 50 kΩ Output Impedance: 600Ω Controls: Attenuator (0 dB, -20 dB, -40 dB), Filter, Ground Lift, Phase Invert Filter: 30 kHz Low-Pass Frequency Response: 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu Total Harmonic Distortion: 0.01% Typical @ 1kHz, +18 dBu Dimensions (HWD): 1.75" x 4.2" x 3.5" / 4.45 cm x 10.7 cm x 8.9 cm Weight: 0.75 lbs / 340 g
