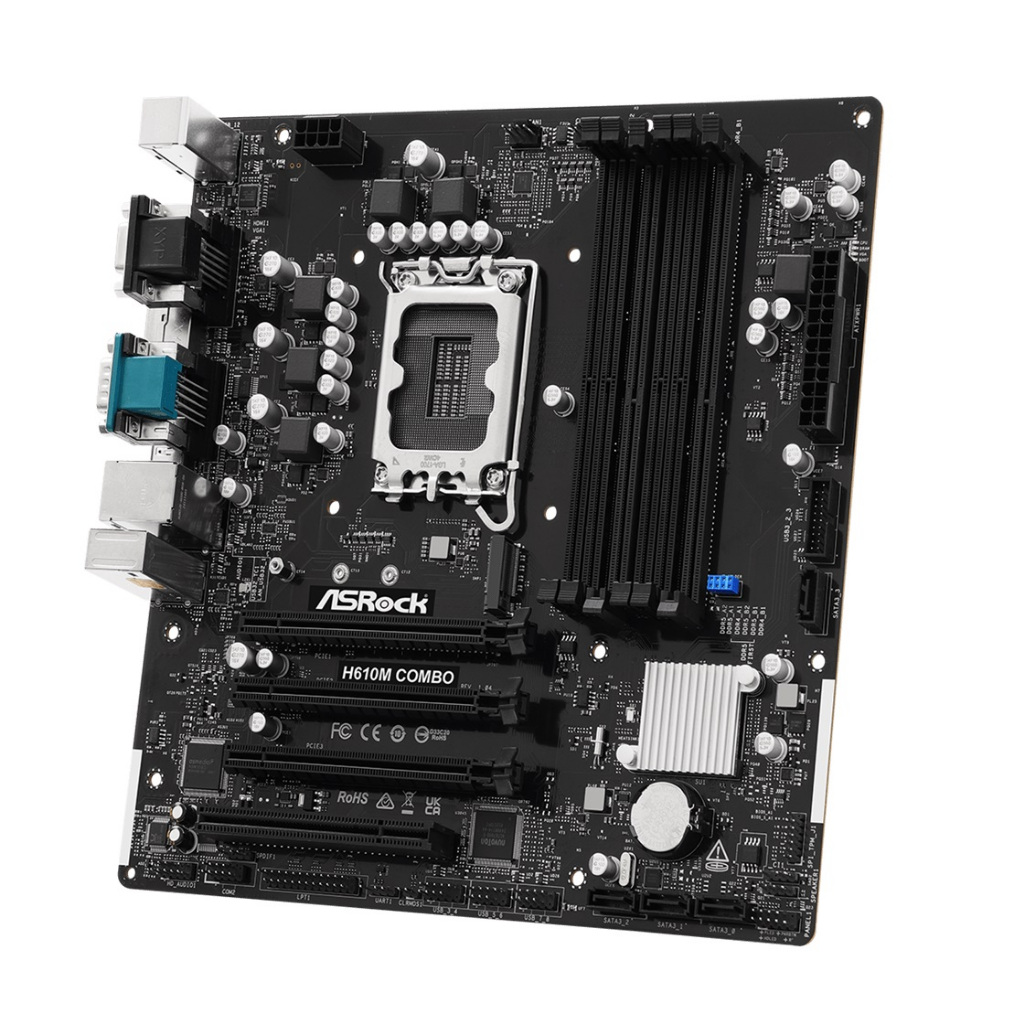

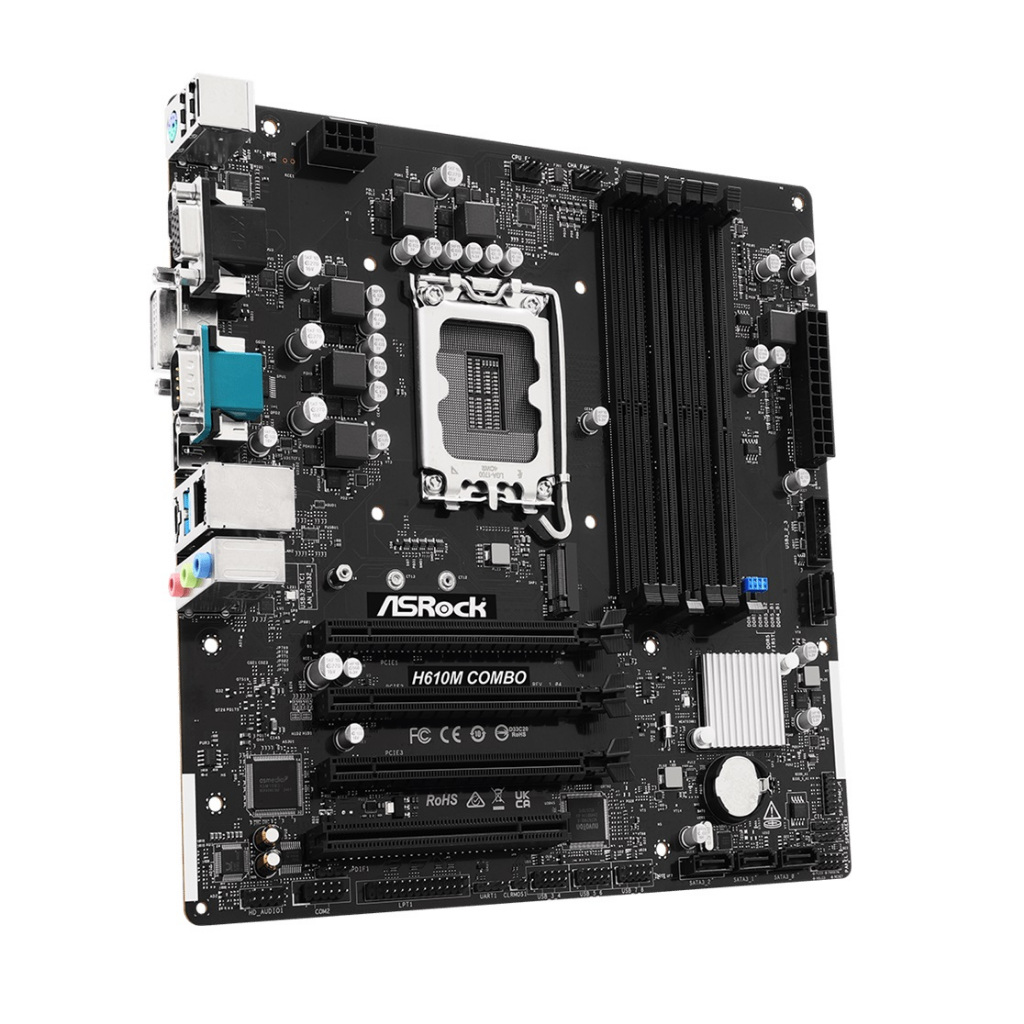

ASRock H610M COMBO 2xDDR4/4xDDR5 Intel LGA1700 Motherboard เมนบอร์ด ไม่มีกล่อง Bulkpack

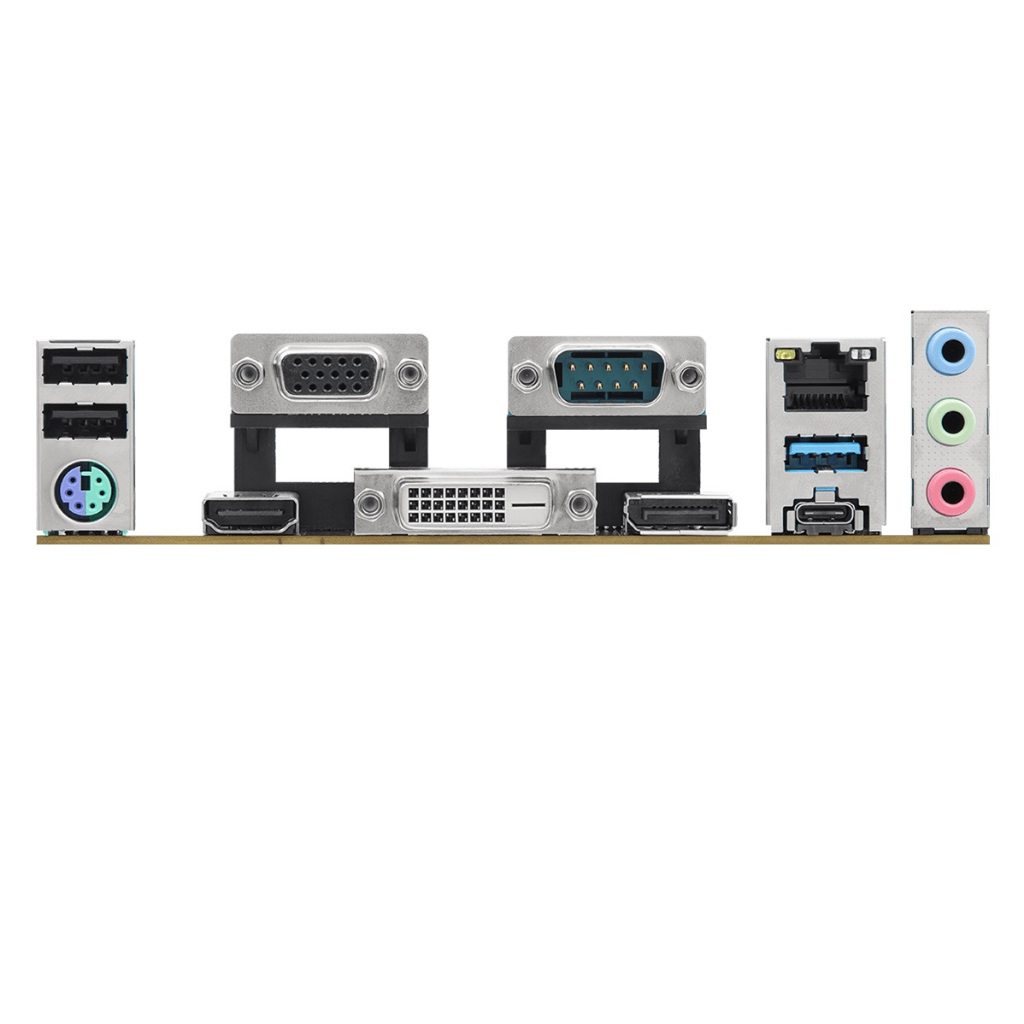

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 3+1 Power Phase 4 x DDR5 DIMMs Up to 4800MHz / 2 x DDR4 DIMMs Up to 2666MHz Supports Dual Channel 1 PCIe 4.0 x16, 2 PCIe 3.0 x16, 1 PCI Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 DVI-D, 1 D-Sub, 1 eDP Realtek ALC897 7.1 CH HD Audio Codec 1 Ultra M.2 (PCIe Gen3x4 & SATA3) 4 SATA3 2 USB 3.2 Gen2 (1 Rear, 1 Rear Type-C) 2 USB 3.2 Gen1 (Front), 8 USB 2.0 (2 Rear, 6 Front) Realtek Gigabit LAN CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology Chipset - Intel® H610 Memory 4 x DDR5 DIMM Slots: Up to 4800MHz - Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC* - Max. capacity of system memory: 96GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 2 x DDR4 DIMM Slots: Up to 2666MHz - Dual Channel DDR4 Memory Technology - Supports DDR4 non-ECC* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB* - Supports Intel® Extreme Memory Profile (XMP) 2.0 * 1DPC 1R Up to 4800 MHz Natively. 2DPC 1R Up to 3800 MHz Natively. 2R Up to 3600 MHz Natively. Actual support may vary by CPU Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with GUI support Graphics - Intel® Xe Graphics Architecture (Gen 12) - Five graphics output options: eDP 1.4, D-Sub, DVI-D, HDMI and DisplayPort 1.4 - 1 x eDP 1.4, supports max. resolution up to Full HD (1920x1080) 60Hz - 1 x HDMI 1.4 TMDS Compatible, supports HDCP 1.4 and max. resolution up to 4K 30Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz - 1 x DVI-D, supports max. resolution up to Full HD (1920x1200) 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x1 mode* - 1 x PCI Slot * Supports NVMe SSD as boot disks Storage Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors** * Supports NVMe SSD as boot disks ** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. USB Chipset: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 2 x USB 3.2 Gen1 Type-A (Front) - 8 x USB 2.0 (2 Rear, 6 Front) * All USB ports support ESD Protection Connector - 1 x eDP Signal Connector - 1 x Print Port Header - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion Header - 1 x Chassis Speaker Header - 1 x SPDIF Out Connector - 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Jumper Holder Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
