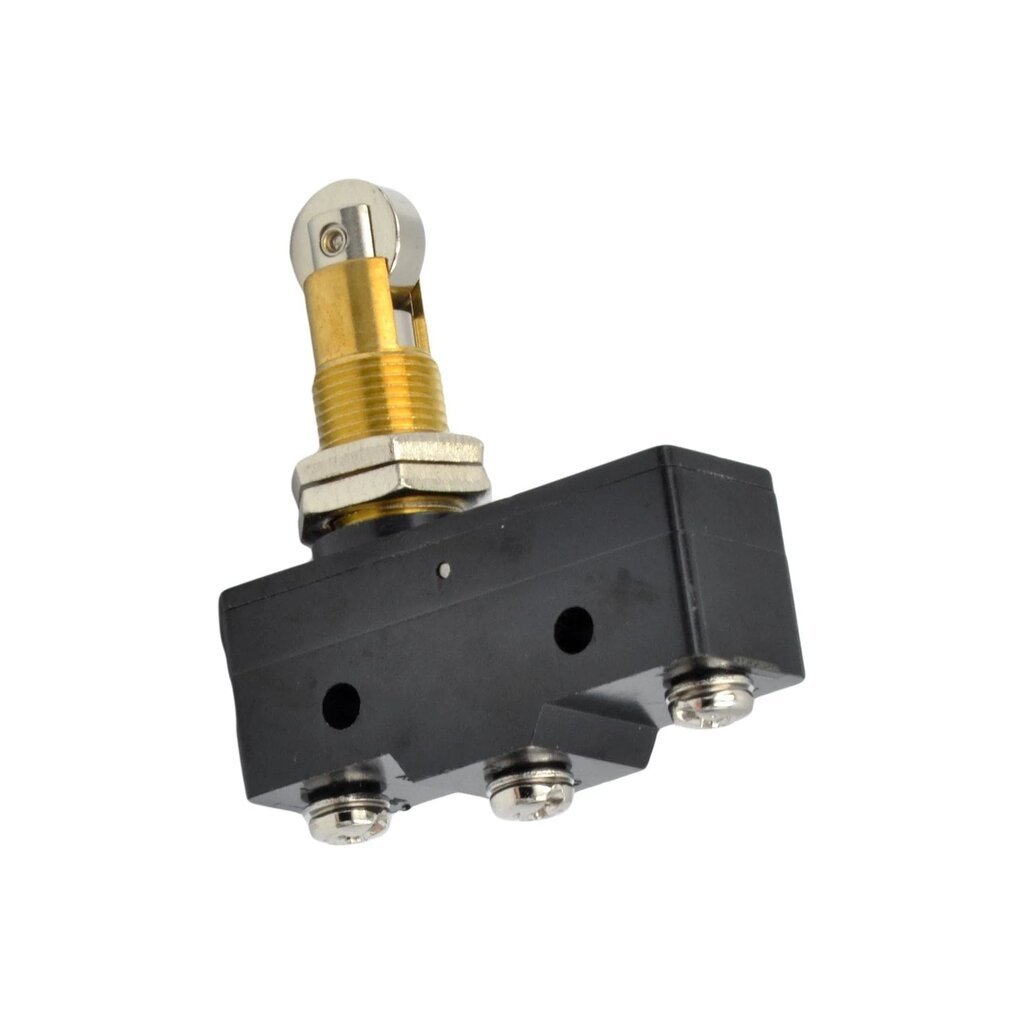

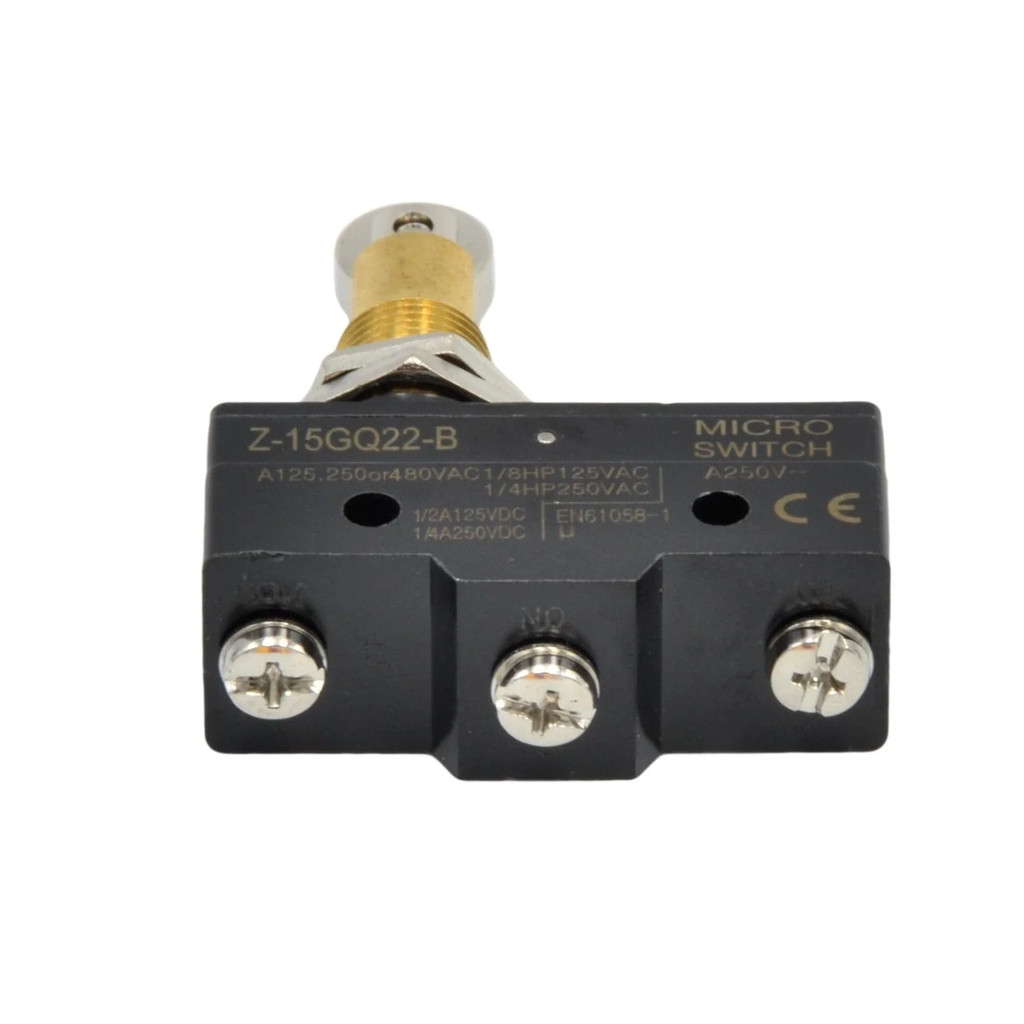

Z-15GQ22-B Micro Limit Switch ลิมิตสวิทซ์ ไมโครลิมิตสวิทช์ Roller Plunger

Z-15GQ22-B Micro Limit Switch ลิมิตสวิทซ์ ไมโครลิมิตสวิทช์ Roller Plunger ลิมิตสวิตช์ LIMIT SWITCH Z-15GQ22-B Z-15GQ22-B Features: - Application: industrial Incubator, electrical equipment, motor switch. - 3 screw terminal, long straight hinge lever. - Applicable to both AC control circuits and DC control circuits. - Designed to control the movement of a mechanical part. - Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. Z-15GQ22-B Specification: Model number Z-15GQ22-B Contact form 1NO+1NC Action method Reset Rated voltage (Ue) 380VAC, 220VDC Rated thermal current (Ith) 10A Contact resistance 30m max (initial value) Insulation resistance 100M min at 500Vdc Dielectric strength 1000Vac, 50/60 Hz for 1 min between terminals of the same polarity 2000Vac, 50/60 Hz for 1 min between current-carrying metal part and ground 2000Vac, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part Machine life 20x106 operations min Electrical Life 5x105 operations min IP Rating IP62 Operating temperature -25-80 ℃ Operating humidity 35 to 85% RH, no condensation
