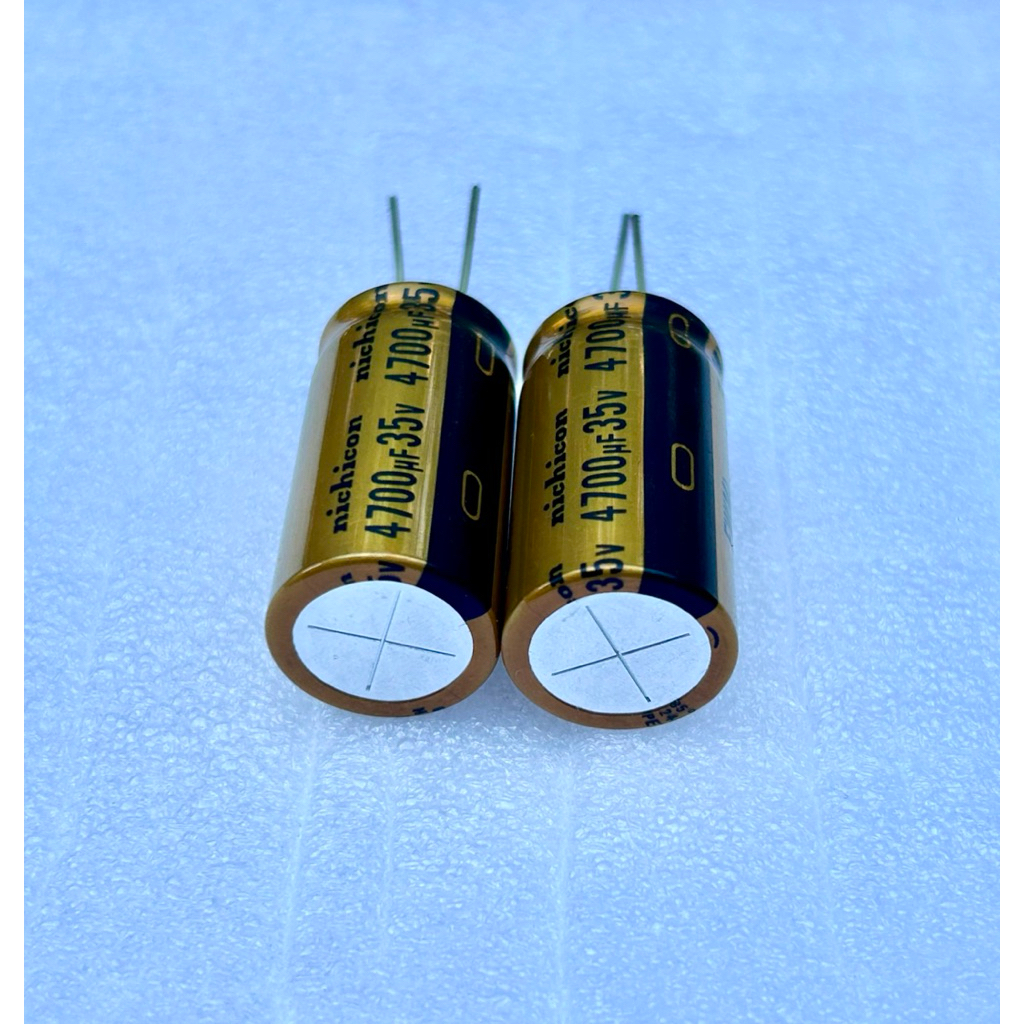

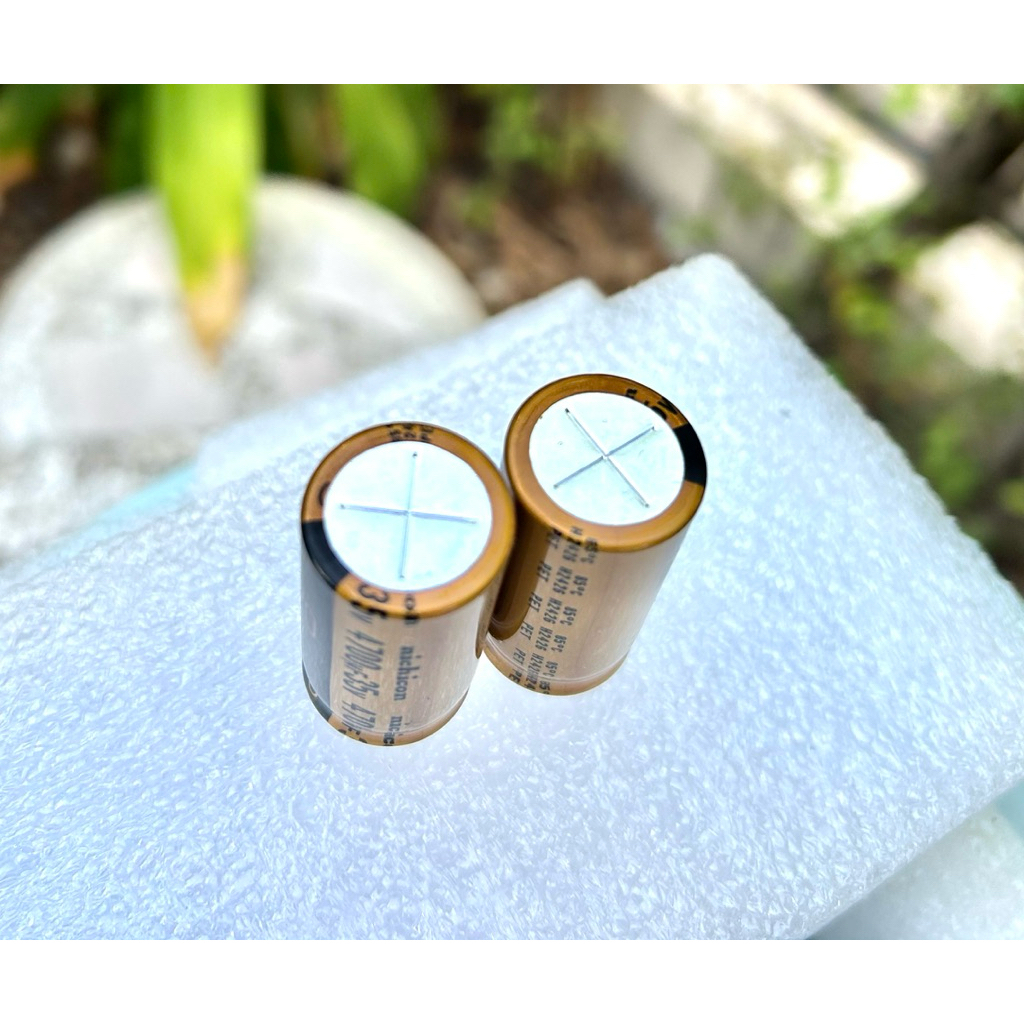

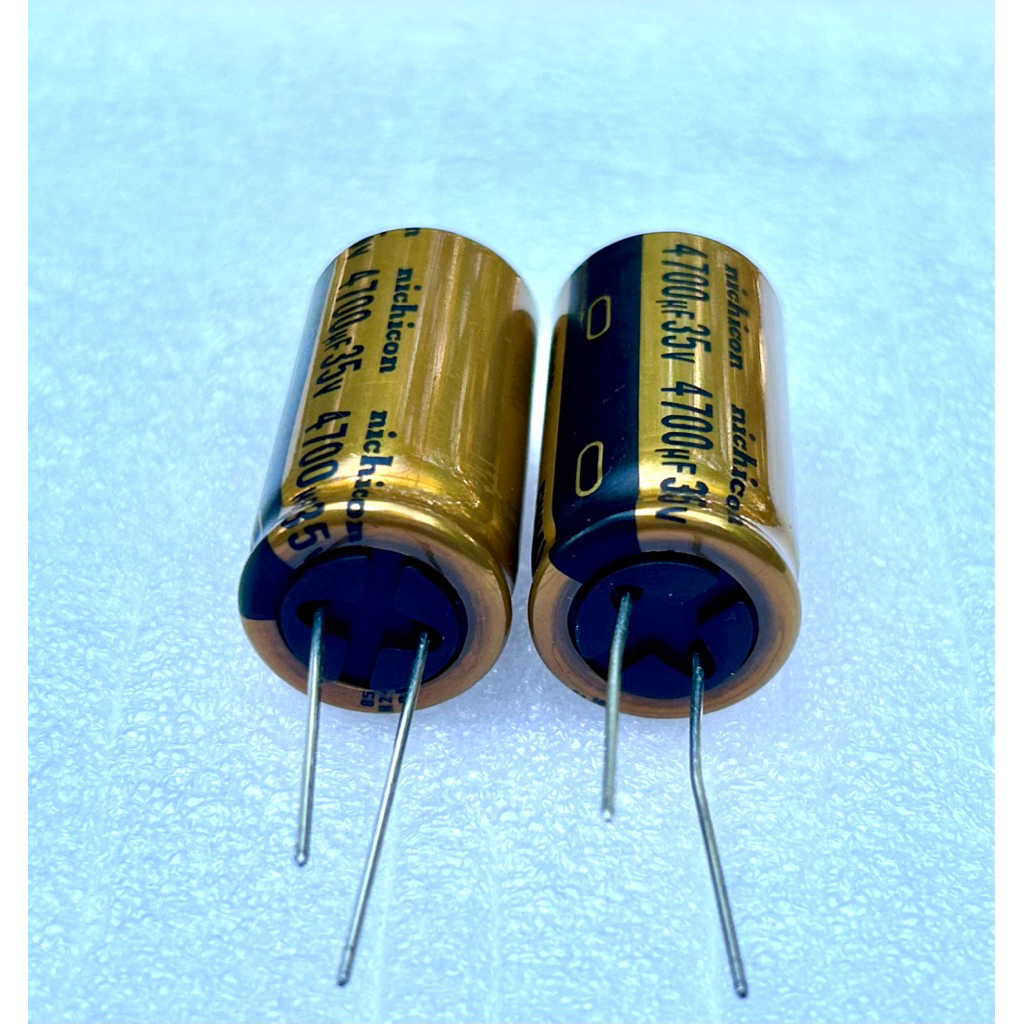

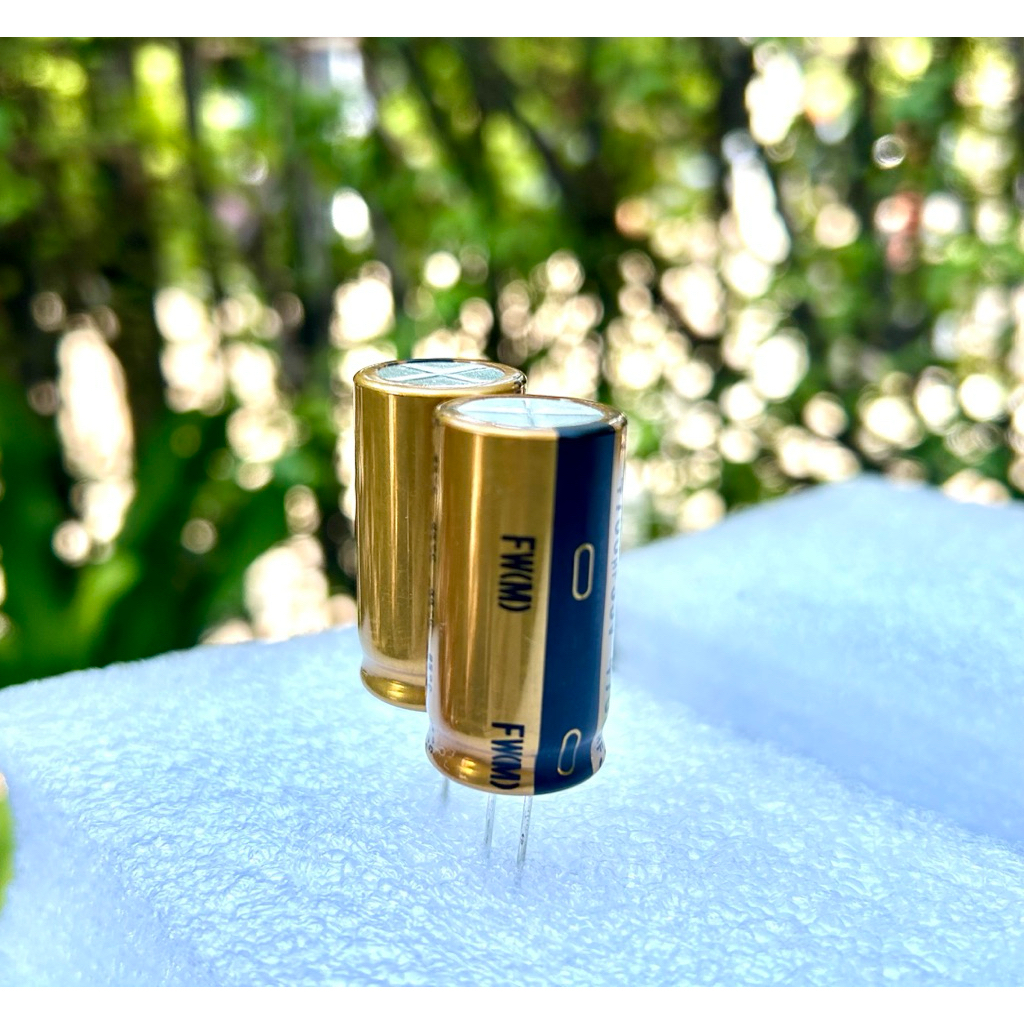

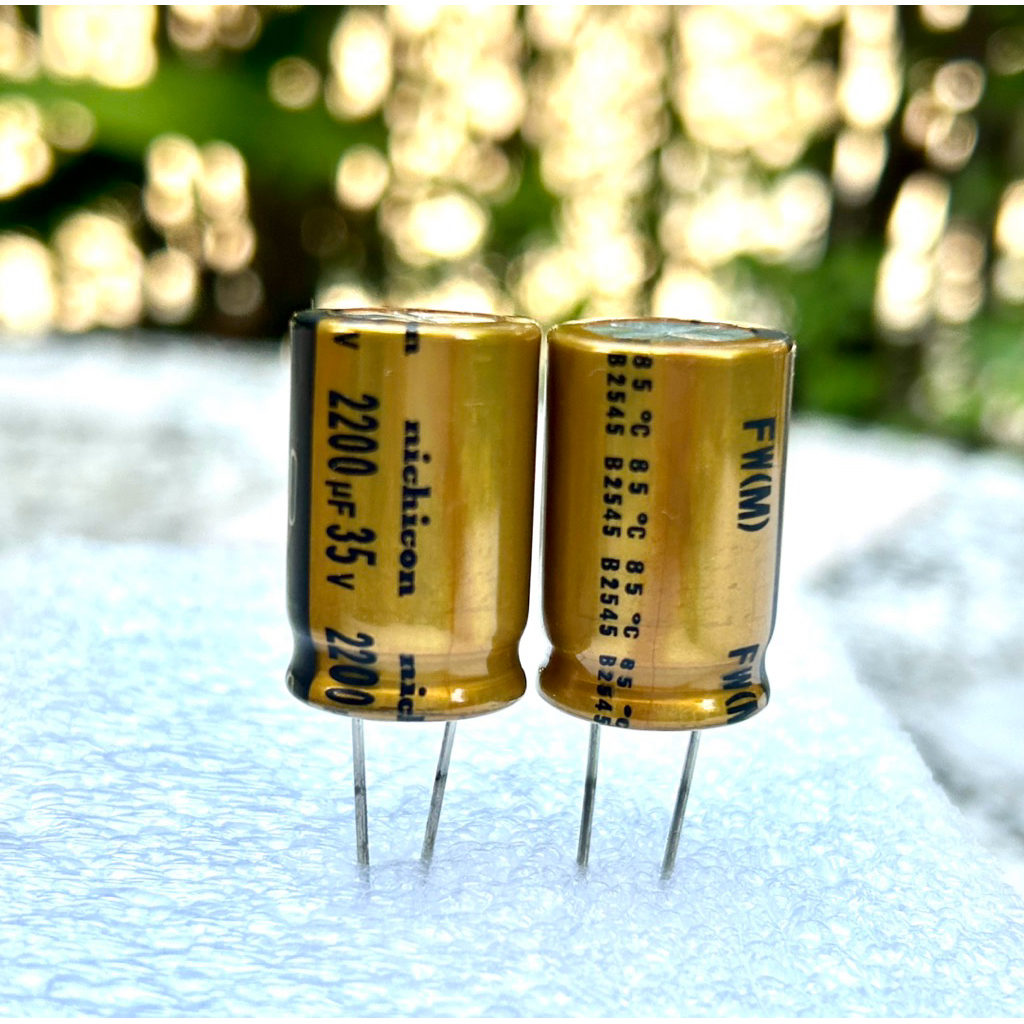

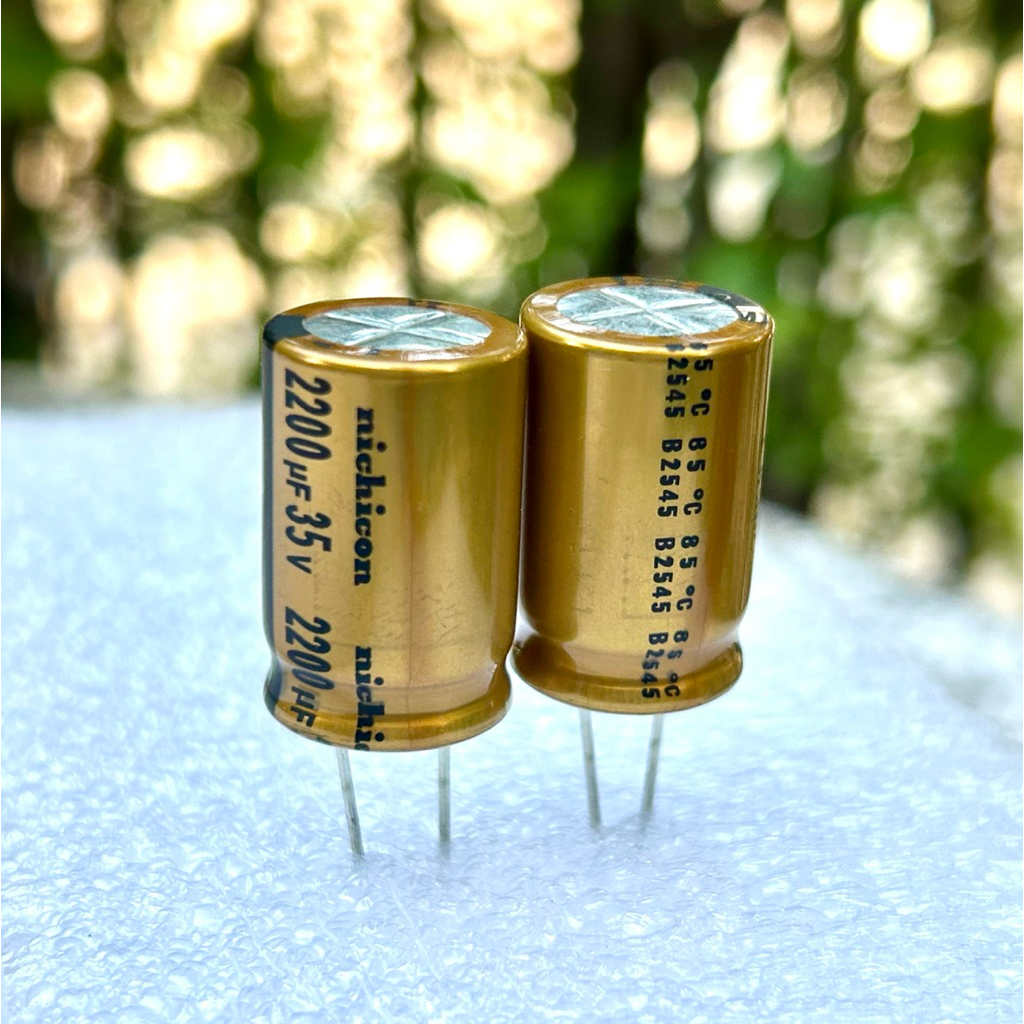

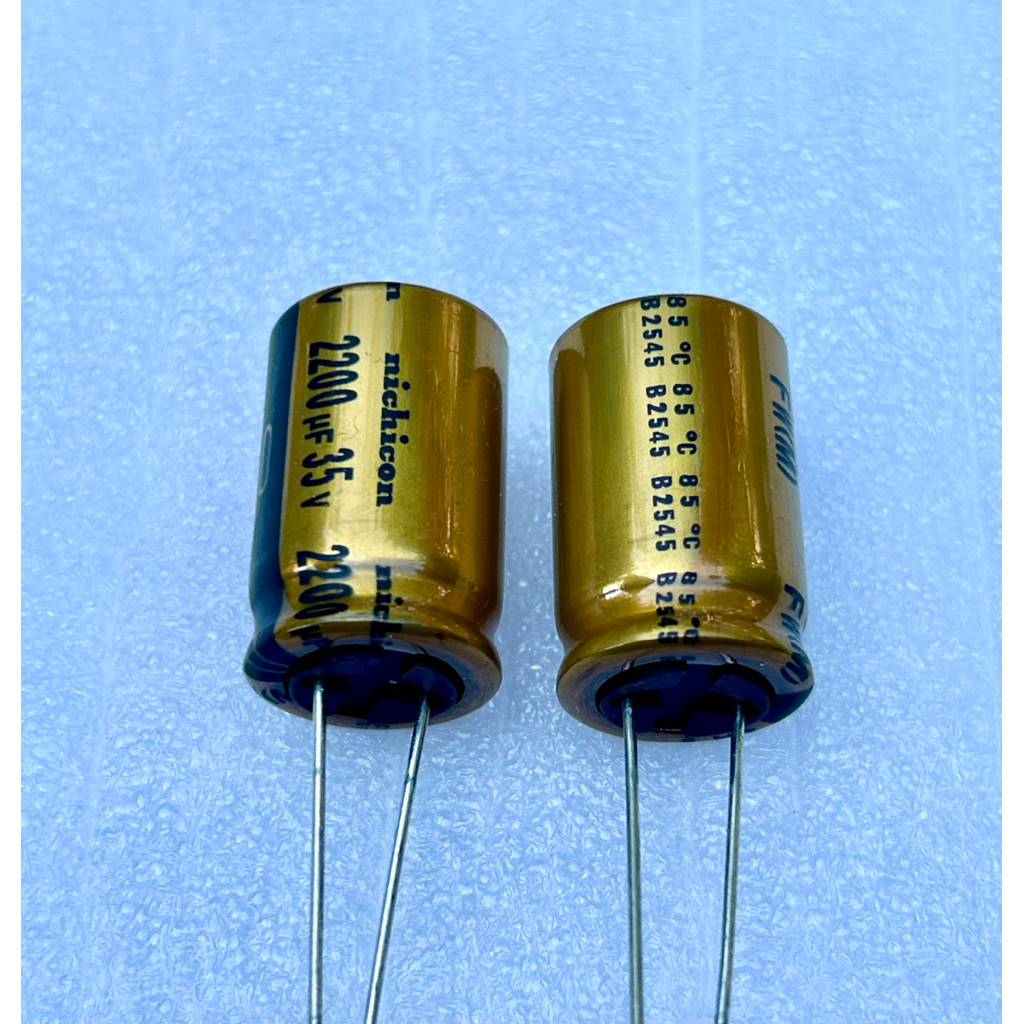

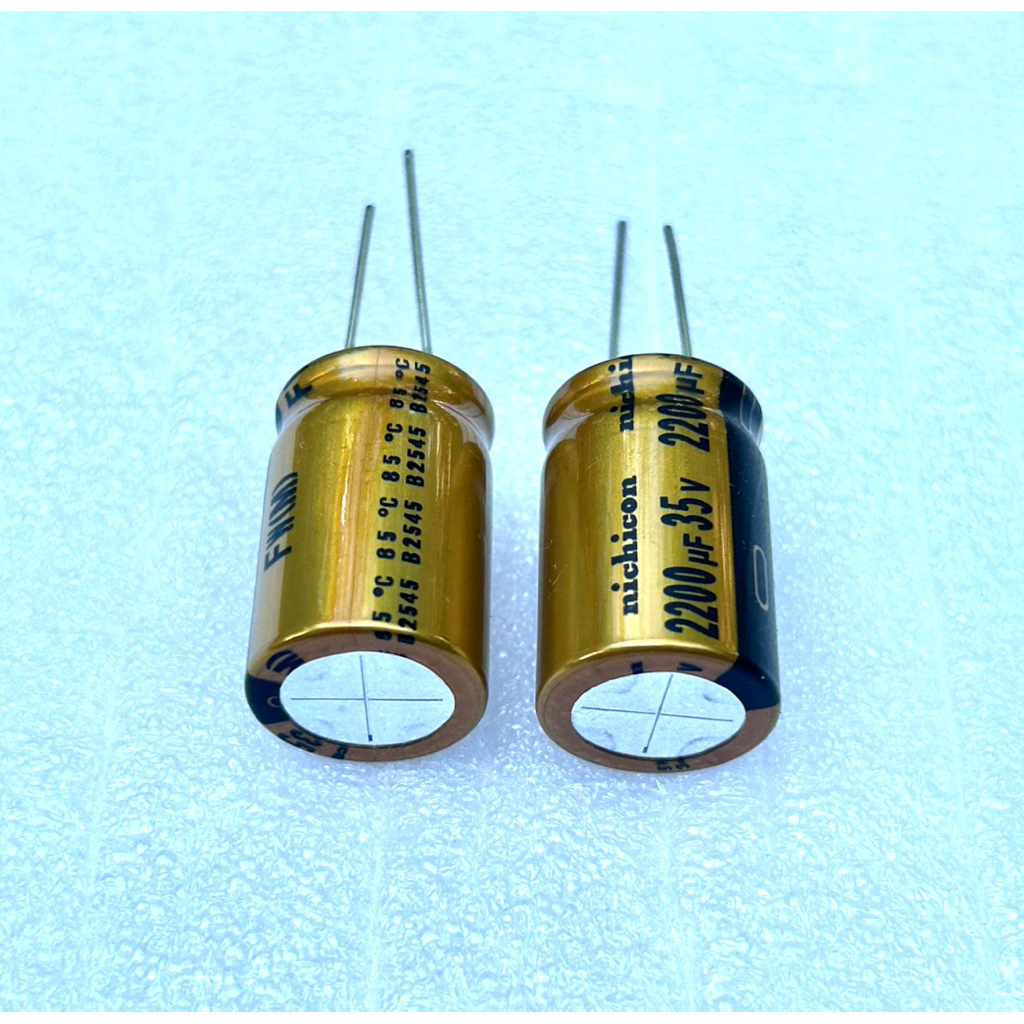

Capacitor คาปาซิเตอร์ 4700uF/35V 2200uF/35v FW(M)Nichicon Audio Grade ราคาต่อ1ชิ้น

Specifications Item Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance Leakage Current Tangent of loss angle (tan δ) Stability at Low Temperature Endurance Shelf Life Marking Radial Lead Type Sleeve (P.E.T.)  –40 to +85°C 6.3 to 100V 0.1 to 33000µF ±20% at 120Hz, 20°C After 1 minute's application of rated voltage, leakage current is not more than 0.03 CV or 4 (µA) , whichever is greater. After 2 minutes' application of rated voltage, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater. Rated voltage (V) Measurement frequency : 120Hz, Temperature : 20°C For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Rated voltage (V) Impedance ratio Z–25°C / Z+20°C ZT / Z20 (MAX.) Z–40°C / Z+20°C Measurement frequency : 120Hz The specifications listed at right shall be met when the capacitors are restored to 20°C after the rated voltage is applied for 2000 hours at 85°C. Leakage current Within ±20% of the initial capacitance value 200% or less than the initial specified value Less than or equal to the initial specified value After sroring the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above. Printed with black color letter on Gold sleeve
