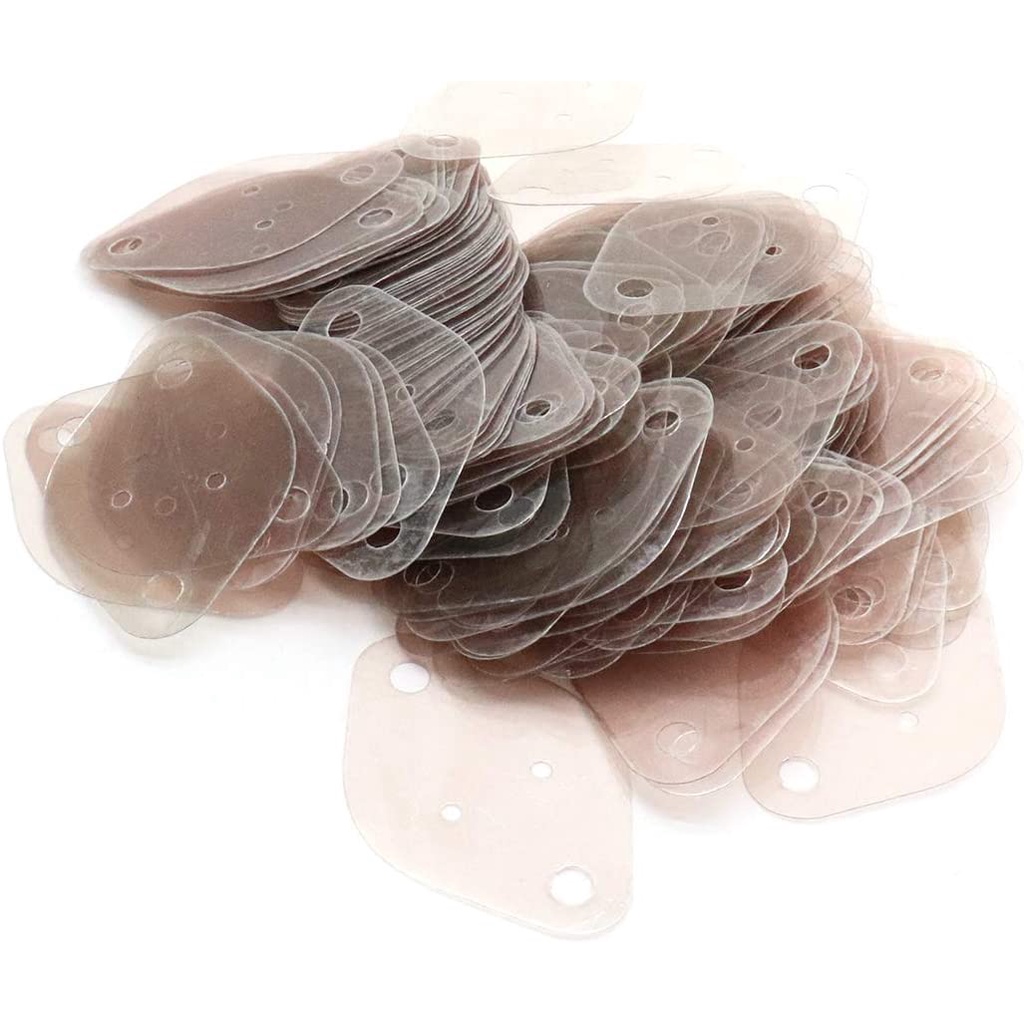

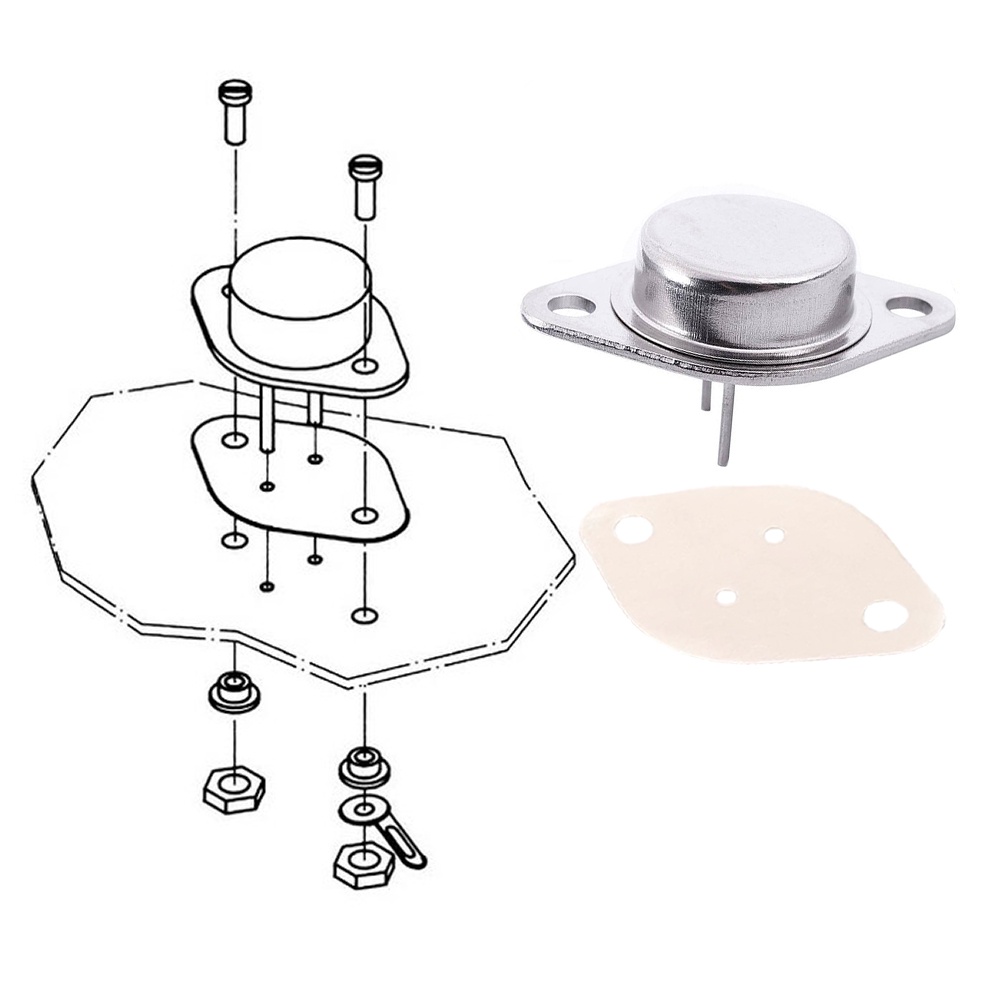

(1 ตัว/5 ตัว) 2N3055 (NPN ) MJ2955 (PNP) Mica Insution Sheet AF Amp Audio Power Transistor 15A 100V แผ่นไมก้า Mica Insut

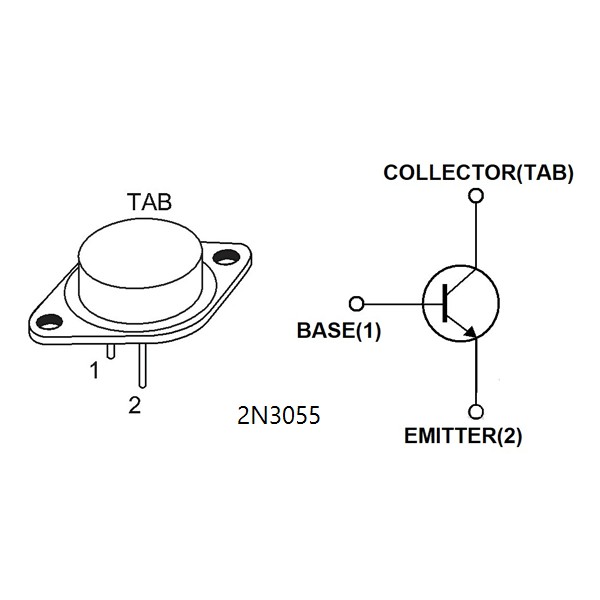

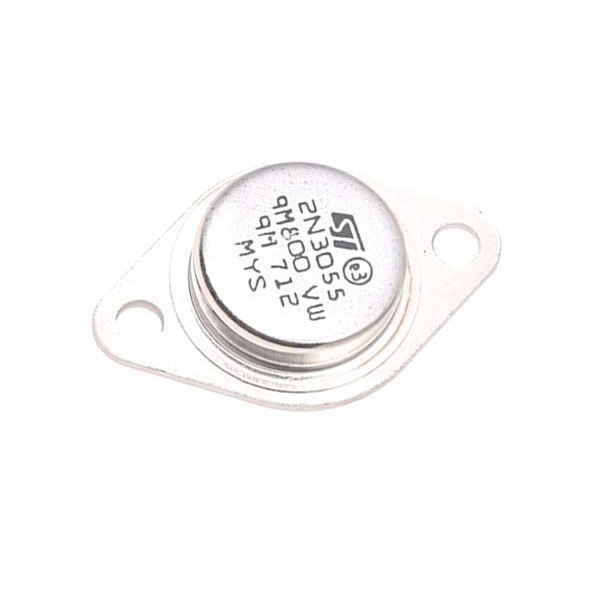

(1ตัว) 2N3055 (NPN )/ MJ2955 (PNP) AF Amp Audio Power Transistor 15A 100V Features and Specifications Medium power transistor Excellent safe operating area Complementary NPN - PNP transistors Low collector-emitter saturation voltage Pb−free packages are available DC current gain (hFE) up to 70 With hfe improved linearity Maximum voltage across collector and emitter: 60V DC Maximum current allowed trough collector: 15A DC Maximum voltage across base and emitter: 7V DC Maximum current allowed through base: 7A DC Maximum voltage across collector and base: 100V DC Operating temperature range: -65ºC to +200ºC Total power dissipation: 115W
