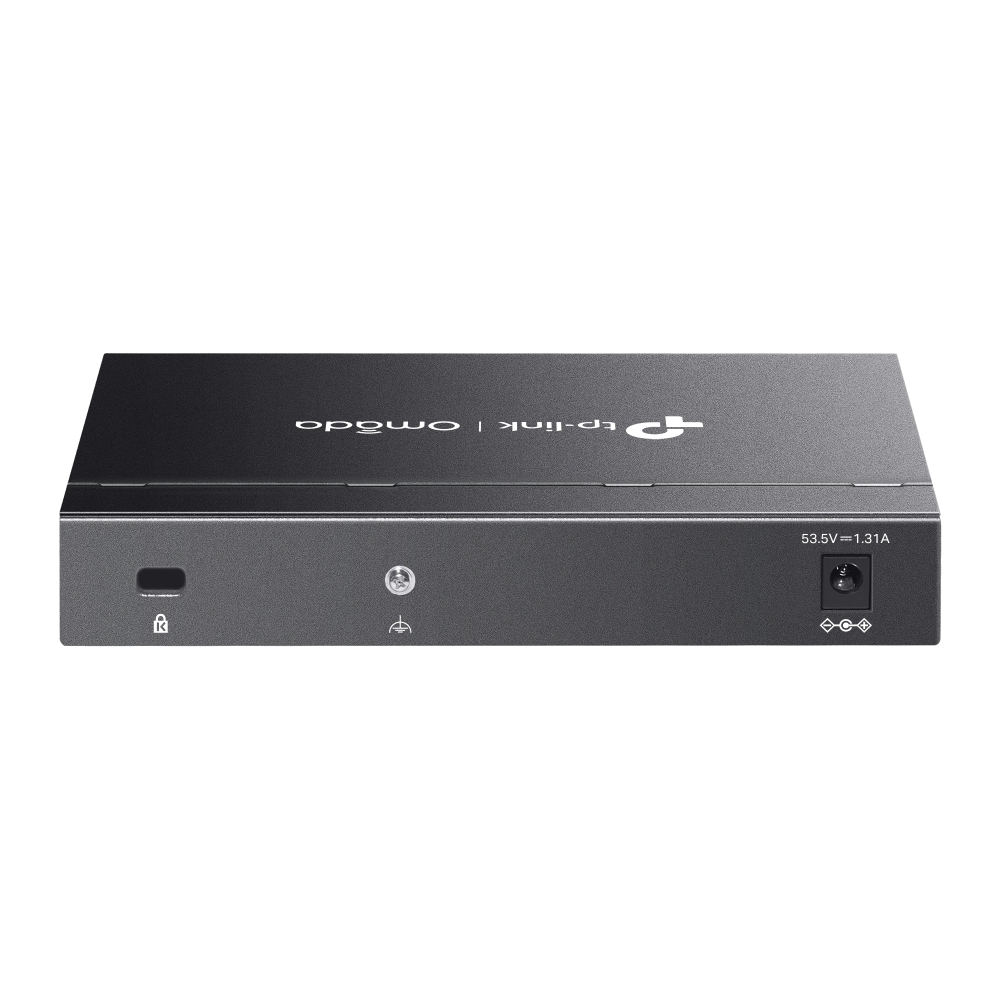

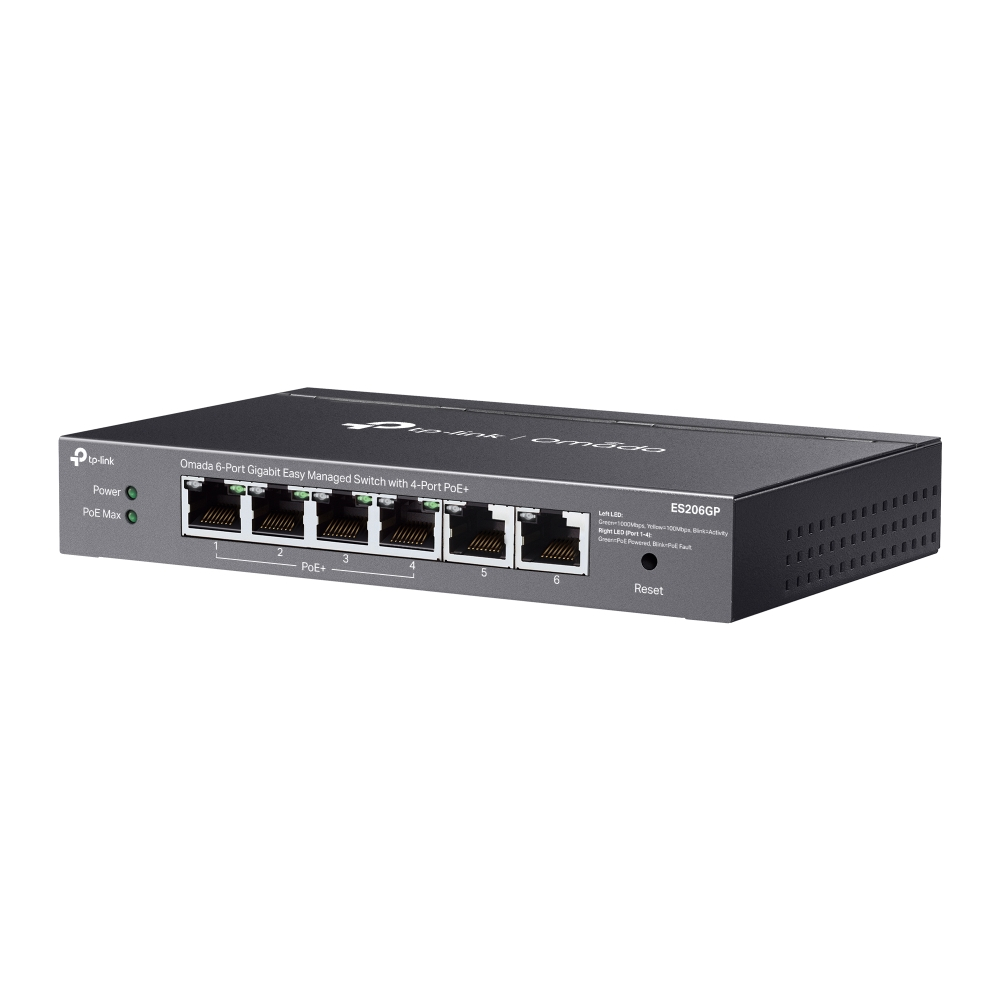

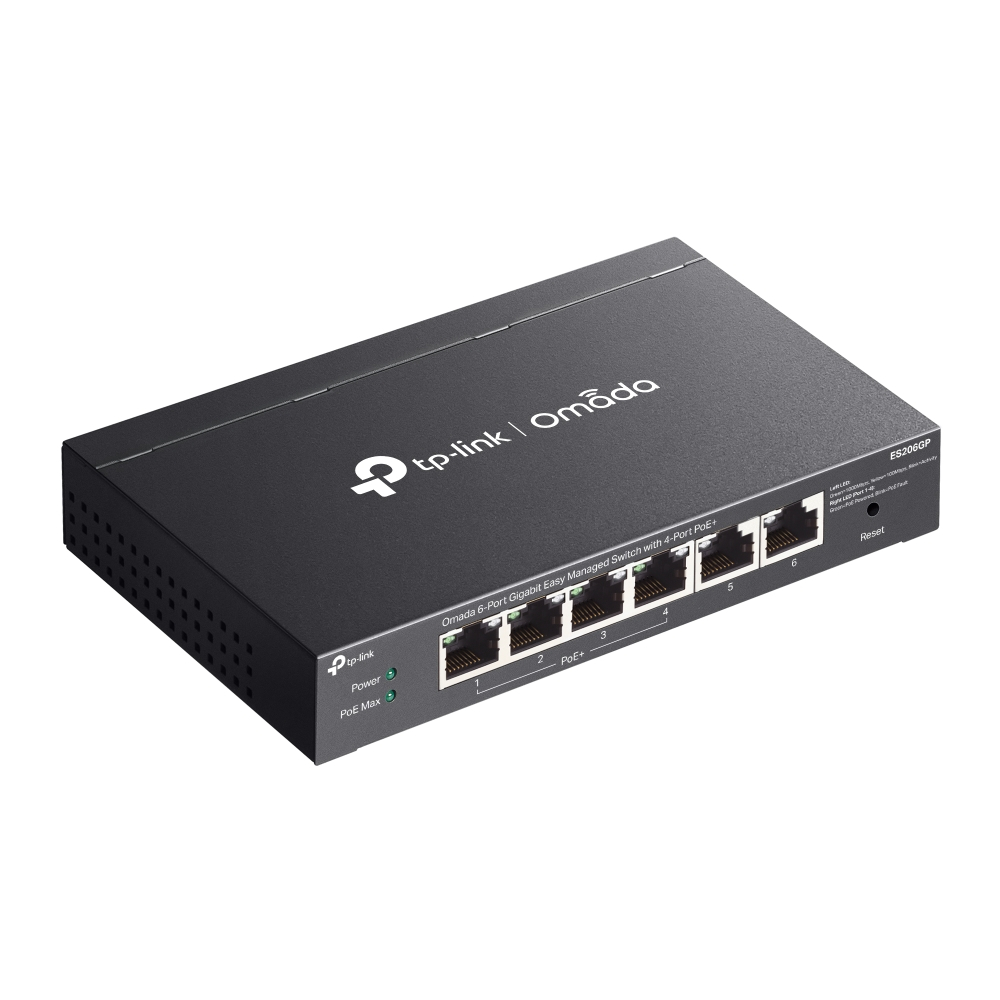

TP-LINK ES206GP (TL-ES206GP) Omada Gigabit Switching Hub 6 Port 4 PoE

HARDWARE FEATURES Interface • 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+) • Auto-Negotiation/Auto MDI/MDIX Fan Quantity • Fanless Installation • Desktop • Wall Mount Physical Security Lock • √ Power Supply • DC Power Adapter (Output: 53.5VDC / 1.31A) PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** Dimensions ( W x D x H ) • 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) Surge Protection • ±6kV PERFORMANCE Switching Capacity • 12 Gbps Packet Forwarding Rate • 8.93 Mpps MAC Address Table • 8K Packet Buffer Memory • 4 Mbit Jumbo Frame • 15 KB SOFTWARE FEATURES Quality of Service • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ L2 Features • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP L2 Multicast • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave VLAN • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID Transmission Method • Store-And-Forward Management Features Omada App • Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access • Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning • Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† OTHERS Certification • FCC, CE, RoHS Package Content • ES206GP • Power Adapter • Power Cord • Rubber Feet • Installation Guide Environment • Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
