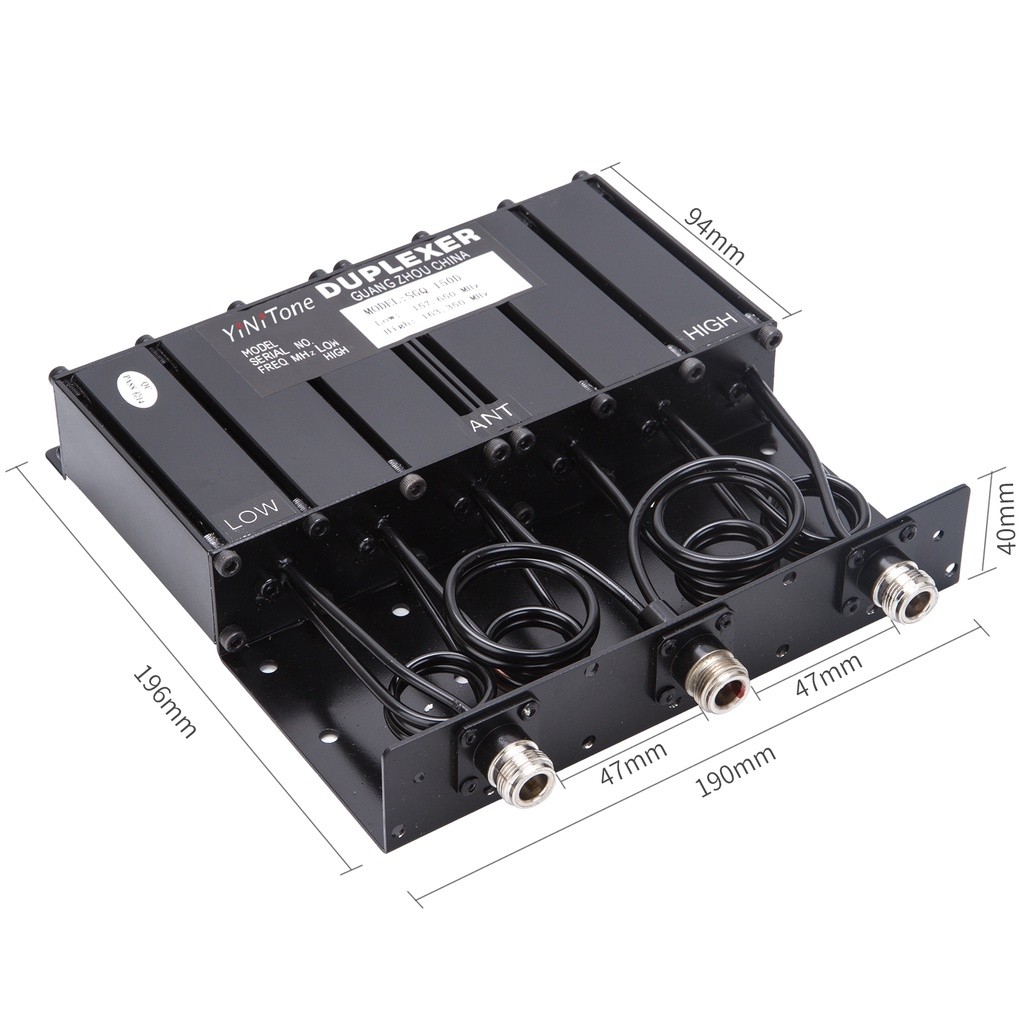

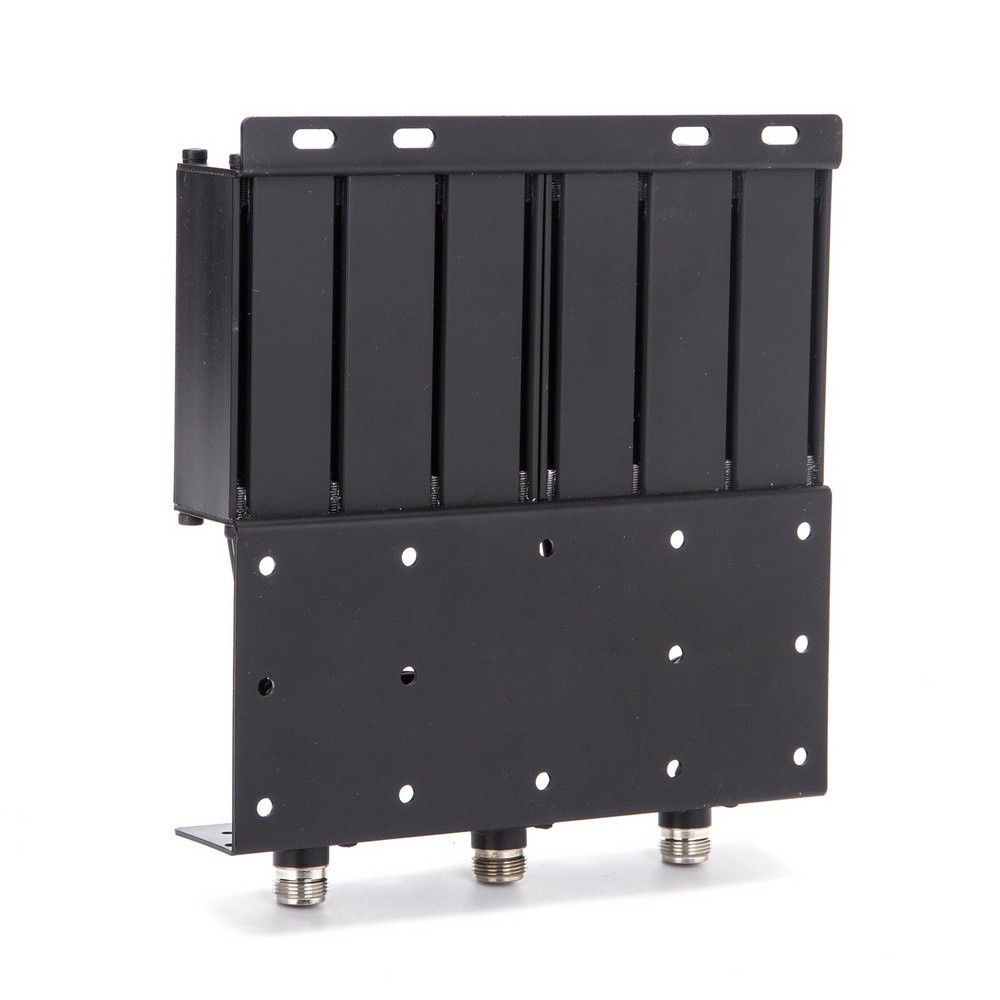

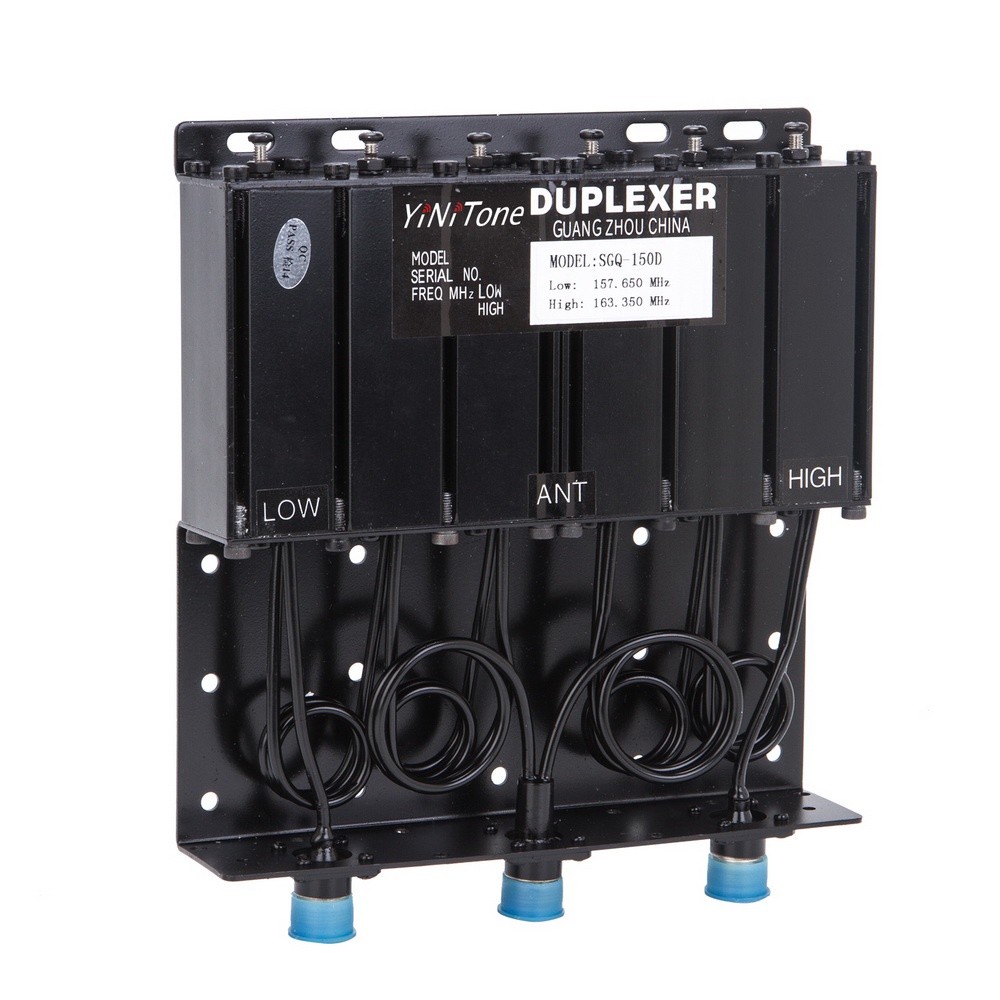

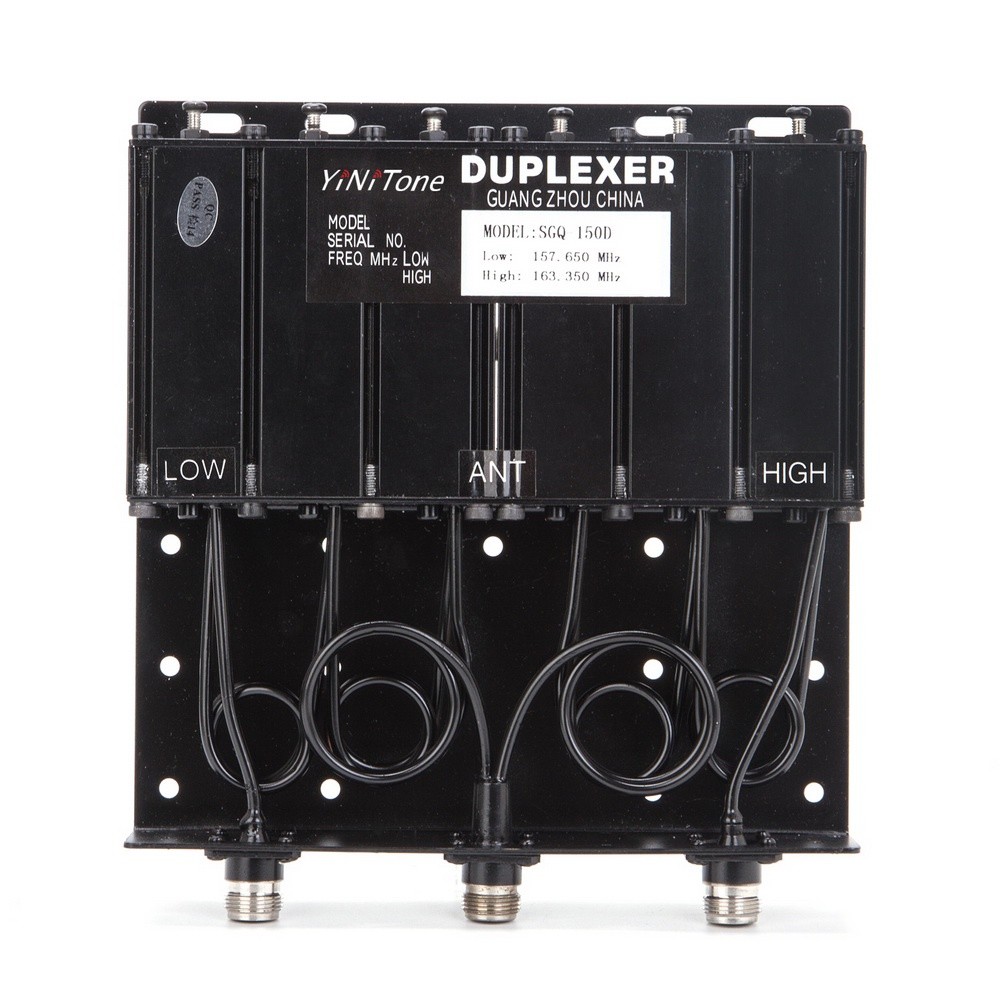

SGQ-150D 50W VHF136-174MHz customizable frequency Portable Duplexer

SGQ-150D 50W VHF136-174MHz customizable frequency Portable Duplexernote：Be sure to note the required frequency point, otherwise the default TX：157.650/RX：163.350MHZSpecification:Product Number：SGQ-150DFrequency Range：VHF136-174MHzBandwidth：±150KHzFrequency Spacing：5.7MHzIsolation Loss：≤1.0dBV.S.W.R：≤1.3Isolation：≥80dBSuppression：≥80dBImpedance：50ΩMax.power Input：40-80W(50W）Standard Termination：N-FemaleOperating temperature：-25℃-+55℃Operating Humidity：5-95%Dimensions：225×154×40mmWeight：1.5kgPackage Including:1*Portable Duplexer
