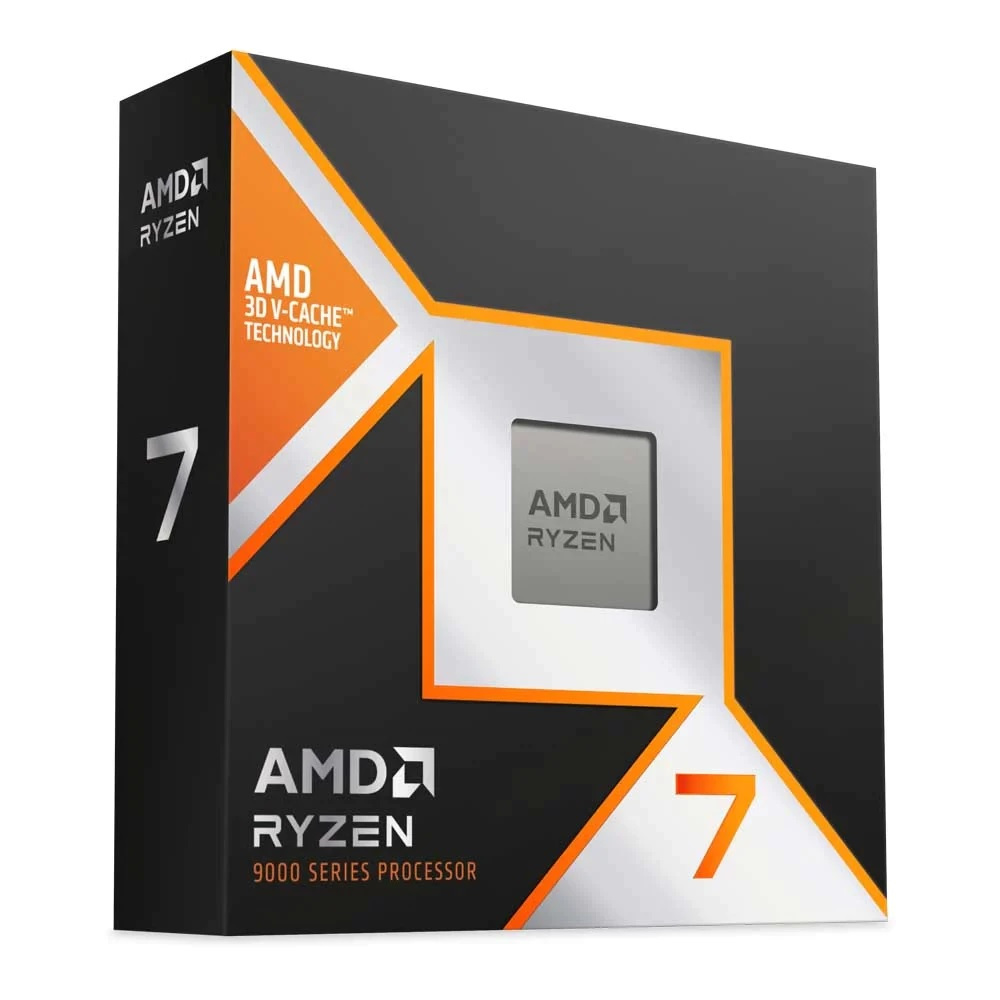

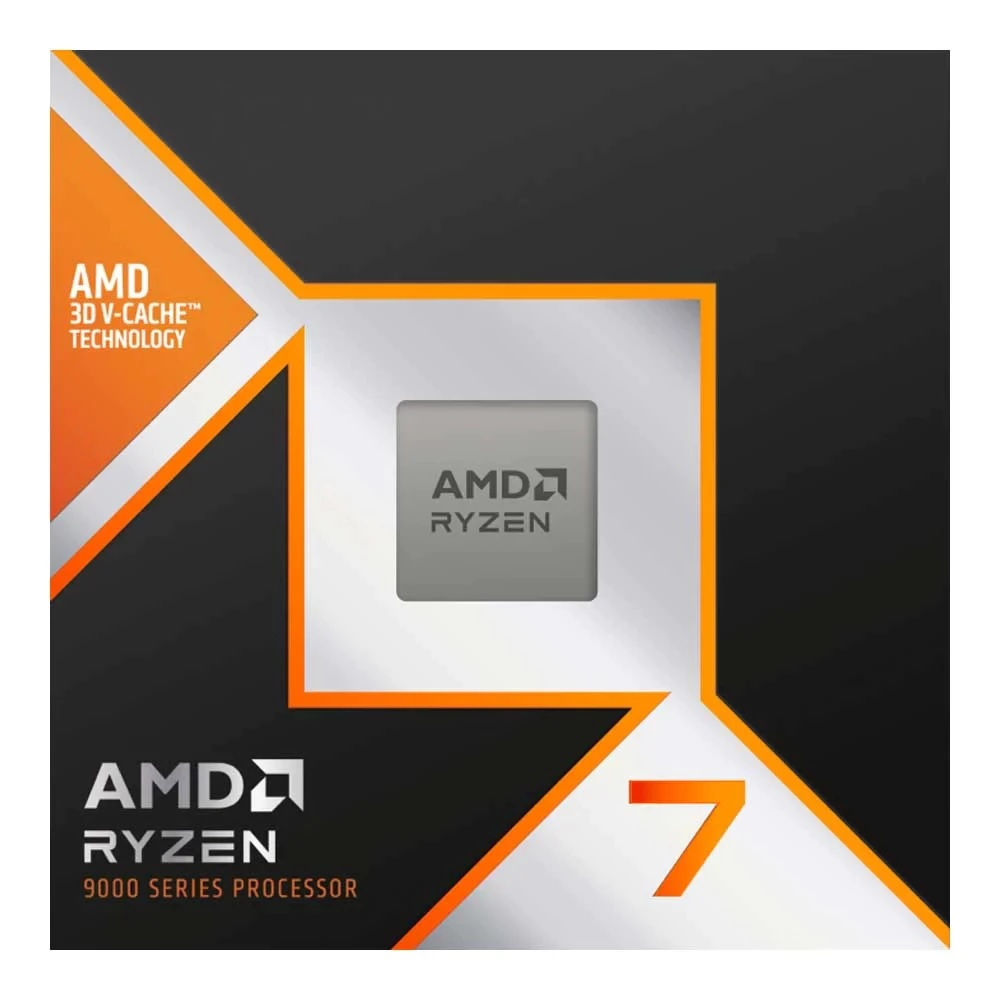

AMD CPU Ryzen 7 9800X3D 8 Core 16 Threads 4.70 GHz AM5 Without Cooler (ซีพียู)

AMD Ryzen 7 9800X3D Desktop Processor Harness the ultimate gaming edge with AMD Ryzen™ 7 9800X3D Processor. Enjoy faster gaming with 2nd gen AMD 3D V-Cache™ technology for low latency. Key Features 8 Cores & 16 Threads 4.7 GHz Base Clock 5.2 GHz Max Boost Clock Socket AM5 8MB L2 & 96MB L3 Cache Integrated AMD Radeon Graphics DDR5-5600 Memory Fully Enabled Overclocking AMD 3D V-Cache Technology Zen 5 Architecture Name AMD Ryzen™ 7 9800X3D Family Ryzen Series Ryzen 9000 Series Form Factor Desktops , Boxed Processor Market Segment Enthusiast Desktop AMD PRO Technologies No Regional Availability Global Former Codename Granite Ridge AM5 Processor Architecture Zen 5 # of CPU Cores 8 Multithreading (SMT) Yes # of Threads 16 Max. Boost Clock Up to 5.2 GHz Base Clock 4.7 GHz L1 Cache 640 KB L2 Cache 8 MB L3 Cache 96 MB Default TDP 120W Processor Technology for CPU Cores TSMC 4nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) Not Included Recommended Cooler Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax) 95°C *OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Native USB 3.2 Gen 2 (10Gbps) 4 Native USB 2.0 (480Mbps) 1 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28 , 24 NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 192 GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support Yes (Requires mobo support) Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz USB Type-C® DisplayPort™ Alternate Mode Yes Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
