CASE NZXT H9 FLOW RGB PLUS [2025] WHITE : CM-H92FW-P1

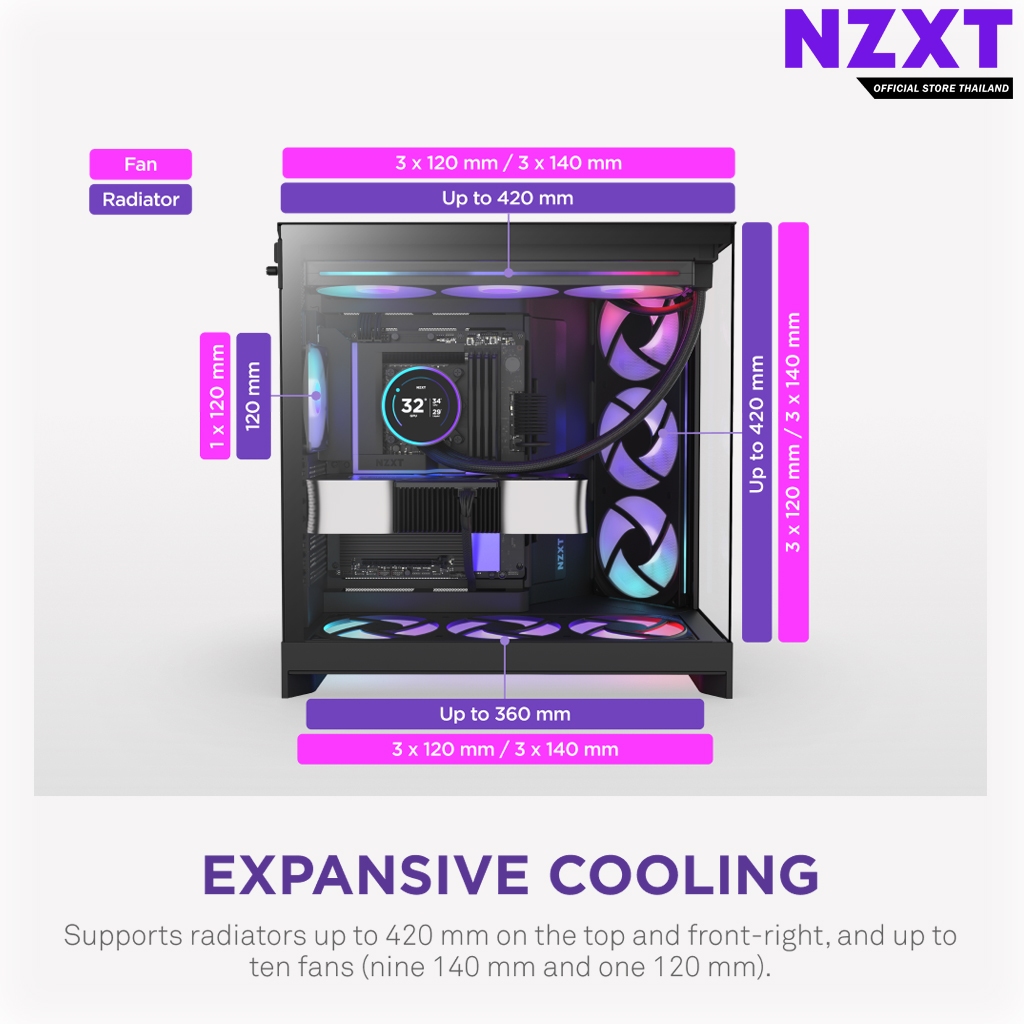

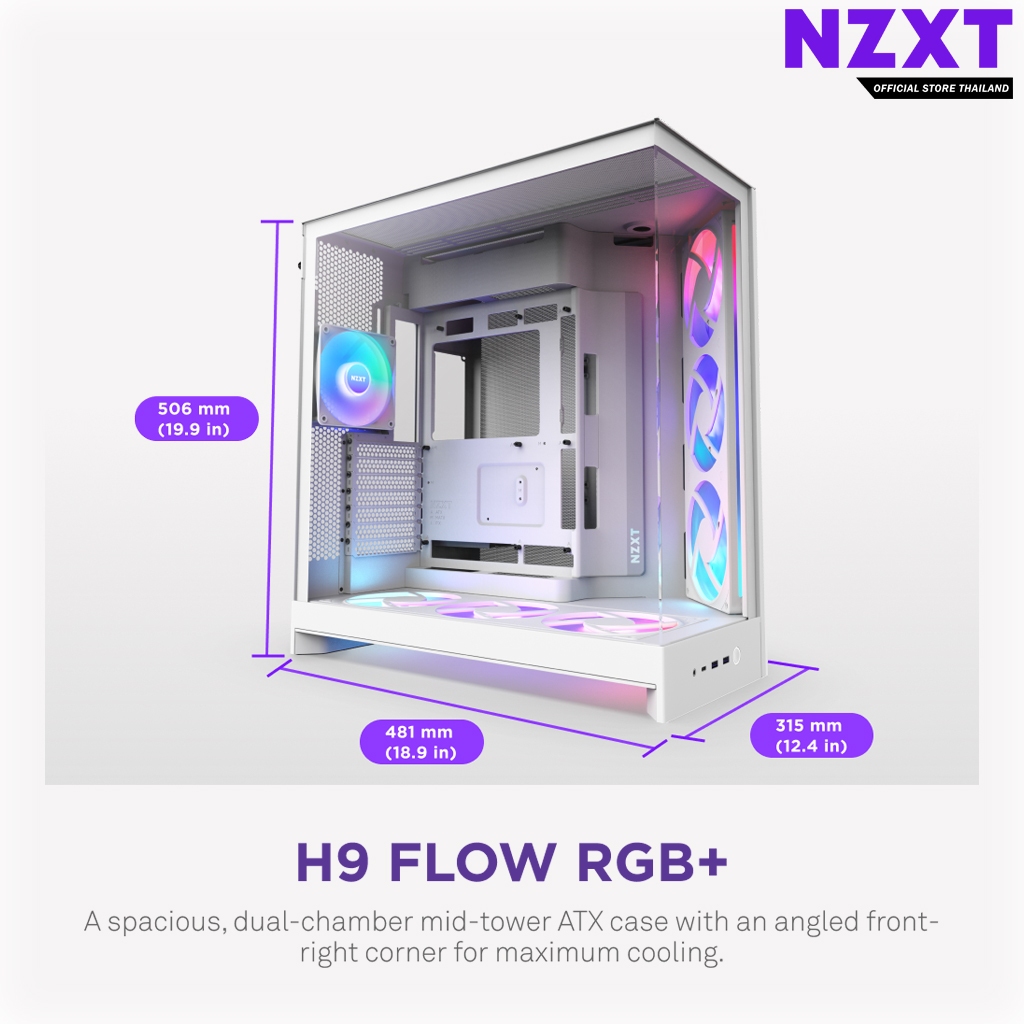

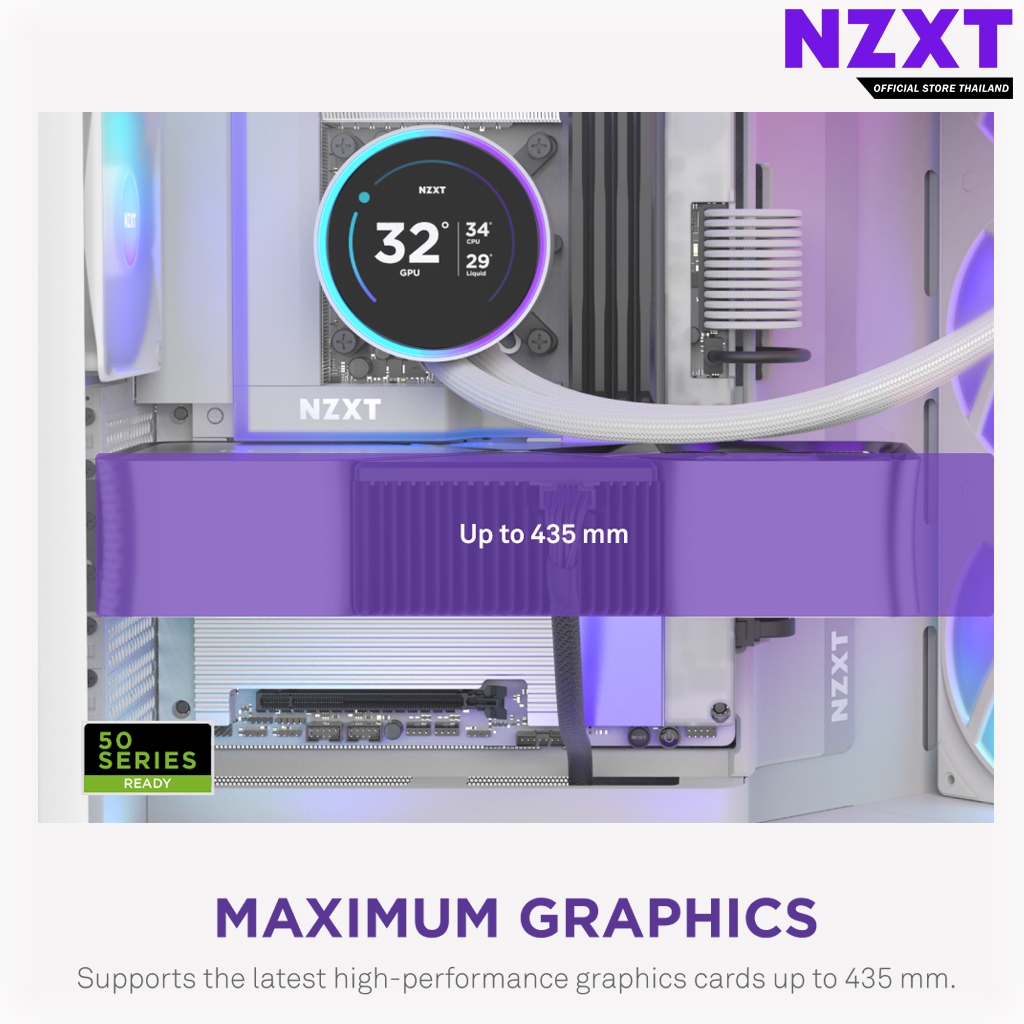

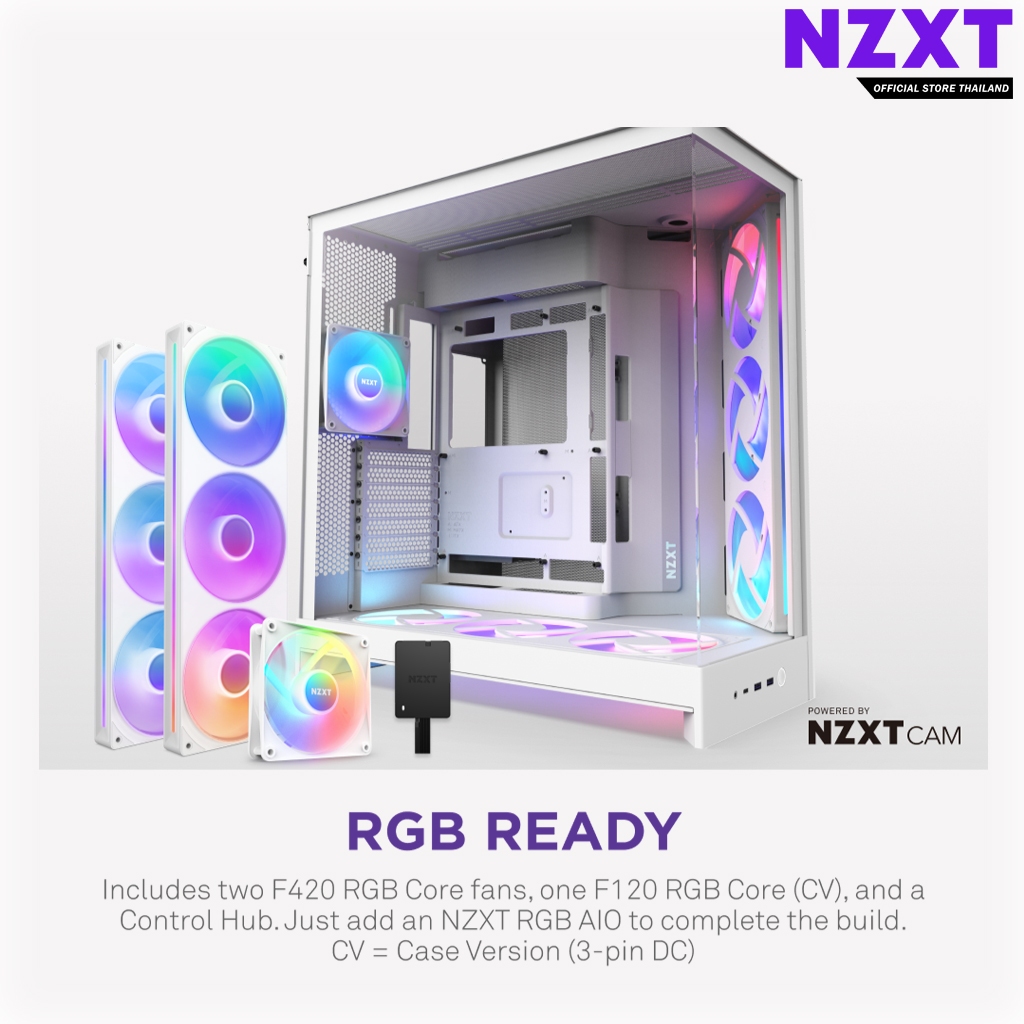

Tech Specs Dimensions Height : 506 mm (19.9 in) Width : 315 mm (12.4 in) Depth : 481 mm (18.9 in) Volume : 76.7 L Weight : 13.4 kg (29.54 lb) General Enclosure Type : Mid-tower Motherboard Compatibility : E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX Rear-Connecting Motherboard Support (BTF, Project Zero) : Yes (ATX, Micro-ATX) Materials : SGCC steel, clear tempered glass (white), tinted tempered glass (black) Clearance CPU Cooler Height : 165 mm GPU Length : Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) PSU Length : 200 mm Top Radiator & Fan Thickness : Up to 80 mm (360 mm) Up to 62 mm (420 mm) Front I/O Ports USB 3.2 Type-A : 2 USB 3.2 Gen2x2 Type-C : 1 Headset Jack : 1 Expansion Slots Standard : 7 Vertical : 0 Drive Bays 2.5" : 4+2 3.5" : 2 Fan Support Front-Right : 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) Top : 3 x 120 mm / 3 x 140 mm Bottom : 3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included) Rear : 1 x 120 mm (1 x F120 RGB (CV) included) Radiator Support Front-Right : Up to 420 mm Top : Up to 420 mm Bottom : Up to 360 mm Rear : Up to 120 mm Fan Specs - F420 RGB Core Model : F420 RGB Core Speed : 2,000 ± 200 RPM Airflow : 98.61 CFM Static Pressure : 3.2 mmH2O Noise : 34.5 dBA Fan Connector : 8-pin Fan Specs - F120 RGB Core (CV) Model : F120 RGB Core (CV) Speed : 1,300 ± 130 RPM Airflow : 55.17 CFM Static Pressure : 1.27 mmH2O Noise : 26.1 dBA Fan Connector : 3-pin Control Hub Specs Fan Channels : 3 x NZXT 8-pin (PWM only) / 1 x NZXT 8-pin (DC+PWM control) / 1 x 4-pin PWM (DC+PWM control) RGB Channels : 4 x NZXT 8-pin / 1 x NZXT RGB Max LED Support : Each NZXT 8-pin channel supports a maximum of 96 LEDs. NZXT RGB channel supports up to 40 LEDs and up to NZXT 5 devices. System Requirements : USB 2.0 Internal Header 8-pin PCIe Power Warranty Warranty : 2 years Product Info Model Number : CM-H92FW-P1 CM-H92FB-P1 : CM-H92FW-P2 CM-H92FB-P2 UPC : 810074847889 : 810074847896 : 815671019530 : 815671019547 EAN : 5056547207674 : 5056547207681 : 5056547208886 : 5056547208893 ข้อมูลเพิ่มเติม https://nzxt.com/products/h9-flow-rgb-plus
