โมดูลวัดแรงดันและกระแส I2C INA219 High Side DC Current Sensor Breakout 26V ±3.2A Max

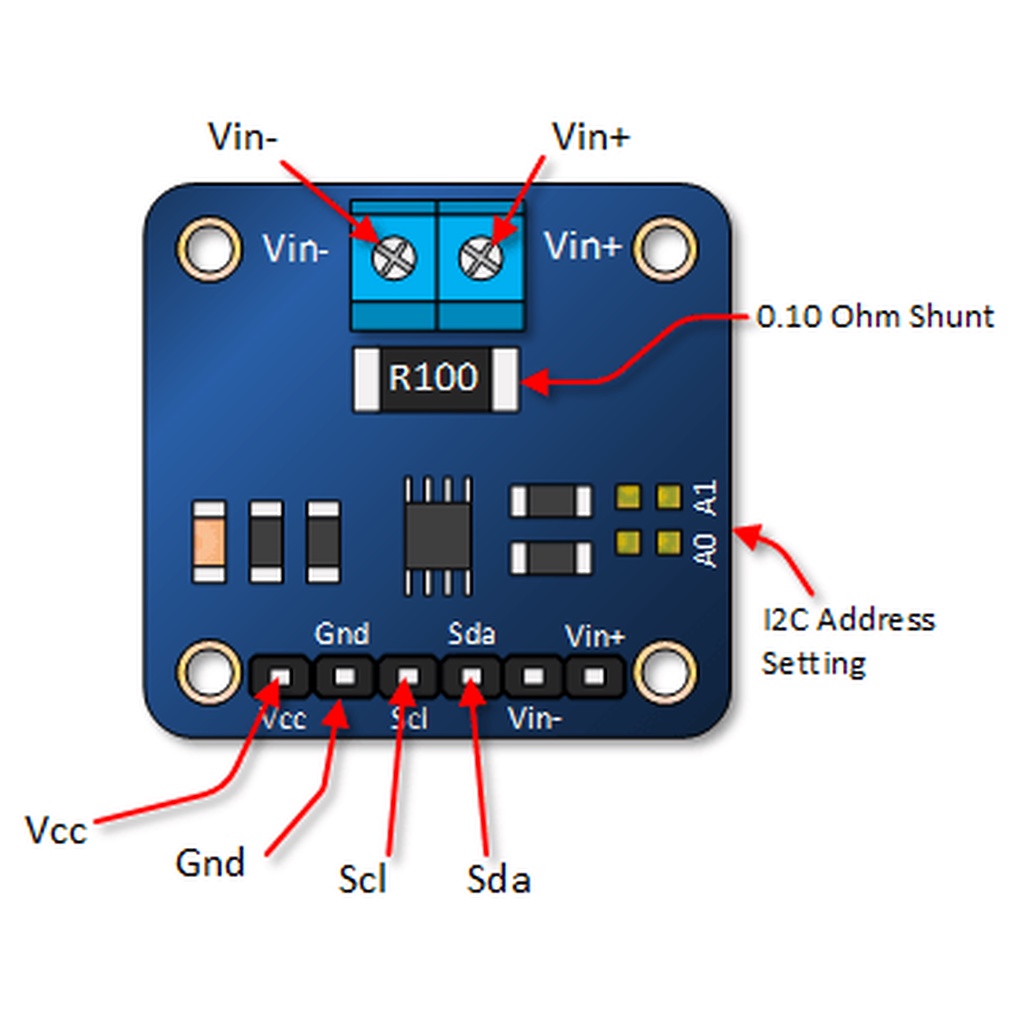

โมดูลวัดกระแสและแรงดัน INA219 ใช้วัดกระแสและแรงดัน ได้ถึง 26 VDC และกระแส +- 3.2A โดยใช้ I2C bus สามารถเลือก Address ได้ถึง 4 ค่า ทำให้ใช้พร้อมกันได้ถึง 4 โมดูล ตัวอย่างการต่อ INA219 กับ Arduino UNO ตัวอย่าง Code Arduino กับ INA219 This breakout board will solve all your power-monitoring problems. Instead of struggling with two multimeters, you can just use the handy INA219B chip on this breakout to both measure both the high side voltage and DC current draw over I2C with 1% precision. Most current-measuring devices such as our current panel meter are only good for low side measuring. That means that unless you want to get a battery involved, you have to stick the measurement resistor between the target ground and true ground. This can cause problems with circuits since electronics tend to not like it when the ground references change and move with varying current draw. This chip is much smarter - it can handle high side current measuring, up to +26VDC, even though it is powered with 3 or 5V. It will also report back that high side voltage, which is great for tracking battery life or solar panels. A precision amplifier measures the voltage across the 0.1 ohm, 1% sense resistor. Since the amplifier maximum input difference is 320mV this means it can measure up to 3.2 Amps. With the internal 12 bit ADC, the resolution at 3.2A range is 0.8mA. With the internal gain set at the minimum of div8, the max current is 400mA and the resolution is 0.1mA. Advanced hackers can remove the 0.1 ohm current sense resistor and replace it with their own to change the range (say a 0.01 ohm to measure up 32 Amps with a resolution of 8mA) TECHNICAL DETAILS EagleCAD PCB files on GitHub Uses the INA219B chip, see datasheet for detailed specifications 0.1 ohm 1% 2W current sense resistor Up to +26V target voltage Up to 3.2A current measurement, with 0.8mA resolution 0.9" x 0.8" PCB This board/chip uses I2C 7-bit addresses 0x40, 0x41, 0x44, 0x45, selectable with jumpers We include a 6-pin header (so you can easily attach this sensor to a breadboard) as well as a 3.5mm terminal plug so you can easily attach and detach your load. Usage is simple. Power the sensor itself with 3 to 5VDC and connect the two I2C pins up to your microcontroller. Then connect your target power supply to VIN+ and the load to ground to VIN-. We have an Arduino library right now that will do all the gain, range and math for you - just plug and go! We'll have a more detailed tutorial up shortly.
