โมดูลปรับแรงดันลง 3A แรงดันไฟเข้า 6V-30V DC-DC Adjustable Step-down Module Buck จ่ายแรงดันออก 5V

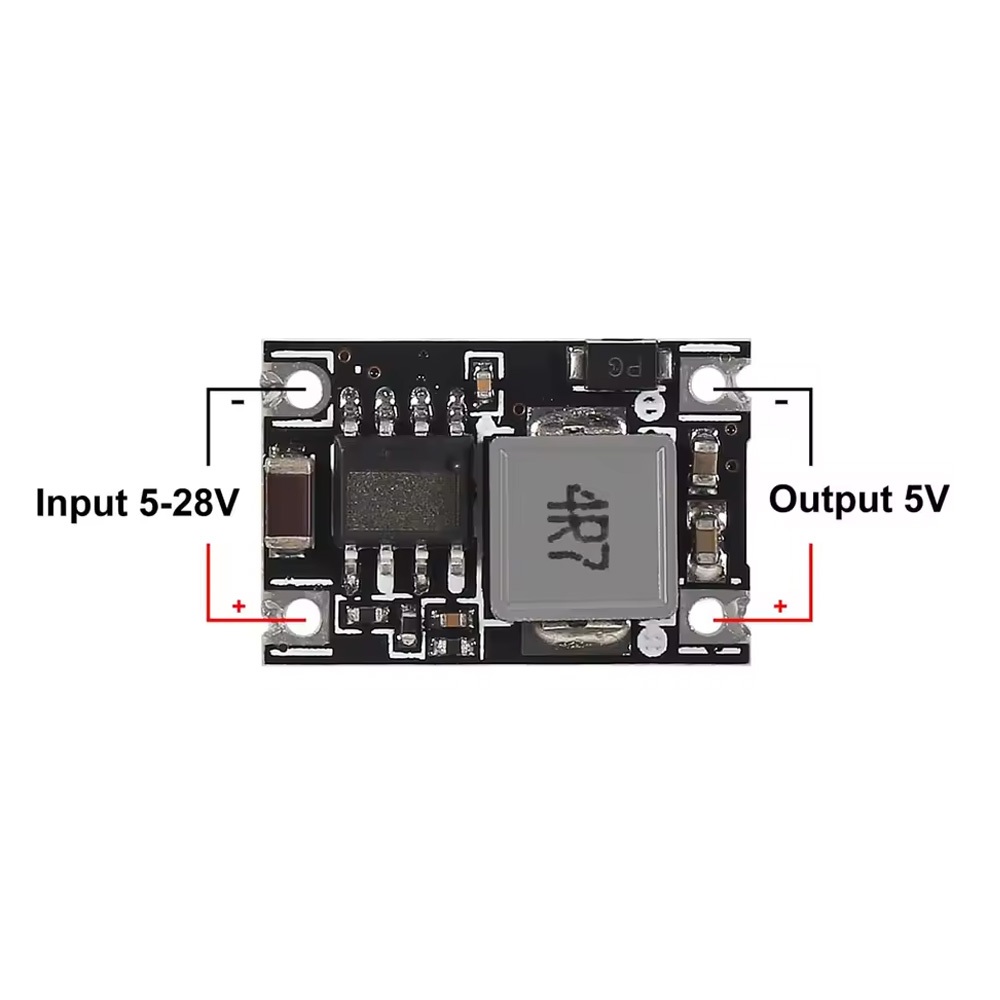

Specification: Origin: Mainland China Type: Voltage Regulator Condition: New Model Number: Step Down Converter Board Module Input Voltage: 5v~30v (Must Be Higher Than The Output Voltage) Preferably Below 28v. Output Voltage: 3.3v/5v, Other Voltage Values Can Be Customized. Output Current: 3a (Max) Normal 1.61.8a Over Plus Heat Sinking Conversion Efficiency: 96% (Maximum) Output Ripple: <30mv Output Accuracy: ±0.1v No-Load Current: <1ma Operating Temperature: -40℃~+85℃ Operating Humidity: 20%~90 Size: 17*12*4mm(L*W*H) Pcb Layers: 2 Layer Board Shutdown Function: Not Supported Heat Dissipation Mode: Natural Heat Dissipation Installation: Wiring Whether With Isolation: Without Isolation Production Process: Machine Labeling, Reflow Soldering Design Aging Standard: 720 Hours Without Failure Factory Aging Standard: 72 Hours Without Failure Service Life: 30,000 Hours Without Failure (Output Current Does Not Exceed The Rated Value) Inspection Standard: All Test (Factory Test + Storage Test) This power supply module is a power supply that can be directly mounted on a printed circuit board and features a power supply for application-specific integrated circuits (ASICs), digital signal processors DSPs, microprocessors, memories, field-programmable gate arrays (FPGAs), and other digital or analog loads. Note: 1. Input voltage preferably below 28V. 2. Normal current 1.6-1.8A over please add heat sink. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.
