CASE NZXT H9 FLOW [2025] WHITE : CM-H92FW-01

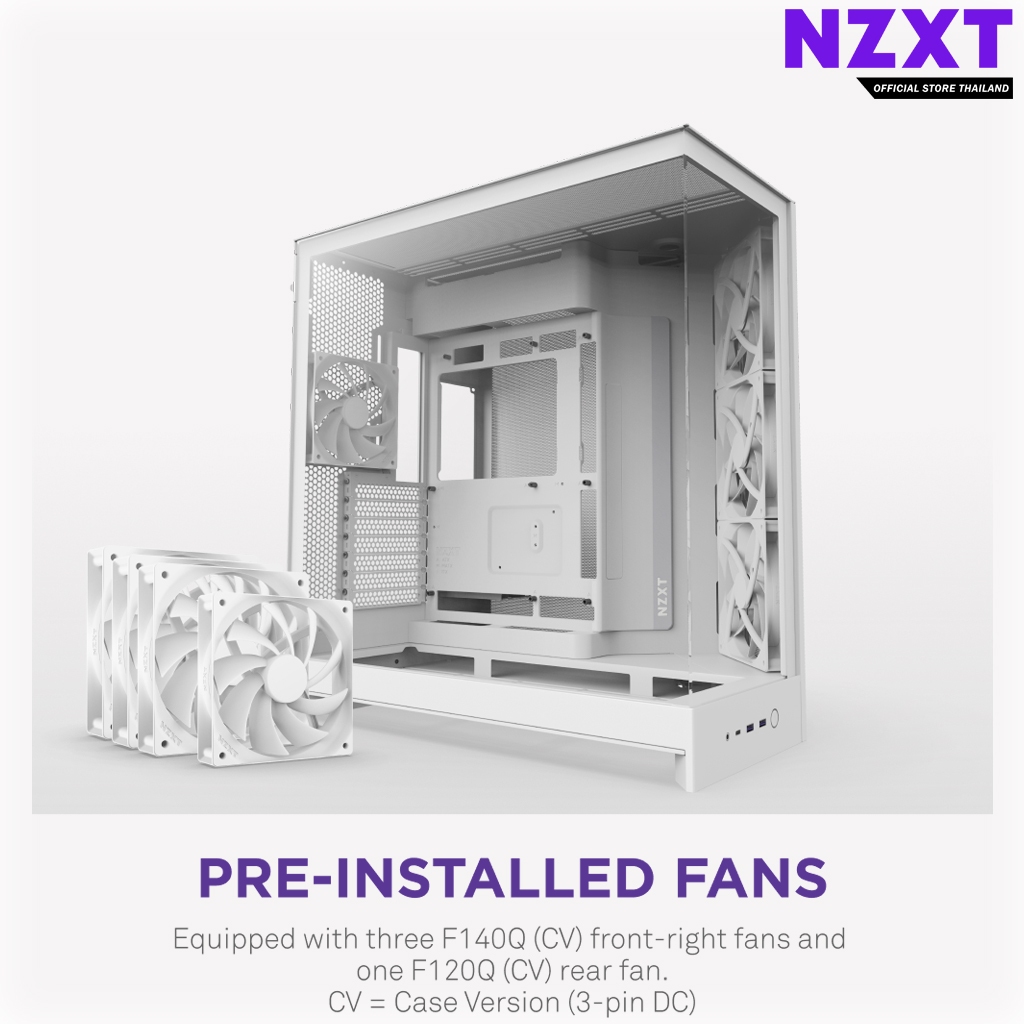

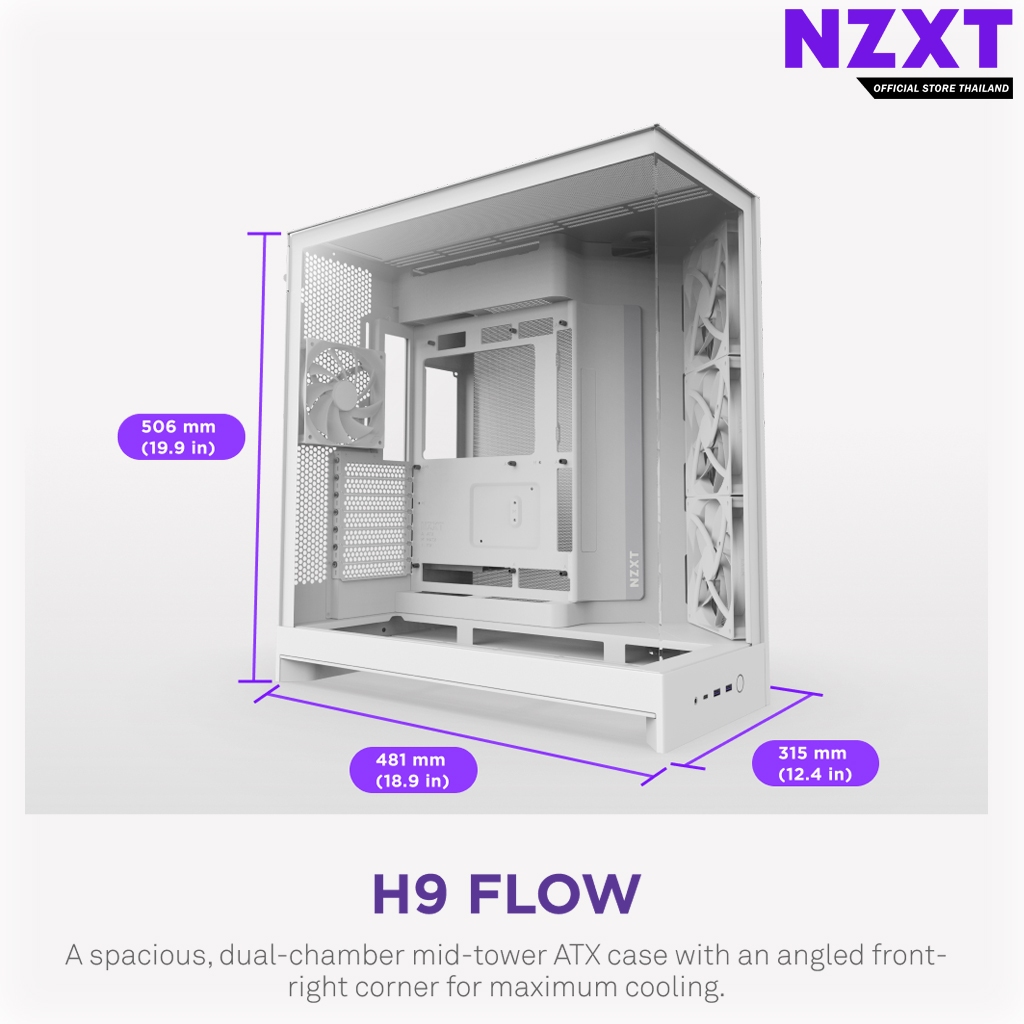

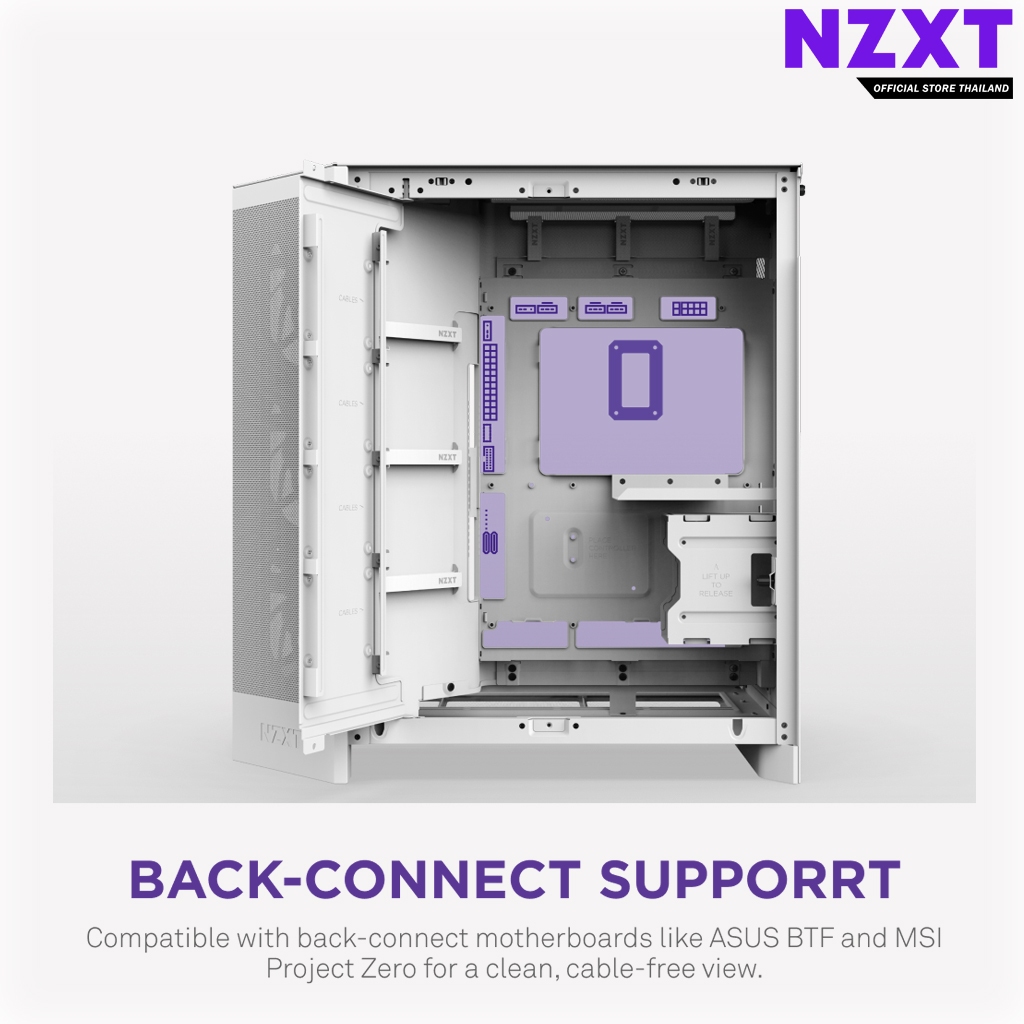

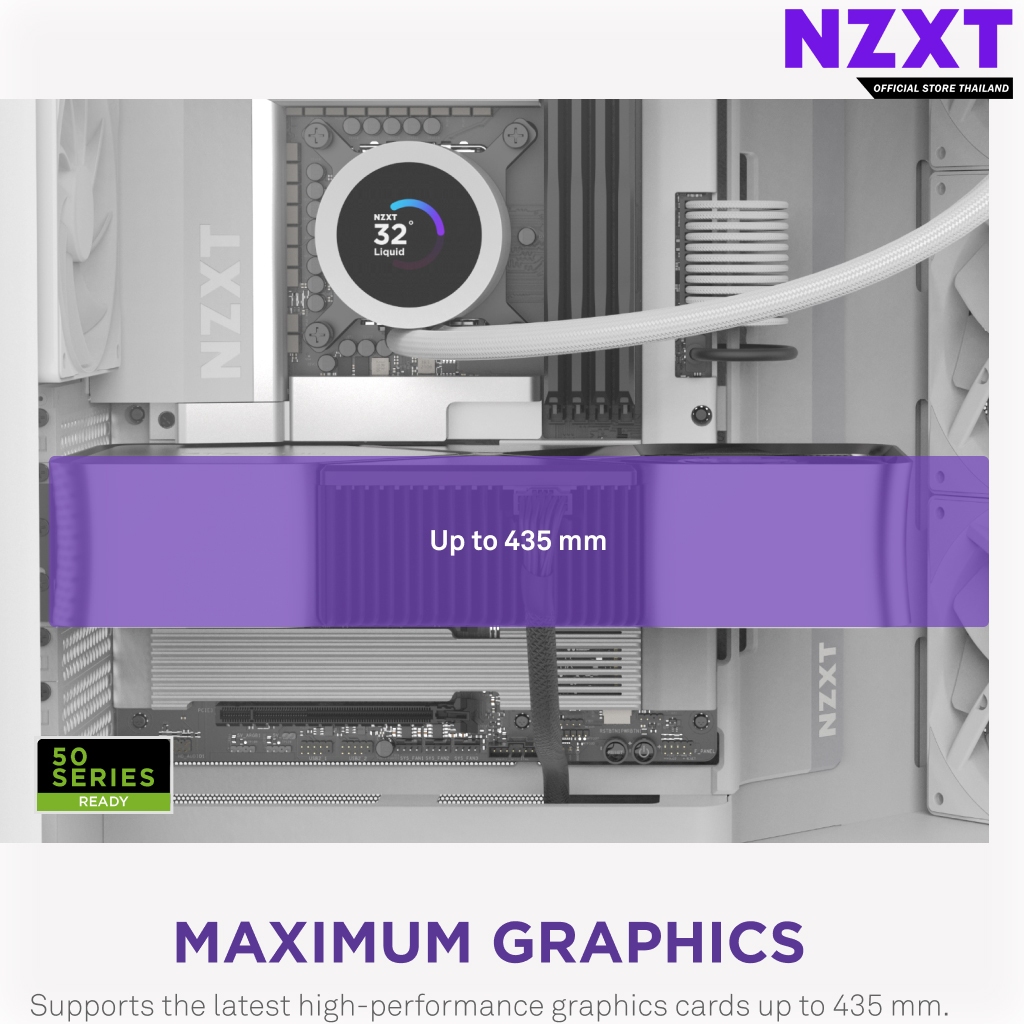

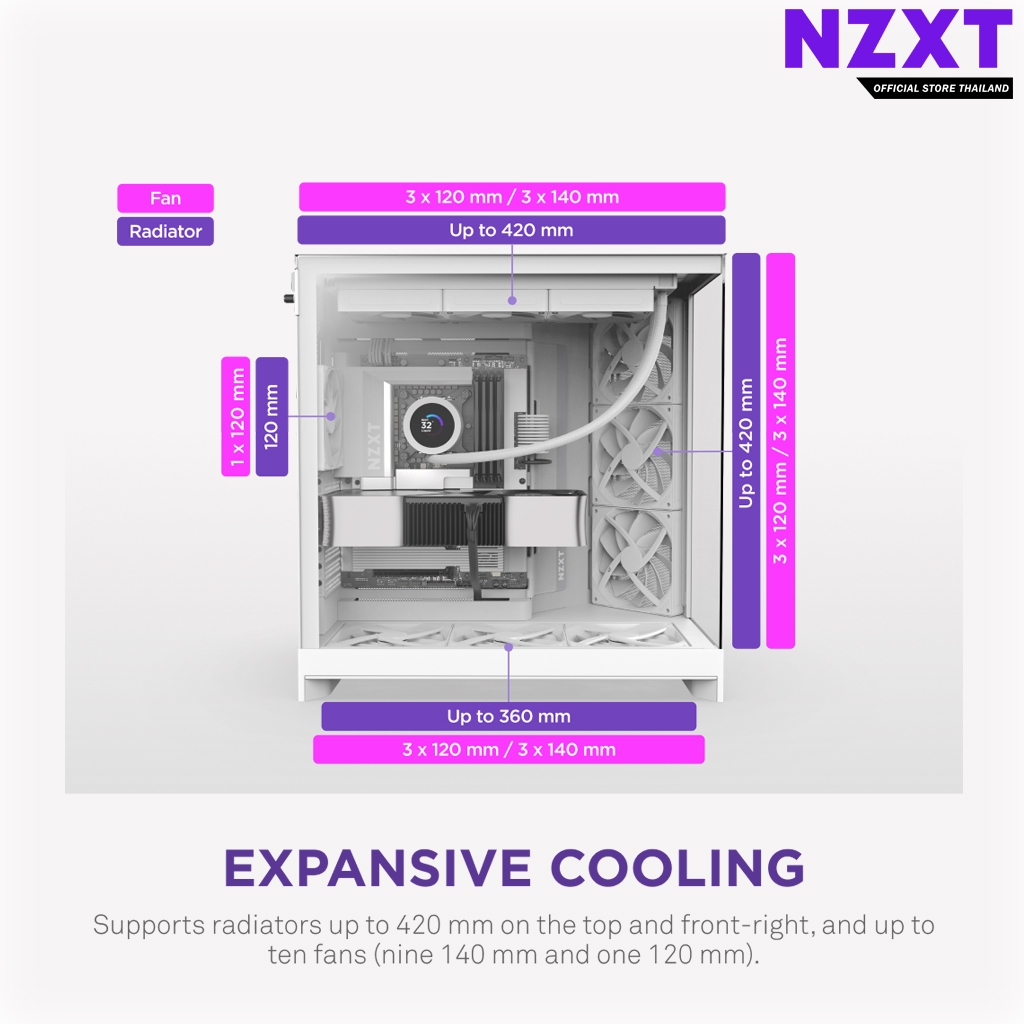

Tech Specs Dimensions Height : 506 mm (19.9 in) Width : 315 mm (12.4 in) Depth : 481 mm (18.9 in) Volume : 76.7 L Weight : 12.46 kg (27.47 lb) General Enclosure Type : Mid-tower Motherboard Compatibility : E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX Rear-Connecting Motherboard Support (BTF, Project Zero) : Yes (ATX, Micro-ATX) Materials : SGCC steel, clear tempered glass (white), tinted tempered glass (black) Clearance CPU Cooler Height : 165 mm GPU Length : Up to 459 mm (with <56 mm thickness fans installed at the front-right) Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right) PSU Length200 mm Top Radiator & Fan Thickness : Up to 80 mm (360 mm) Up to 62 mm (420 mm) Front I/O Ports USB 3.2 Type-A : 2 USB 3.2 Gen2x2 Type-C : 1 Headset Jack : 1 Expansion Slots Standard : 7 Vertical : 0 Drive Bays 2.5" : 4+2 3.5" : 2 Fan Support Front-Right : 3 x 120 mm / 3 x 140 mm (3 x F140Q (CV) included) Top : 3 x 120 mm / 3 x 140 mm Bottom : 3 x 120 mm / 3 x 140 mm Rear : 1 x 120 mm (1 x F120Q (CV) included) Radiator Support Front-Right : Up to 420 mm Top : Up to 420 mm Bottom : Up to 360 mm Rear : Up to 120 mm Fan Specs - F140Q (CV) Model : F140Q (CV) Speed : 1,350 ± 150 RPM Airflow : 100.25 CFM Static Pressure : 1.4 mmH2O Noise : 22.9 dBA Fan Connector : 3-pin Fan Specs - F120Q (CV) Model : F120Q (CV) Speed : 1,350 ± 150 RPM Airflow : 60.2 CFM Static Pressure : 1.05 mmH2O Noise : 24.1 dBA Fan Connector : 3-pin Warranty Warranty : 2 years Product Info Model Number : CM-H92FW-01 CM-H92FB-01 : CM-H92FW-02 CM-H92FB-02 UPC : 810074847841 : 810074847858 8 : 15671019493 8 : 15671019509 EAN : 5056547207636 : 5056547207643 : 5056547208848 : 5056547208855 ข้อมูลเพิ่มเติม https://nzxt.com/products/h9-flow
