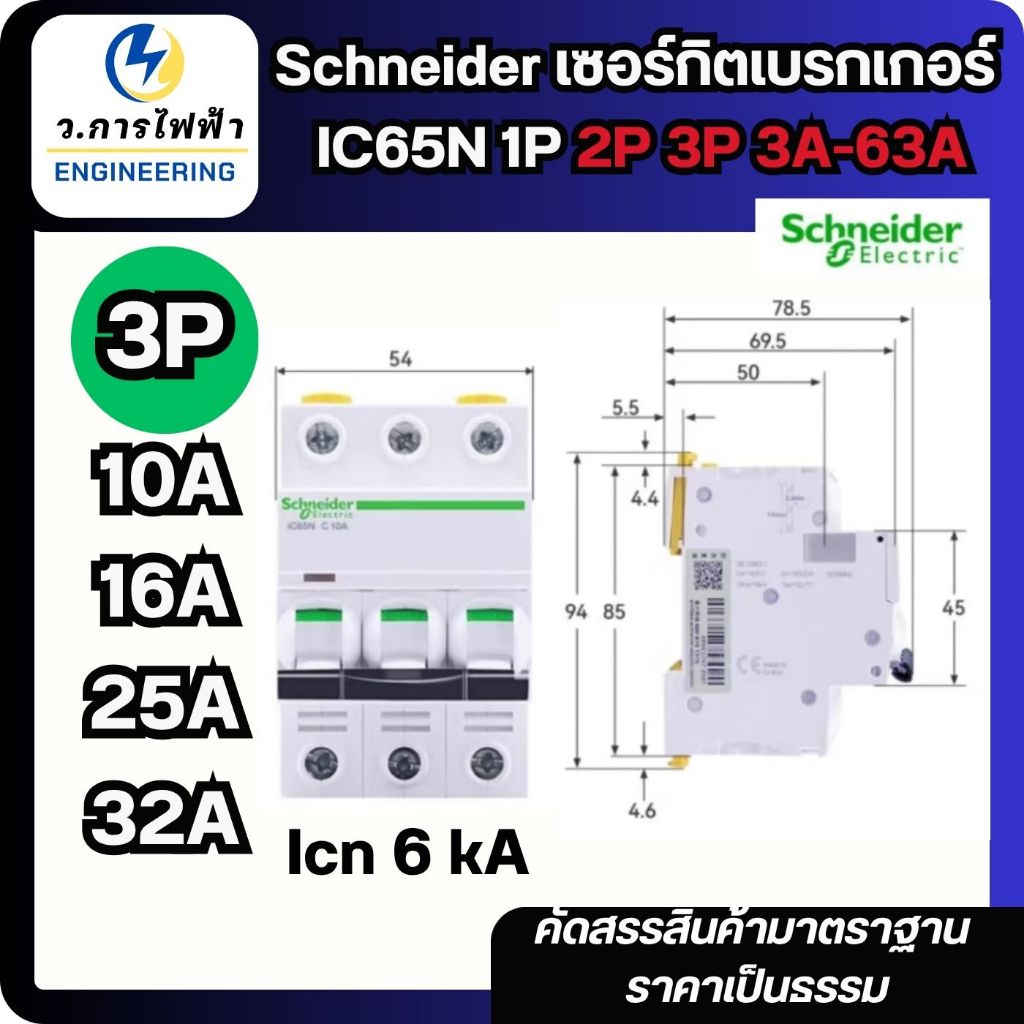

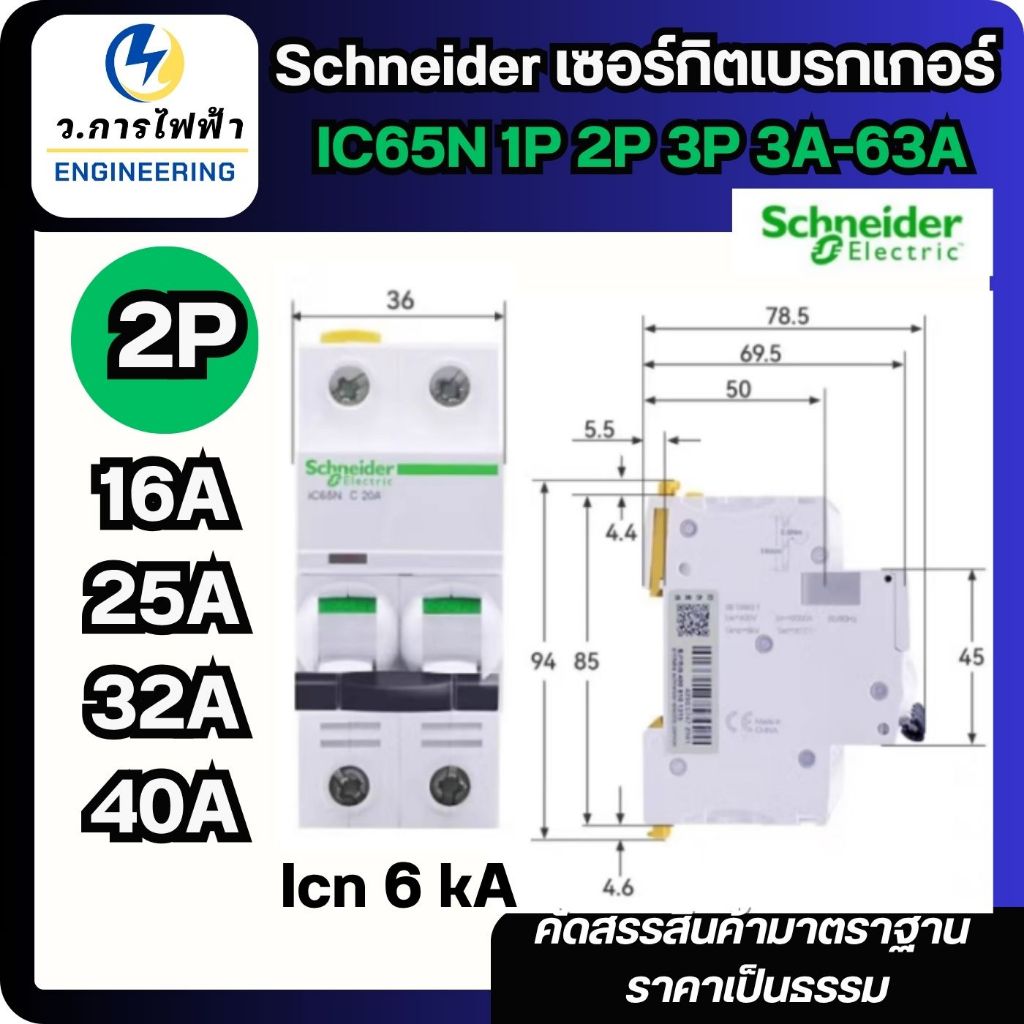

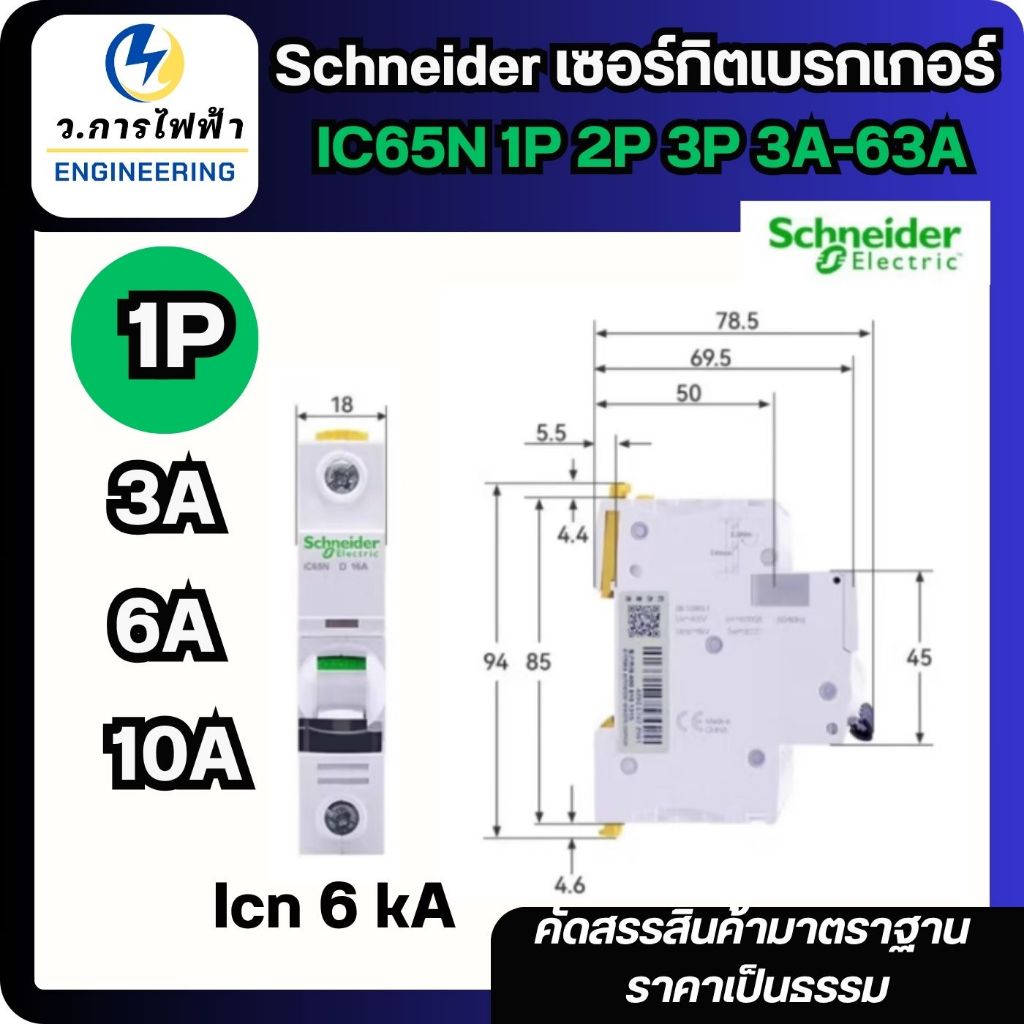

เบรกเกอร์ Schneider IC65N C1P 2P 3P 6kA เกาะราง ตัวเลือก 3A 6A 10A 16A 20A 32A 40A 50A MCB เบรกเกอร์เกาะราง C type

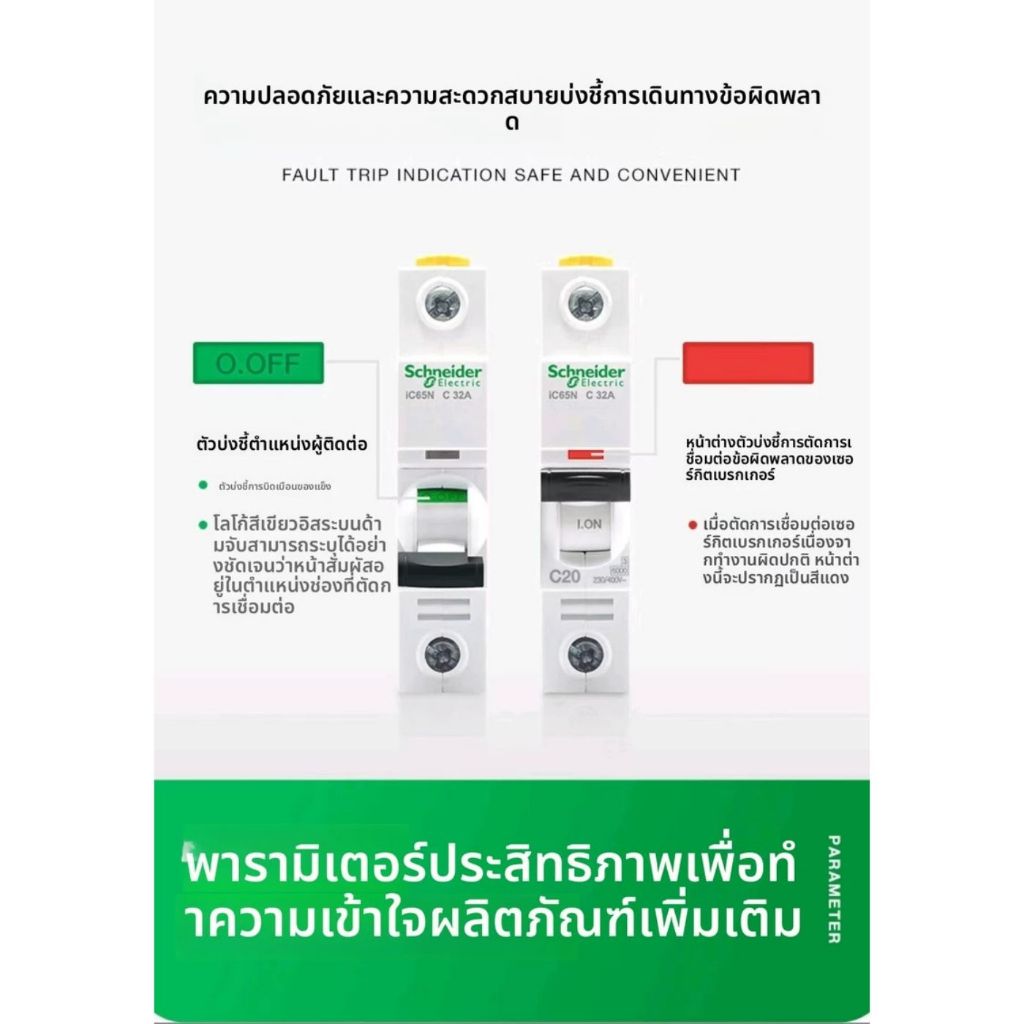

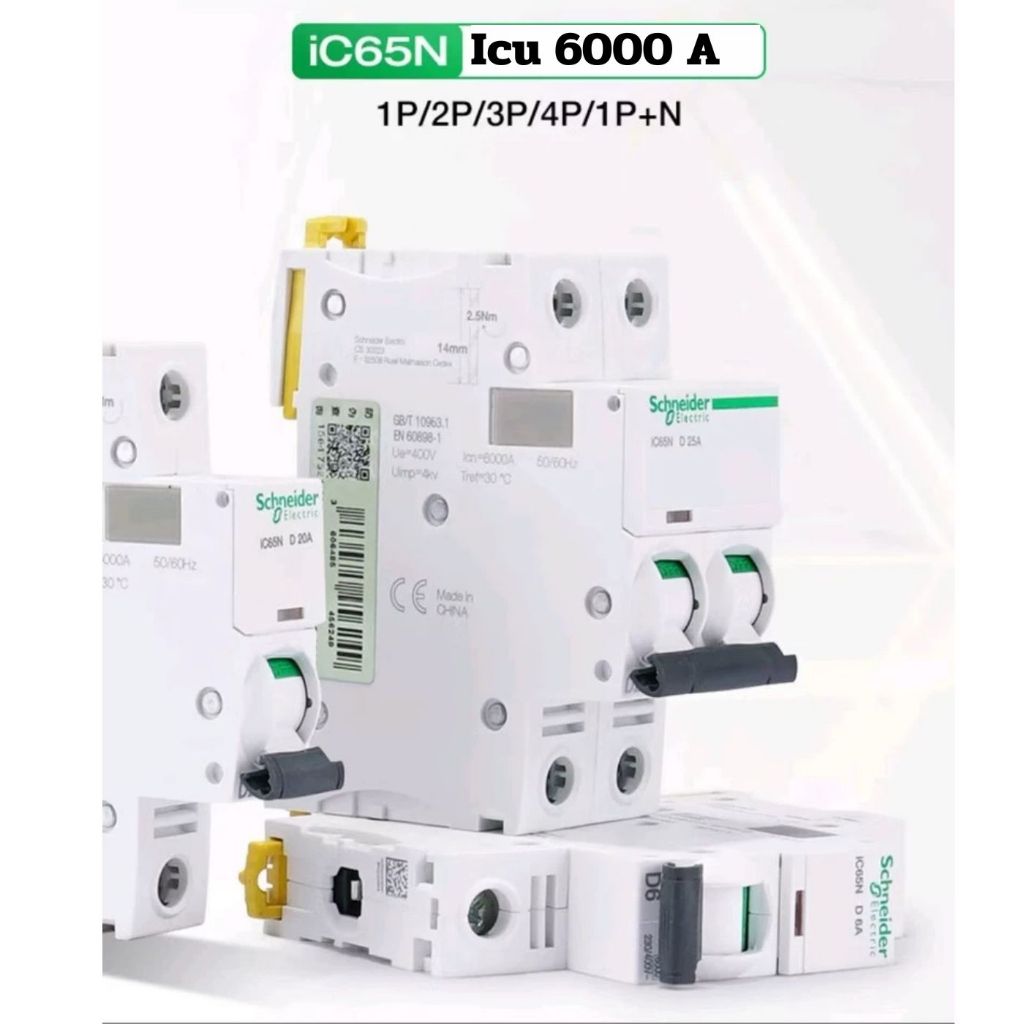

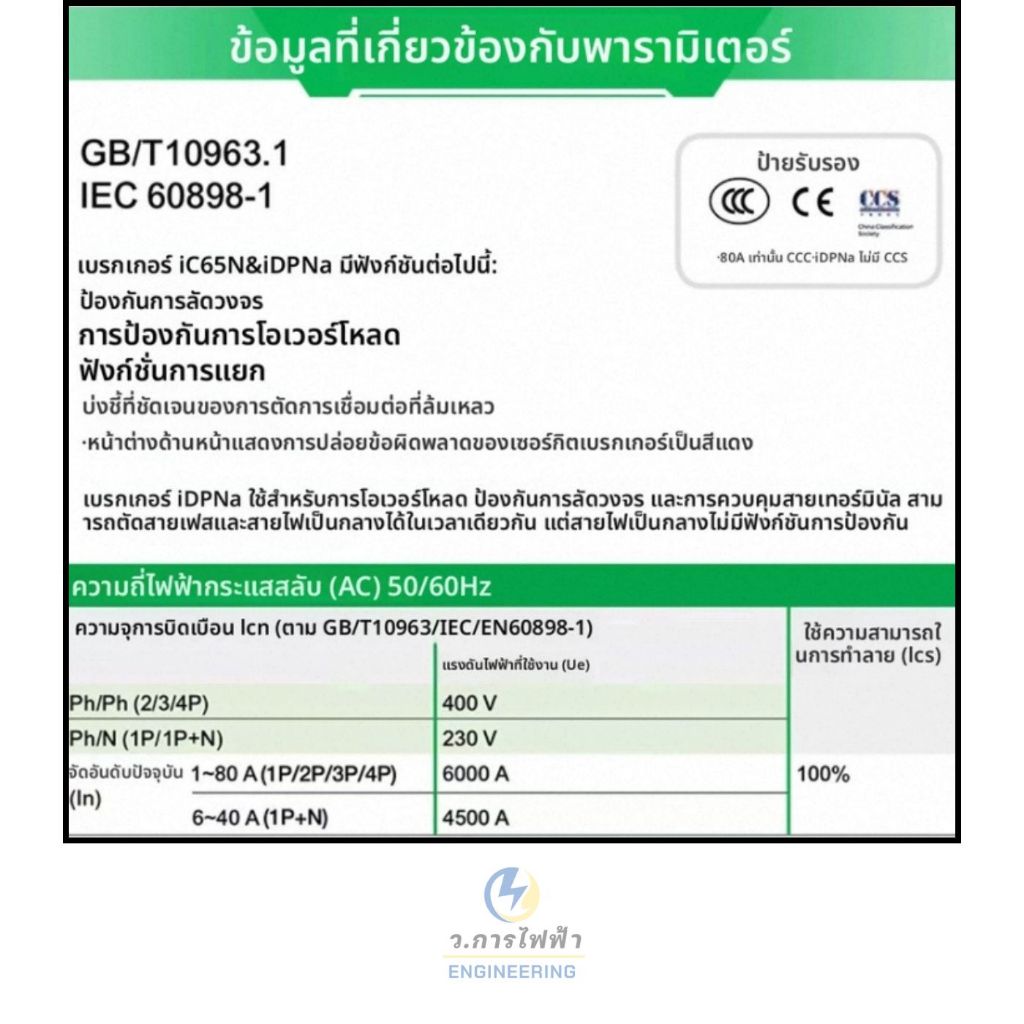

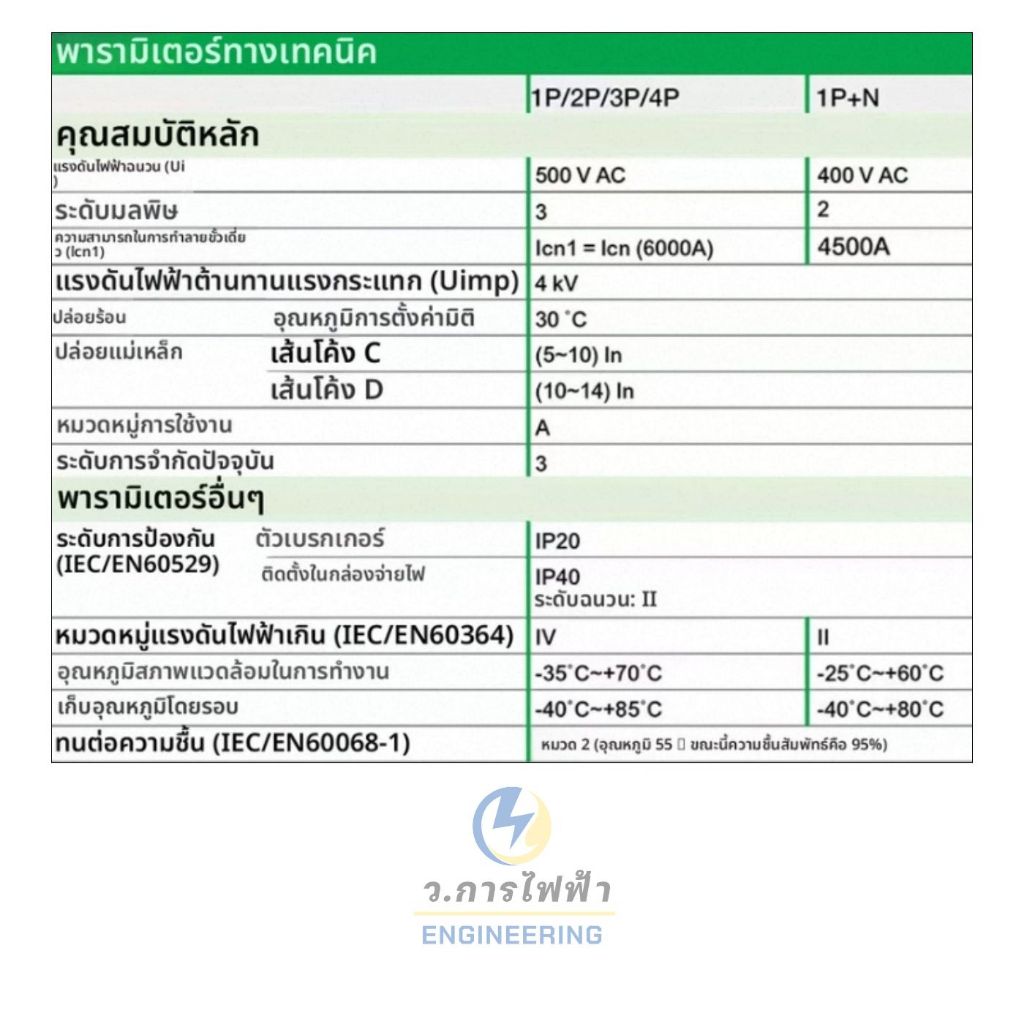

Information about parameters GB/T10963.1 Certification mark IEC 60898-1 CC WHAT COS The iC65N& iDPNa circuit breakers have the following features: . DOAR BIOCO. OPNIJECCS · Short-circuit protection · Overload protection · Isolation function · Fault disconnection is clearly indicated · The front window indicates the circuit breaker fault trip in red iDPNa circuit breaker is used for overload and short-circuit protection and control of terminal lines, it can cut off the phase and neutral wires at the same time. But the neutral wire does not provide protection. AC usage frequency (AC) 50/60Hz Breaking capacity ICN (according to GB/T10963/IEC/EN 60898-1) Use the ability to break up Operating Voltage (Ue) (Ics) -Ph/Ph (2/3/4P) 400 V -Ph/N (1P/1P+N) 230 V -Rated current 1-80 A(1P/2P/3P/4P) 6000 A 100%(In) 6-40 A (1P+N)4500 A Technical parameters 1P/2P/3P/4P 1P+N Key features: Insulation Voltage (Ui) 500 V AC 400 V AC Contamination level 3 2 Unipolar Breaking Capability (ICN1) ICN1=ICN(6000A)4500A Withstand Shock Voltage (Uimp)4 kV Thermal trippingBaseline setting temperature30 °C Magnetic tripping -C-curve(5-10) In -D-curve(10-14) In Use categoriesACurrent limiting level3 Other parameters Protection level Circuit breaker bodyIP20 (IEC/EN 60529) Installed inside the distribution boxIP40 Insulation Rating: #1Overvoltage Category (IEC/EN 60364)IV=Use ambient temperature -35℃-+70℃ -25℃-+60℃ Storage ambient temperature -40℃-+85℃ -40°C~+80℃ (IEC/EN 60068-1) Category 2 (95% relative humidity at 55'°C)
