MYNPE DN-2500 poweramp Class D (1U) เพาเวอร์แอมป์ กำลังขับ 2x500 Wrms @ 8 โอมห์ เครื่องขยายเสียง Power Amplifier MY NPE

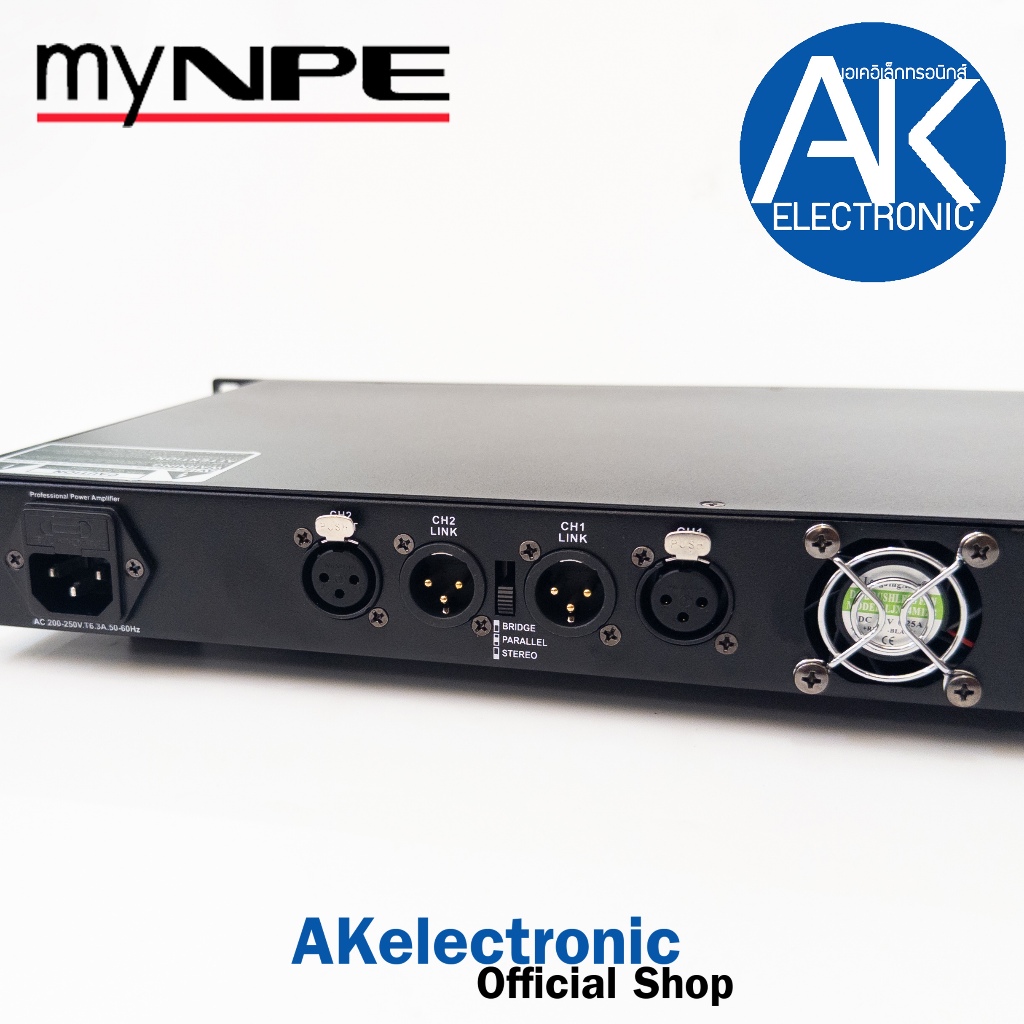

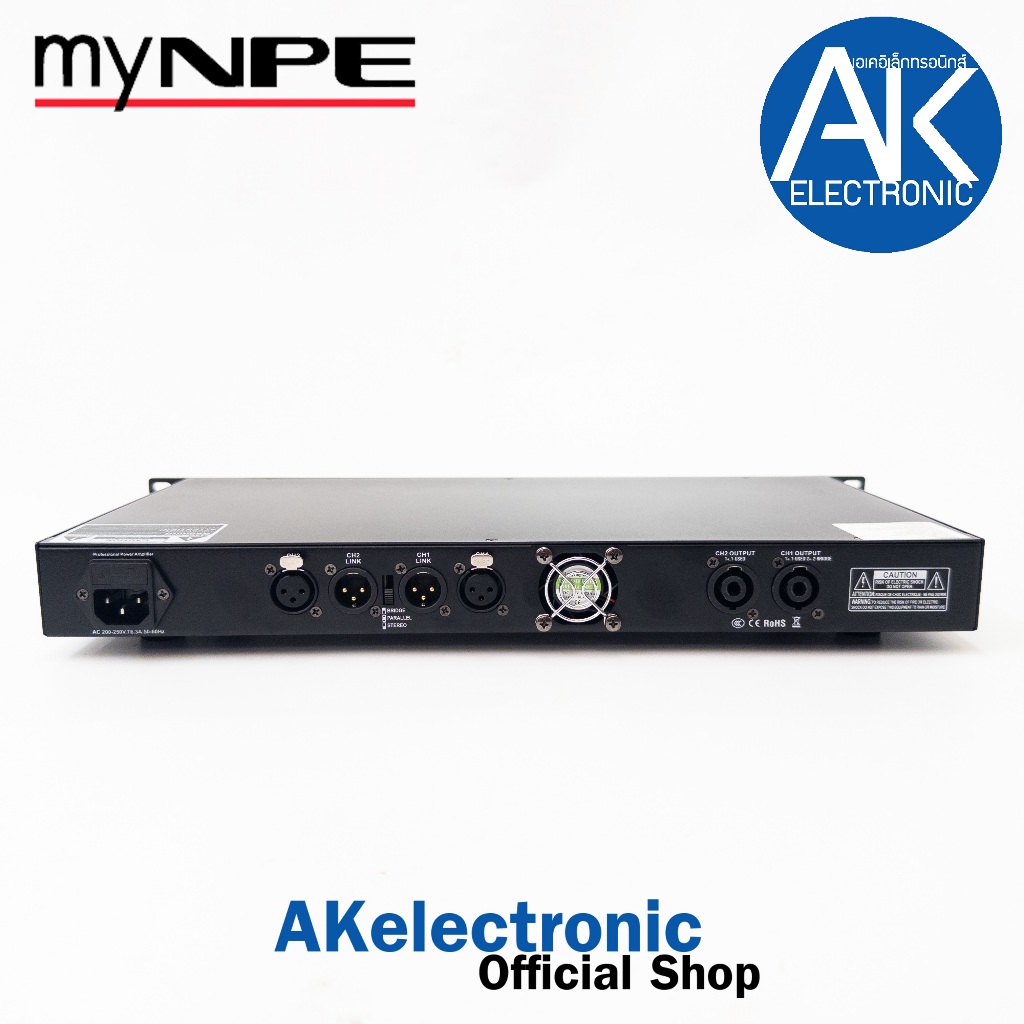

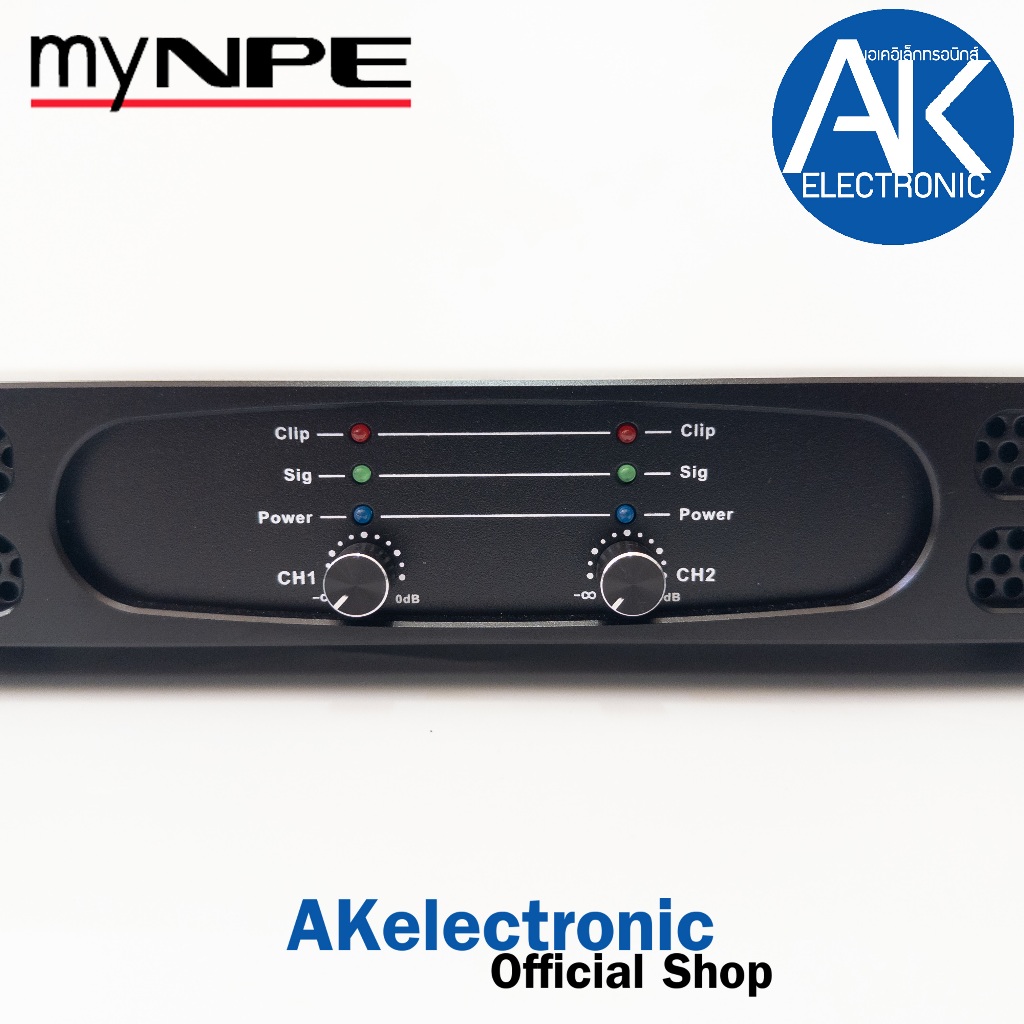

MYNPE DN-2500 poweramp Class D (1U) เพาเวอร์แอมป์ Power Amplifier myNPE DN2500 • Class D (1U) • กำลังขับ 2x500 Wrms @ 8 โอมห์ • กำลังขับ 2x1000 Wrms @ 4 โอมห์ • กำลังขับ 1200 Wrms @ Bridged • Freq: 20Hz-20kHz Specification Model Name DN 2500 FTC:20 Hz to 20 kHz 1% THD 8 ohms. 2x500W Both channels driven 4 ohms 2x1000W Bridged Mode at 1% THD 8 ohms, 1 kHz 1200W Input Sensitivity for rated power into 8 ohms 1.25V Input Impedance 20 k ohm balanced, 10 k ohm unbalanced Voltage Gain 64x(36 dB)for 8 ohm load Dynamic Headroom at 4 ohms 2 dB Distortion, SMPTE 0.02% Frequency response at 1 watt 20 Hz to 20 kHz, 8 ohms, LF Filter By passed: ±3 dB Noise (unweighted) 100 dB below rated output from 30 Hz to 20 kHz, 8 ohm load Controis Front panel-AC power switch, CHA Gain control, CHB Gain control, Clip Limiter On/off controls for each channel and switches for selecting Stereo or Bridge Mode Breaker for channel. Connectors Inputs: XLR female, TRS (1/4-inch); Outputs: Speakon outputs Load Protection 1000V or 220 Volts AC/50-60 Hz Dimensions (W*D*H) 482*230*50mm Weight (kg) 3.3kg Weight (kg) packing 4.5kg
