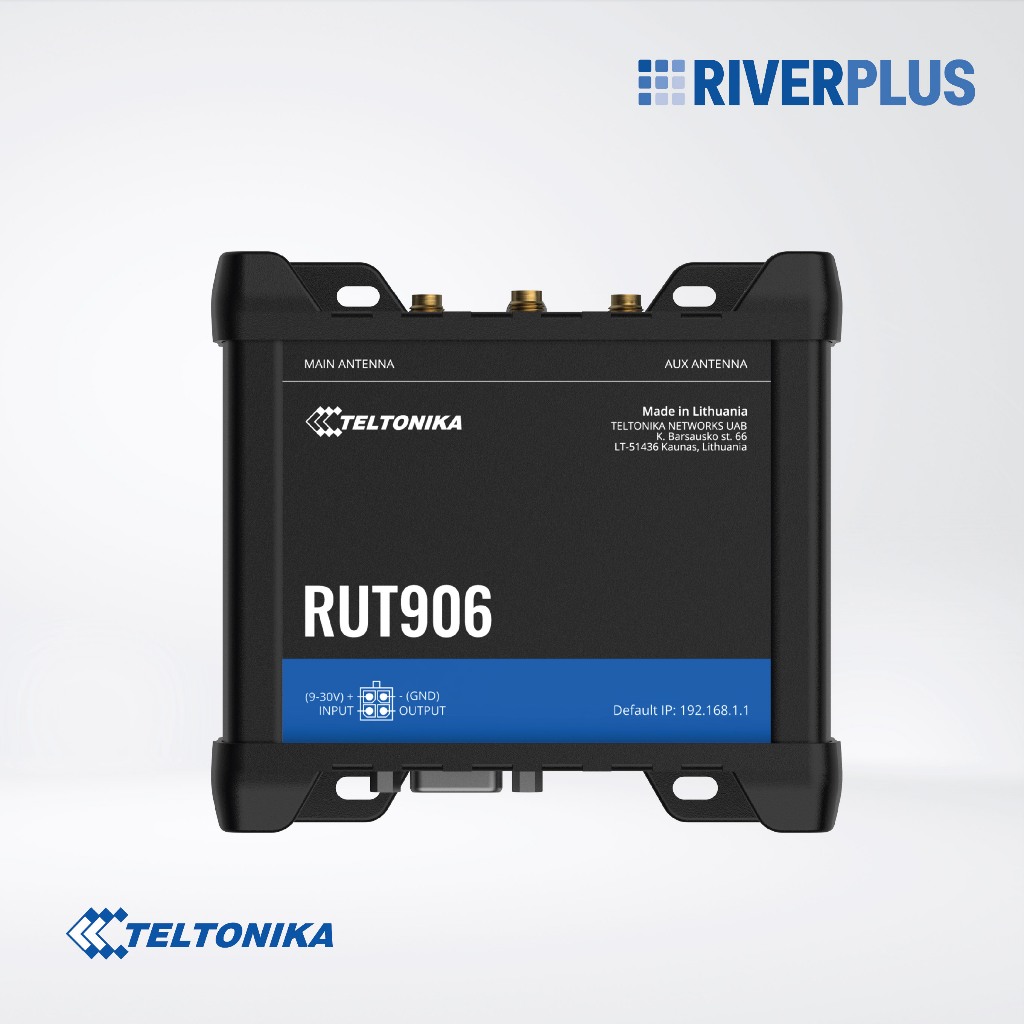

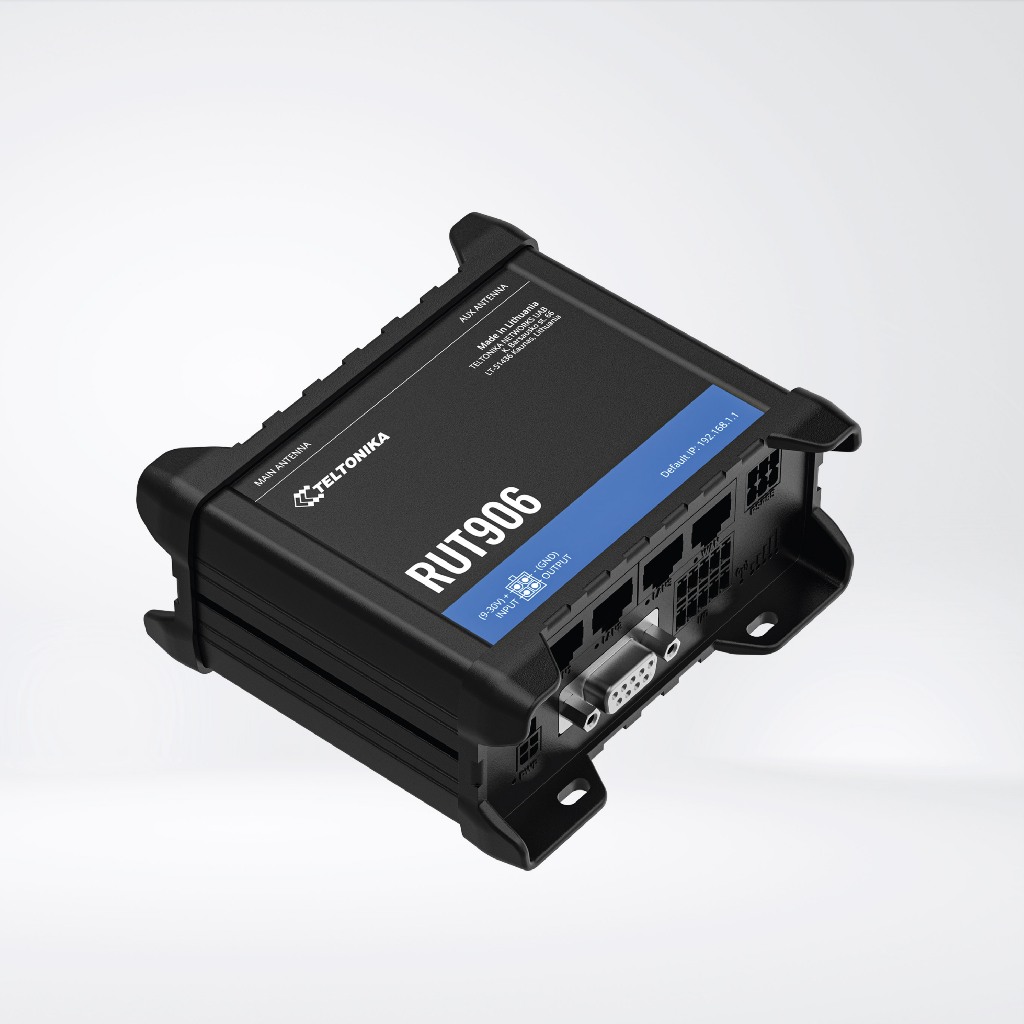

RUT906 4G LTE RS232/RS485 Router | Teltonika

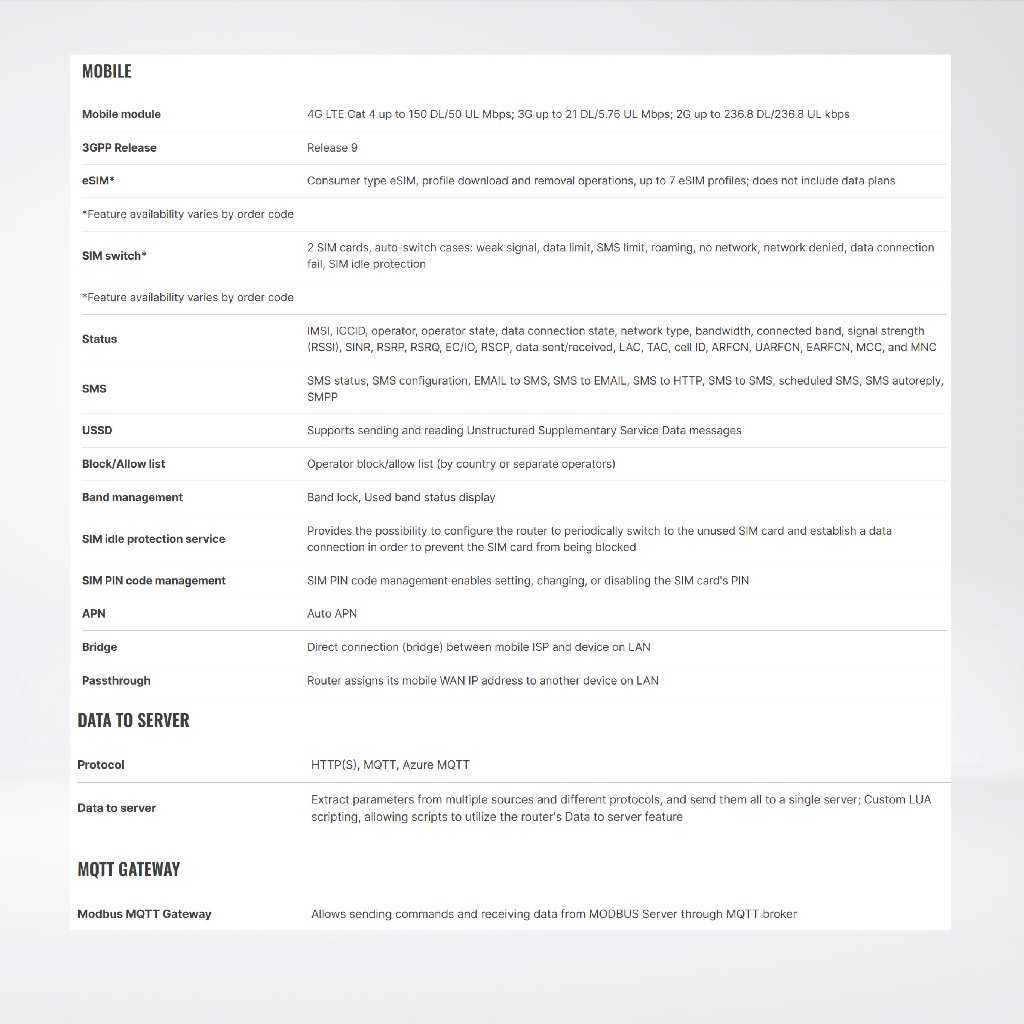

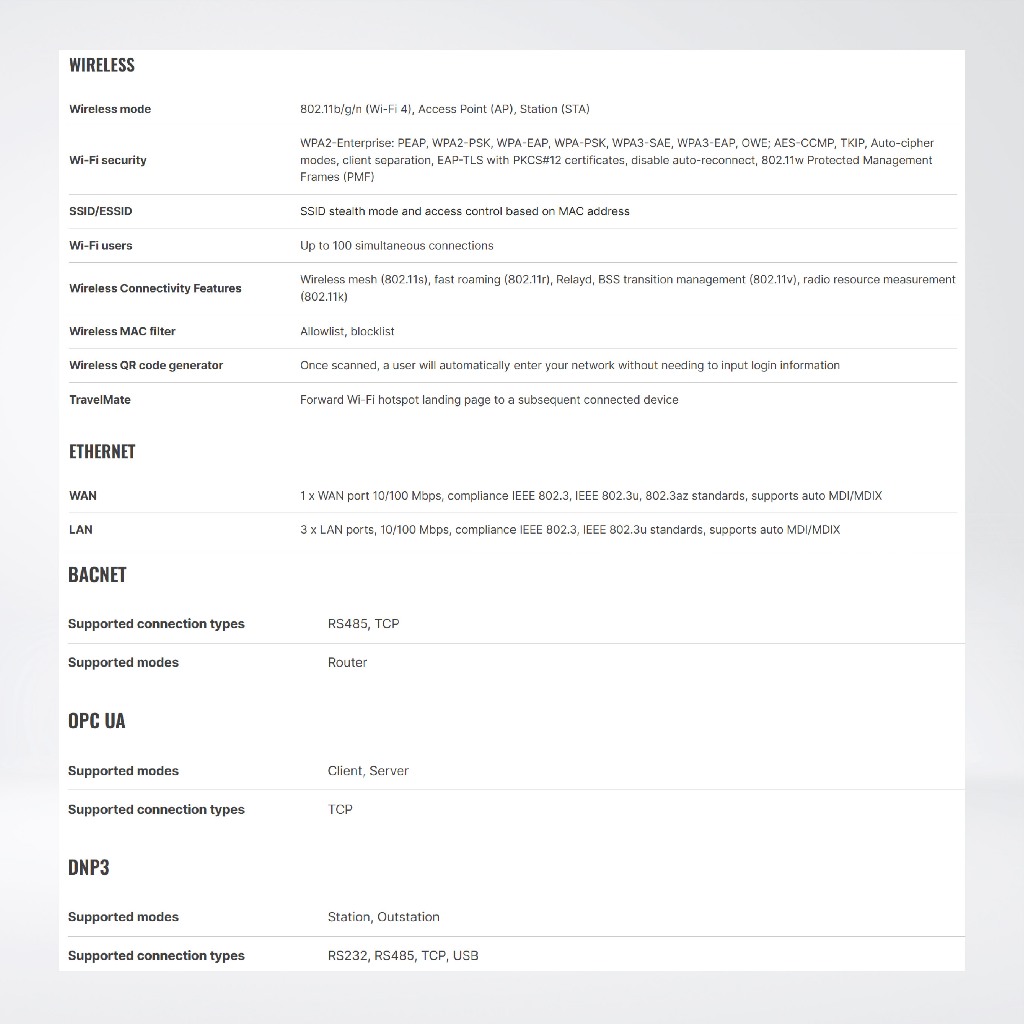

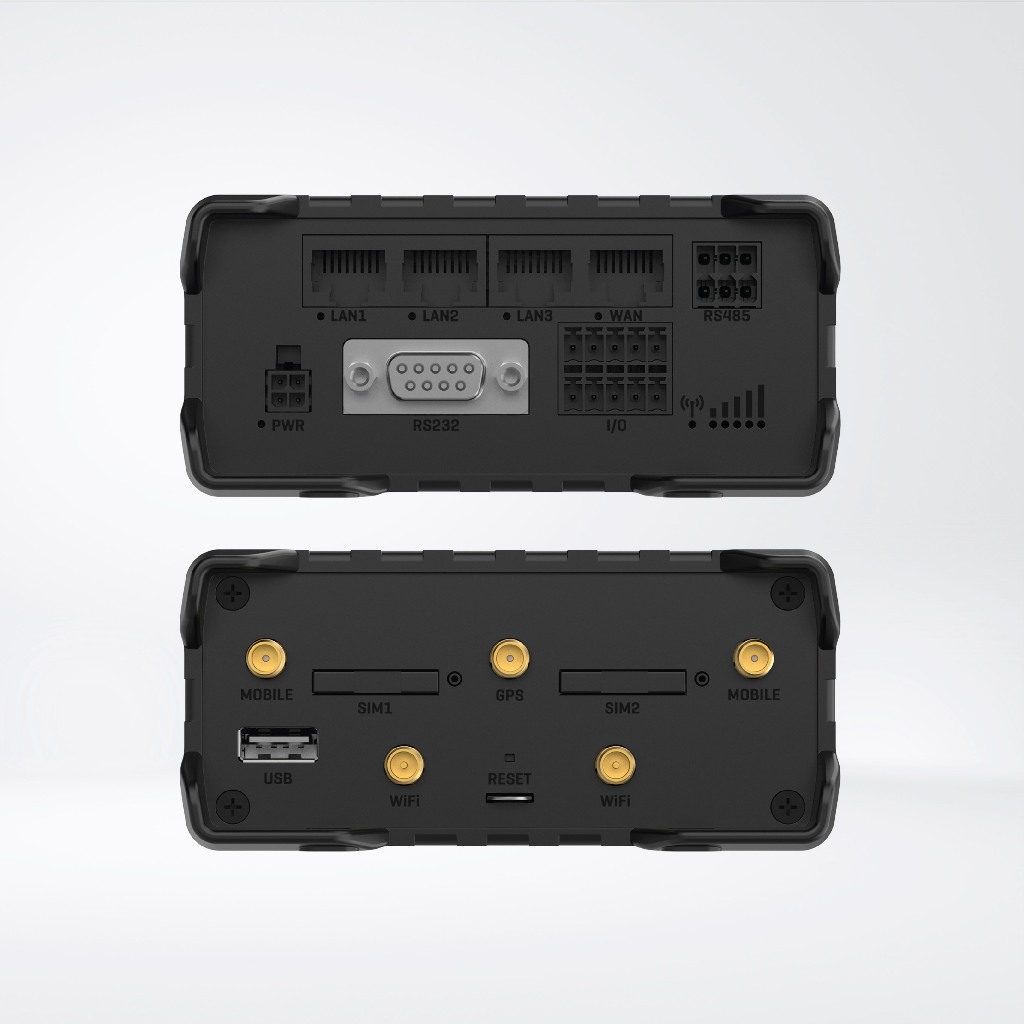

Description Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.  HARDWARE ✅ Mobile : 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps ✅ CPU : Mediatek, 580 MHz, MIPS 24KEc ✅ Memory : 128 MB, DDR2 ✅ Storage : 16 MB, SPI Flash ✅ Powering options : 4-pin industrial DC power socket, 9 - 30 VDC ✅ SIM : 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) ✅ SD Card : Micro SD (internal) ✅ Antenna connectors : 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS ✅ Ethernet : 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN ✅ Wi-Fi : IEEE 802.11b/g/n, Access Point (AP), Station (STA) ✅ GNSS : GPS, GLONASS, BeiDou, Galileo and QZSS ✅ Inputs/Outputs : 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector ✅ Serial 1 x RS232, 1 x RS485 ✅ Other 1 x USB host ✅ Status LEDs 1 x bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power ✅ Operating temperature : -40 °C to 75 °C ✅ Housing : Aluminium housing, plastic panels ✅ Dimensions (W x H x D) 109.5 x 50 x 100 mm ✅ Weight 295 g SOFTWARE ✅ Operating system : RutOS (OpenWrt based Linux OS) ✅ Mobile features : Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits ✅ Network features : Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS ✅ Monitoring and Management : WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS ✅ VPN and tunneling : OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc ✅ Cloud solutions : RMS, FOTA, Azure IoT Hub, Cumulocity - Cloud of Things, ThingWorx ✅ Wireless Connectivity Features : Fast roaming (802.11r), Relayd ✅ Hotspot : External/Internal Radius, SMS OTP, MAC authentication, Walled Garden ✅ GNSS : NMEA forwarding, NTRIP, AVL, Geofencing
