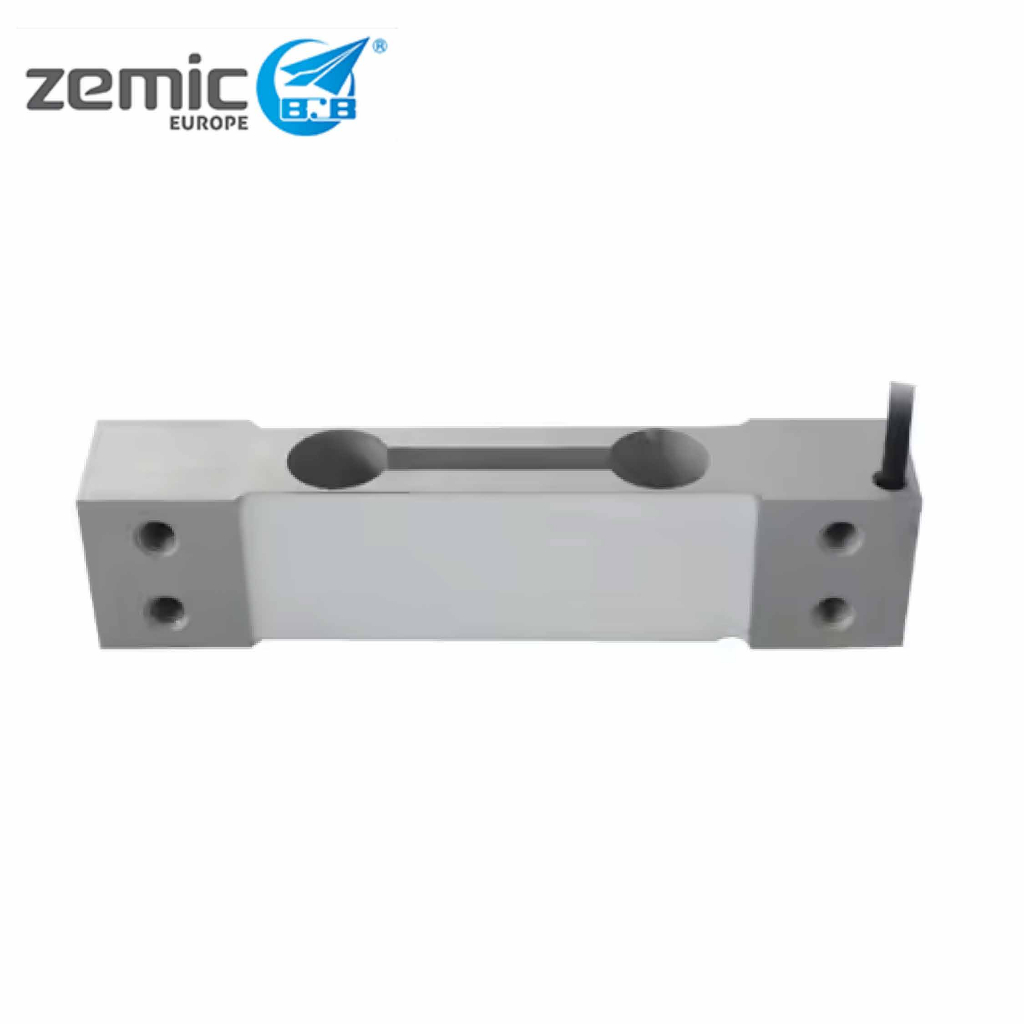

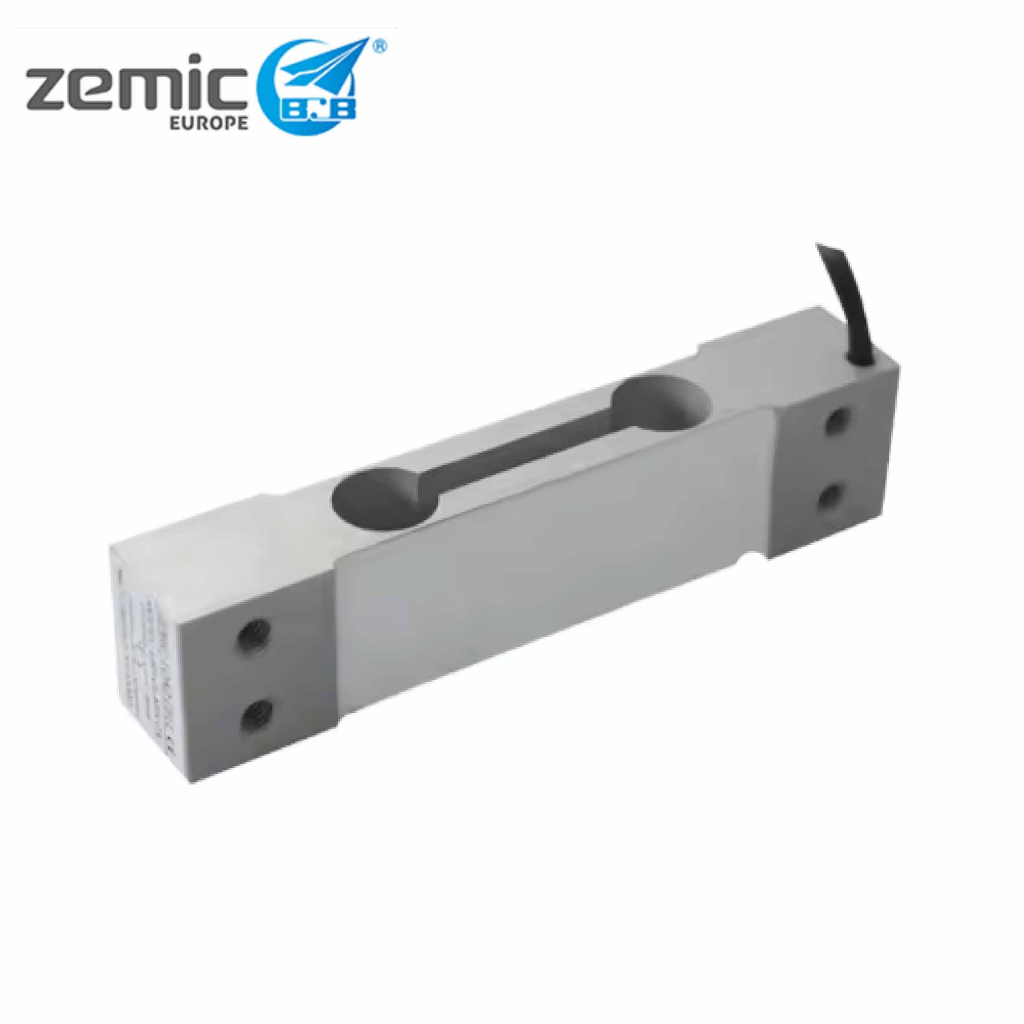

Load cell ยี่ห้อ ZEMIC รุ่น L6D

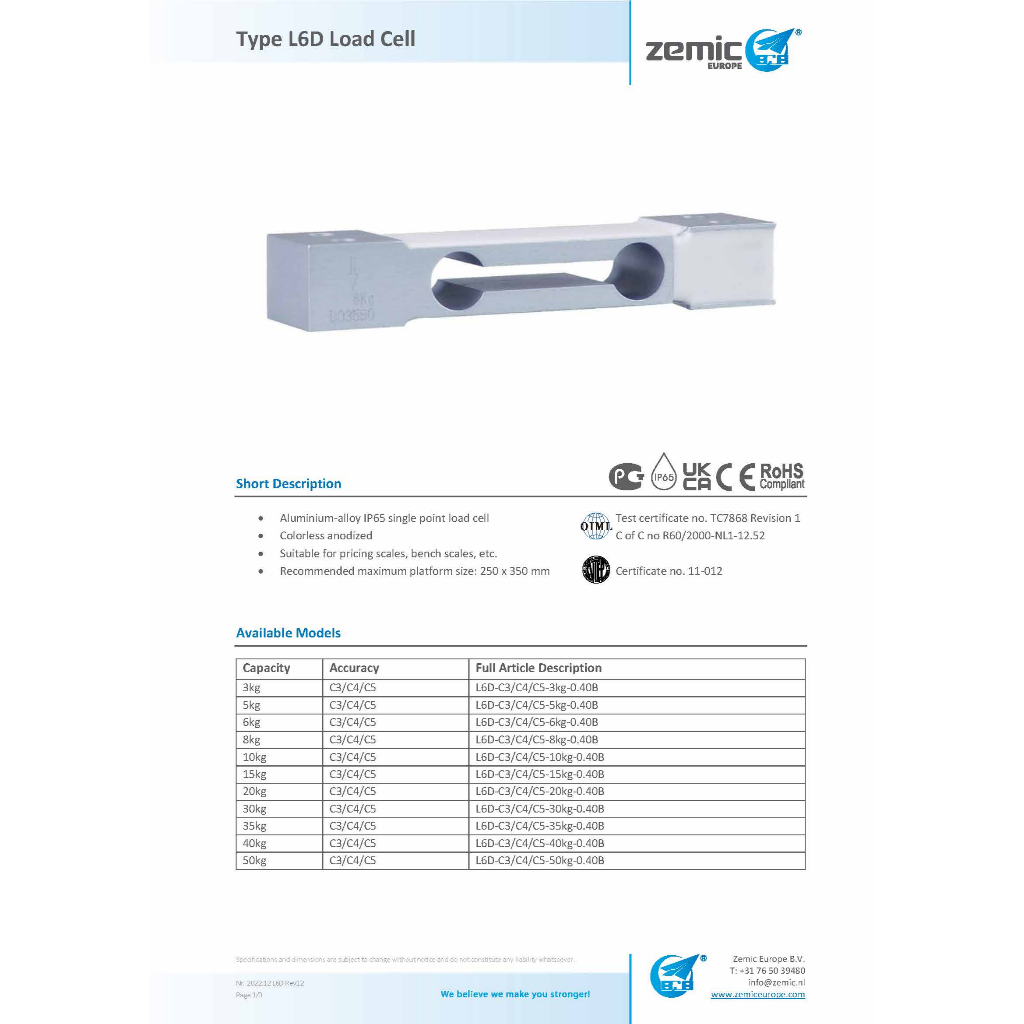

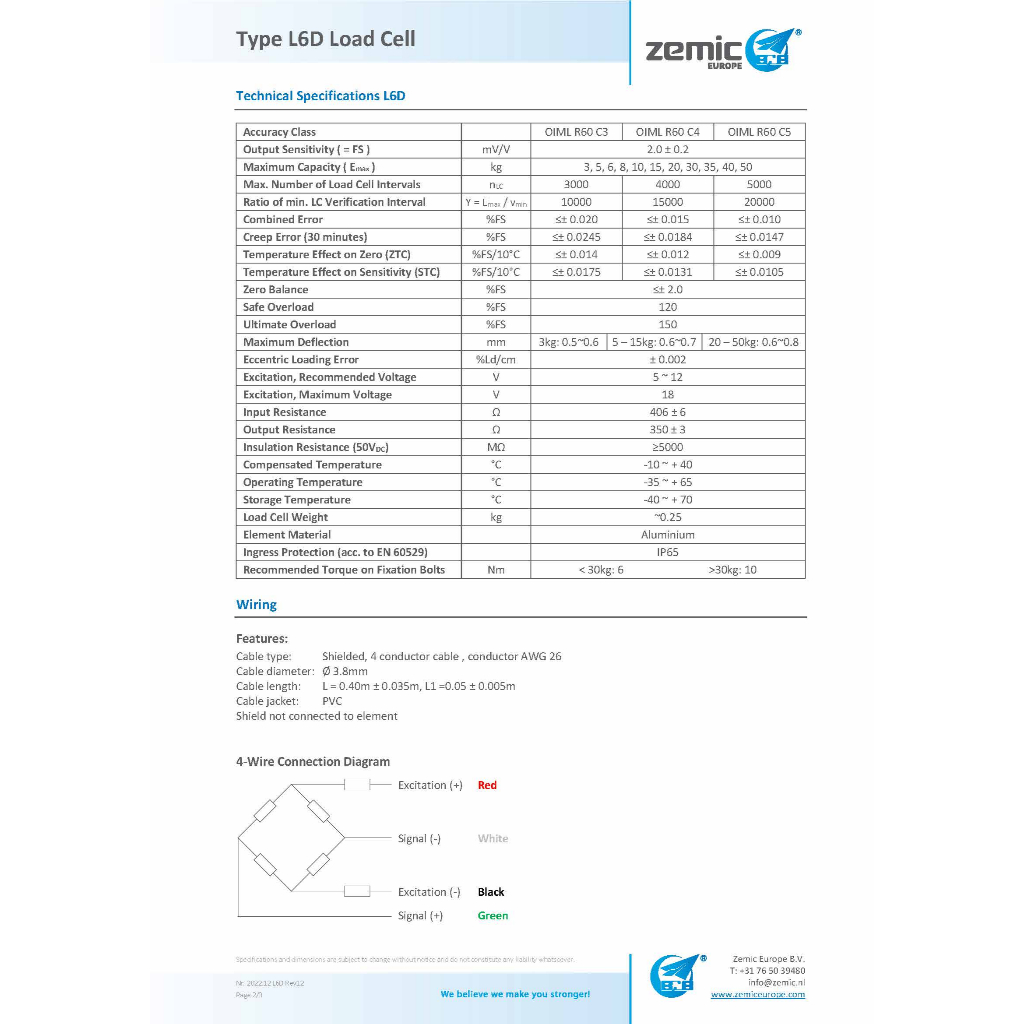

Specifications Accuracy Class OIML R60 C3 Temperature effect on span (%FS/10oC) 0.014 Rated output (mV/V) 2.0 ± 0.2 Temperature effect on zero (%FS/10oC) 0.017 Combined Error (%FS) 0.02 Temperature, compensated (oC) -10 ~+40 Non-liniearity (%FS) 0.017 Temperature, Operating (oC) -35 ~+65 Non-repeatability (%FS) 0.01 Excitation, Recomended (V) 5~12(DC) Creep (%FS/30min) 0.015 Excitation, Max. (V) 18(DC) Input Resistance (Ω) 409 ± 6 or 1065 ± 15 Safe Overload (%FS) 150 Output Resistance (Ω) 350 ± 3 or 1000 ± 5 Ultimate Overload (%FS) 300 Insulation Resistance (MΩ) ≥5000(50VDC) Protection Class IP 65 Zero Balance (%FS) 2.0 Cable Length (m) 0.4 Off center load error (% per R76) 0.017 Cable Spec 4-wire shielded cable 3.8mm Models Electrical Connection Capacity Accuracy Part number Red Input(+) Black Input(-) 6kg. C3 L6D-C3-6kg-0.4B 10kg. C3 L6D-C3-10kg-0.4B 30kg. C3 L6D-C3-30kg-0.4B 40kg. C3 L6D-C3-40kg-0.4B 50kg. C3 L6D-C3-50kg-0.4B C3 L6D-C3-40kg-0.4B
