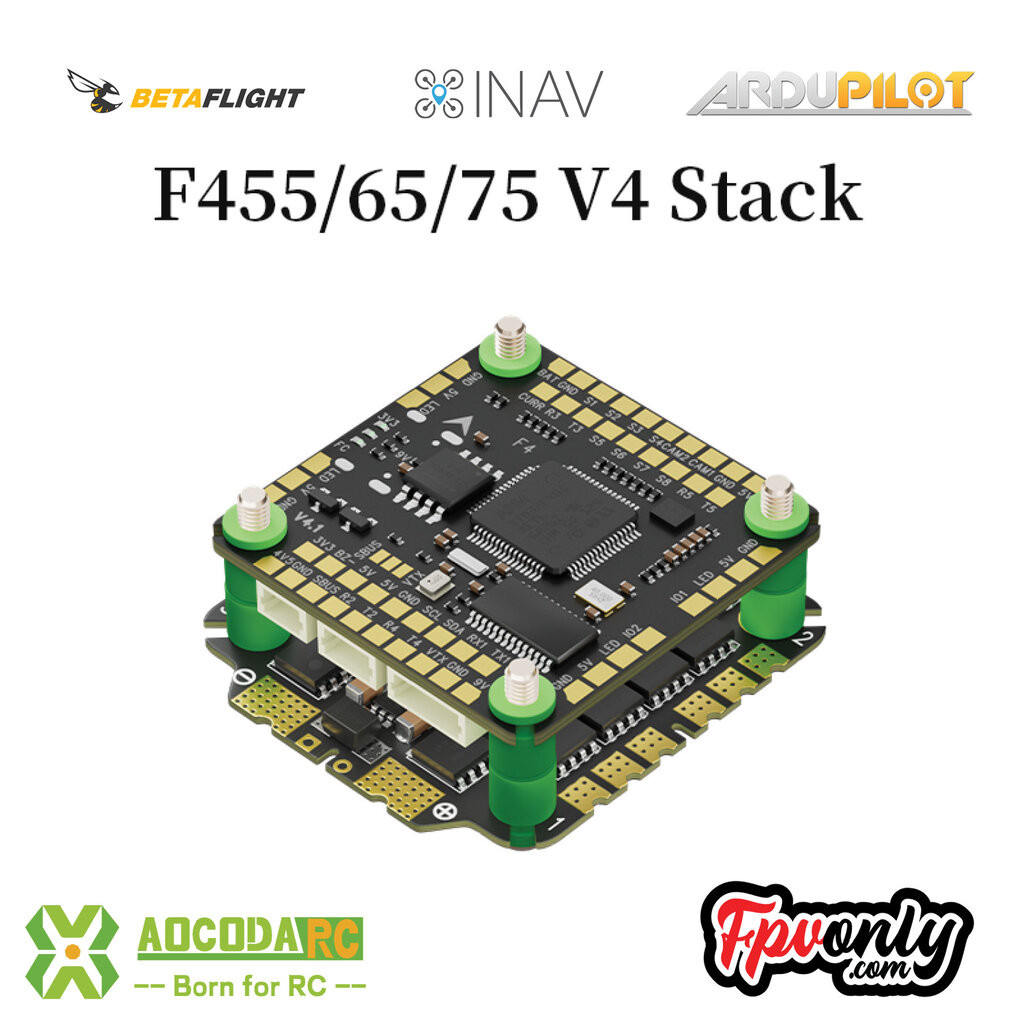

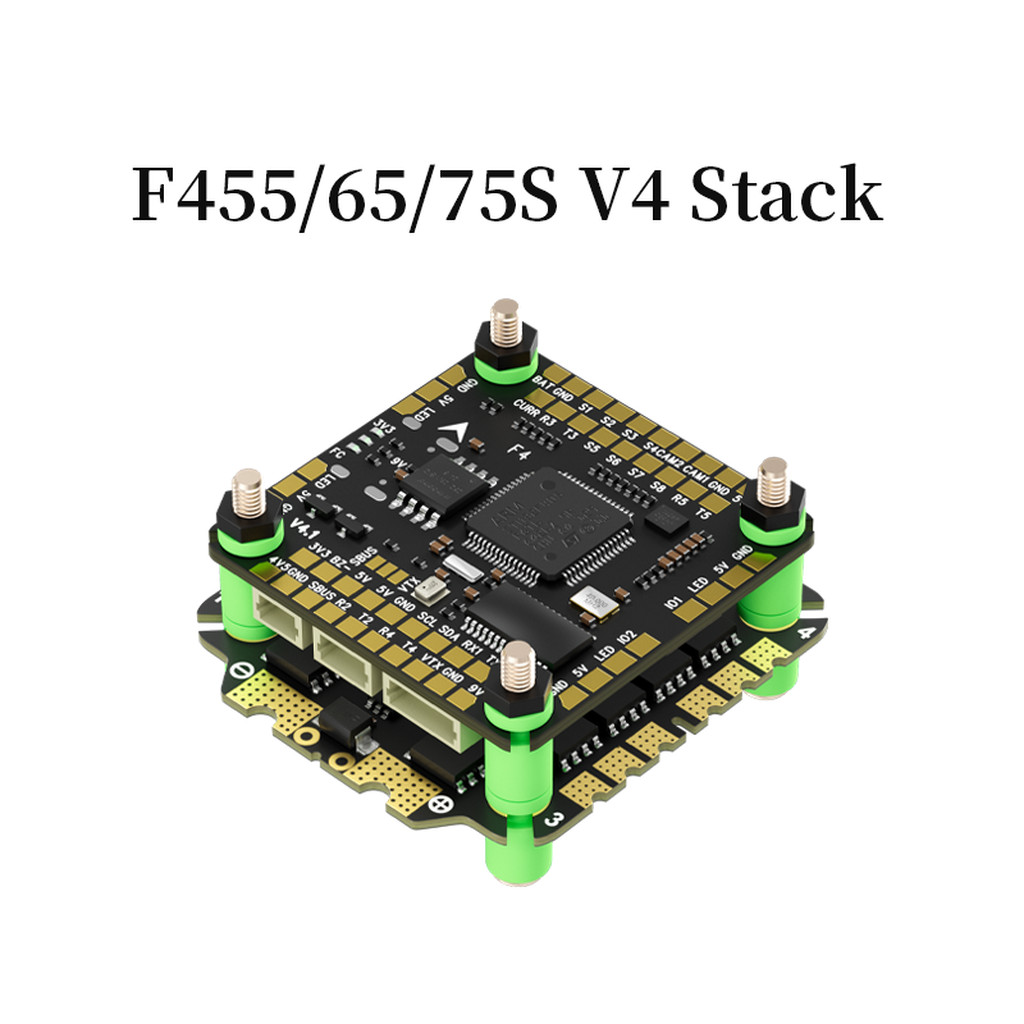

[FC&STACK 30x30] Aocoda-RC F455 65 75S V4 Stack F405 V4 FC+65A 75A 8BIT 4in1 ESC 30x30mm FPV Freestyle Drone อุปกรณ์โดรน

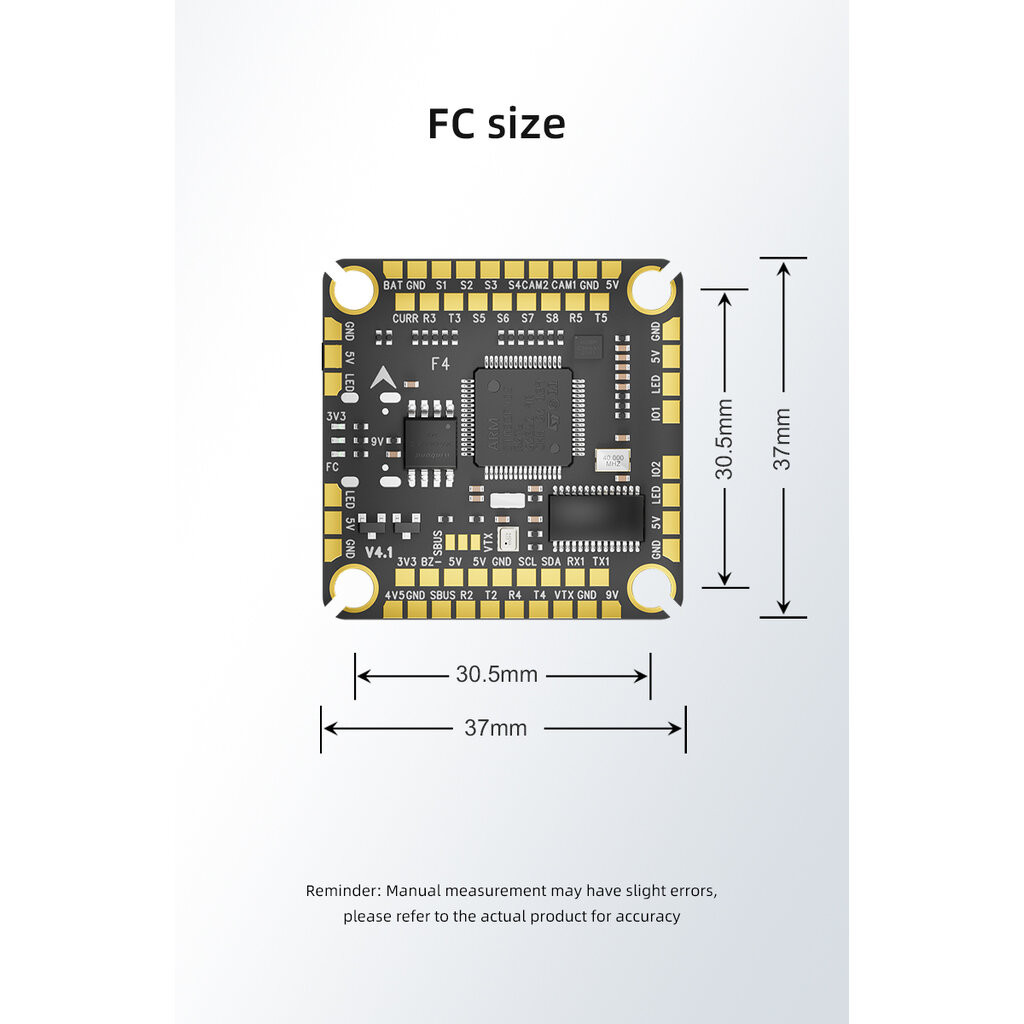

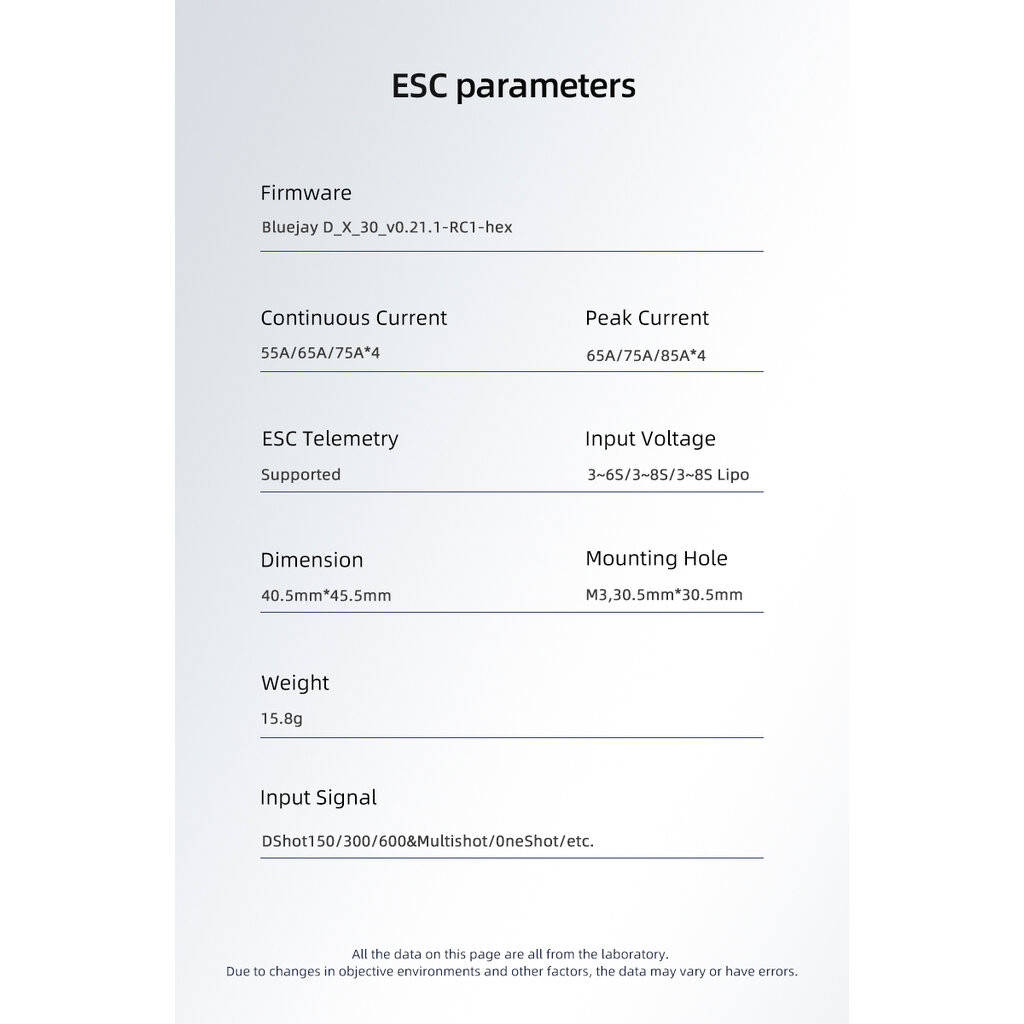

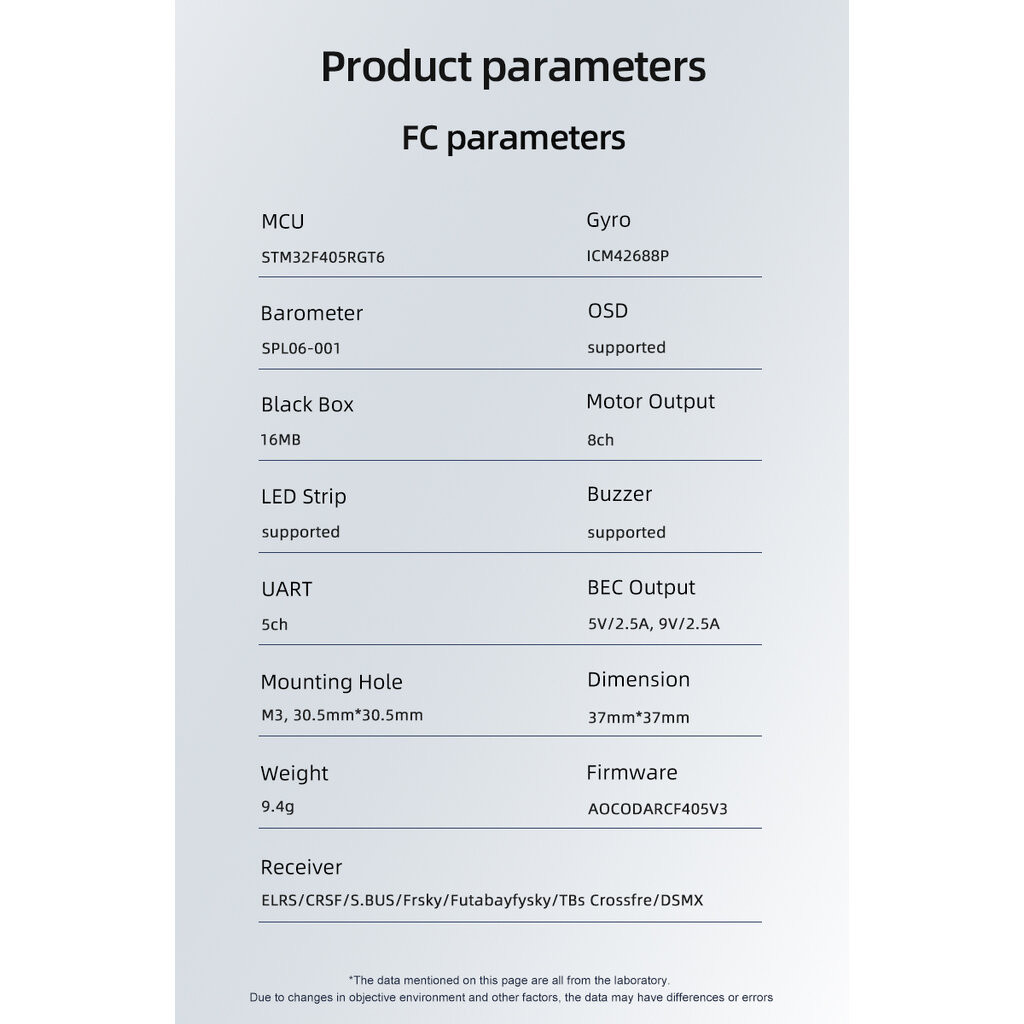

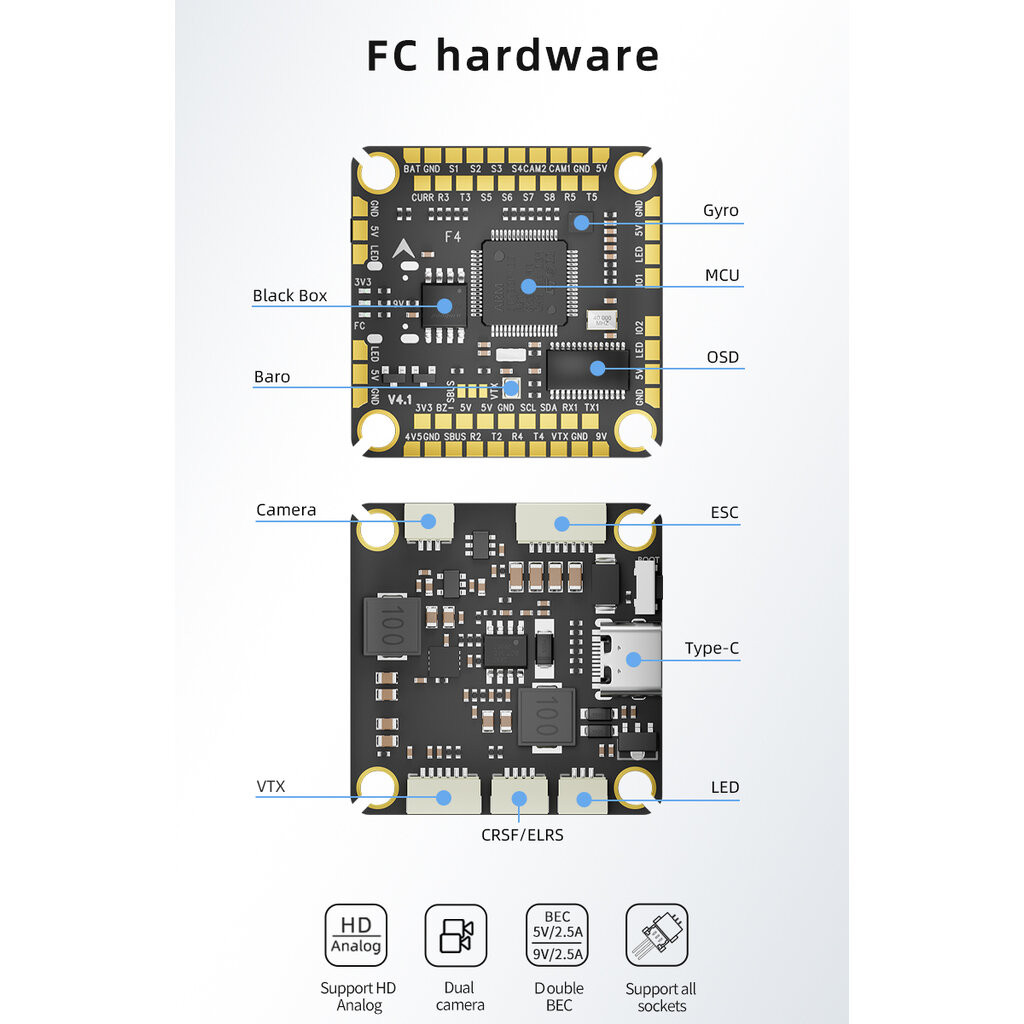

FC Specifications - MCU: STM32F405RGT6, 168MHz, 1MB Flash - Board V3.0-ICM Version: IMU: ICM42688 (SPI1) - Board V3.0-MPU Version: IMU: MPU6888 (SPI1) - Gyro: ICM42688P(SPI1) - Baro: SPL06-001(I2C1) - OSD: AT7456E(SPI2) - Blackbox: 16MB(SPI3) - Motor Output: 8ch - 5x Uarts (1,2,3,4,5) - 10x PWM outputs(including "LED strip" pad) - 1x I2C - 3x ADC (VBAT, RSSI, CURR) - 3x LEDs for FC Status (Blue, Red) and 3V indicator(Red) - Built-in inverter for SBUS input - USB Type-C - Dual camera input and free switching - Receiver: ELRS/CRSF/S.BUS/Frsky/Futabayfysky/TBs Crossfre/DSMX - Firmware Name: AOCODARCF405V3 - Supported firmware: BetaFlight, INAV, ArduPilot(ChiBiOS) - DJI FPV OSD is supported by any spare Uart ESC Specifications - Continuous Current: 55A/65A/75A*4 - Peak Current: 65A/75A/85A*4 - Input Voltage: 3~6S/3~8S/3~8S Lipo - BEC output: No - Temperature: No - DEO: DShot150/300/600&MultiShot/OneShot etc. - ESC Firmware: Bluejay D_X_30_v0.21.1-RC1-hex FC Physical - Dimensions: 37mm*37mm - Mounting Hole: M3 30.5mm*30.5mm - Weight: 9.4g ESC Physical - Dimensions: 44.5mm*40.5mm - Mounting Hole: M3, 30.5mm*30.5mm - Weight: 15.8g Including - F405 V4 FC*1 - 3055/65/75S 8BIT 4IN1 ESC*1 - 8Pin SH1.0 Wiring Harness*1 - M3*8mm Shock-absorbing Ball*8 - Nut*8 - M3*30mm Metal screw*4 - 35V 1000uF capacitor*1 - XT60 Power Lead*1
