GY-9960-3.3 RGB and Gesture Sensor (APDS-9960) เซนเซอร์ตรวจจับสี RGB และท่าทาง APD-9660

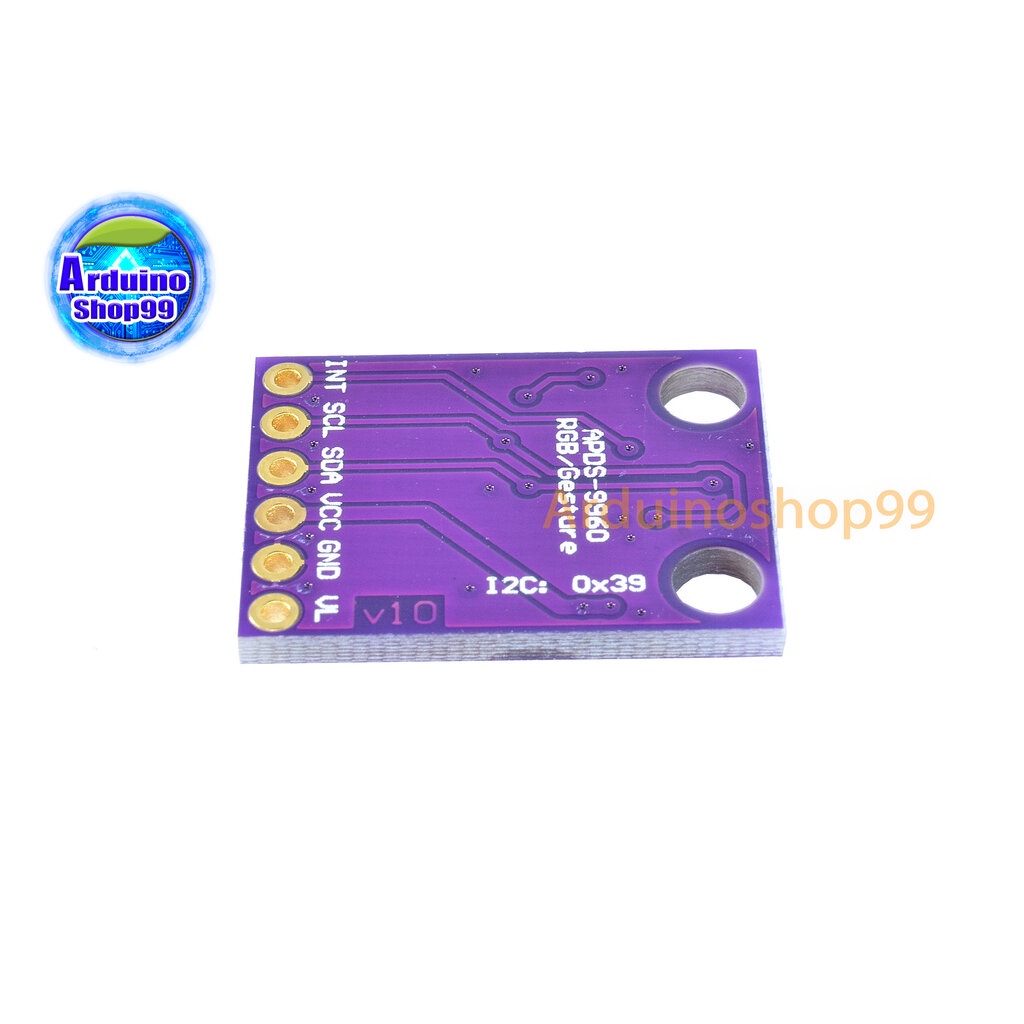

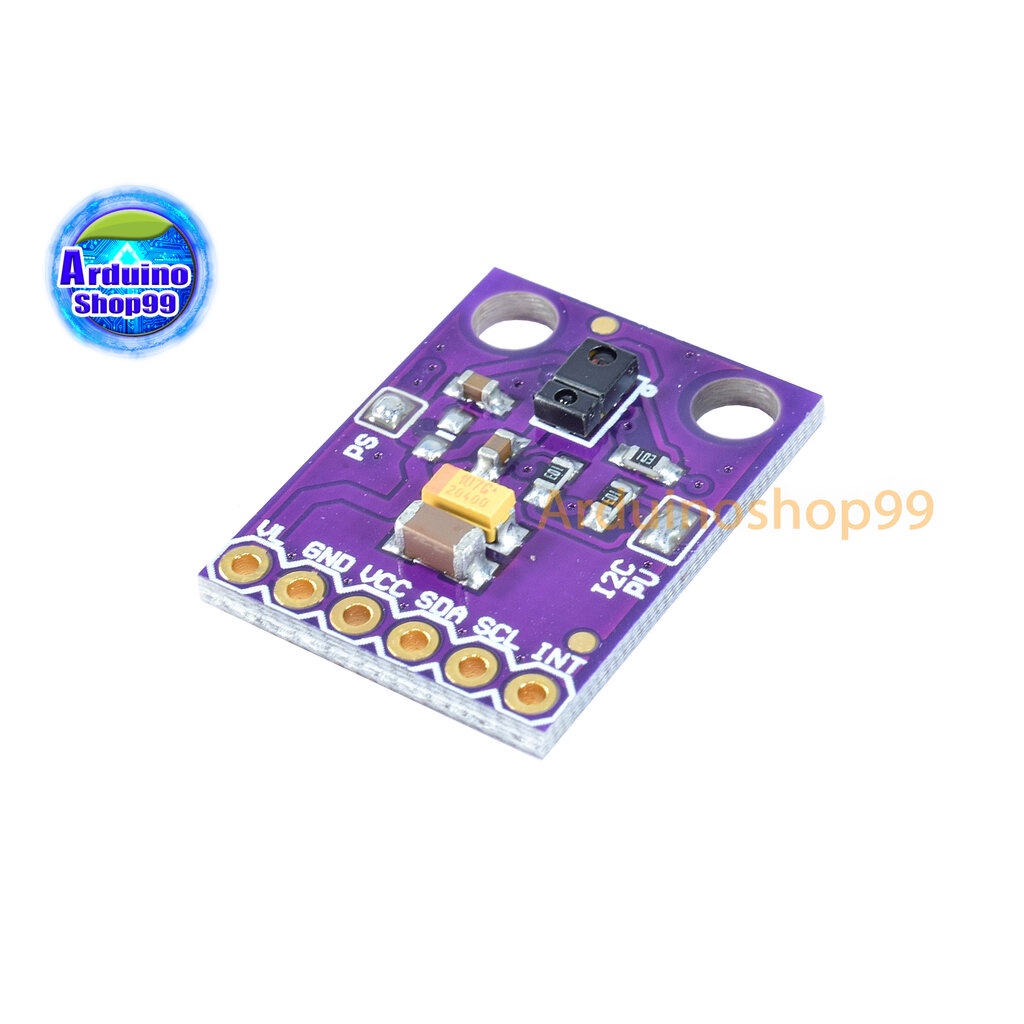

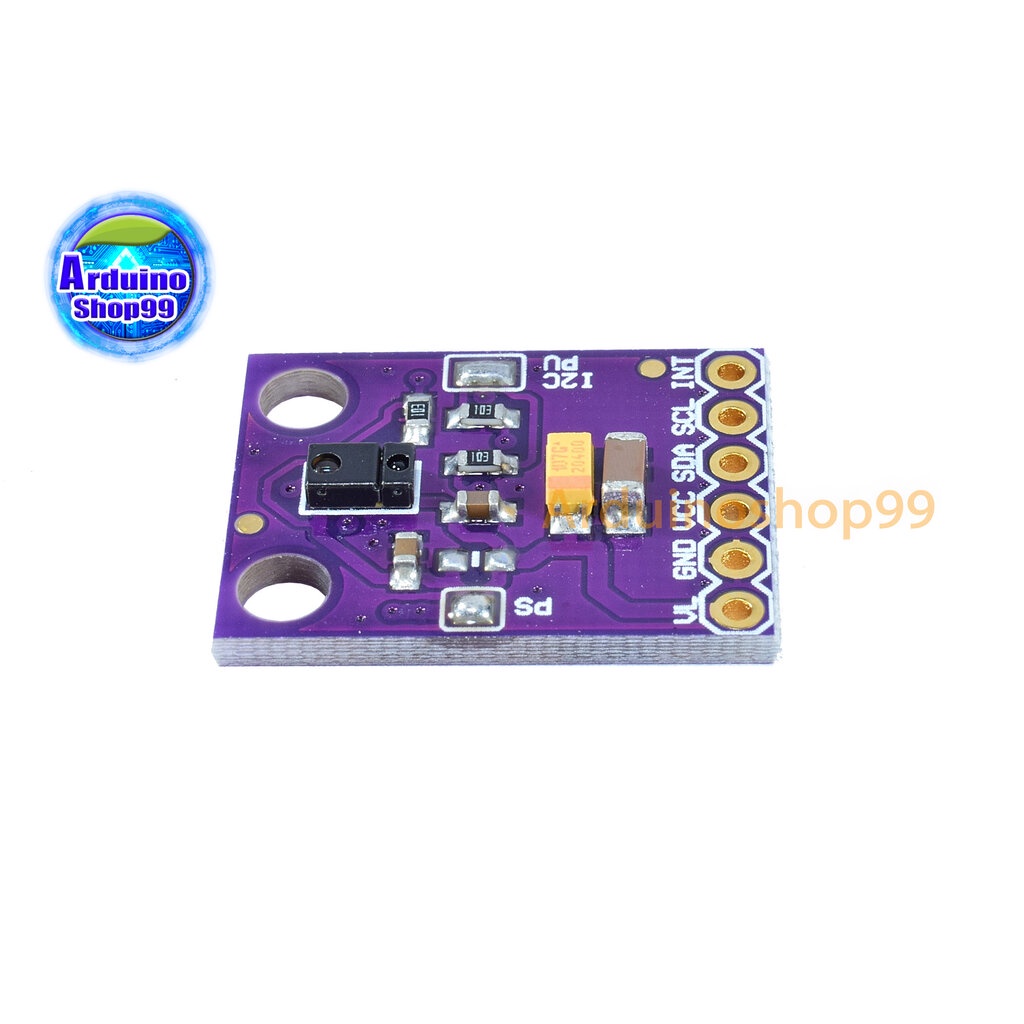

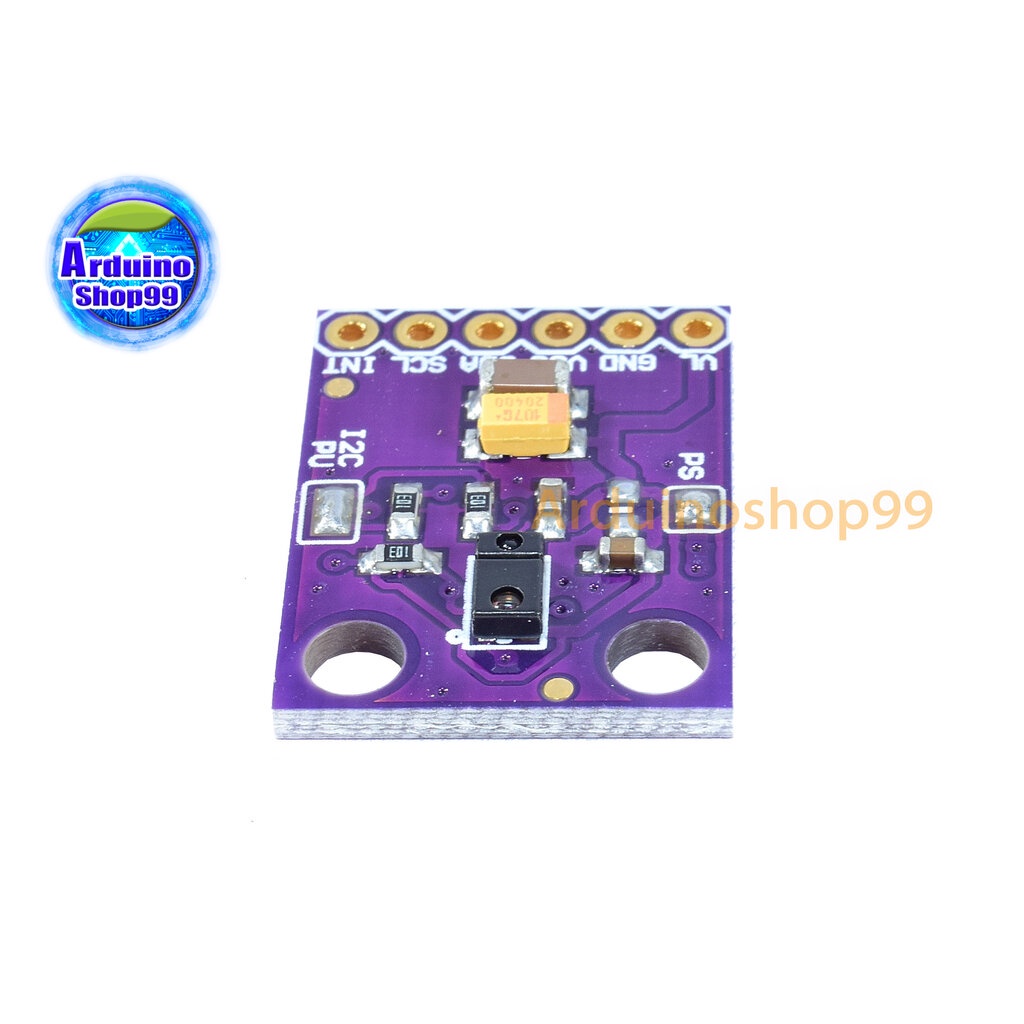

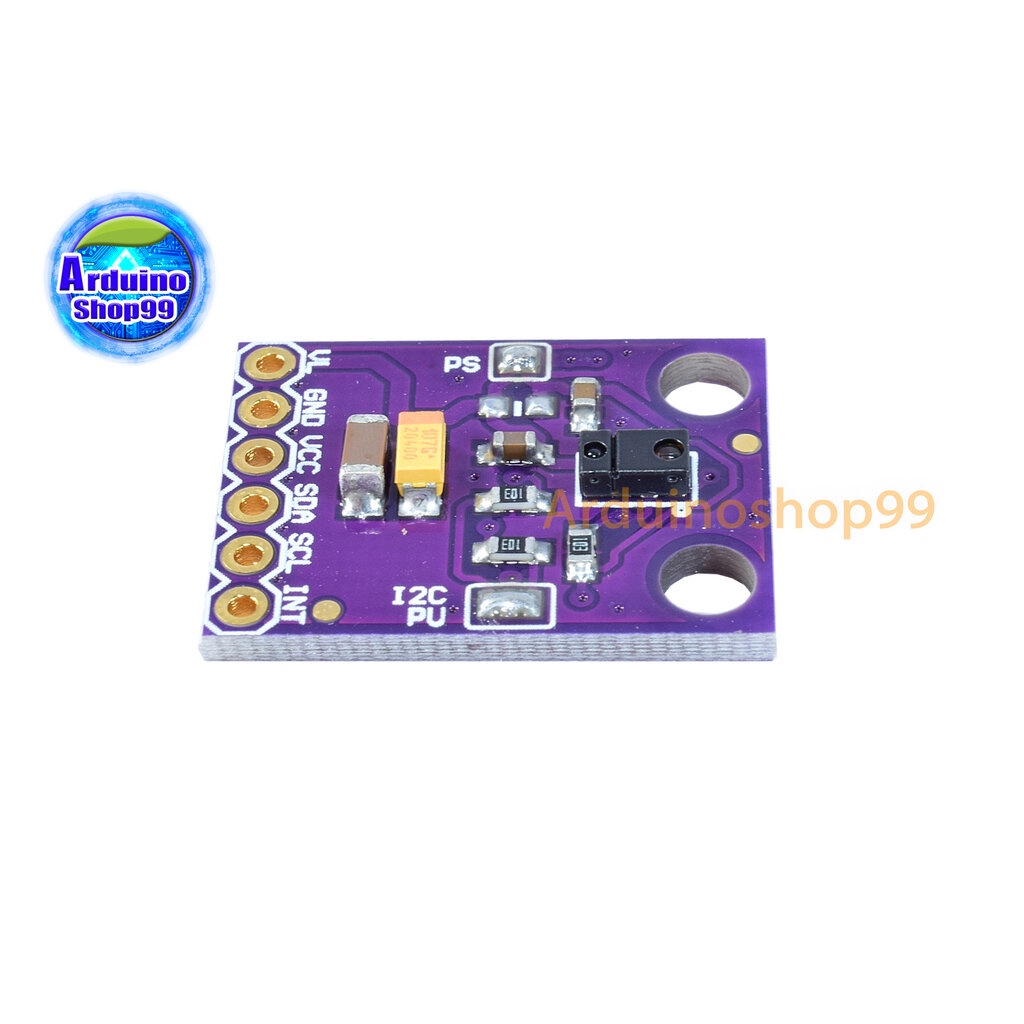

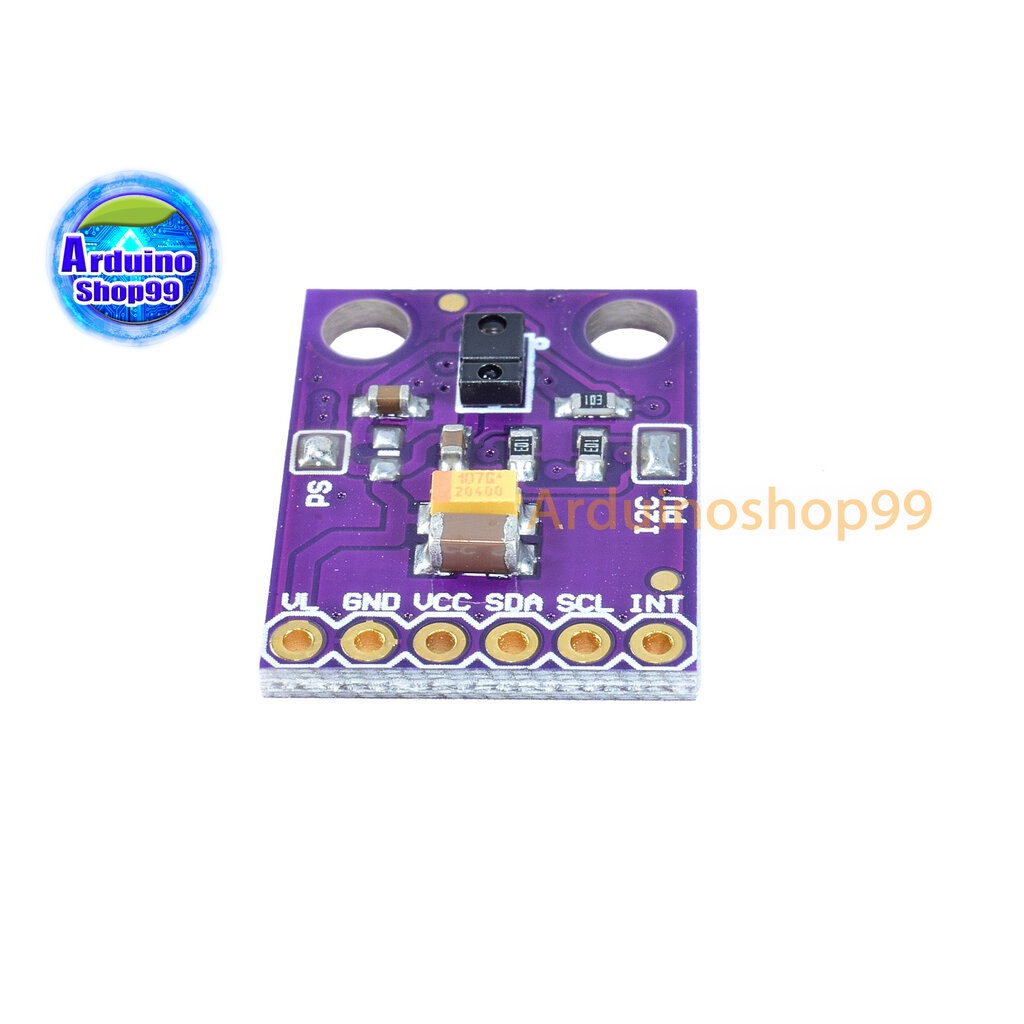

GY-9960-3.3 RGB and Gesture Sensor (APDS-9960) เซนเซอร์ตรวจจับสี RGB และท่าทาง APD-9660 Gesture sensing sensor module Model: GY-APDS9960-3.3 Using the chip: APDS-9960 Power supply: 3.3v Communication method: IIC communication protocol Size: 20mm*15.3mm High quality immersion gold pcb, in stock Description: This is the RGB and Gesture Sensor, a small breakout board with a built in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price. The APDS-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience we have broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8 Inches (10 to 20 cm). Load : https://github.com/sparkfun/APDS-9960_RGB_and_Gesture_Sensor Code: /* This is code for APDS9960 Gesture, RGB, Proximity sensor module (6 pin) * watch the video on how to use APDS9960 /**************************************************************** GestureTest.ino APDS-9960 RGB and Gesture Sensor Shawn Hymel @ SparkFun Electronics May 30, 2014 https://github.com/sparkfun/APDS-9960_RGB_and_Gesture_Sensor Tests the gesture sensing abilities of the APDS-9960. Configures APDS-9960 over I2C and waits for gesture events. Calculates the direction of the swipe (up, down, left, right) and displays it on a serial console. To perform a NEAR gesture, hold your hand far above the sensor and move it close to the sensor (within 2 inches). Hold your hand there for at least 1 second and move it away. To perform a FAR gesture, hold your hand within 2 inches of the sensor for at least 1 second and then move it above (out of range) of the sensor. Hardware Connections: IMPORTANT: The APDS-9960 can only accept 3.3V! Arduino Pin APDS-9960 Board Function 3.3V VCC Power GND GND Ground A4 SDA I2C Data A5 SCL I2C Clock 2 INT Interrupt Resources: Include Wire.h and SparkFun_APDS-9960.h Development environment specifics: Written in Arduino 1.0.5 Tested with SparkFun Arduino Pro Mini 3.3V This code is beerware; if you see me (or any other SparkFun employee) at the local, and you've found our code helpful, please buy us a round! Distributed as-is; no warranty is given. ****************************************************************/ #include "Wire" #include "SparkFun_APDS9960.h" // Pins #define APDS9960_INT 2 // Needs to be an interrupt pin // Constants // Global Variables SparkFun_APDS9960 apds = SparkFun_APDS9960(); int isr_flag = 0; void setup() { // Set interrupt pin as input pinMode(APDS9960_INT, INPUT); // Initialize Serial port Serial.begin(115200); Serial.println(); Serial.println(F("--------------------------------")); Serial.println(F("SparkFun APDS-9960 - GestureTest")); Serial.println(F("--------------------------------")); // Initialize interrupt service routine attachInterrupt(0, interruptRoutine, FALLING); // Initialize APDS-9960 (configure I2C and initial values) if ( apds.init() ) { Serial.println(F("APDS-9960 initialization complete")); } else { Serial.println(F("Something went wrong during APDS-9960 init!")); } // Robojax Video Tutorial // Start running the APDS-9960 gesture sensor engine if ( apds.enableGestureSensor(true) ) { Serial.println(F("Gesture sensor is now running")); } else { Serial.println(F("Something went wrong during gesture sensor init!")); } } void loop() { if( isr_flag == 1 ) { detachInterrupt(0); handleGesture(); isr_flag = 0; attachInterrupt(0, interruptRoutine, FALLING); } } void interruptRoutine() { isr_flag = 1; } void handleGesture() { if ( apds.isGestureAvailable() ) { switch ( apds.readGesture() ) { case DIR_UP: Serial.println("UP"); break; case DIR_DOWN: Serial.println("DOWN"); break; case DIR_LEFT: Serial.println("LEFT"); break; case DIR_RIGHT: Serial.println("RIGHT"); break; case DIR_NEAR: Serial.println("NEAR"); break; case DIR_FAR: Serial.println("FAR"); break; default: Serial.println("NONE"); } } }
