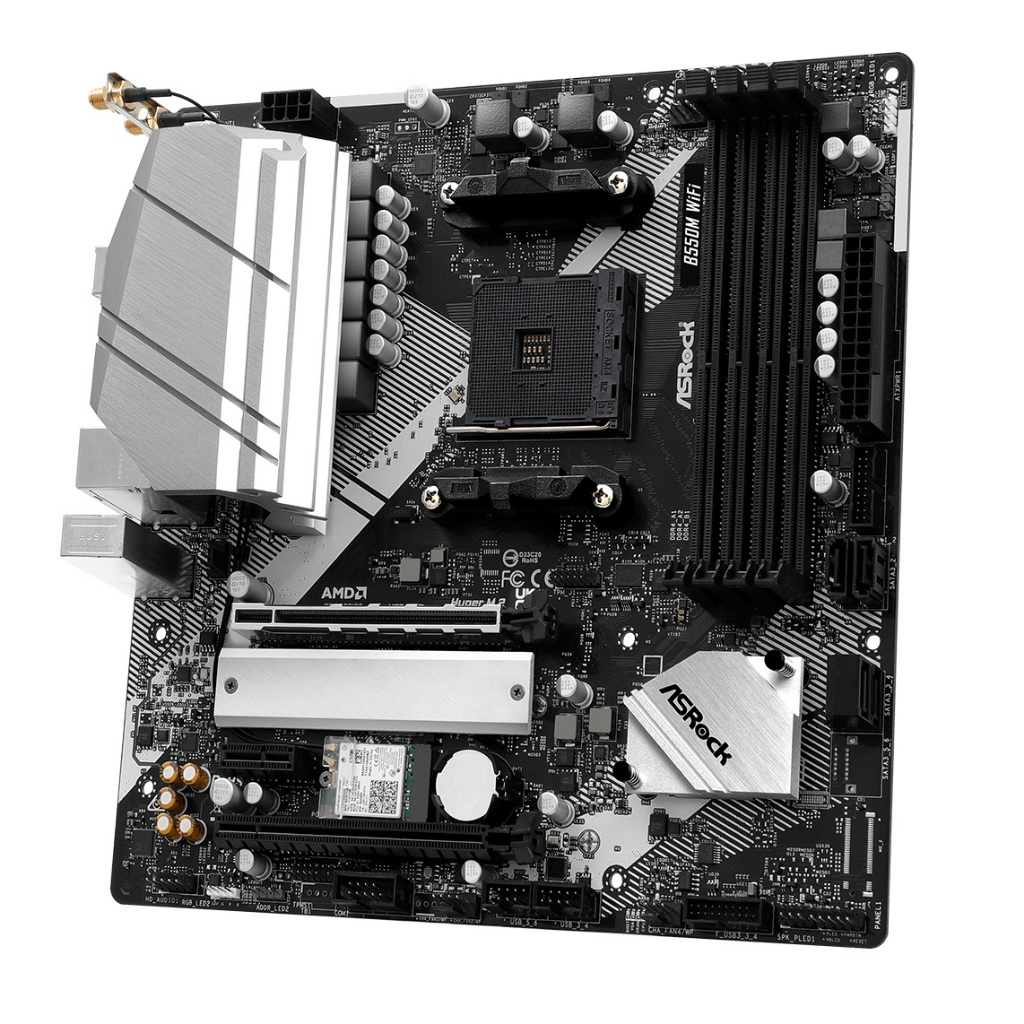

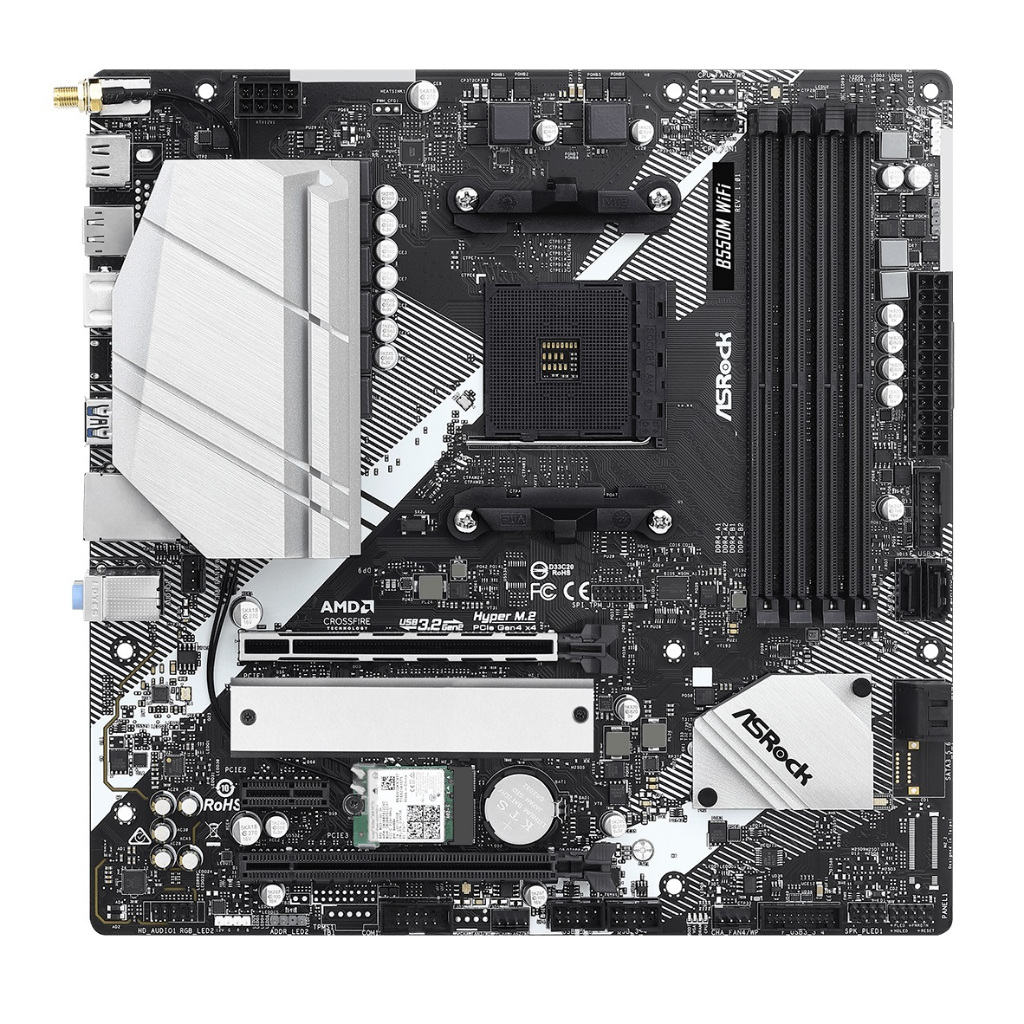

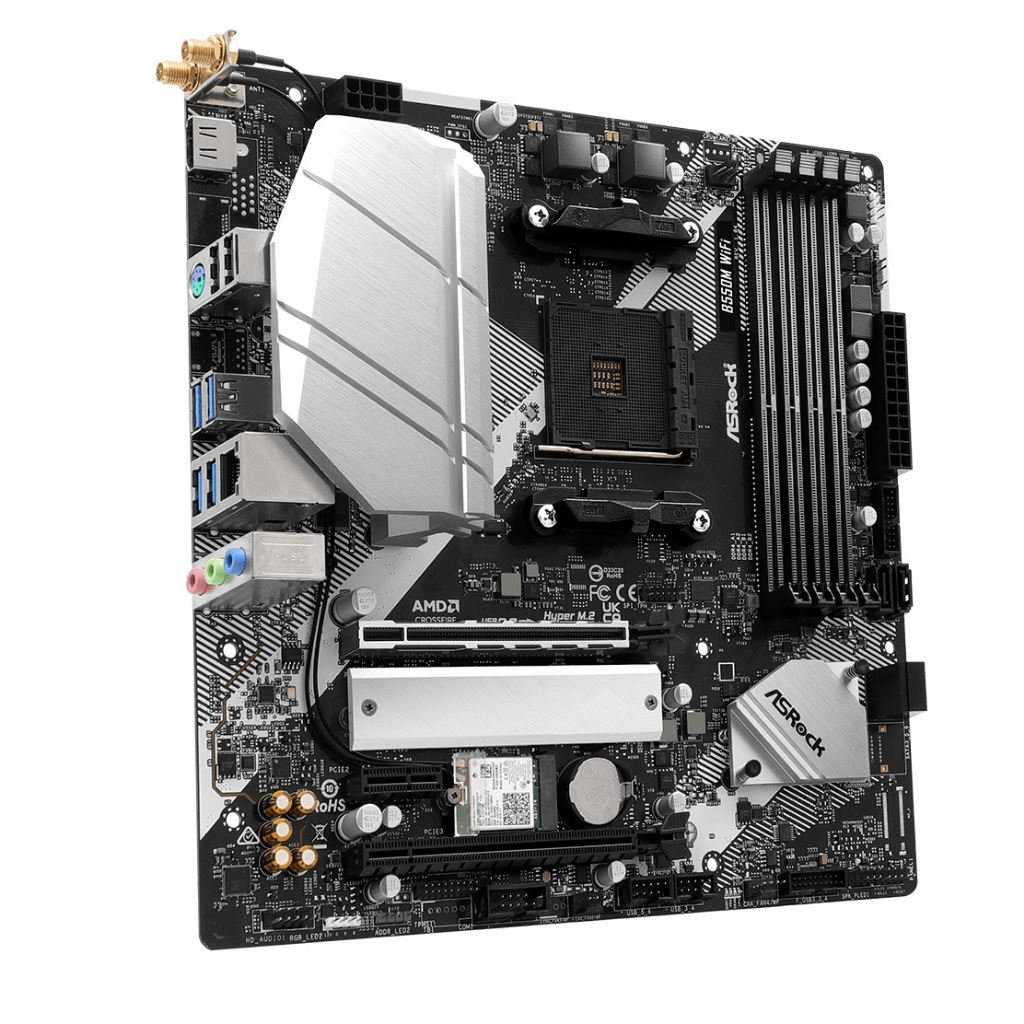

ASRock B550M WiFi AM4 AMD mATX Motherboards เมนบอร์ด

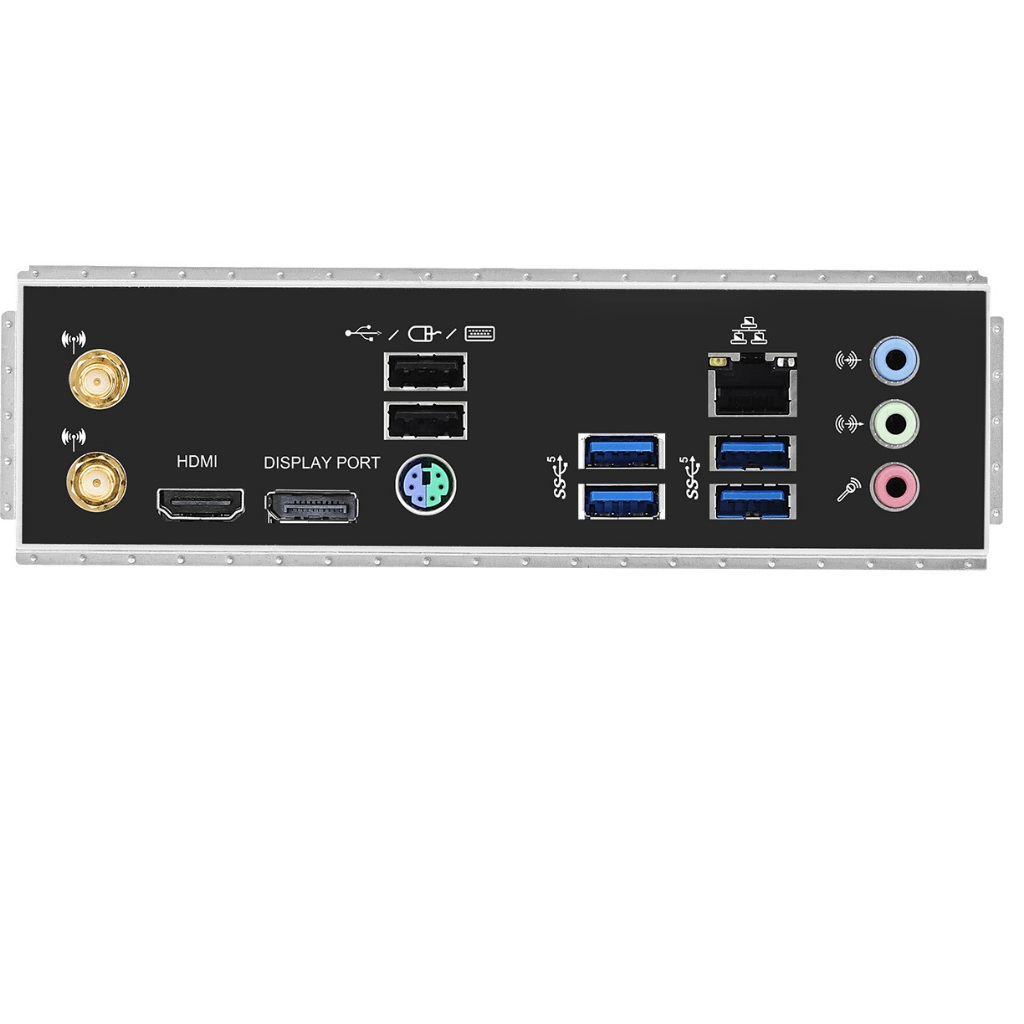

Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* 8 Power Phase Design 4 x DDR4 DIMMs Supports Dual Channel, up to 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 1 Hyper M.2 (PCIe Gen4x4) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 6 USB 2.0 (2 Rear, 4 Front) Realtek Gigabit LAN 802.11axe Wi-Fi 6E + Bluetooth CPU - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* * Please refer to CPU support list for details. Chipset - AMD B550 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB* - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H Wireless LAN - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO * Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode* - 1 x PCIe 3.0 x1 Slot (PCIE2) - Supports AMD CrossFire™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module * PCIE1 will run at Gen4x16 with Vermeer and Matisse, Gen3x16 with Cezanne and Renoir and Gen3x8 with Picasso. Supports NVMe SSD as boot disks Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors M2_1 will run at Gen4x4 with Vermeer, Matisse and Gen3x4 with Cezanne, Renoir and Picasso. RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices USB CPU: - 6 x USB 3.2 Gen1 Type-A (4 Rear (USB3_12 and USB3_34), 2 Front (F_USB3_1_2)) Chipset: - 2 x USB 3.2 Gen1 Type-A (2 Front (F_USB3_3_4) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection Connector - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (Smart Fan Speed Control)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip Rear Panel I/O - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
