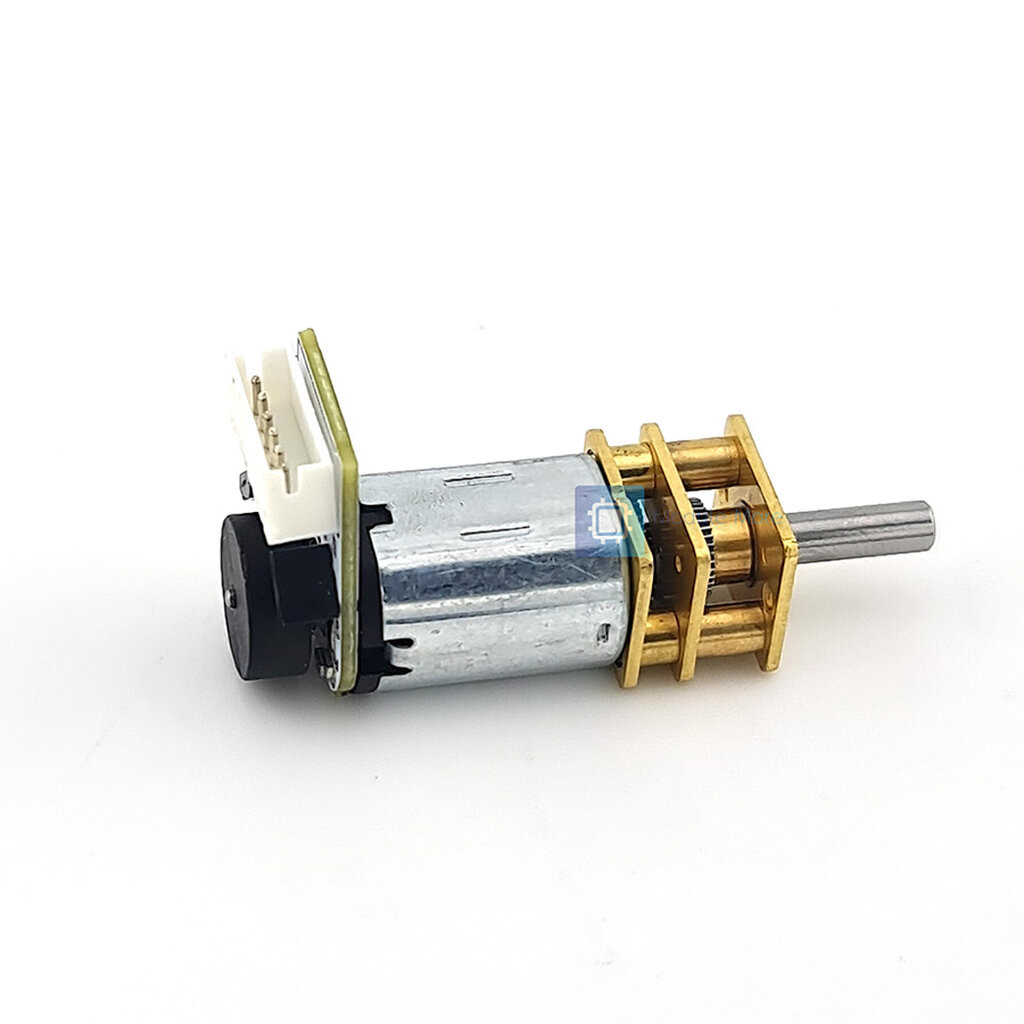

มอเตอร์เกียร์ N20 พร้อม AB Encoder 6V/12V

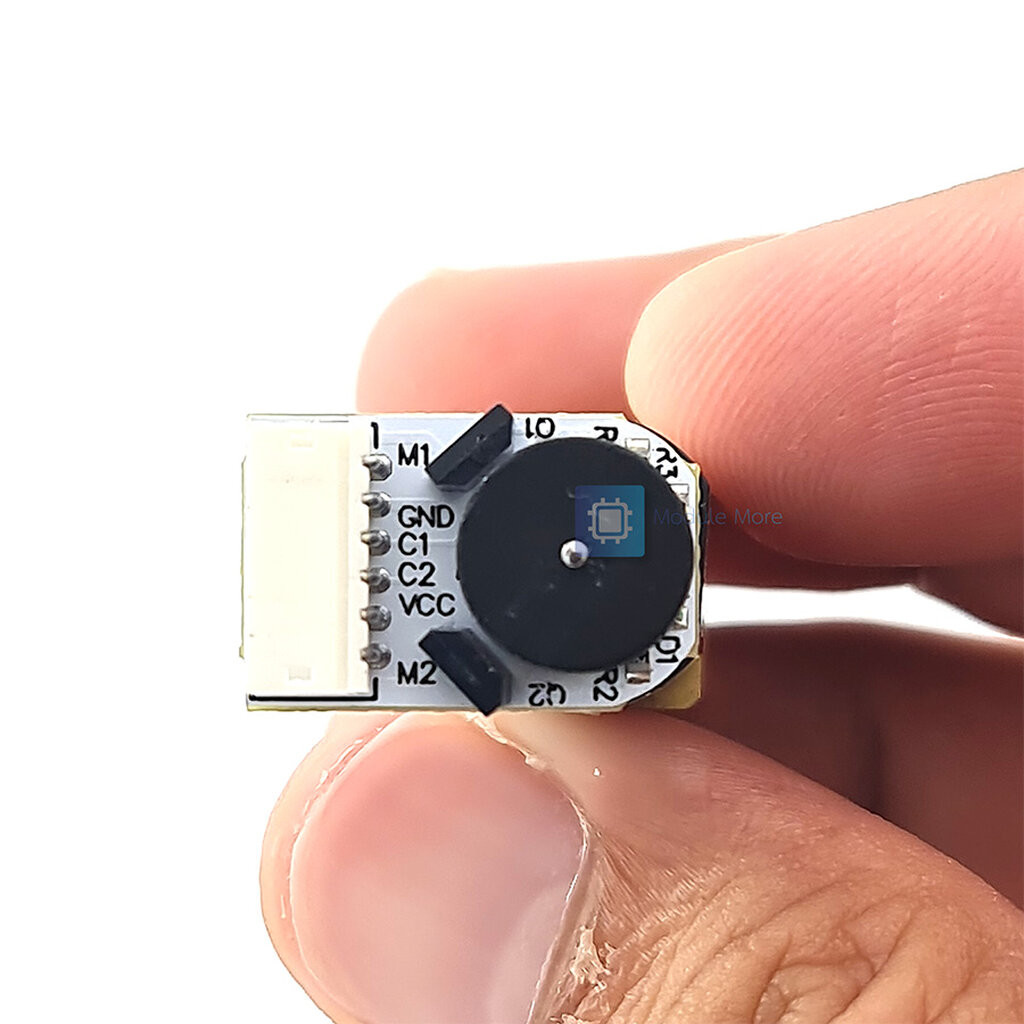

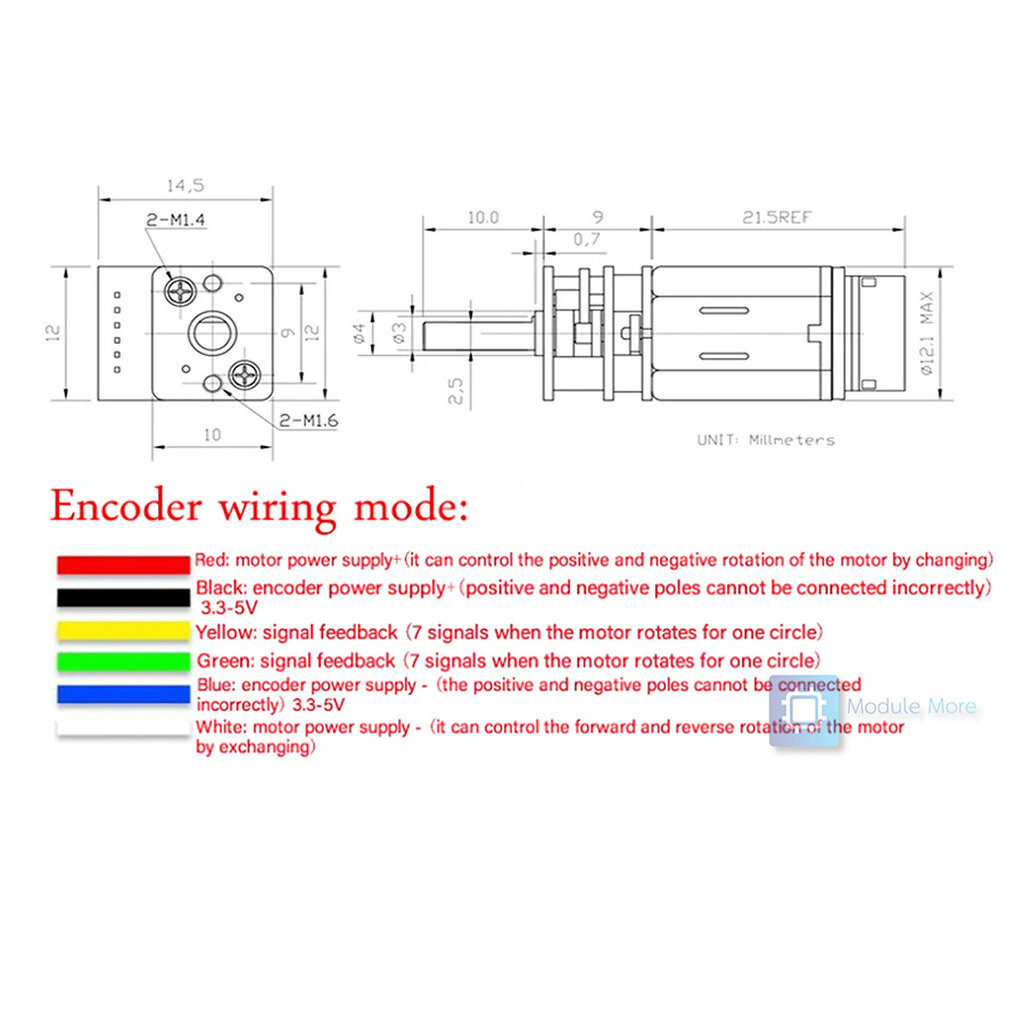

Specification: Rated Voltage: DC6V / DC12V [select] Speed: 300-1000rpm [please select] Encoder wiring method: Red motor power + (exchange can control the motor positive and negative) Black coded power + (can not be wrong with positive and negative levels 3.3-5V) Yellow signal feedback (7 signals per turn) Green signal feedback (7 signals per turn) Blue Encoder Power Supply - (Positive or negative can not be wrong 3.3-5V) WhiteMotor power supply - (Transposition can control the motor forward and reverse) Precautions: Encoder Wiring: It outlines the connections for the motor power (red/white for positive/negative, reversible) and encoder power/feedback (black/blue for positive/negative, yellow/green for signal feedback), noting voltage requirements and signal type. Motor Specifications: Key specifications include the motor type (N20 DC geared motor), output signal (square wave AB phase), encoder voltage (5V/3.3V), operating temperature range (-40℃~120℃), Hall response frequency (100KHz), and basic pulse count (7ppr). Usage Precautions: Power Overload: Ensure correct voltage and sufficient current, and avoid exceeding rated torque or shaft load to prevent damage and motor burnout. Environment Handling: Do not store or operate in high temperature, humid, or corrosive environments. Avoid abnormal knocking when installing transmission parts like gears or pulleys. Soldering Installation: When soldering power leads, use controlled iron temperature and heating time to prevent plastic deformation or wire breakage. Ensure screws are not too long during installation to avoid damaging internal components.
