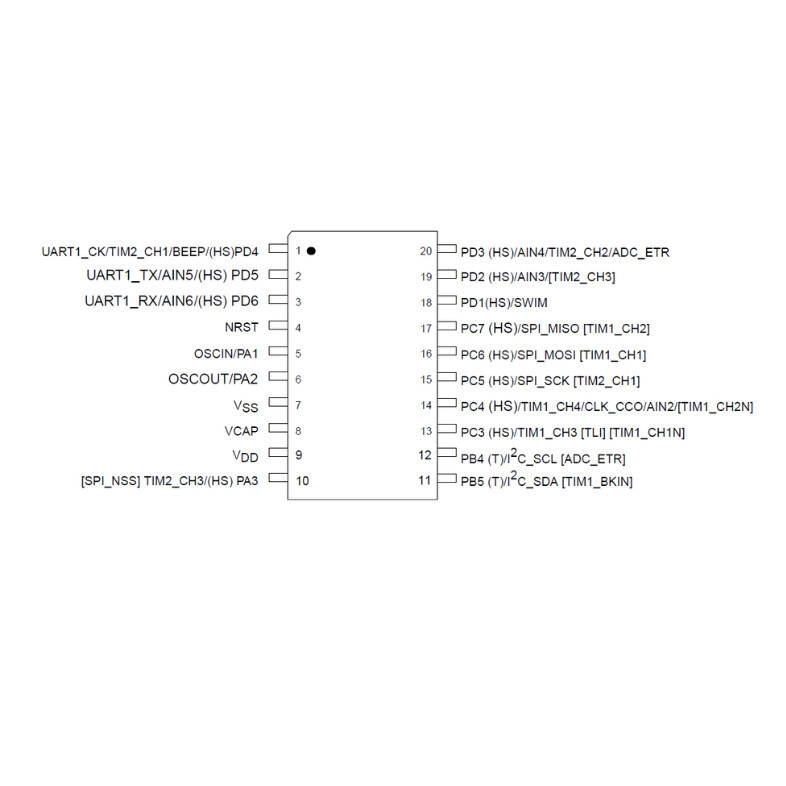

STM8S003F3P6 (SSOP-20) Flash 8KBytes, 1KBytes RAM 128 Bytes EEPROM, 16MHz, 10-Bit ADC

รายละเอียดสินค้า The STM8S003F3/K3 value line 8-bit microcontrollers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016). TheSTM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost. Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system. The system cost is reduced thanks to a high system integration level with internal clock oscillators, watchdog, and brown-out reset. Full documentation as well as a wide choice of development tools are available. Key Features Core 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline Extended instruction set Memories Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles RAM: 1 Kbyte Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles Clock, reset and supply management 2.95 V to 5.5 V operating voltage Flexible clock control, 4 master clock sourcesLow-power crystal resonator oscillatorExternal clock inputInternal, user-trimmable 16 MHz RCInternal low-power 128 kHz RC Clock security system with clock monitor Power managementLow-power modes (wait, active-halt, halt)Switch-off peripheral clocks individuallyPermanently active, low-consumption power-on and power-down reset Interrupt management Nested interrupt controller with 32 interrupts Up to 27 external interrupts on 6 vectors Timers Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization 16-bit general purpose timers, with 3 CAPCOM channels (IC, OC or PWM) 8-bit basic timer with 8-bit prescaler Auto wakeup timer Window and independent watchdog timers Communications interfaces UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode SPI interface up to 8 Mbit/s I2 C interface up to 400 Kbit/s Analog to digital converter (ADC) 10-bit ADC, ± 1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog I/Os Up to 28 I/Os on a 32-pin package including 21 high-sink outputs Highly robust I/O design, immune against current injection Development support Embedded single-wire interface module (SWIM) for fast on-chip programming and non-intrusive debugging โปรดอ่าน ✔ สินค้าของทางร้านเป็นของใหม่ทุกชิ้น ✔ สินค้าสต็อคไทย ✔ จัดส่งภายใน 1-2 วันหลังจากทำการสั่งซื้อ กรุณาตรวจสอบชื่อ-ที่อยู่ ทุกครั้งก่อนการสั่งซื้อ 📱กรุณาถ่ายวิดิโอก่อนเปิดพัสดุ 📋ต้องการใบบิล/ใบเสร็จ รบกวนแจ้งแอดมินในช่องแชทนะคะ
