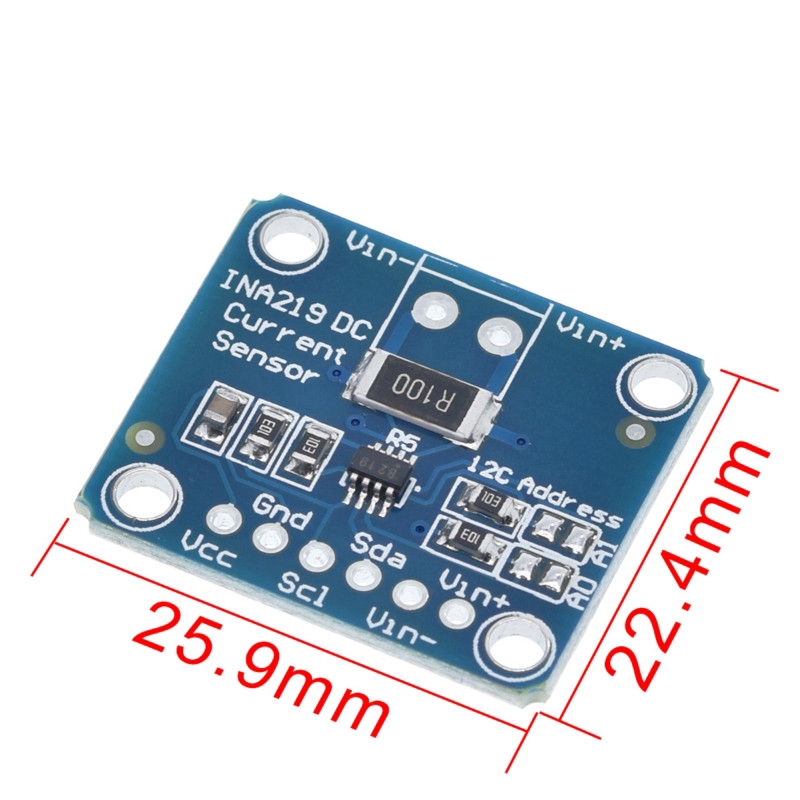

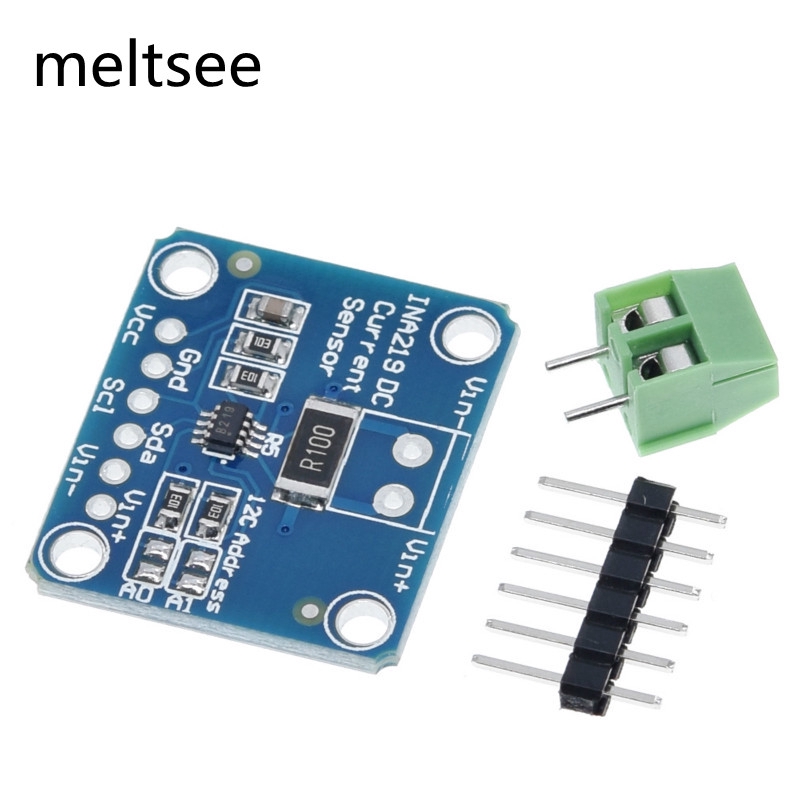

INA219 zero drift 219 ina 219 i 2 c โมดูลเซนเซอร์ตรวจสอบพลังงาน

Zero drift 219 INA219 I2C interface Bi-directional current/power monitoring sensor module Zero drift 219 module is an I2C interface with a drift, bi-directional current / power monitor integrated circuit (IC), and further expand the energy-saving electronic products TI camp. INA219 with the industry's highest accuracy and smallest size, not only to monitor the voltage drop across a shunt resistor on the sensing shunt supply voltage, while also computing power. The device is available in a SOT23 package, providing a small digital current sensing servers, laptops, power supplies, battery management and automotive and telecommunications equipment, low-cost solutions. INA219 at -40C to + 1% can be achieved within the maximum error accuracy 85C temperature range, the maximum offset is 100 uV. The high-precision products combine the advantages of 12-bit resolution, as much as possible to help customers reduce the pressure drop on the shunt resistor, thereby minimizing power loss and power consumption and save board space. The device can be sensed bus voltage range of 0 V to +26 V. INA219 Other important features include: Programmable calibration register can be read in units of ampere direct current, and read the power in watts. Up to 128 samples can be averaged to achieve filtering in noisy environments. I2C interface has a timeout setting, not only to prevent bus lock, but also provides high-speed mode, to meet the communication requirements of up to 3.4 MHz. All properties INA219 are software programmable to support. A single power supply, the operating voltage of between +3.0 to + 5.5V. Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.Use the vouchers for more saving. Shipment： 1.1-2 days to ship(except for the pro-order item) After purchase: 1.If you are satisfied，please give us 5 stars praise. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. if you receive a defect item,please contact us at once with item picture or vide #Zero #drift #219 #INA219 #I2C #interface #Bi-directional #current #power #monitoring #sensor #module
