Upa USB อุปกรณ์เครื่องมือ C-Tool upa-V 1.3 พร้อมอะแดปเตอร์

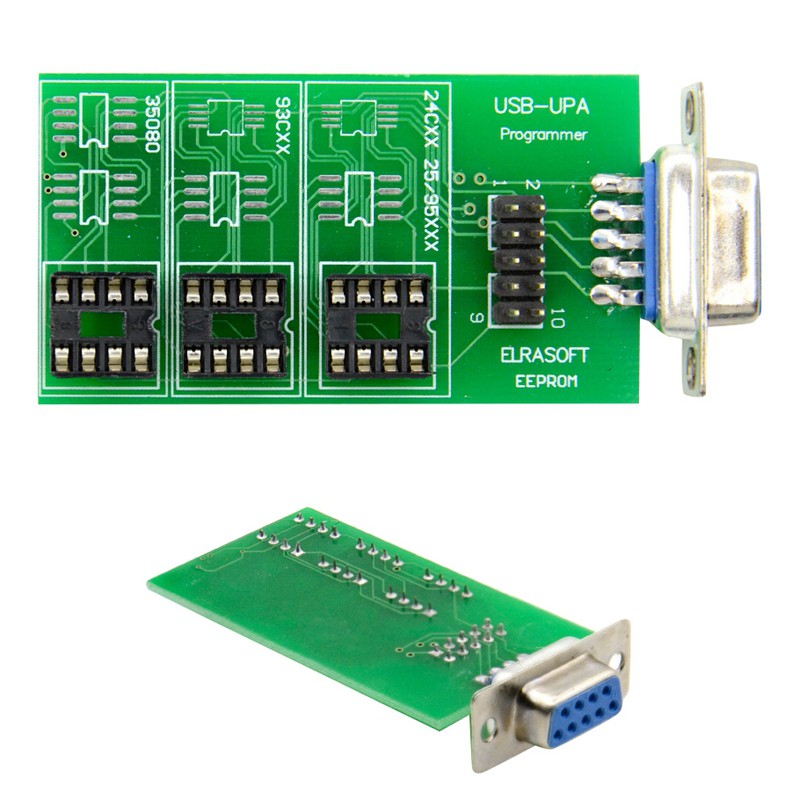

Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot on the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there. Motorola MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated on both the cable and the adapter) and also on the 10-pin ISP connector on the main board. Select the VCC supply source via the bridge on the main board next to the ISP connector (on = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU on the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of time and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you will have a new UPA experience. STMicroelectronics :ST62-40/45/49; NSC：CR16-HCS5(9)/MCS5(9)/MES5(9)/MFS5(9)/MCT5(9)/HCT5(9) for Microchip: PIC12F-508/509/629/675，PIC16F-627(A)/628(A)/648A/72/73/74/76/77/818/819/83/84(A)/870/871/872/873(A)/874(A)/876(A)/877(A) for Motorola: MC68HC05-B6/B8/B16/B16/B32/E6/E6/H12/L28/P3/P3*/X16/X32 MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A, MC68HC11/A1/A8/E9/EA9, MC68HC11-E20/F1/K4/KA2/KA4/KG4/KS2/KS8/L6/P2/PA8/PH8 MC68HC912-B32/BE32/D60/D60A/DC128A/DG128/DG128A, MC9S12-D64/A128/DG128/DG256/H128/H256 Atmel 8051 Architecture: AT89S-51/52/53/8252/8253 Atmel AVR 8-Bit Risk: AT90S-1200/2313/232/2333/2343/4433/4434/8515/8535, ATmega-8/16/161/162/163/323/64/103/128, ATtiny-12/15/2313 EEPROMs: 24C-01/02/04/08/16/32/64/65/128/256/512, 85C-72/82/92,BAW574252, GRM-003/004/005, KKZ-06F, MCM2814, PCA8581, PCF85-81/82/94/98/102/116, SDA25-16/26/46, X24C-00/01，7002, 93C-06/14/46/56/57/66/76/86, 93S-46/56/66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46 EEPROMs: M35080, 25C-010/020/040/080/128/160/256/320/640, M25P-05/10/20/40/80, ST950-10/20/40/80, ST95-160/320/640, ST95P-02/04/08, X50-43/45 CXK-1011/1012/1013, M6M800-11/21/41, SDE2506, TC89-101/102 *EEPROM Only NEC ..uDP780-828A/948/949/973/974 TMS...TMS370CX-02/32/36/42/56,78K0/HC912 TMS370CX58 78K0/HC912 TMS375C006 colour: red + green + blue Material: plastic +metal Package Contents: 1x UPA programmer 1x USB cable 1 x Mainboard with 40pin DIL ZIF (600mil) socket and 14pin SOIC ZIF (150mil) socket Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
