อะแดปเตอร์เสาอากาศภายนอก ipex to sma female สําหรับโมดูล 2 . 4 g wifi

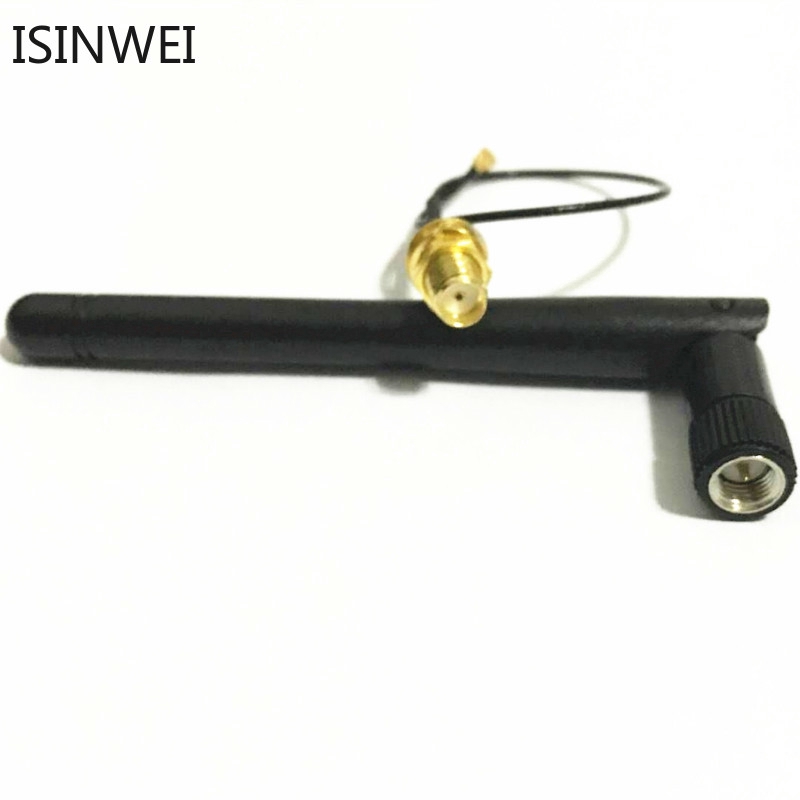

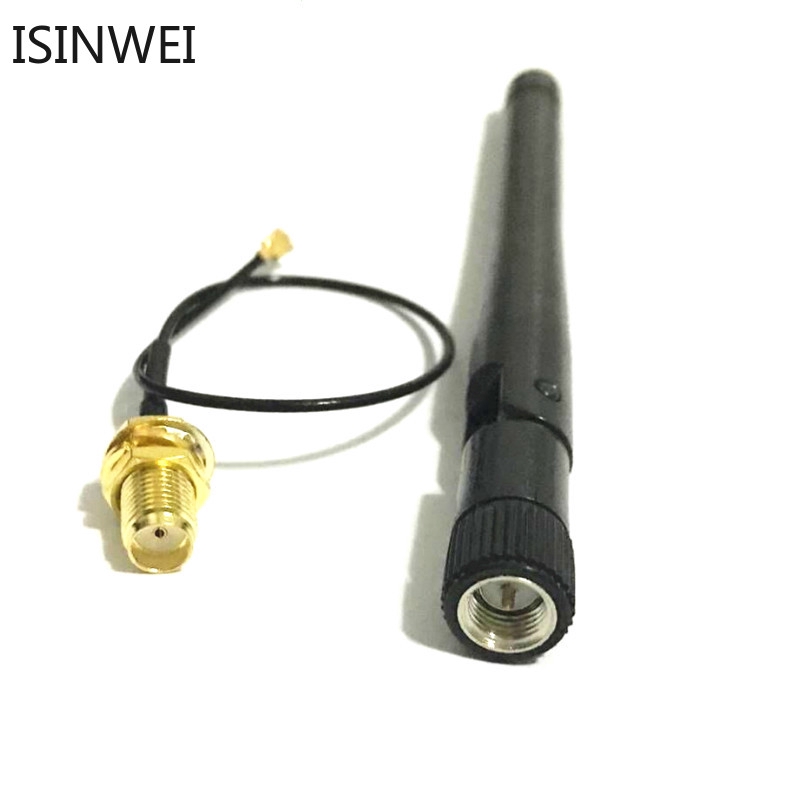

IPEX To SMA Female External Antenna Adapter with SMA Male Antenna for 2.4G WIFI Module the length of SMA Male Antenna is about 15cm. Electrical Specifications Frequency Range(MHz): 2400-2500 Gain(dBi) :＞2.5(3dBi) V.S.W.R.: ＜1.5 Polarization: Vertical Non-Circularity(dB): ±0.5 Impedance(Ω) 50 Lightning Protection: Direct Ground Maximum Input Power(W): 50 Mechanical Specifications Connector Type: SMA Radiating Element Material: Copper Radome Material: EVA Radome Color: Gray Dimension (mm): 110(Unbend) 92(Bend) Application Condition: Indoor Operating Temperature(℃): -40~+70 Reposition Temperature(℃): -55~+80 We deal in wholesale and retail Feel free to contact us #IPEX #To #SMA #External #Antenna #Adapter #2.4G #WIFI #Module
