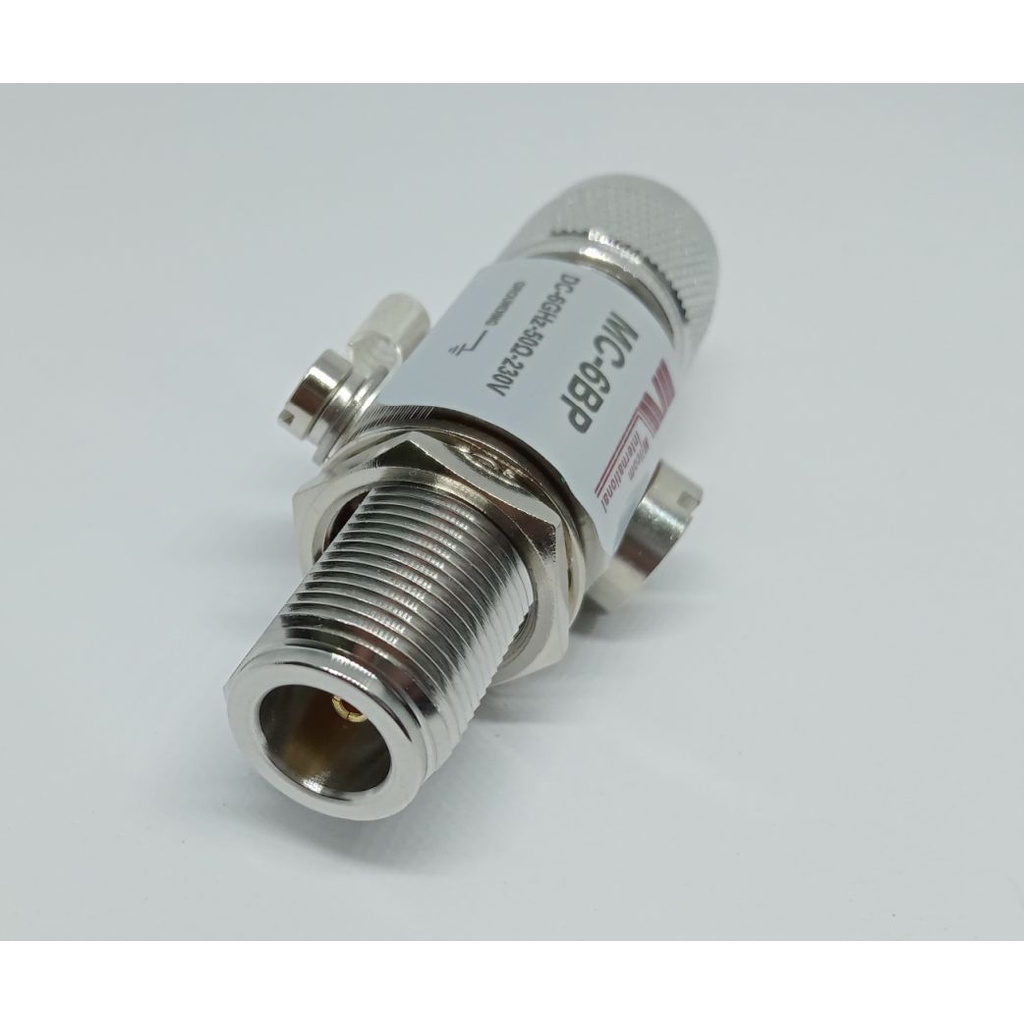

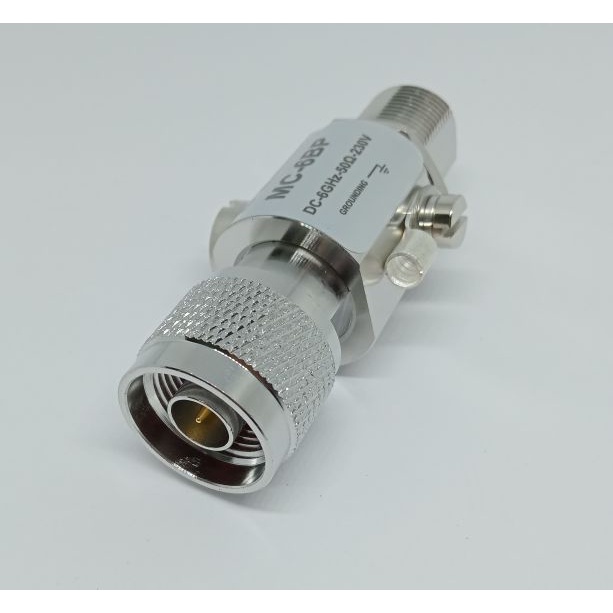

กันฟ้าผ่า รุ่น MC-6BP ทรงกลม Lightning Protector Arrestor

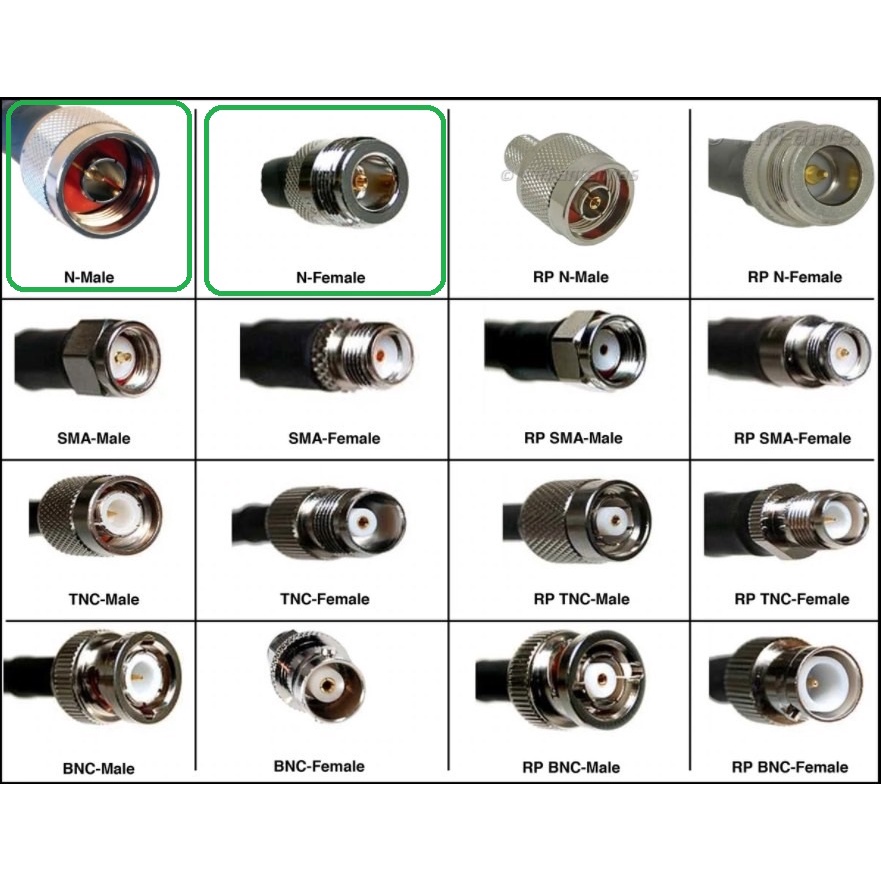

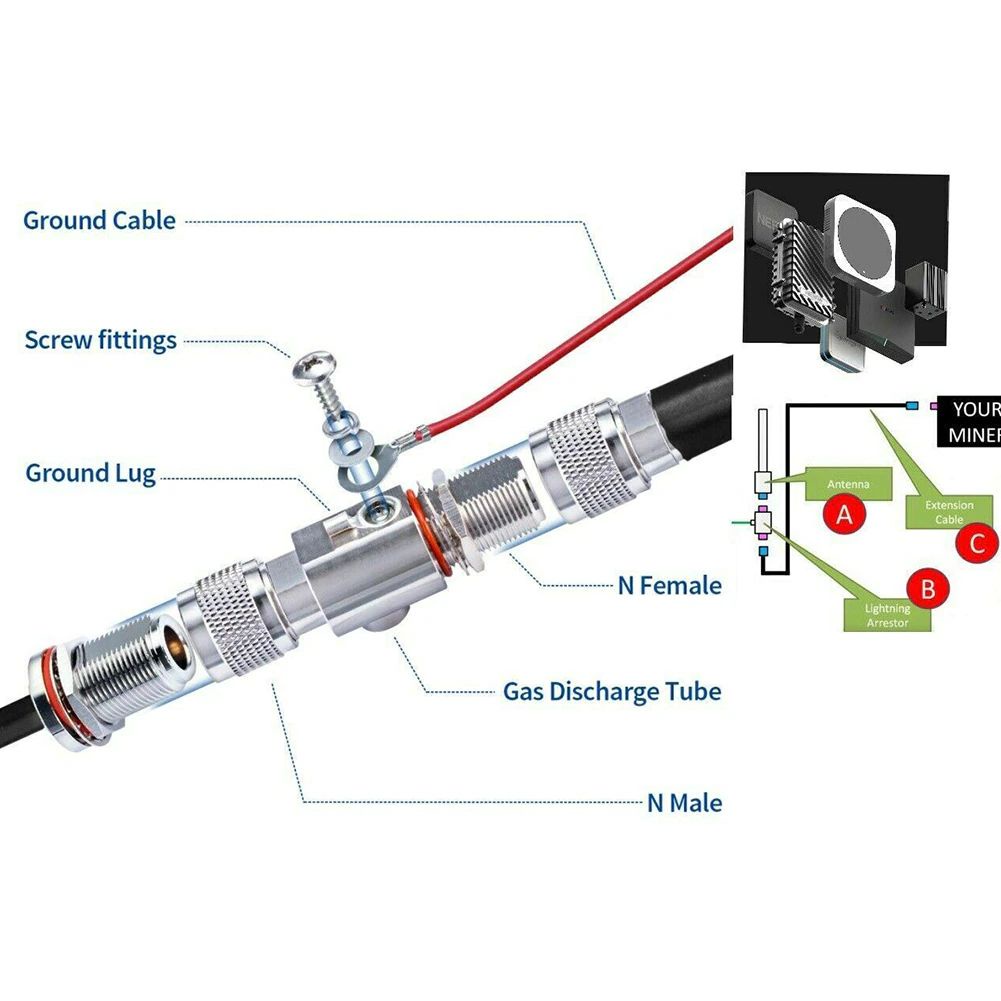

ใช้กับสายอากาศ Fiber Glass ติดตั้งภายนอกอาคารของ Rak, Dragino, Ebyte NType I, male and femaleMC-6BPLightning arrester，Joint coincidenceMIL-C-39012standard；Ternary alloy plating on pure copper shell，The product features broadband，frequency:0-6000MHz；Discharge tube arrester，Low insertion and return loss，High safety coaxial structure design，power：200W-400W,Power pulse voltage：1000V，Electric current6KADischarge surge high pressure to the ground，The protection function can be repeated。Easy to carry and install, long service life。It is mainly used for anti surge protector of on-board station and antenna feeder signal。 Model：MC-6BP Interface：NtypeJKInterface RF range：DC-6000MHz VSWR: <1.4:1 insertion loss：<0.3dB power：200W PEP discharge voltage：DC230V±20% 100V insulation resistance：>1000MΩ Connector：N-R/N-P working temperature：-30℃~+85℃ Outline size：60x31x23mm weight：130g
