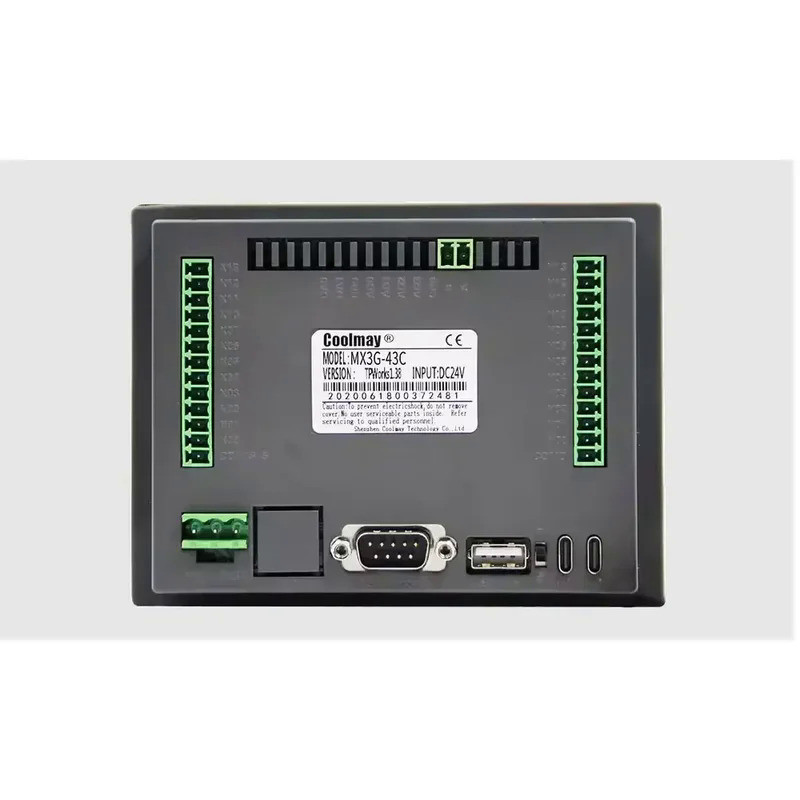

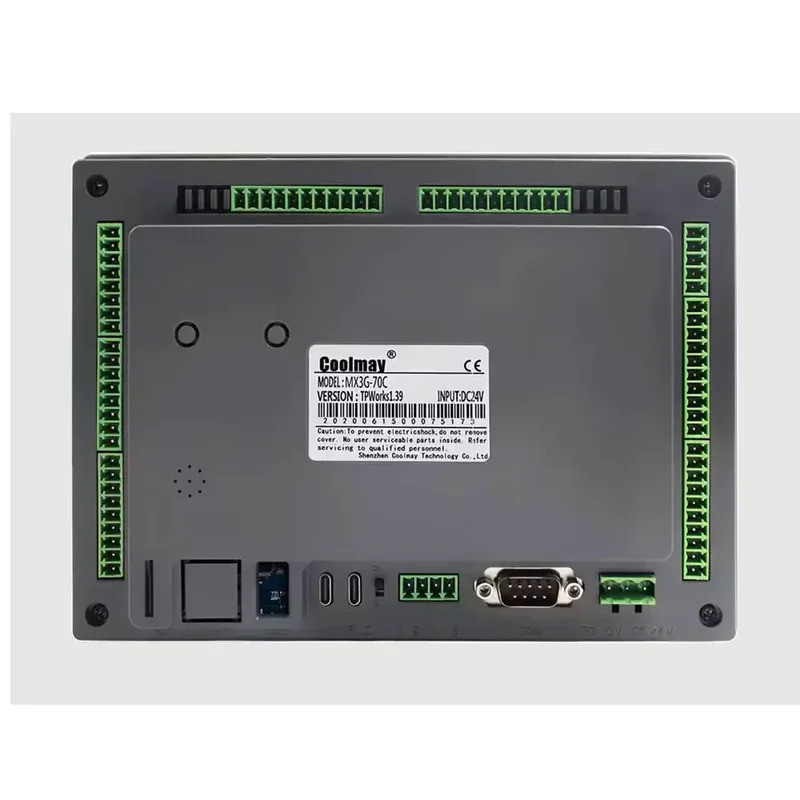

Coolmay All in One 7 Inch MX3G-43C-22MT MX3G-43C-22MRT MX3G-70C-48MT MX3G-70C-48MRT MX3G-50C-32MT PLC HMI

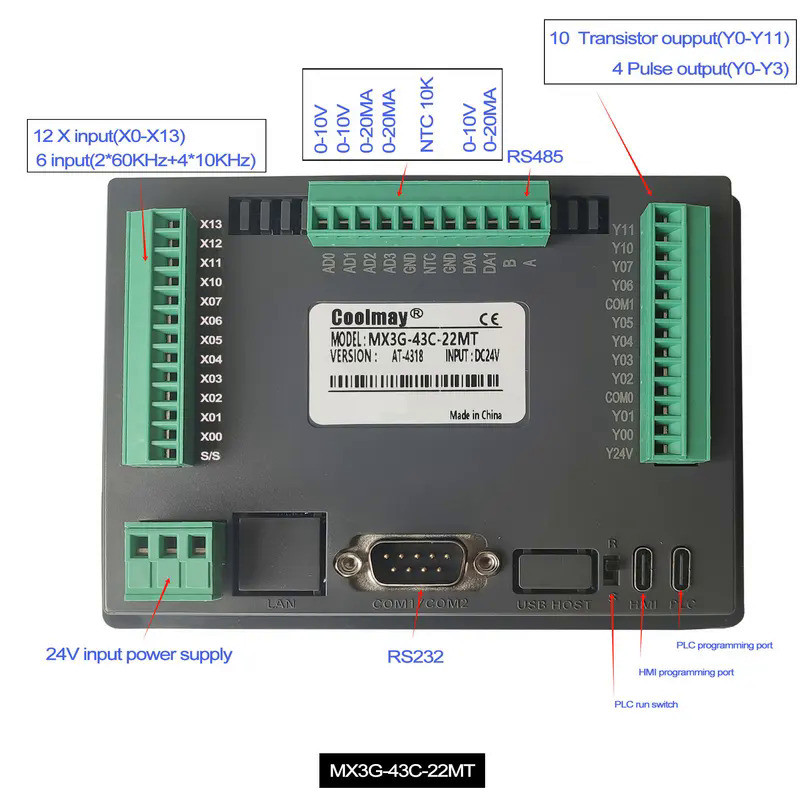

● Feature : (1) PLC programming software is compatible with GX Developer8.86/GXWorks2. (supports Ladder diagram and SFC language, does not support structuredprogramming/labels). HMI uses TP HMI's programming software TPWorks. (2) Military level 32 bit CPU adopted, which is faster and more adapted to industrial environment of high electromagnetic interference. (3) Powerful, compatible with FX3S PLC, high processing speed. (4) Special encryption, prevent illegal reading thoroughly. 8-bit encryption, 12345678 as password can thoroughly prevent reading of ladder logic program. (5) Default with 1 HMI download port and two PLC programming ports(RS232/Type-C). (6) The PLC of the MX3G-70C all-in-one machine comes with 1 RS485; the HMI comes with 1 RS232, which can be changed to 1 RS485; the PLC of the MX3G-43C all-in-one machine comes with 1 RS485; the HMI comes with 1 RS232. They are used for external HMI and inverters and other equipment. (7) Support Mitsubishi programming port protocol/MODBUS protocol/RS protocol, easily realize PLC interconnection and communication with external equipment. (8) High-speed counting conventional 2 single-phase 60KHz + 4 10KHz or 1 AB (Z) phase 30KHz +1 AB (Z) phase 5KHz; high-speed pulse conventional 4 channels: For 70C, Y0-Y1 is 100KHz, Y2-Y3 is 50KHz; For 43C, Y0-Y1 is100KHz, Y2-Y3 is 10KHz; high-speed counting + high-speed pulse total transmission cannot exceed 300KHz; acceleration and deceleration are independent. (9) Support multiple types analog individually or mixed ones for analog output and input. MX3G-70C is up 9AD2DA, MX3G-43C is up to 5AD2DA. The precision of analog input and output is 12 bits. (10) MX3G-70C is up to 24DI/24DO (MR: 12 at most), digital output can be optional transistor MT (maximum load 500mA) or relay and transistor mixed output MRT. MX3G-43C is up to 12DI/10DO (MR: 8 at most), digital output optional transistor MT (Max load: 500mA) or relay and transistor mixed output MRT. (11) Flexible, more specifications and batches can be customized according to customer requirements. (12) Convenient wiring. All wiring terminals adopt 3.81 pitch pluggable terminals, which is convenient for customers to use.
