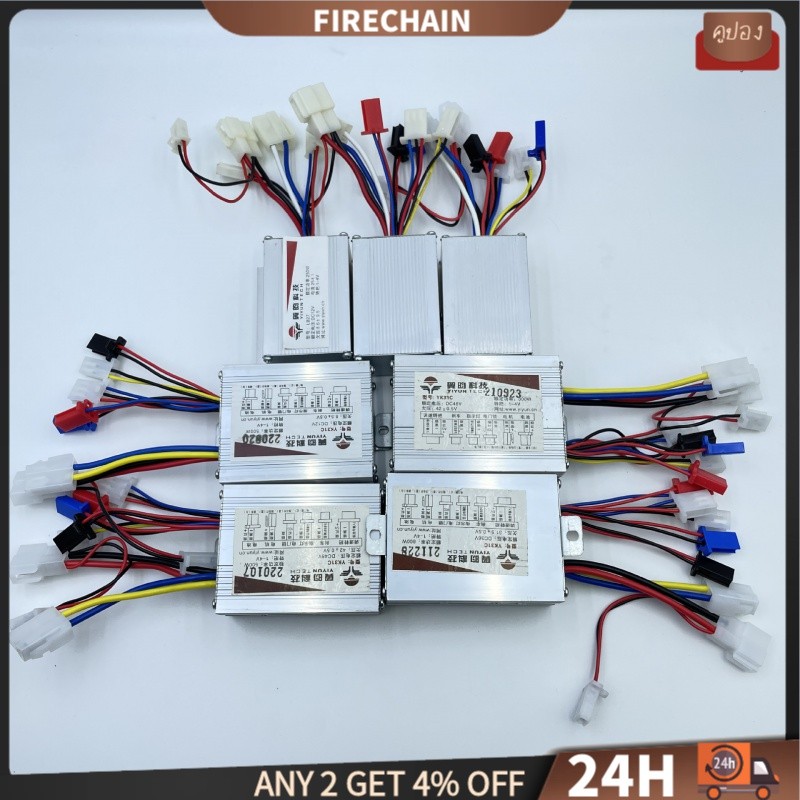

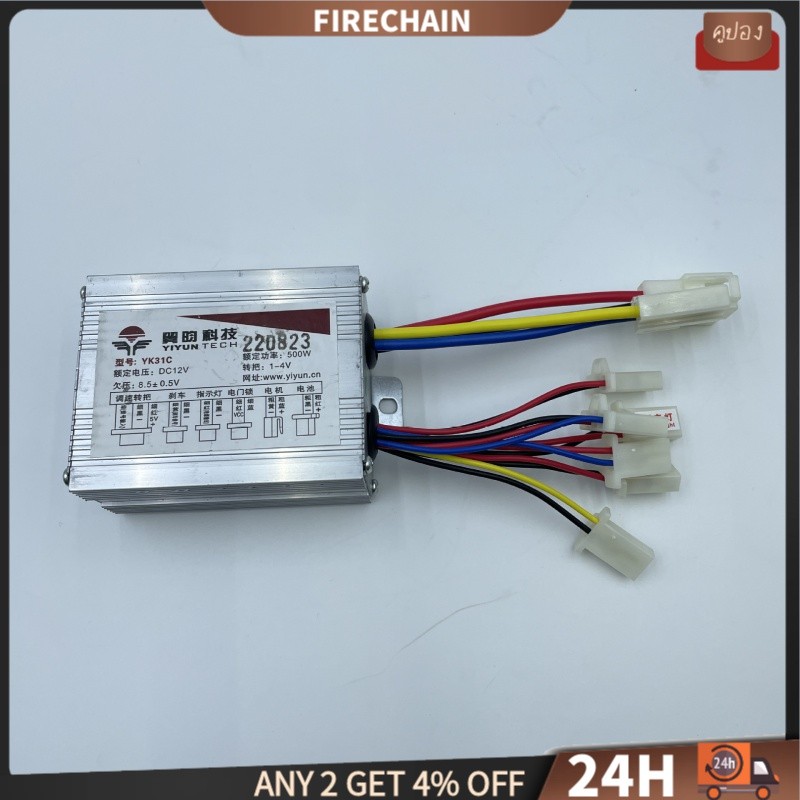

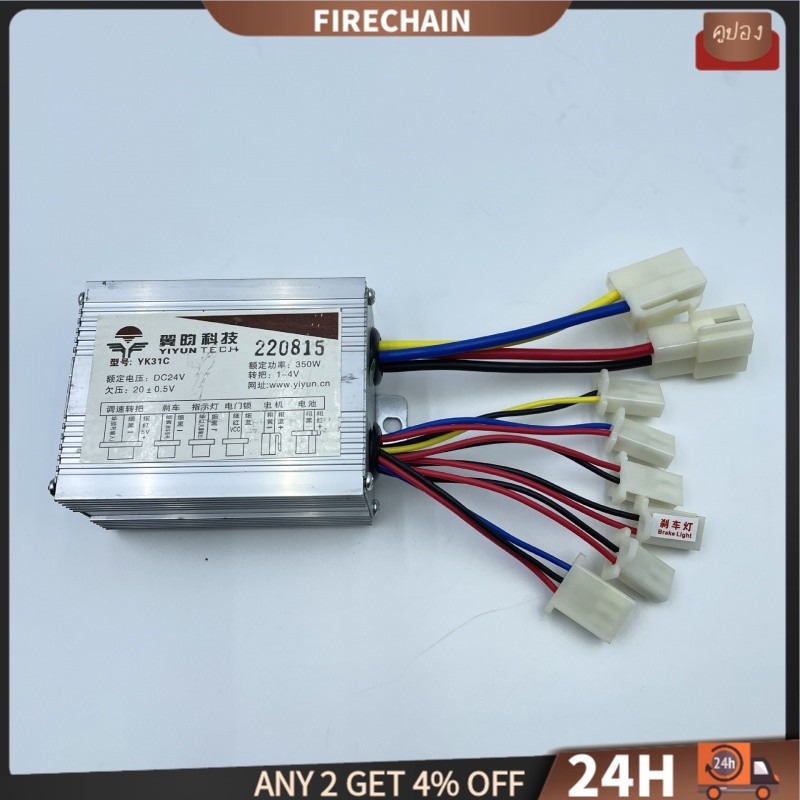

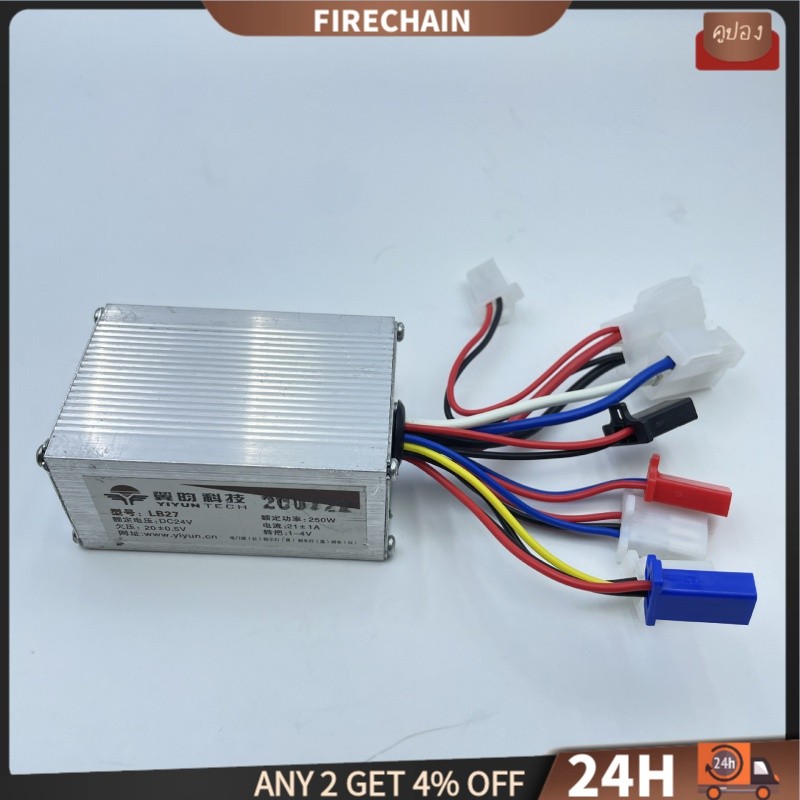

firechain 12 V/24V/36V 500W DC ไฟฟ้าจักรยานมอเตอร์แปรง Controller กล่องสําหรับไฟฟ้าจักรยานสกู๊ตเตอร์ E-bike อุปกรณ์เสร

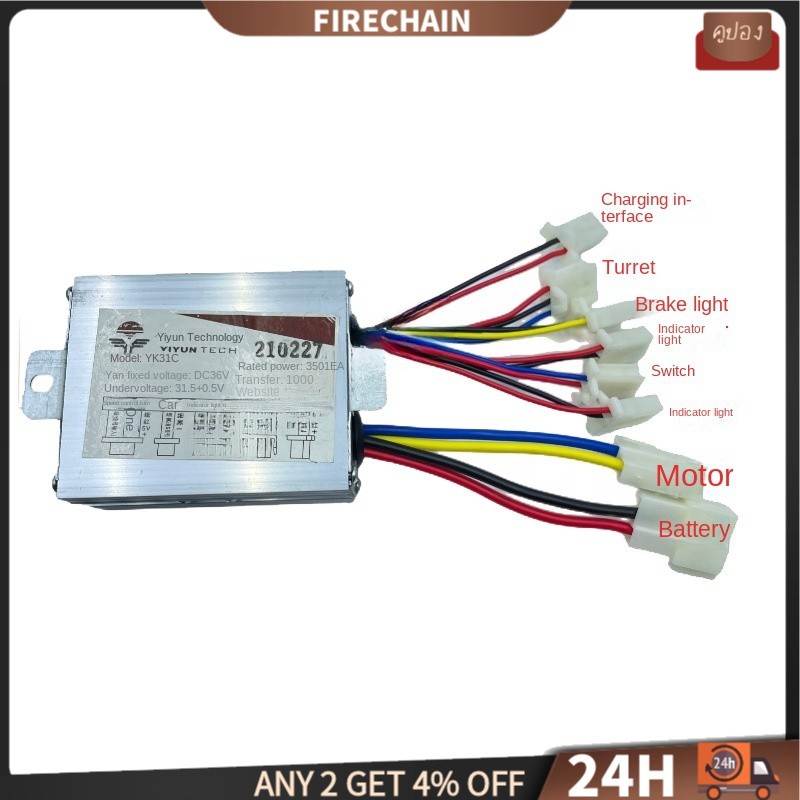

The controller shell is made of aluminum alloy, which can protect the internal circuit, is conducive to heat dissipation and avoid thermal overload. The project is a brushless motor controller that provides stable speed and sensitive braking and direction change control. Wear resistant wires and connectors ensure low failure for long time use. There is a label on the interface to facilitate installation. Suitable for electric bicycles, scooters, etc. Description: Product Name: Motor Brushed Controller Material: Aluminum alloy Rated voltage: 12V, 24V, 36V, 48V Under-voltage protection: 20 + 0.5V, 31.5 + 0.5V, 42 + 0.5V Matching motor: 500 W motor Applicable to: electric bicycle, scooter, etc. Controller is 8 connectors, if your controller is 7 connectors, that is one less door lock connector than my 8 connector controller. When installing my controller, you need to connect the red and blue wires on the door lock connector of my controller. Special note: The power cord should be connected strictly according to the name on the connector. It must not be misconnected, and the wrong connection will burn out. Package included: 1 * Motor Brushed Controller Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
