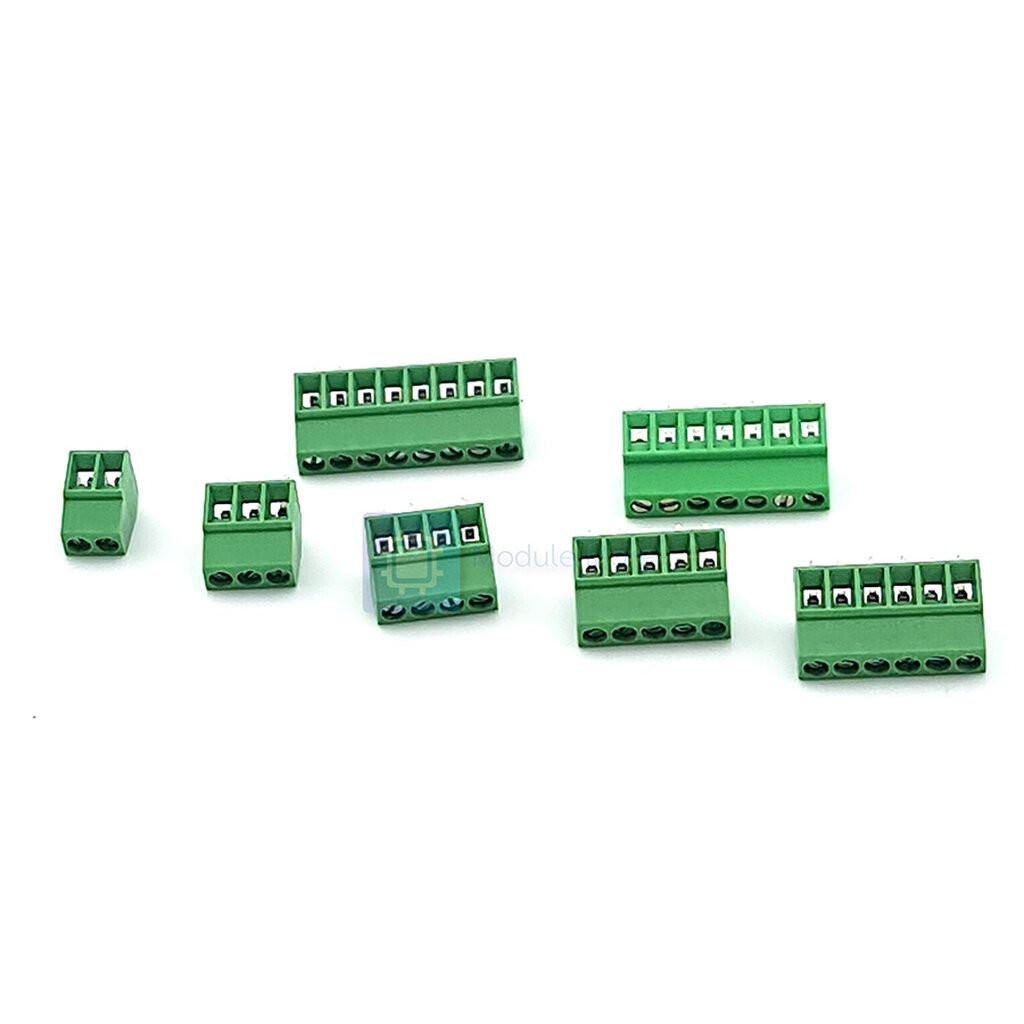

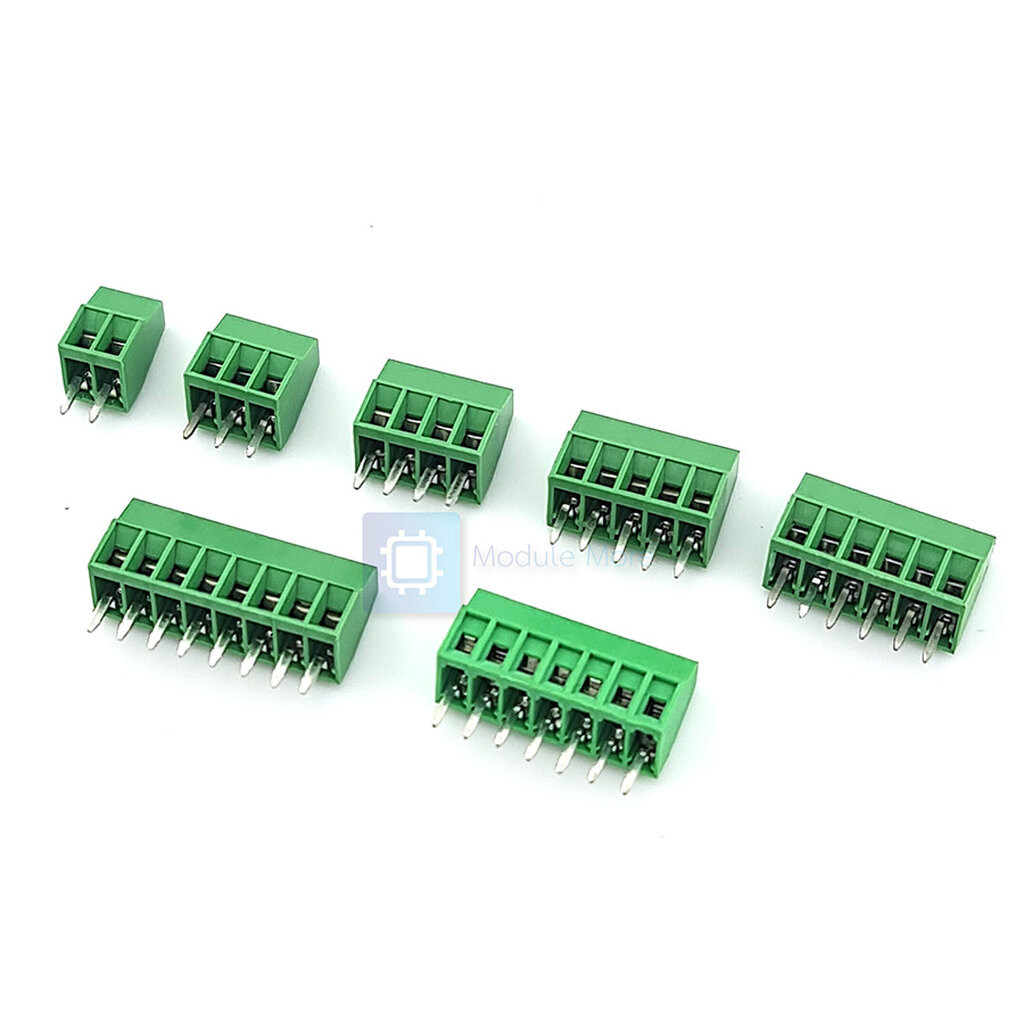

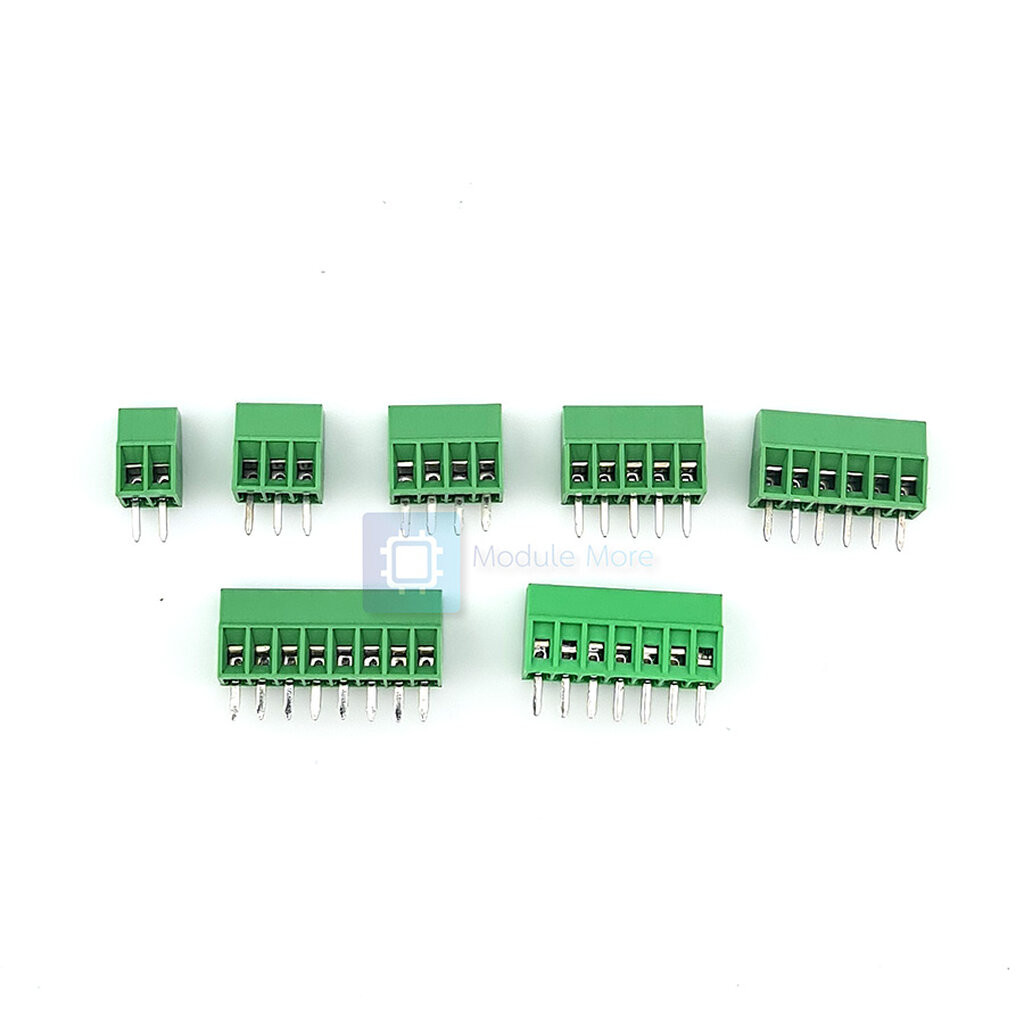

KF128-2.54 screw type PCB terminal block spacing 2.54MM 150V/6A wire-to-board connector

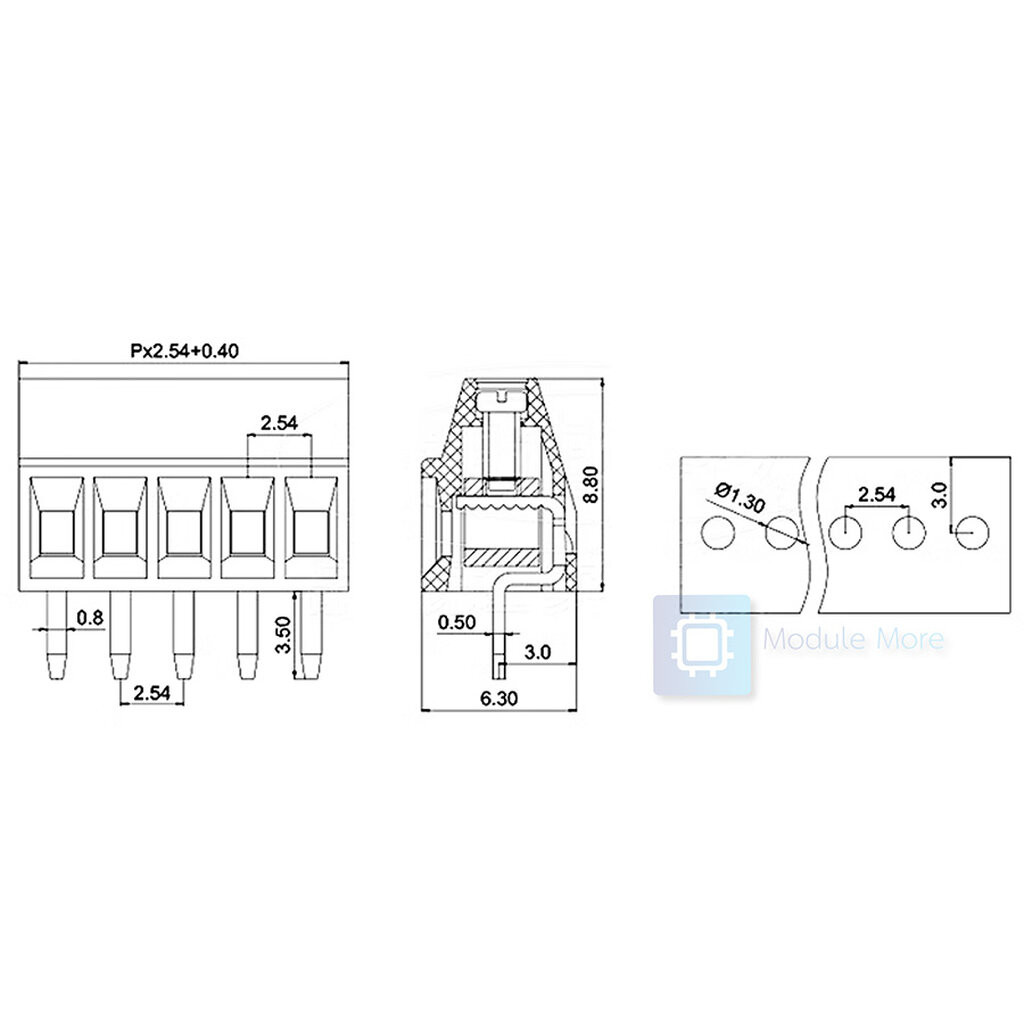

Product Description This PCB‐mount terminal block is designed with a 2.54mm (0.100") pitch and supports 230 poles, making it highly versatile for compact, high‐density wiring applications. It meets UL and IEC standards, ensuring reliable performance and safety compliance. Electrical Specifications - Reference Standard (UL) - Rated Voltage: 150V - Rated Current: 6A - Wire Range: 2618AWG - Dielectric Withstanding Voltage: 1.25kV - Reference Standard (IEC) - Rated Voltage: 130V - Rated Current: 8A - Wire Range: 1mm Mechanical Specifications - Operating Temperature: 40C to +105C - Recommended Stripping Length: 56mm - Max. Tightening Torque: 0.1Nm (0.88lbin) - Pitch (Pin Spacing): 2.54mm (0.100") - Number of Poles: 230 Materials and Plating - Housing (Plastic): PA66, UL94V‐0 (flame‐retardant) - Solder Pins: Brass, tin‐plated - Screws: M1.6 steel with Cr3+ passivated zinc plating - Clamp (Box): Brass, nickel‐plated Features - Compact Design: With a 2.54mm pitch, this terminal block is ideal for space‐constrained PCB layouts. - Wide Wire Range: Accommodates 2618AWG (UL) or 1mm (IEC), suitable for various signal and low‐power applications. - Robust Construction: Flame‐retardant PA66 housing and corrosion‐resistant plated hardware ensure durability. - Easy Installation: Standard screw‐type connection and a recommended stripping length of 56mm facilitate quick, secure wiring. - Safety Compliance: Meets UL and IEC requirements, supporting up to 150V/6A (UL) or 130V/8A (IEC).
