USW Pro Max 16-PoE Ubiquiti Unifi Switch POEรุ่นใหม่สินค้าแท้100%

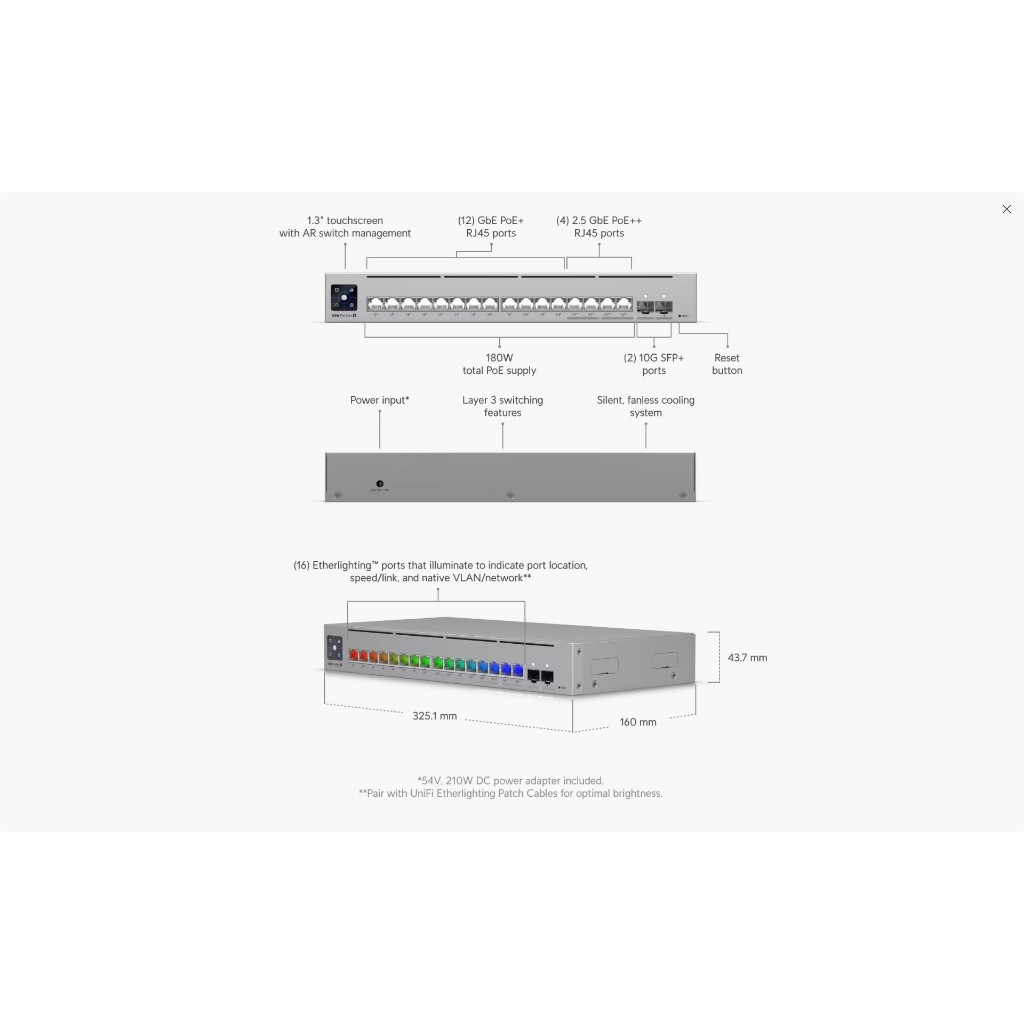

Layer 3 Switch with 2.5 GbE, PoE++ RGB LED ✅(1-12) GbE PoE+ ports ✅ (13-16)2.5 GbE PoE++ ports ✅(2) 10G SFP+ ports ✅180W total PoE availability ✅Versatile desktop, wall, and [Rack Options] ✅Managed UniFi Network Version 8.1.127 up USW-Pro-Max-16-PoE ข้อมูลผลิตภัณฑ์ Datasheet USW-Pro-Max-16-PoE Installation Guide Mechanical Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") Weight 2.1 kg (4.6 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports PoE interface (12) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) Total non-blocking throughput 42 Gbps Switching capacity 84 Gbps Forwarding rate 62.496 Mpps Power method DC adapter Power supply 54V, 210W Max. power consumption 30W (Excluding PoE output) Total available PoE 180W Max. PoE wattage per port by PSE PoE: 15.4W PoE+: 30W PoE++: 60W Voltage range PoE mode PoE: 44—57V PoE+/PoE++: 50—57V LCM display (1) 1.3" touchscreen Button Factory reset Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs Layer 3 features DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs Etherlighting™ Ethernet Locating Speed/link Native VLAN/network SFP+ Locating Speed/link Native VLAN/network Application Requirements UniFi Network Version 8.1.127 and later
