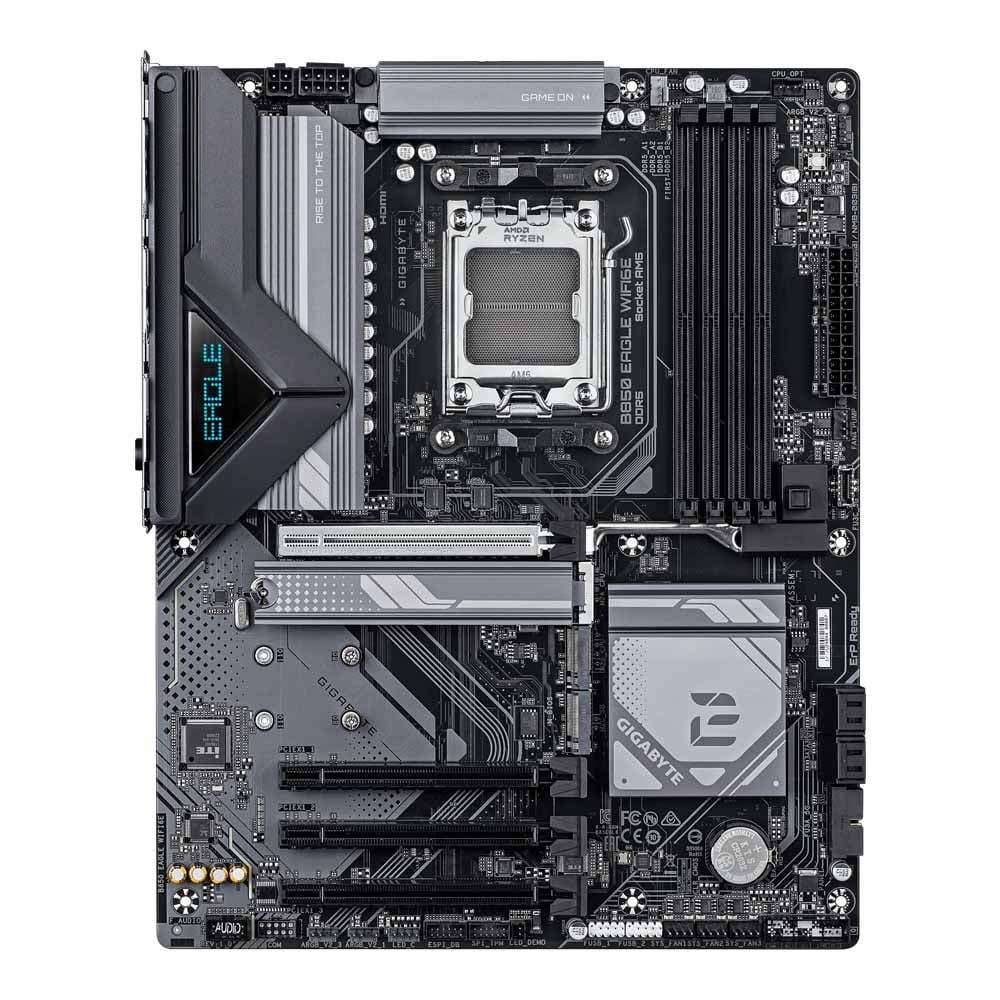

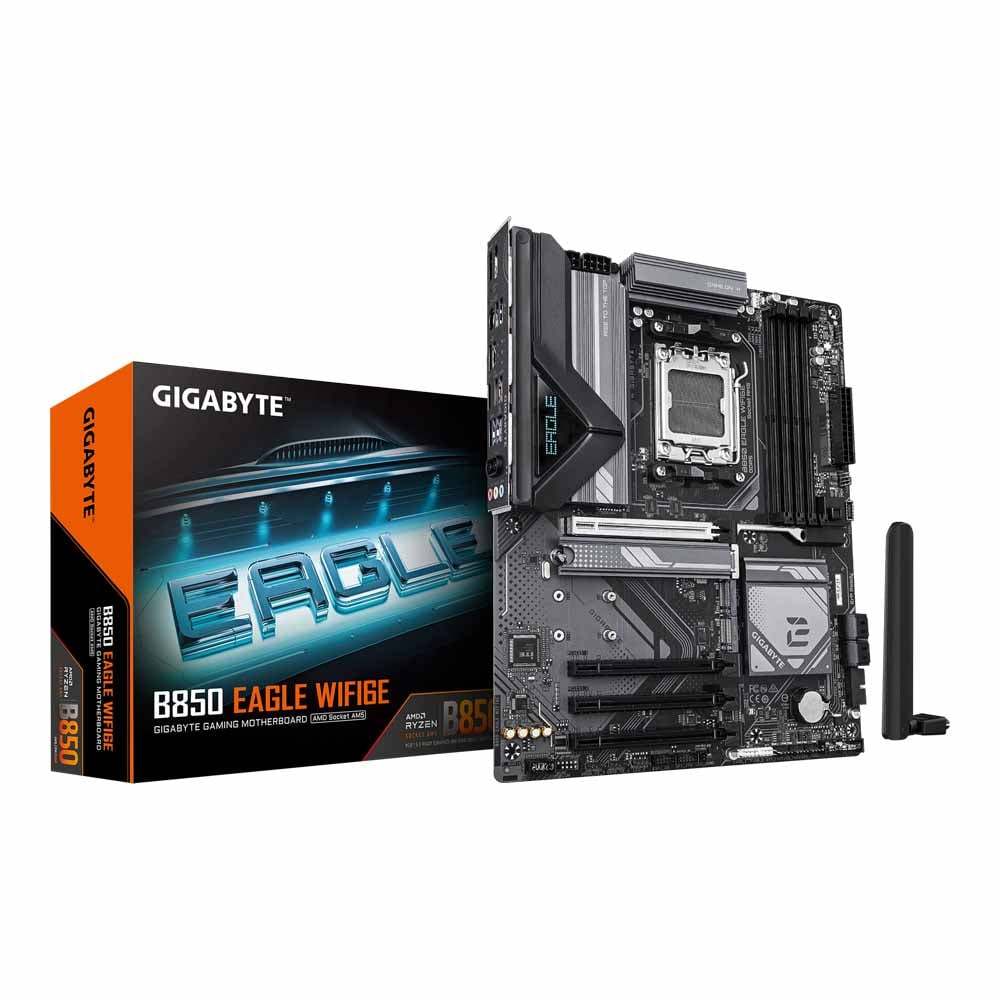

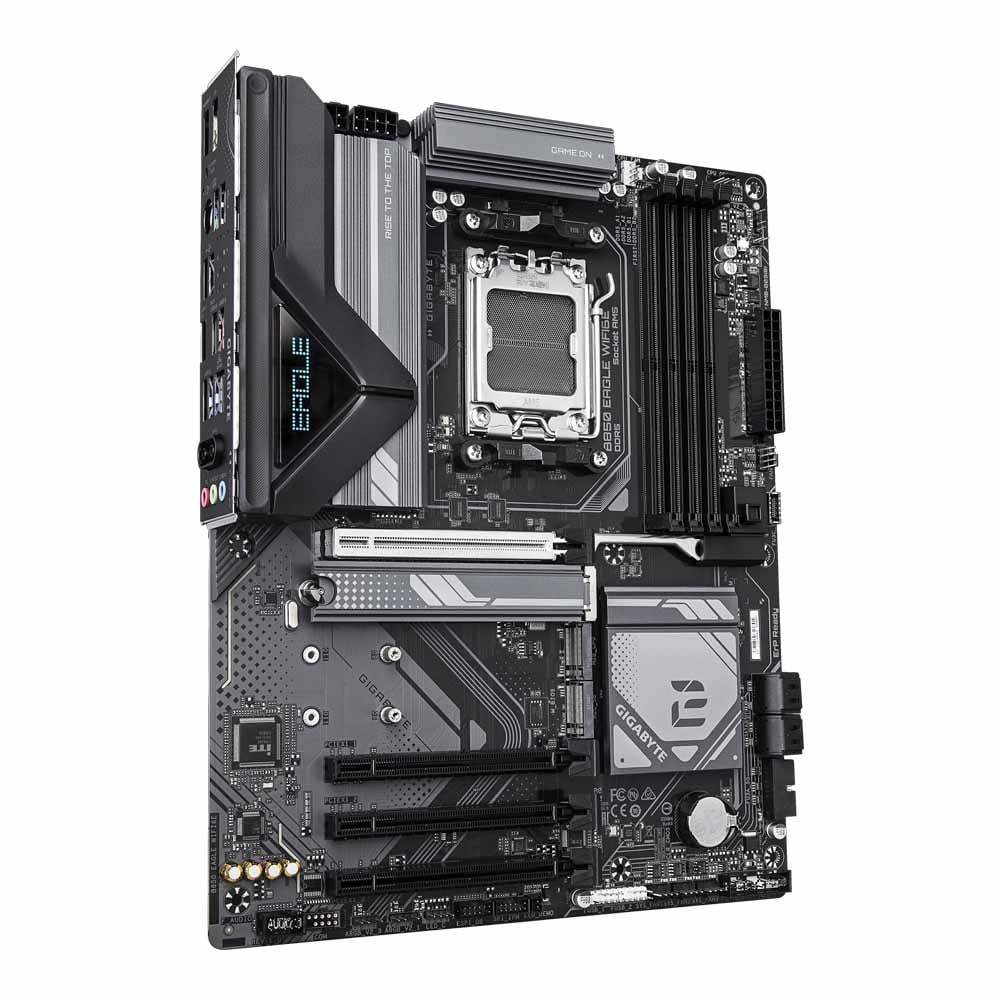

MAINBOARD (เมนบอร์ด) GIGABYTE B850 EAGLE WIFI6E (AMD SOCKET AM5 DDR5 ATX)

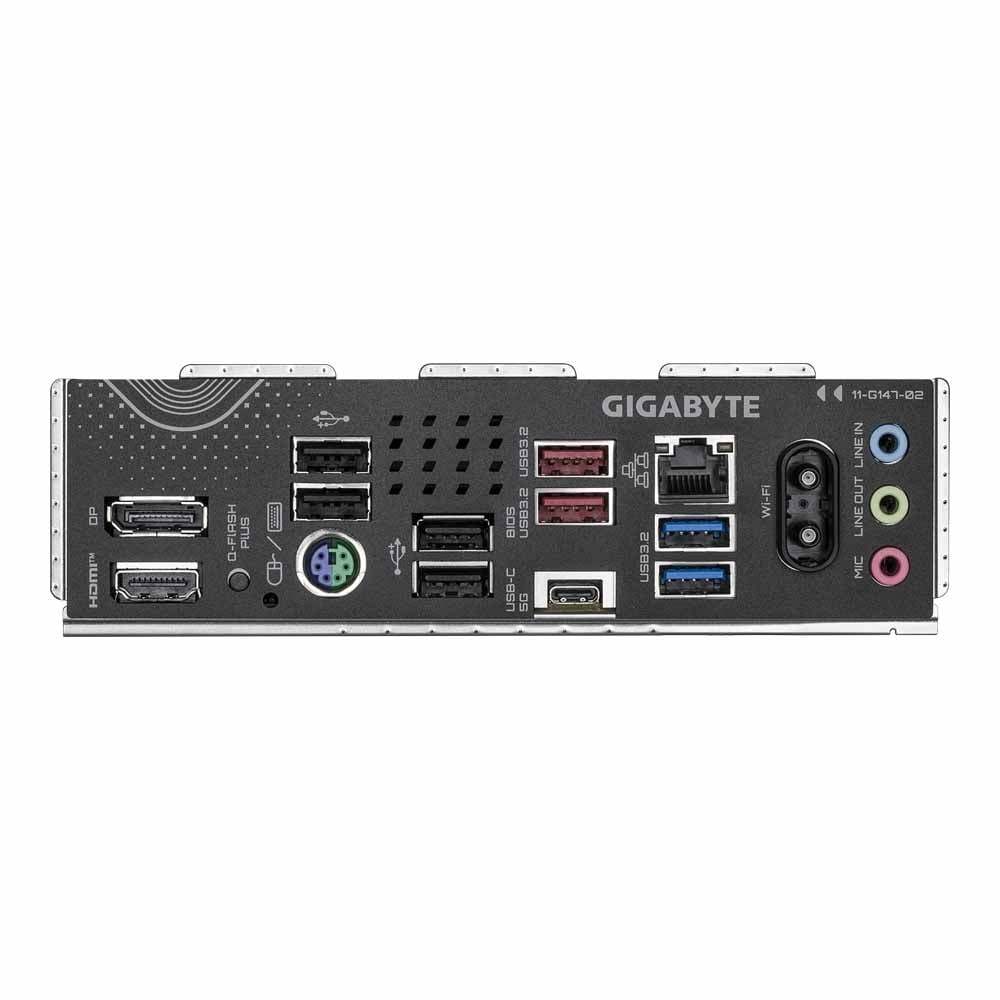

• Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Processors • AMD B850 • DDR5, 4 x DIMM • 1 x DP • 1 x HDMI • 3 x M.2 • 4 x SATA3 • 1 x USB 3.2 Gen 1 Type-C header (front) • 1 x USB 3.2 Gen 1 Type-C (rear) • 2 x USB 3.2 Gen 2 Type-A (rear) • 2 x USB 3.2 Gen 1 Type-C (rear) • 1 x PS/2 • 1 GbE LAN • Wi-Fi 6E • Bluetooth 5.3 SPECIFICATION Model : B850 EAGLE WIFI6E Socket : AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge) Memory Type : DDR5 Memory Slot : 4 Max. Memory Capacity : 256 GB Memory Speed : 4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7400 (OC) , 7600 (OC) , 7800 (OC) , 7900 (OC) , 7950 (OC) , 8000 (OC) , 8200 (OC) Graphics: Integrated Graphics Processor with AMD Radeon Graphics support: — • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. — • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. — (Graphics specifications may vary depending on CPU support.) Audio: Realtek Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF Out M.2 : 3 x M.2 Connectors SATA 3 : 4 Port RAID : - RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. - RAID 0, RAID 1, and RAID 10 support for SATA storage devices Expansion Slots : 1 x PCIe 5.0 x16 Slot , 3 x PCIe 3.0 x16 Slots LAN : Realtek 1Gb Ethernet Wireless : Intel Wi-Fi 6E AX210 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Bluetooth 5.3 - Support for 11ax 160MHz wireless standard — (Actual data rate may vary depending on environment and equipment.) BACK PANEL I/O : USB 2.0 : 4 Port USB 3.2: • 2 x USB 3.2 Gen 2 Type-A (red) • 1 x USB 3.2 Gen 1 Type-C • 2 x USB 3.2 Gen 1 Type-A Port HDMI: 1 Port DisplayPort: 1 Port Audio: 3 Port PS/2: 1 (Keyboard/Mouse combo) Port Additional: • 1 x Q-Flash Plus button • 2 x Antenna connectors (2T2R) LAN : 1 Port Form Factor : ATX Power Connector : 24 + 4 + 8 Pin Dimension : 30.5 x 24.4 cm การรับประกัน : 3 Years
