GEPRC GEP-M10 Series GEP-M1025 Series GPS Module อุปกรณ์โดรน Drone

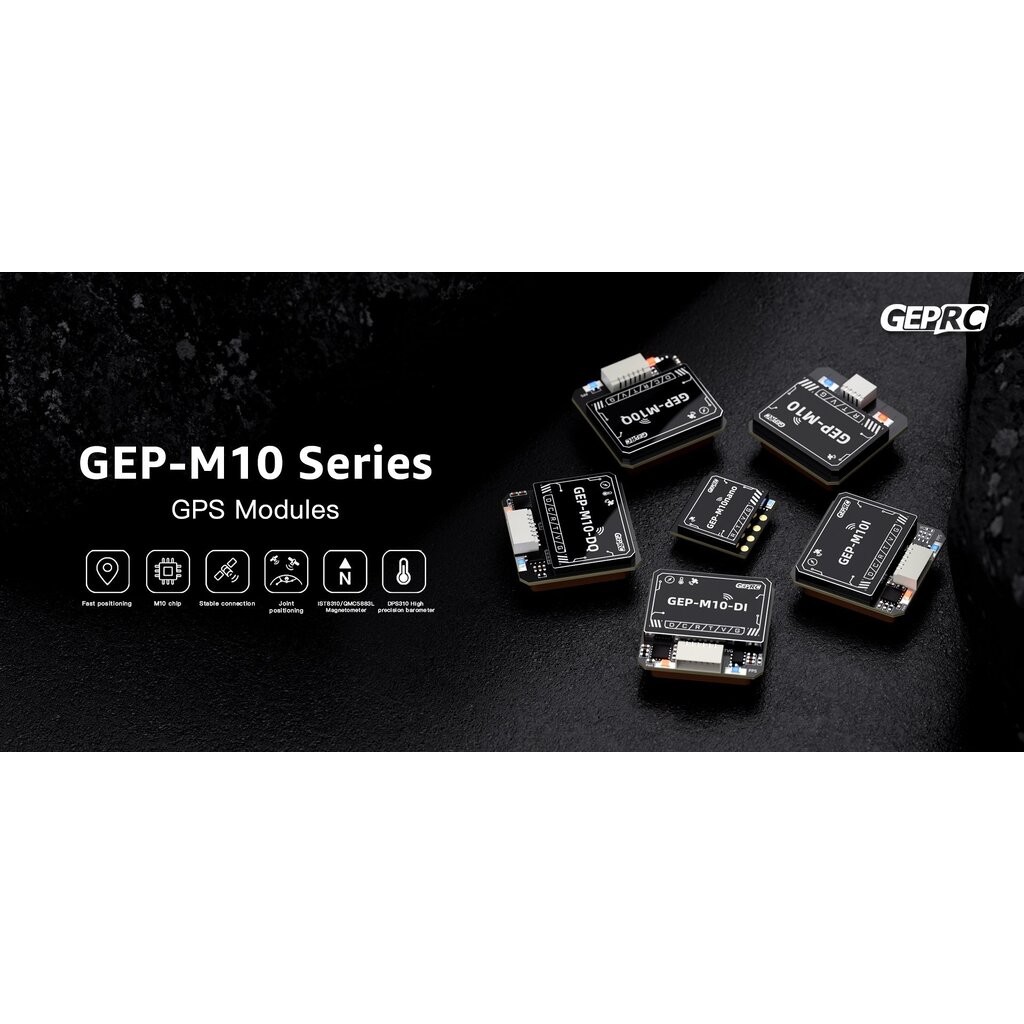

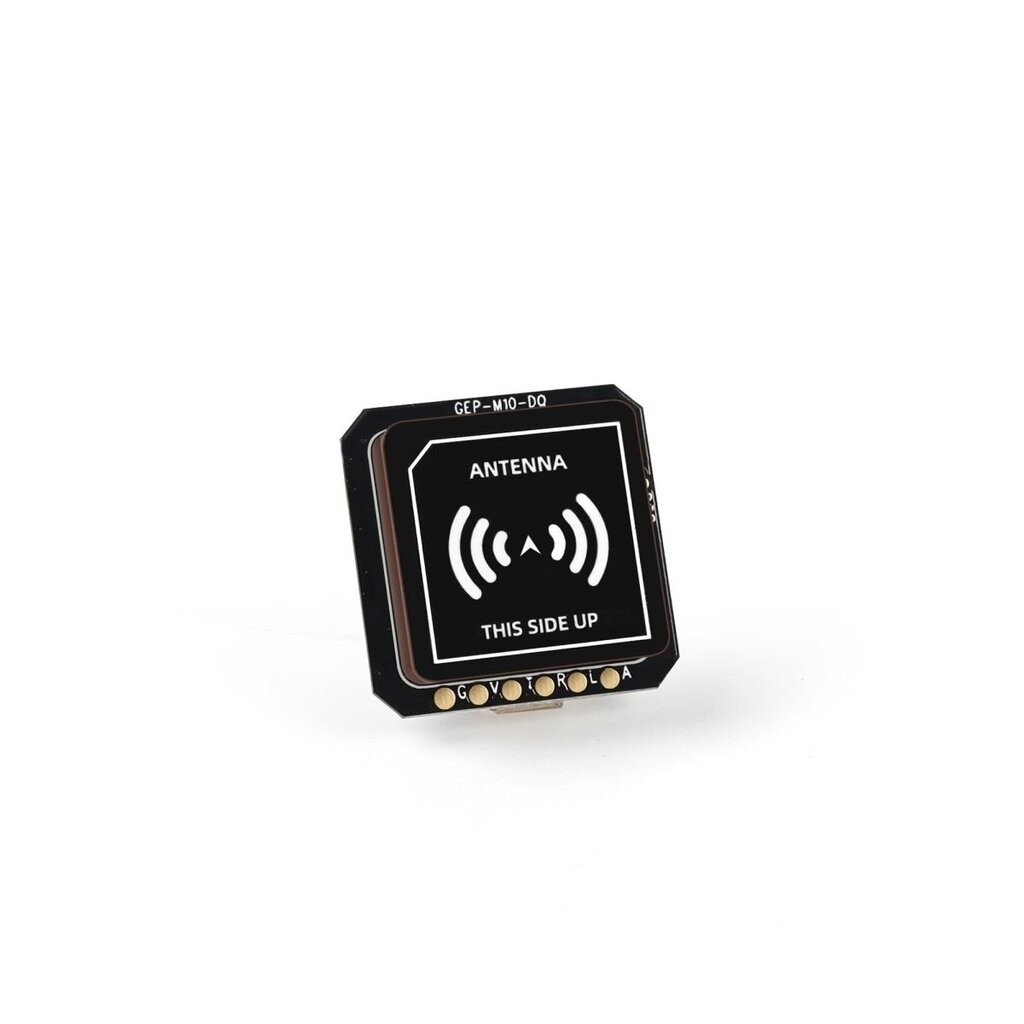

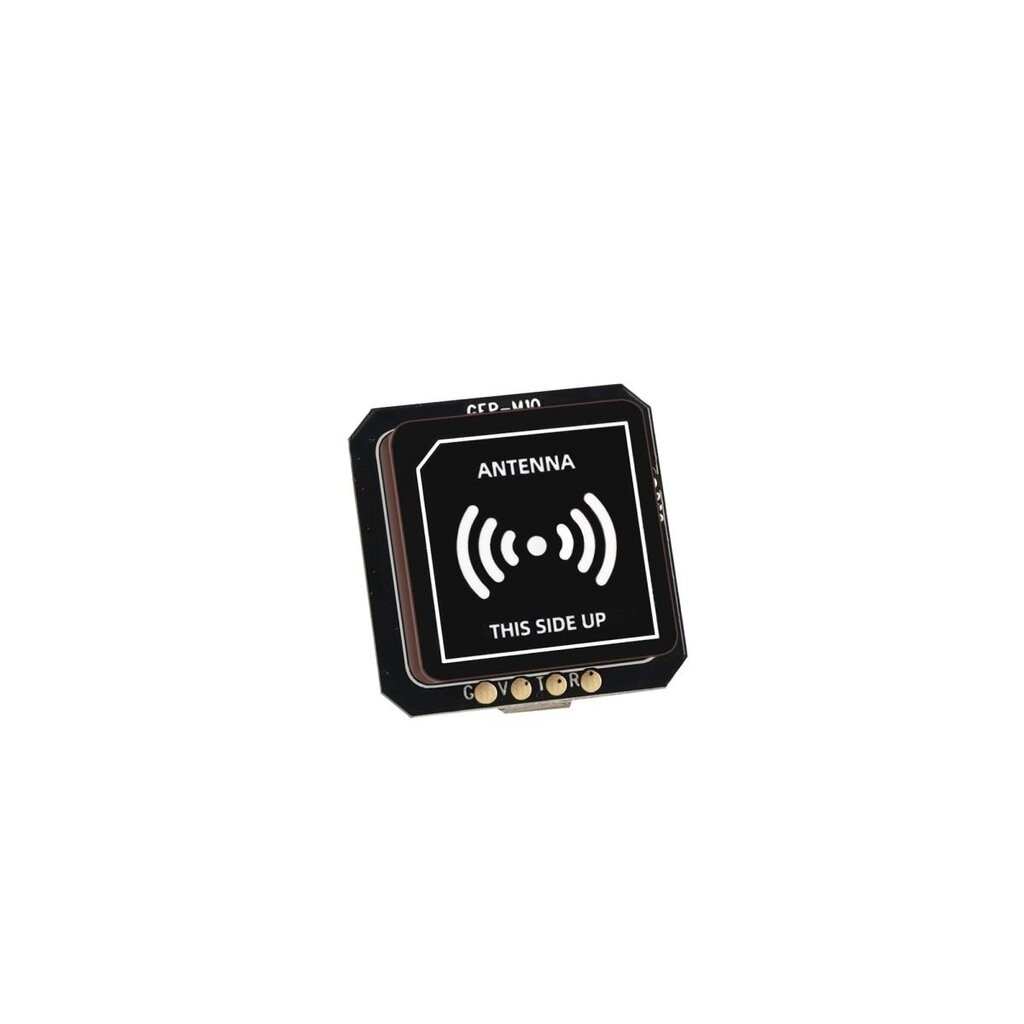

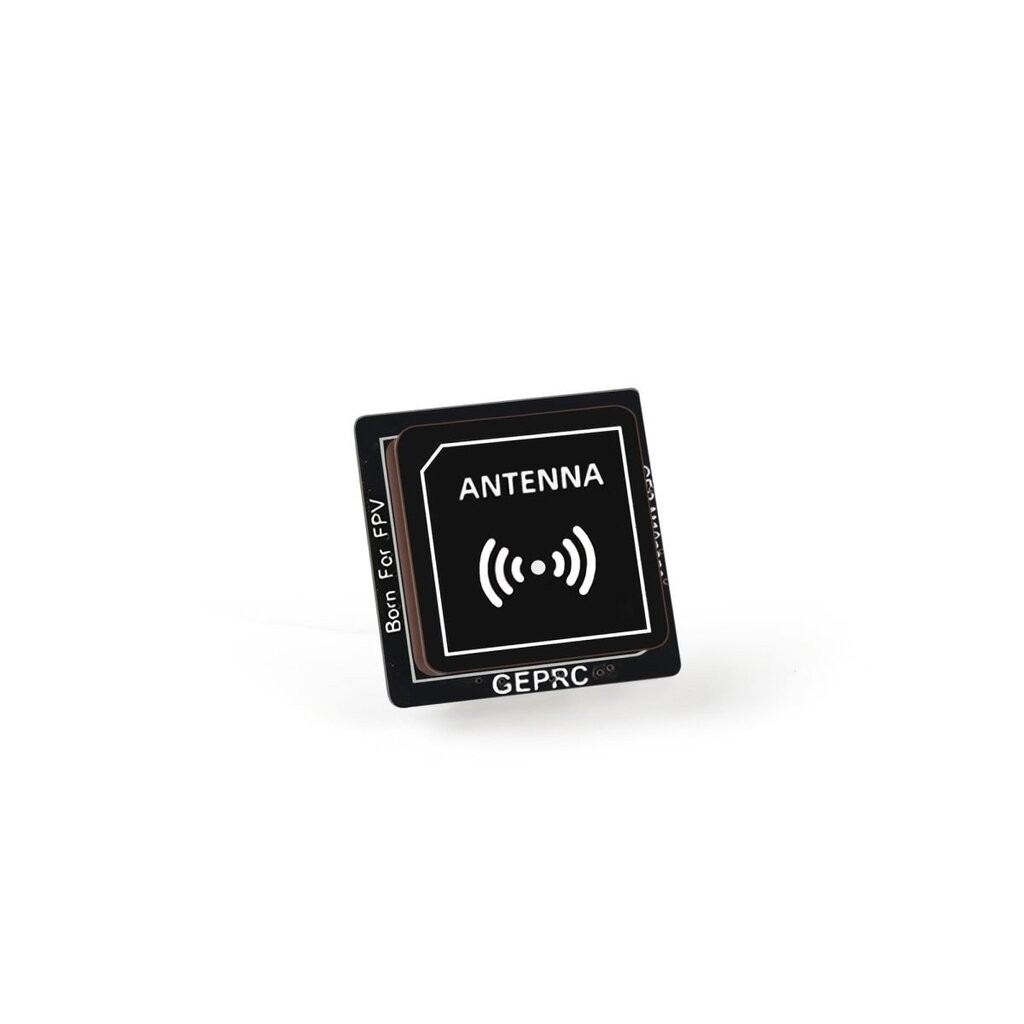

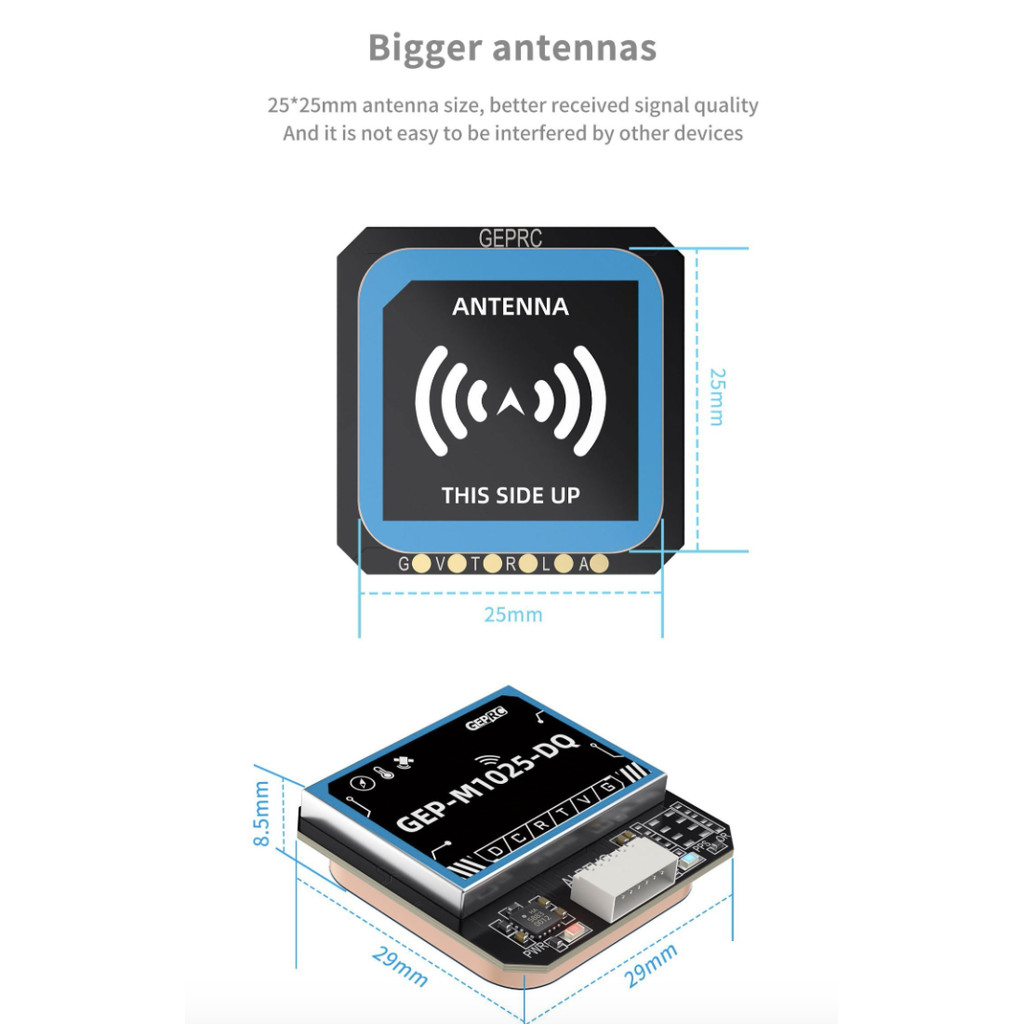

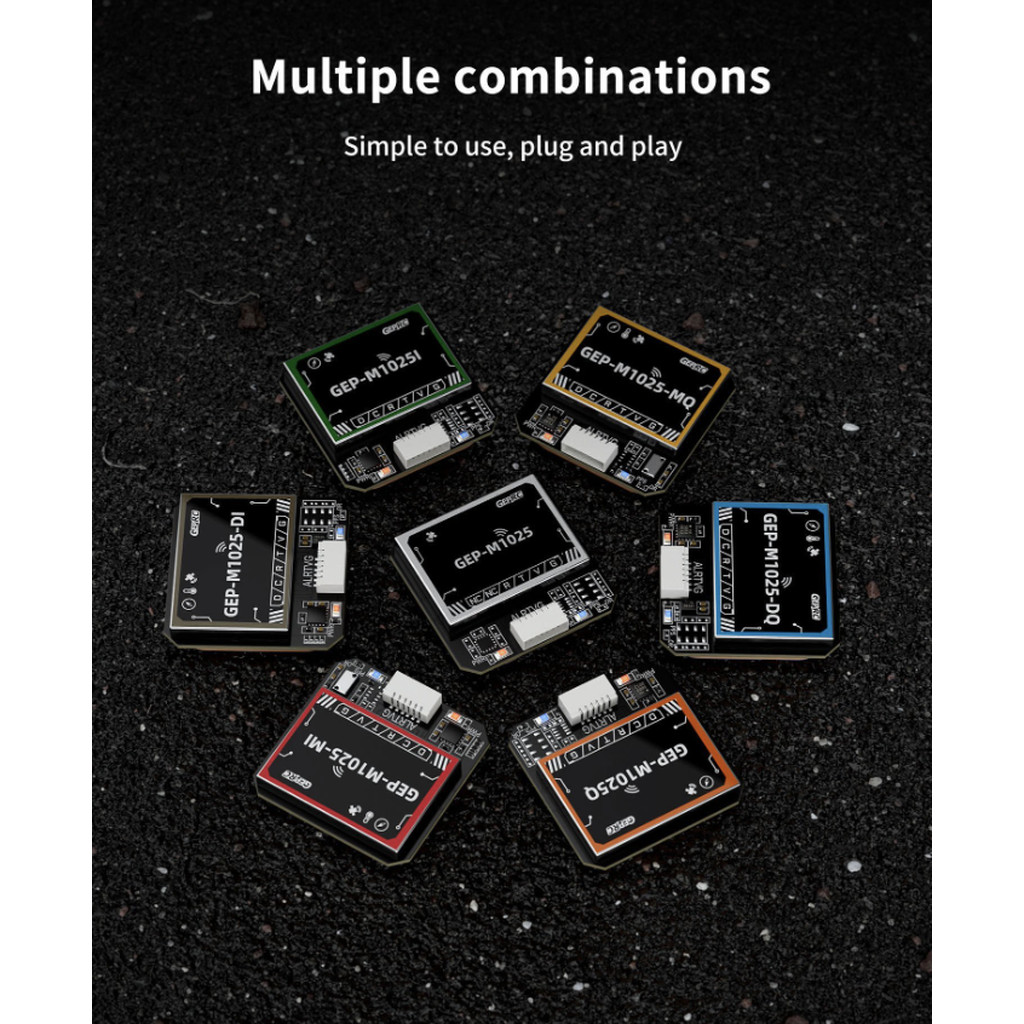

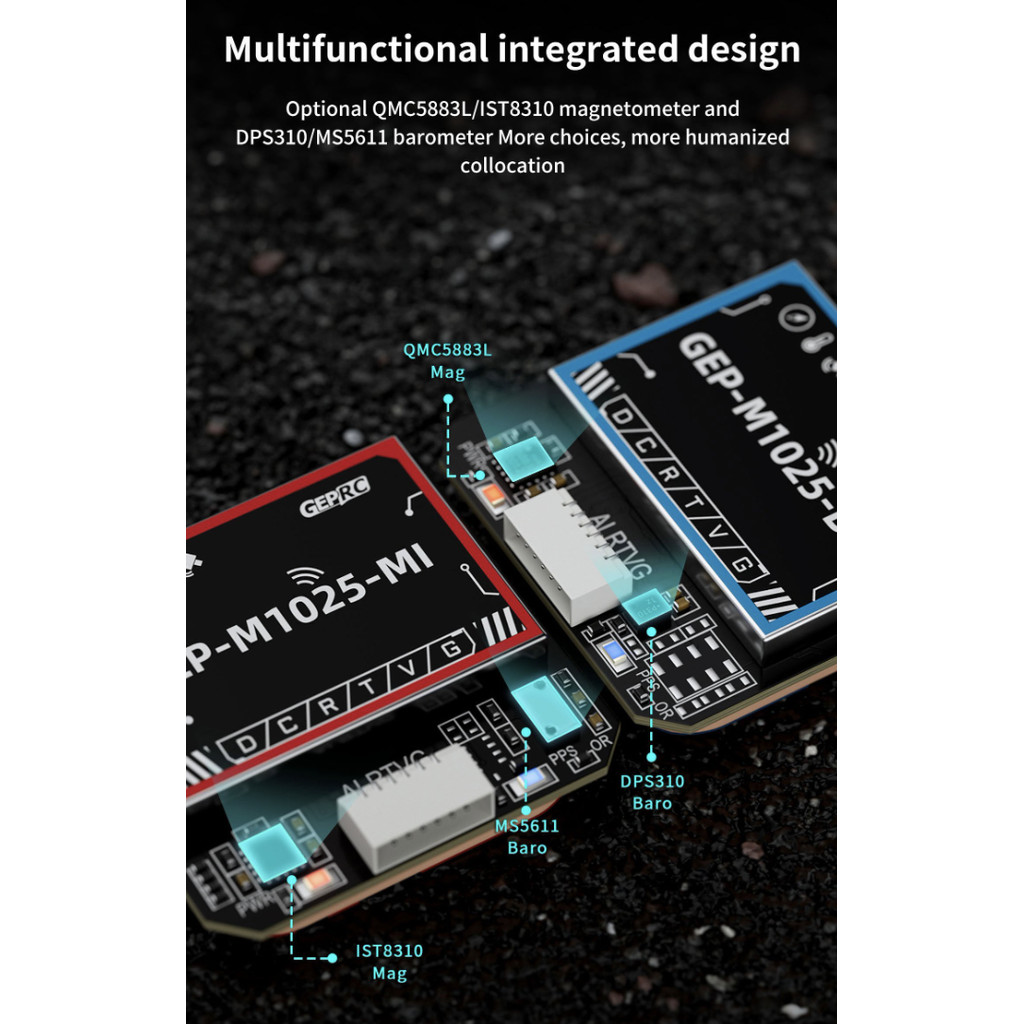

Summary The GEPRC GPS series product line has been fully upgraded. The GEP-M10 series of GPS products based on u-blox M10050 chip are now launched. The GEP-M10 series GPS positioning module uses u-bloxs M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. There are 12*12mm and 18*18mm ceramic antenna versions, providing better receiving ability. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start. Optional QMC5883L/IST8310 magnetometer and DPS310 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products. Specifications - GPS chip：u-blox M10050 - Input voltage：3.3V-5V - Receiving frequency：GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1 - Operating mode：GPS+BDS+LALILEO+QZSS+SBAS joint positioning - Channel：72ch - Navigation satellites：Up to 32 pieces - Output protocol：UART(ublox),I2C（Baro,Mag） - Baud rate：115200bps - Output Frequency：10Hz - Speed Accuracy：0.05 m/s - Horizontal positioning accuracy：2D ACC1.5m(Weather) - Timing accuracy：30 ns - Receiver sensitivity：Trace-162dBm，Capture-160dBm - Dynamic characteristics：Max Height: 50000m, Max Speed: 500m/s - Maximum acceleration：4G - Mag：QMC5883L,IST8310 - Baro：DPS310 - Size：15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10) - Antenna size：12x12mm(GEP-M10nano),18x18mm(GEP-M10) - Weight：4.1g(GEP-M10nano),7.8g(GEP-M10) Features - u-blox M10050 chip - GPS+BDS+Galileo+QZSS+SBAS joint positioning - Fast positioning speed,Up to 32 satellites - Stable connection quality - 12x12mm or 18x18mm antenna size, better signal receiving performance - Built-in Flash chip and Farad capacitor - Onboard indicator light, easy to use - Optional integrated magnetometer + barometer, more collocation scheme Includes 1 x GPS module 1 x terminal wire 1 x GPS module instruction manual 1 x GEPRC sticker 1 x heat shrink tubing ---------------------------------------------------------------------- Summary The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched. The GEP-M1025 series GPS positioning module uses u-bloxs M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start. Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products. Note: The direction of the magnetometer in INAV should be set to QMC5883: CW 0 flip, IST8310: CW 90 flip. Feature - u-blox M10 series chip - GPS+BDS+Galileo+QZSS+SBAS joint positioning - Fast positioning speed,Up to 32 satellites - Stable connection quality - 25*25mm antenna size, better signal receiving performance - Built-in Flash chip and Farad capacitor - Onboard indicator light, easy to use - Optional integrated magnetometer+barometer, more collocation scheme Includes 1 x GPS module 1 x terminal wire 1 x GPS module instruction manual 1 x GEPRC sticker 1 x heat shrink tubing
