ลูกเมนเบรกเกอร์ MCB 40A,50A,63A 2P รุ่น Easy9 Plug-On ดันล็อก Schneider

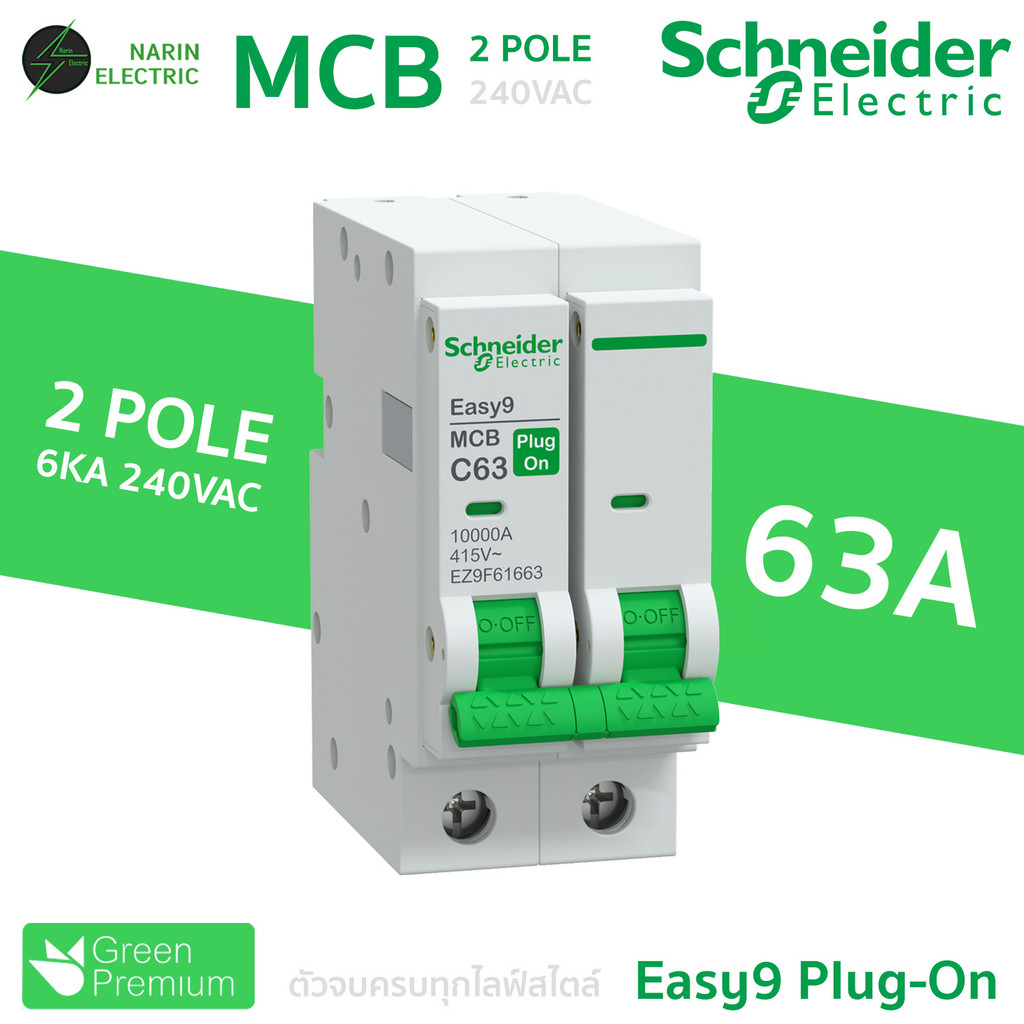

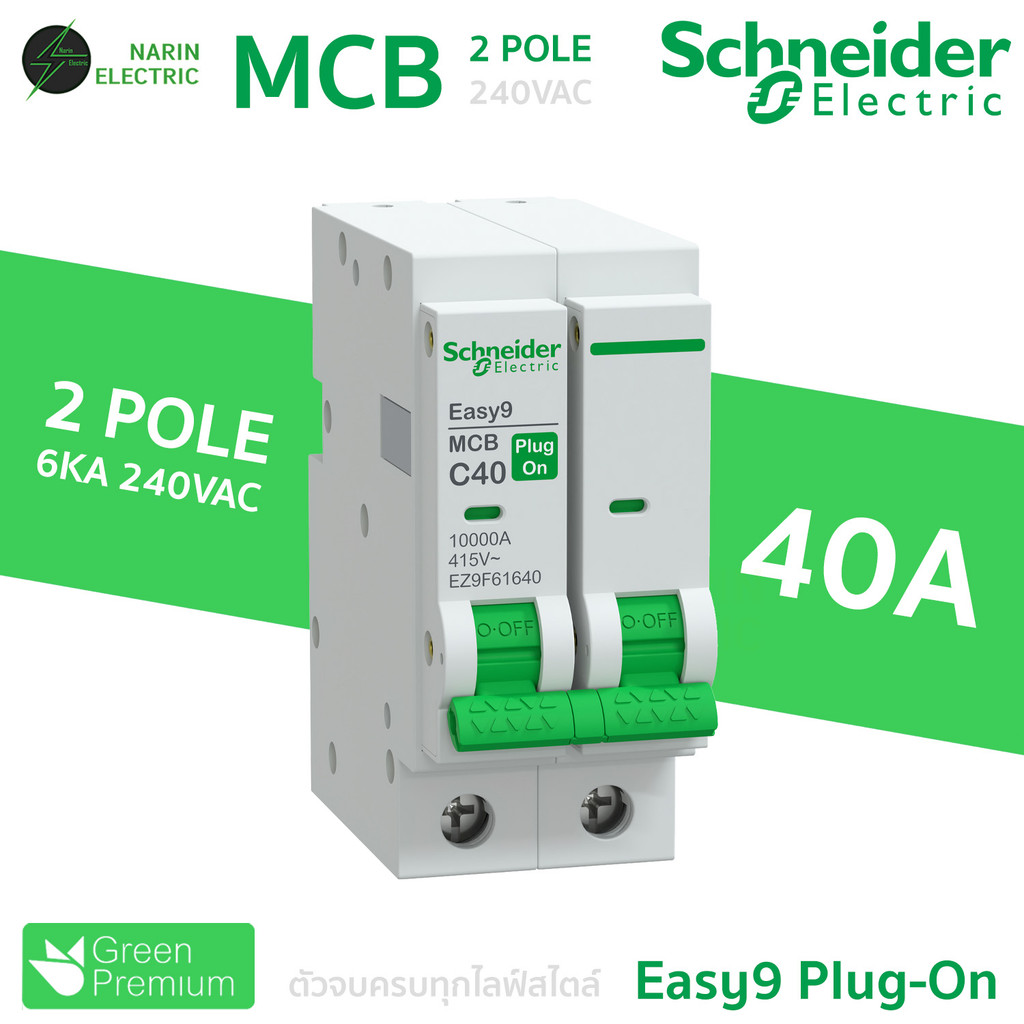

เมนเซอร์กิตเบรกเกอร์ แบบ Plug-On รุ่น Easy9 Plug-On เมน MCB 40A 2P Easy9 Plug-On EZ9F61640 Schneider เมน MCB 50A 2P Easy9 Plug-On EZ9F61650 Schneider เมน MCB 63A 2P Easy9 Plug-On EZ9F61663 Schneider Main Range Easy9 Plug-On product name Easy9 Plug-On MCB Device application Protection Product or component type Miniature circuit-breaker Device short name Easy9 Plug-On MCB Poles 2P Number of protected poles 2 [In] rated current 40 A , 50 A , 63 A Option Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 415 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50 Hz [Ue] rated operational voltage 415 V AC 50 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 7.5 kA at 415 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V [Uimp] rated impulse withstand voltage 4 kV Contact position indicator Yes Control type Toggle Local signalling ON/OFF indication Mounting mode Plug-on 9 mm pitches 4 Height 82 mm Width 37.4 mm Depth 82 mm Net weight 0.2 kg Colour Light grey Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Screw-clamp terminals (bottom) 1…35 mm² rigid Screw-clamp terminals (bottom) 1…25 mm² flexible Plug-in connector (top) Wire stripping length 14 mm for bottom connection Tightening torque 2 N.m bottom Environment Standards IEC 60898-1 Product certifications CB IP degree of protection IP3X conforming to IEC 60898-1 Tropicalisation 2 Relative humidity 95 % at 55 °C Ambient air temperature for operation 0…50 °C Ambient air temperature for storage -5…50 °C
