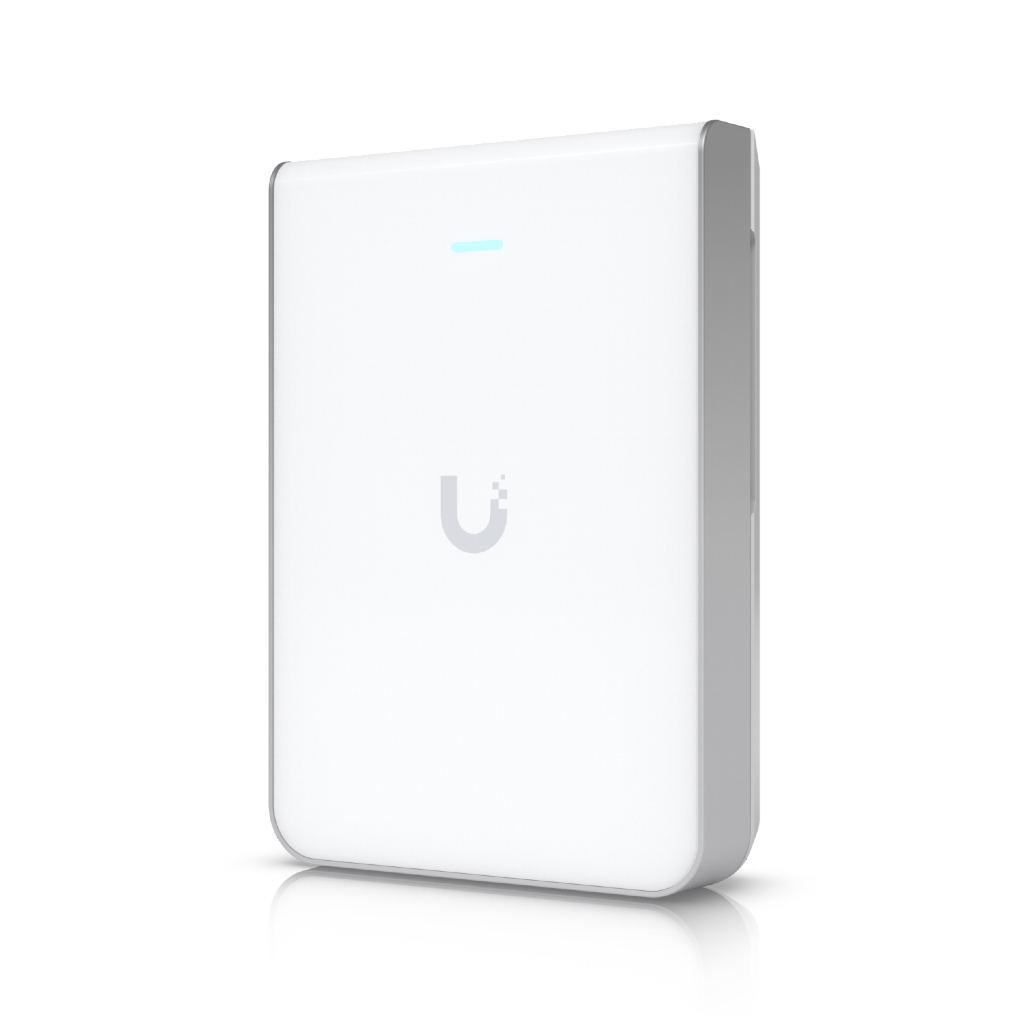

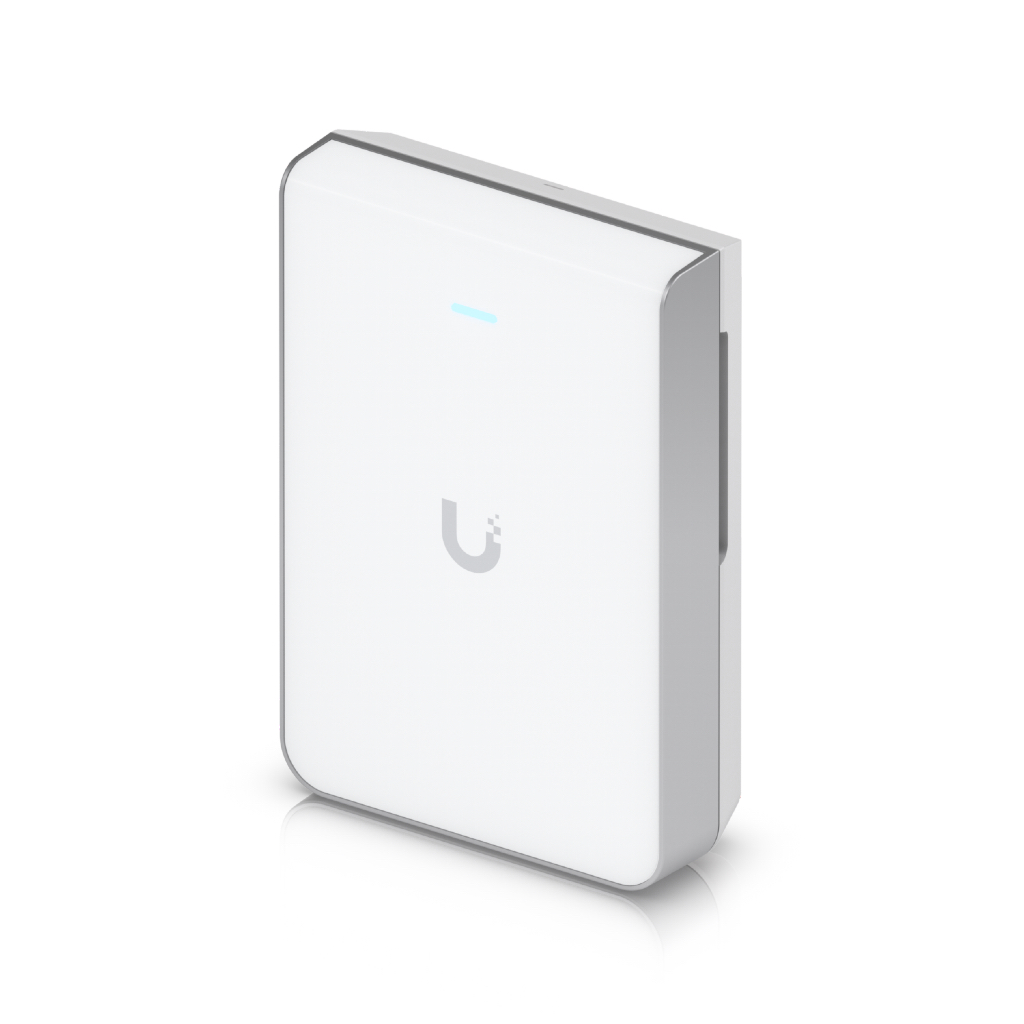

UniFi U7 Pro Wall ( U7-Pro-Wall ) ของแท้ ประกัน 3 ปี ฟรีสายLAN ออกใบกำกับได้ เสียเปลี่ยนตัวใหม่

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options. WiFi 7 with 6 GHz support 6 spatial streams 140 m² (1,500 ft²) coverage 300+ connected devices Powered using PoE+ 2.5 GbE uplink Versatile deployment with optional Flush Mount and Table Stand accessories* Note. 6 GHz operation is supported in these countries. Multi-Link Operation (MLO) capability is coming soon and will be provided via software update. *Sold separately. ------ Technical Specifications Overview Dimensions 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") WiFi Standard WiFi 7 Spatial Streams 6 Coverage Area 140 m² (1,500 ft²) Max. Client Count 300+ Uplink 2.5 GbE Mounting Wall (Mount Included) Power Method PoE+ Performance MIMO 6 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 2 x 2 (DL/UL MU-MIMO) 2.4 GHz 2 x 2 (DL/UL MU-MIMO) Max. Data Rate 6 GHz 5.8 Gbps (BW320) 5 GHz 4.3 Gbps (BW240) 2.4 GHz 688 Mbps (BW40) Antenna Gain 6 GHz 6 dBi 5 GHz 5 dBi 2.4 GHz 4 dBi Max. TX Power 6 GHz 23 dBm 5 GHz 26 dBm 2.4 GHz 22 dBm Max. BSSIDs 8 per Radio Supported Data Rates 802.11be (WiFi 7) 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) Features Wireless Meshing Yes Band Steering Yes 802.11v BSS Transition Management Yes 802.11r Fast Roaming Yes 802.11k Radio Resource Management (RRM) Yes Advanced Radio Management Yes Passpoint (Hotspot 2.0) Yes Captive Hotspot Portal Custom Branding Landing Page Yes Voucher Authentication Yes Payment-Based Authentication Yes External Portal Server Support Yes Password Authentication Yes Guest Network Isolation Yes Private Pre-Shared Key (PPSK) Yes WiFi Speed Limiting Yes Client Device Isolation Yes WiFi Schedules Yes RADIUS over TLS (RadSec) Yes Dynamic RADIUS-assigned VLAN Yes Hardware Max. Power Consumption 22W Supported Voltage Range 44—57V DC Networking Interface (1) 1/2.5 GbE RJ45 port Weight 580 g (1.3 lb) Management Ethernet Enclosure Material Polycarbonate, aluminum Mount Material Aluminum LEDs System White/Blue Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) NDAA Compliant Yes Certifications CE, FCC, IC, Anatel Operating Frequency US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz Ambient Operating Temperature -30 to 60° C (-22 to 140° F) Ambient Operating Humidity 5 to 95% noncondensing Software Application Requirements UniFi Network Version 8.1.113 and later
