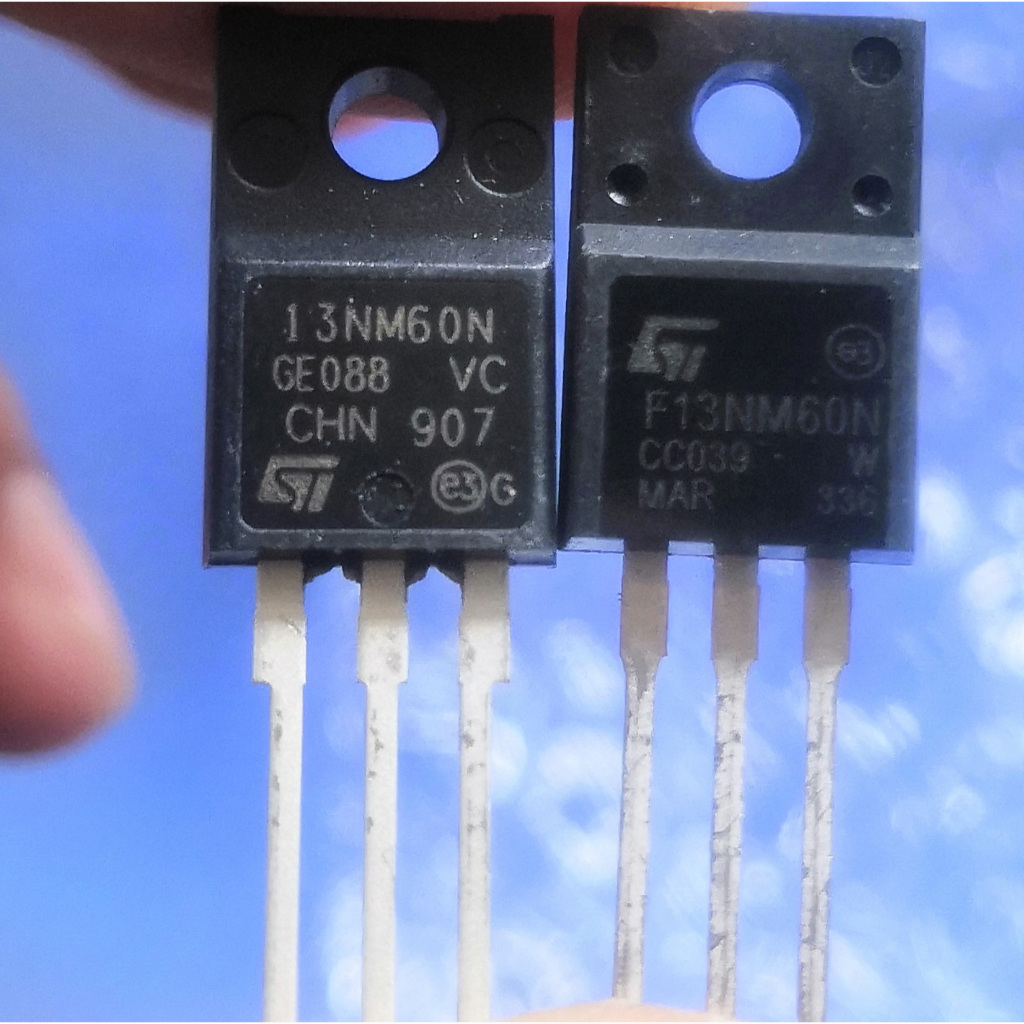

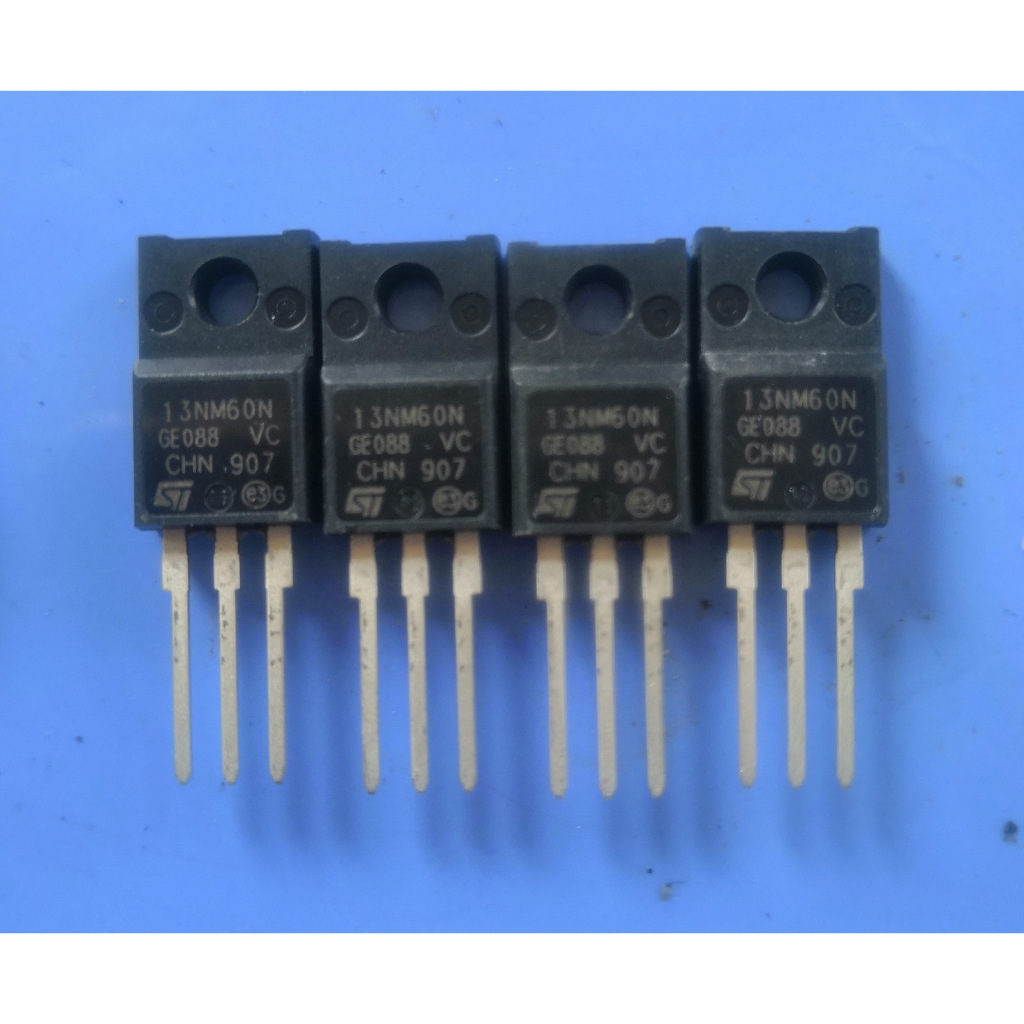

มอสเฟต N-Chanel 13NM60 ,13NM60N , STF13NM60N 600V 13A TO-220F

มอสเฟต N-Chanel 13NM60 ,13NM60N , STF13NM60N 600V 13A TO-220FP Type Designator: STF13NM60N Marking Code: 13NM60N Type of Transistor: MOSFET Type of Control Channel: N -Channel Pdⓘ - Maximum Power Dissipation: 25 W |Vds|ⓘ - Maximum Drain-Source Voltage: 600 V |Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V |Id|ⓘ - Maximum Drain Current: 11 A Tjⓘ - Maximum Junction Temperature: 150 °C Qgⓘ - Total Gate Charge: 30 nC trⓘ - Rise Time: 8 nS Cossⓘ - Output Capacitance: 60 pF Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.36 Ohm Package: TO220FP
