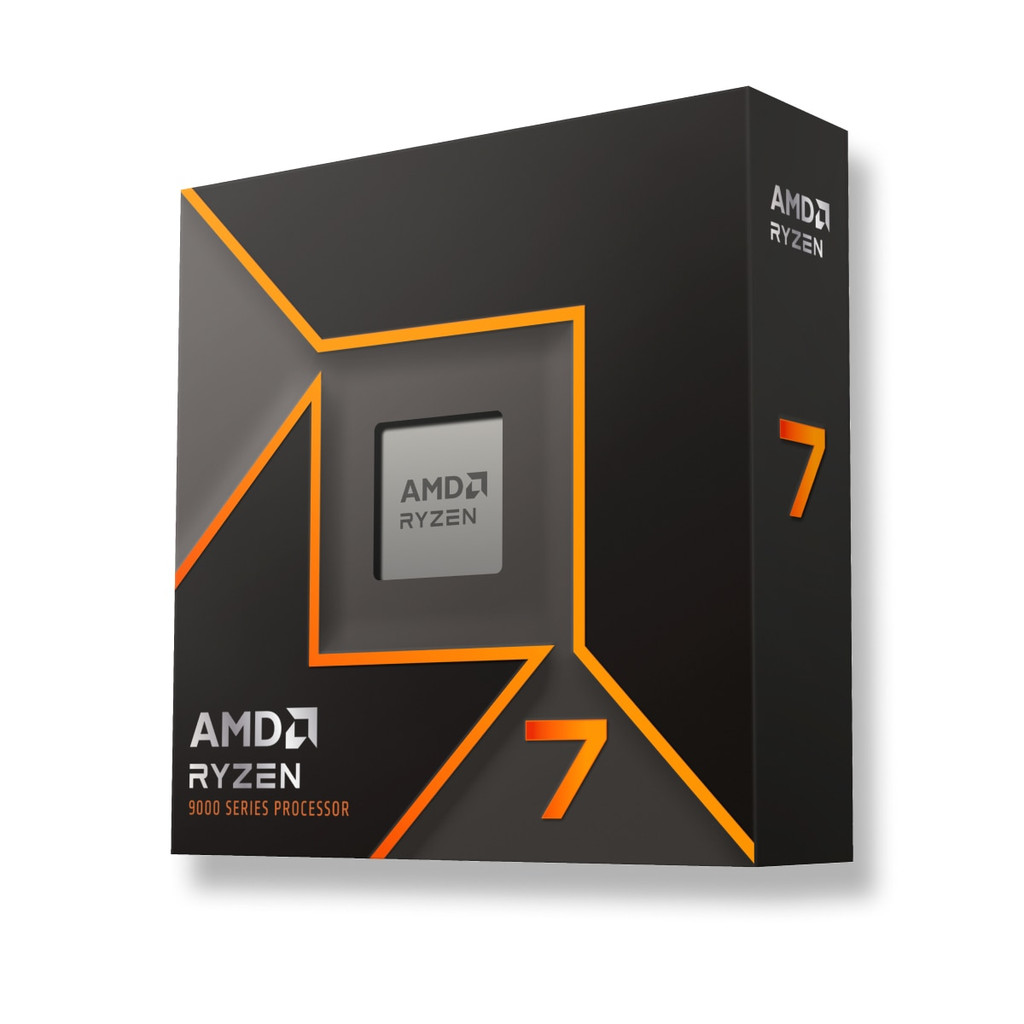

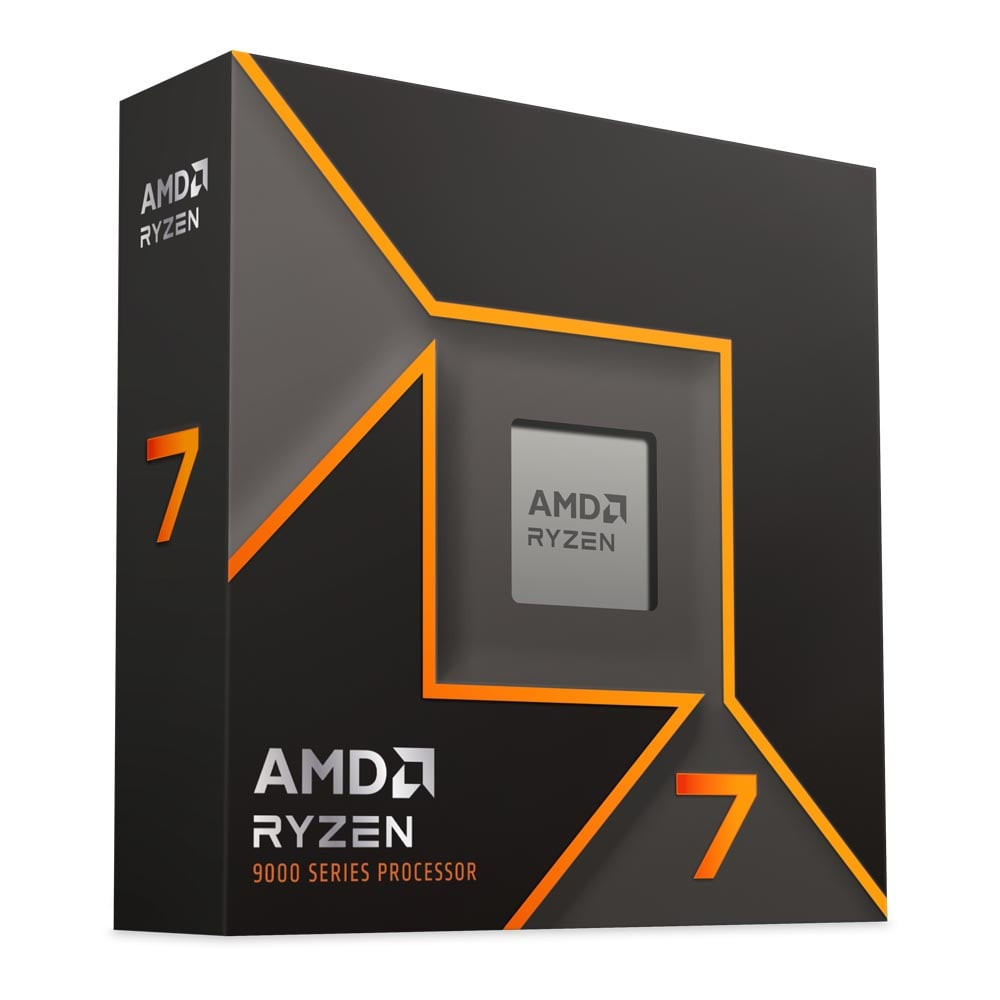

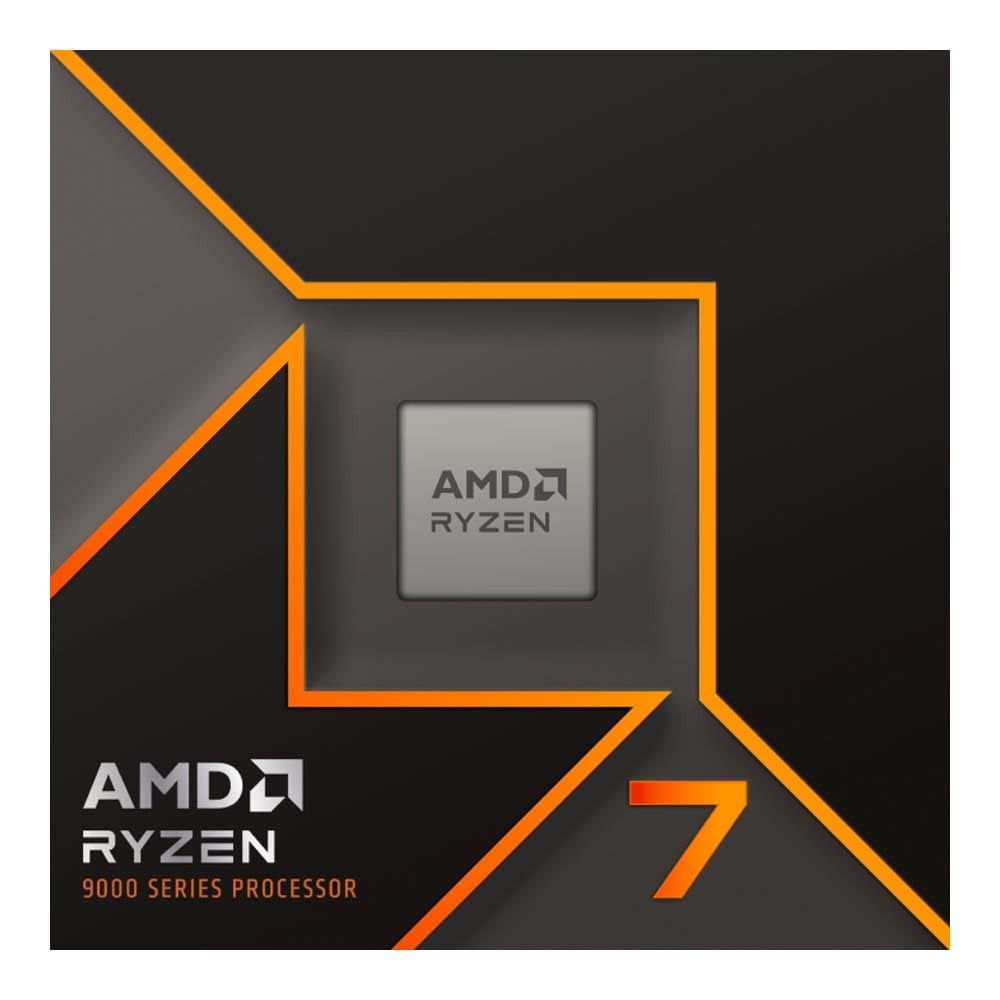

CPU ซีพียู AMD RYZEN 7 9700X 8C/16T UP TO 5.5GHz

General Specifications Name : AMD Ryzen™ 7 9700X Family : Ryzen Series : Ryzen 9000 Series Form Factor : Desktops , Boxed Processor Market Segment : Enthusiast Desktop AMD PRO Technologies : No Regional Availability : Global Former Codename : Granite Ridge AM5 Architecture : Zen 5 # of CPU Cores : 8 Multithreading (SMT) : Yes # of Threads : 16 Max. Boost Clock : Up to 5.5 GHz Base Clock : 3.8 GHz L1 Cache : 640 KB L2 Cache : 8 MB L3 Cache : 32 MB Default TDP : 65W Processor Technology for CPU Cores : TSMC 4nm FinFET Processor Technology for I/O Die : TSMC 6nm FinFET Package Die Count : 2 Unlocked for Overclocking : Yes AMD EXPO™ Memory Overclocking Technology : Yes Precision Boost Overdrive : Yes Curve Optimizer Voltage Offsets : Yes AMD Ryzen™ Master Support : Yes CPU Socket : AM5 Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology : Precision Boost 2 CPU Cooler : No Instruction Set : x86-64 Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Thermal Solution (PIB) : Not Included Recommended Cooler : Premium air cooler recommended for optimal performance Max. Operating Temperature (Tjmax) : 95°C *OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Connectivity Native USB 3.2 Gen 2 (10Gbps) : 4 Native USB 2.0 (480Mbps) : 1 PCI Express® Version : PCIe® 5.0 Native PCIe® Lanes (Total/Usable) : 28 , 24 Additional Usable PCIe Lanes from Motherboard : X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type : DDR5 Memory Channels : 2 Max. Memory : 192 GB System Memory Subtype : UDIMM Max Memory Speed : 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support : Yes (Requires mobo support) Graphics Capabilities Graphics Model : AMD Radeon™ Graphics Graphics Core Count : 2 Graphics Frequency : 2200 MHz USB Type-C® DisplayPort™ Alternate Mode : Yes Key Features Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies Warranty : 3 Years
