📅 วันนี้ - 08 ธ.ค. 2024คุณสมบัติ
ระบบไร้สาย 2.4 GHz พร้อมไมโครโฟนซูเปอร์คาร์ดิออยด์ 142 dB SPL
เสียงความละเอียดสูง 24 บิต/48 kHz ความหน่วงน้อยกว่า 5 มิลลิวินาที
ตอบสนองความถี่ 20 Hz – 20 kHz
ช่วงไดนามิก 108 dB อัตราส่วนสัญญาณต่อสัญญาณรบกวน 108 dB
แบตเตอรี่ใช้งานได้นานสูงสุด 5 ชั่วโมง
ช่องสัญญาณไร้สาย 6 ช่อง
ระยะสัญญาณไร้สาย: สูงสุด 90 ฟุต (27 ม.)
มีตัวส่งสัญญาณ ตัวรับ ไมโครโฟน คลิป สาย USB-C กระจกบังลมแบบโฟมและกระจกบังลมแบบขนสัตว์ กระเป๋าใส่
Feature
2.4 GHz wireless system with a 142 dB SPL supercardioid microphone
High-resolution 24-bit/48 kHz audio, less than 5 ms latency
20 Hz – 20 kHz frequency response
Dynamic range of 108 dB, signal-to-noise ratio of 108 dB
Up to 5 hours of battery life
6 wireless channels
Wireless range: up to 90 feet (27 m)
Includes transmitter, receiver, microphone, clip, USB-C cable, foam windscreen and fur windshield, carry case
TOP SHELF MIC
Sound quality is paramount—and without a good microphone, the U7 would be worthless. That’s why we refused to compromise in our design of the system’s ultra-high-quality supercardioid gooseneck microphone. It’s perfectly voiced for sax, trumpet and trombone—and with a max SPL of 142 dB and a sensitivity of -45 dB, you’ll hear the natural sound of your instrument wherever you go.
FREE AS THE WIND
Xvive has built its name on wireless, and we understand the importance of reliable performance and top-level fidelity. The U7 system uses the 2.4 GHz band, has 6 channels to ensure you always have options if you encounter interference, and the wireless range is up to 90 feet!
CLIP IT ON

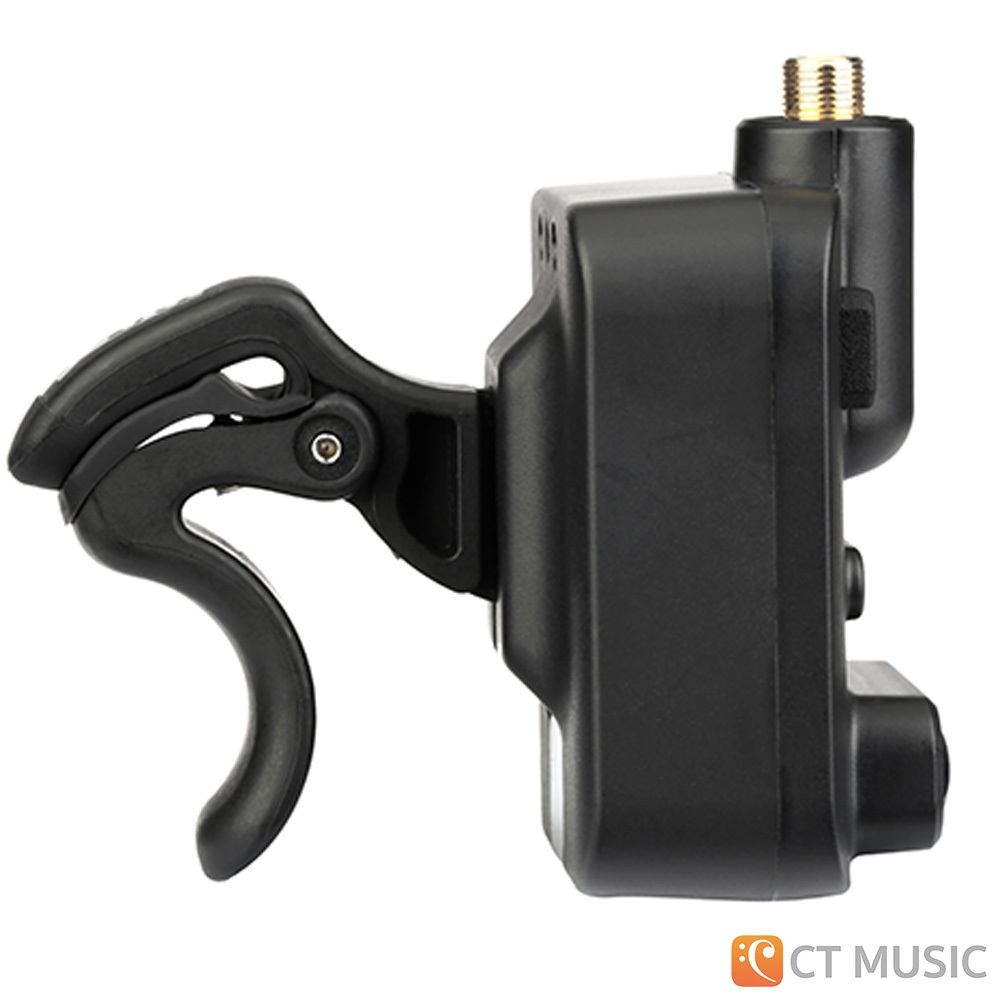

The U7 set comes with a strong and sturdy clip that attaches the transmitter and gooseneck microphone to the bell of your sax, trumpet or trombone.
MIC POSITION

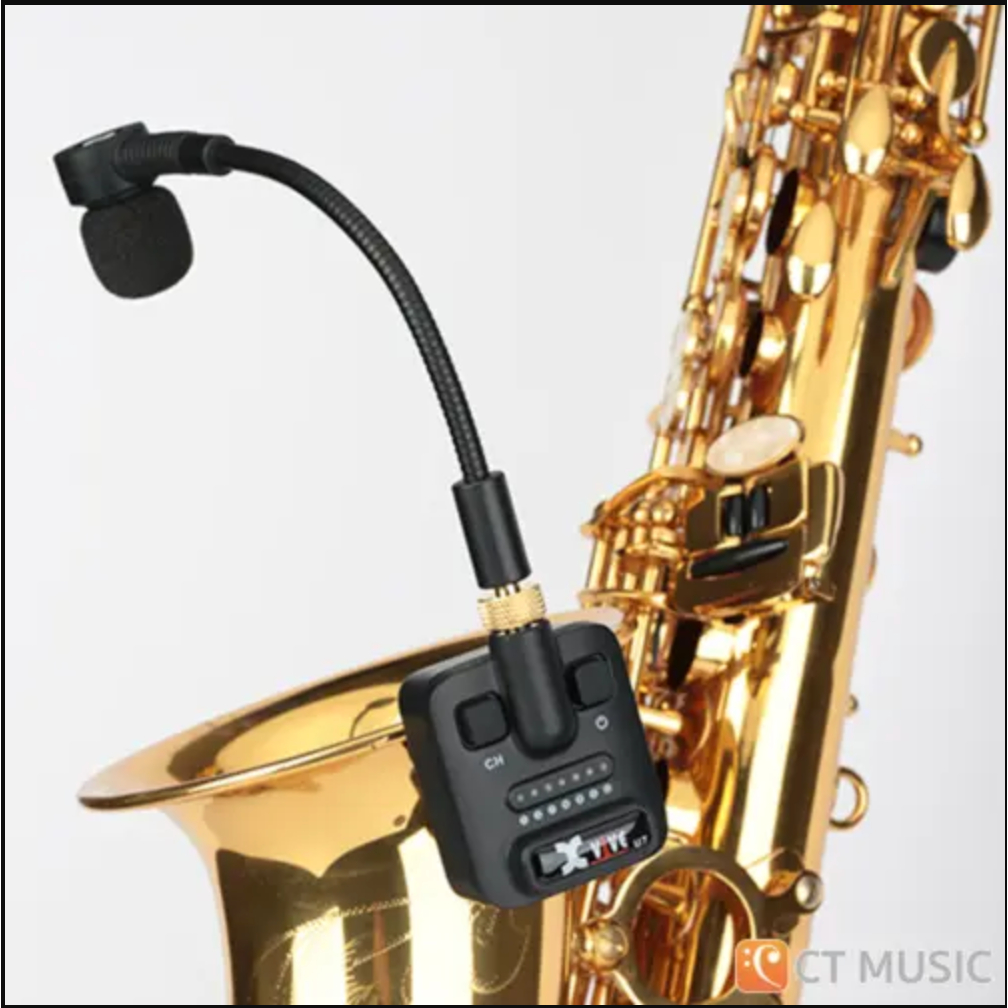

The gooseneck microphone is designed to be adjustable, allowing you to position it as desired to get the sound that best captures the tone of your instrument.
CONTROL THE WIND
Since with a wireless unit you will be moving around more as you perform, sometimes you may want to attach the included foam windscreen or fur windshield to filter out wind noise!

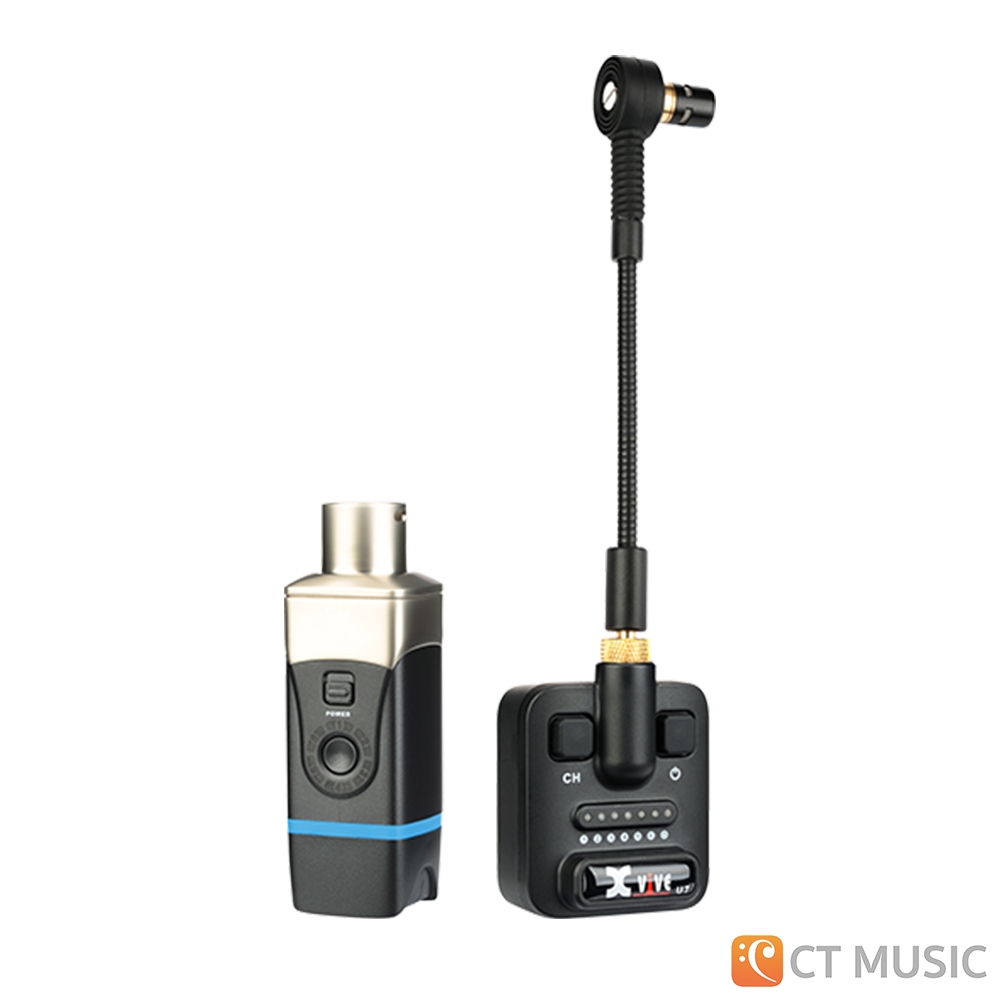

WHAT’S IN THE CASE
The U7 box includes a Carry Case, Microphone, Transmitter, Receiver, Dual USB-C Charging Cable, Clip, Windscreen, Windshield and Manual.
CHARGE IT
Charge the transmitter and receiver at the same time using the dual USB-C cable and any 5V 2A USB power supply. Charging for two and a half hours gets you 5 hours of play time; 1.25 hours gets you 2 hours of play time, and 30 min of charging gets you 1 hour.
Microphone Specifications
MICROPHONE TYPE Supercardioid
DIMENSIONS 20 mm x 28 mm x 190 mm
WEIGHT 35 g
OUTPUT PLUG 1/8” balanced male TRS (Tip = +3.3V, Ring = -3.3V, Sleeve = ground)
SENSITIVITY -45 dB
MAX. SPL 142 dB
Wireless System Specifications
TUNING BANDWIDTH 2400 – 2483.5 MHz
WORKING RANGE 90 ft (indoors)
FREQUENCY RESPONSE 20 Hz – 20 kHz (-3dB)
DYNAMIC RANGE 108 dB
SIGNAL-TO-NOISE RATIO 108 dB
RF SENSITIVITY -88 dBm
TOTAL HARMONIC DISTORTION 0.2%
RF OUTPUT POWER 10 mW E.I.R.P. max
OPERATING TEMPERATURE RANGE 0°C to 45°C
CHANNEL COUNT 6
CHARGING VOLTAGE / CURRENT 5V / 2A
BIT DEPTH / SAMPLE RATE 24-bit / 48 kHz
LATENCY less than 5 ms
Transmitter Specifications
DIMENSIONS 40 mm x 29 mm x 50 mm
WEIGHT 35 g
AUDIO INPUT CONNECTOR 1/8” balanced TRS female
MAXIMUM INPUT LEVEL 3.7 Vp-p
PHANTOM POWER ± 3.3V
USB TYPE USB Type-C
ANTENNA IMPEDANCE 50 Ω
ANTENNA TYPE 1/4 wave sleeve dipole, non-removable
NUMBER OF ANTENNAS 1
Receiver Specifications
DIMENSIONS 31 mm x 29 mm x 98 mm
WEIGHT 92 g
OUTPUT IMPEDANCE 470 Ω (1 kHz)
AUDIO OUTPUT CONNECTOR XLR balanced male
MAXIMUM OUTPUT LEVEL 3.6 Vp-p
USB TYPE USB Type-C
ANTENNA IMPEDANCE 50 Ω
ANTENNA TYPE 1/4 wave sleeve dipole, non-removable
NUMBER OF ANTENNAS 2
