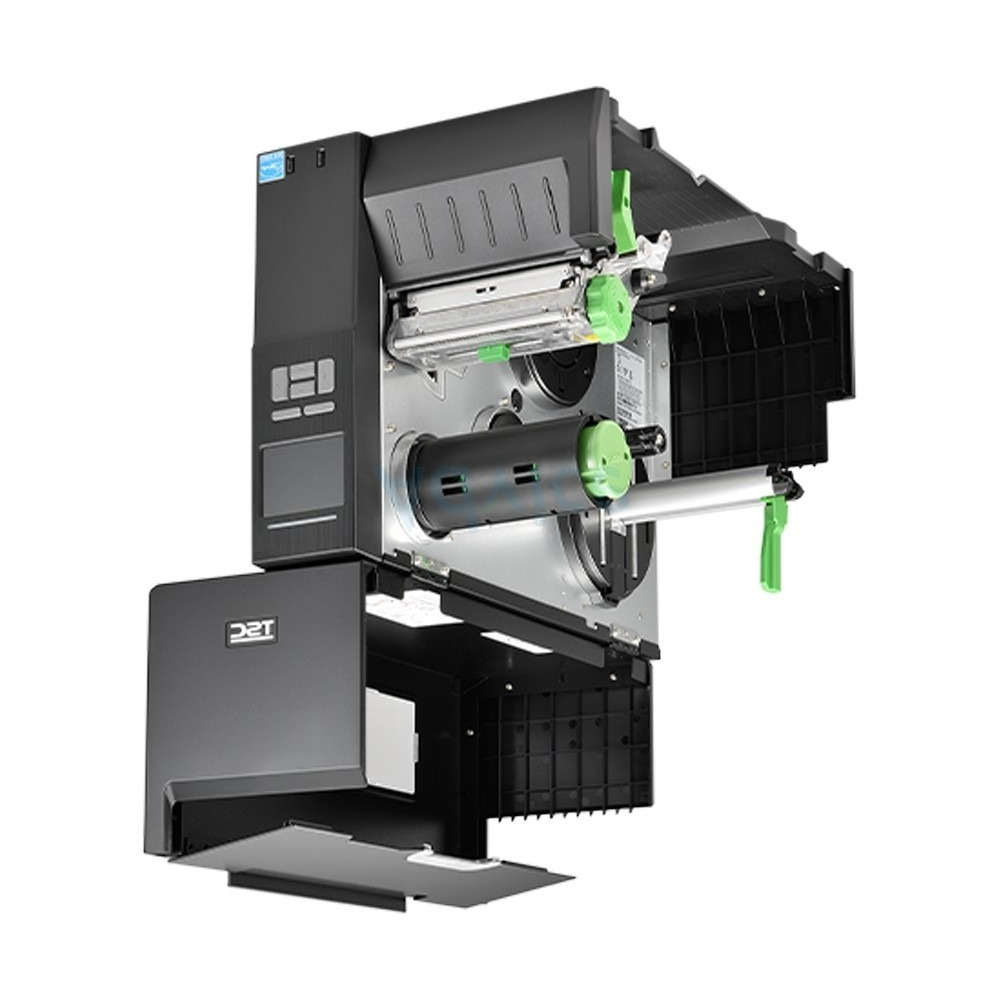

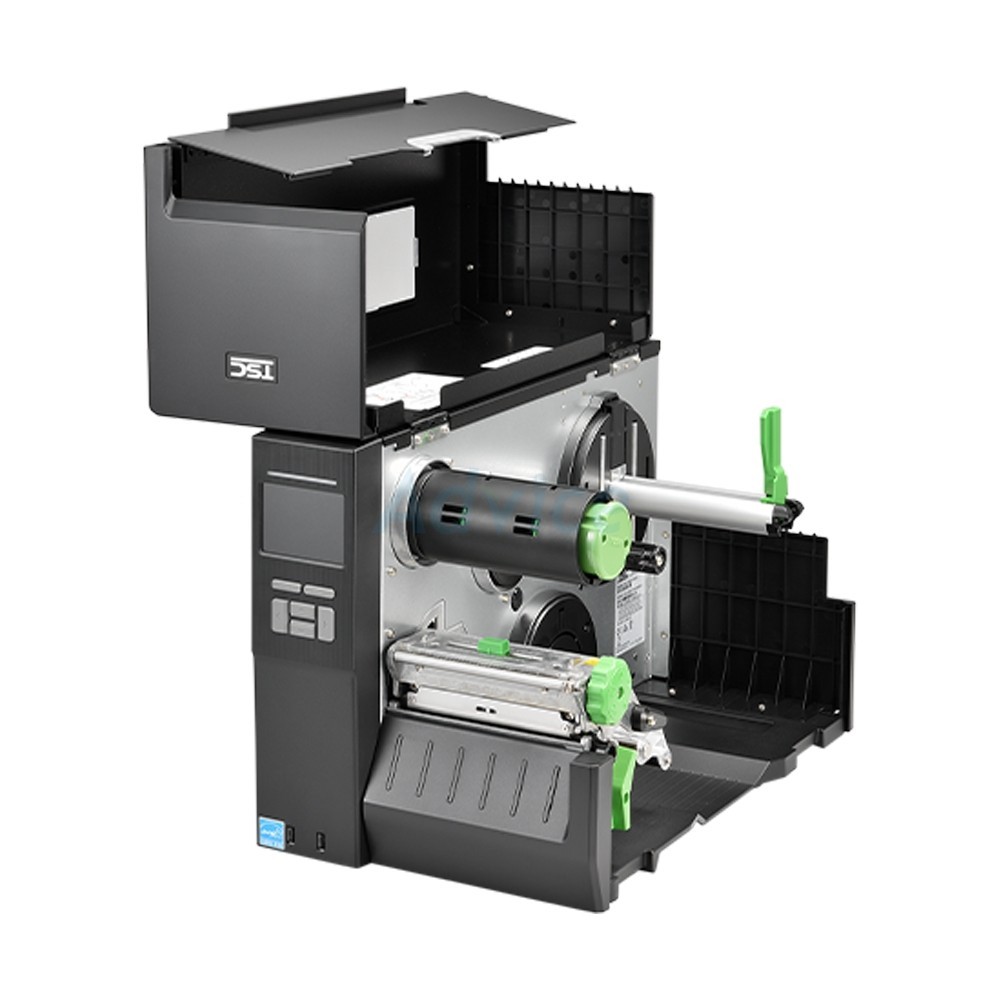

TSC Printer Barcode MH-241 - A0160472

Brand : TSC Model : MH-241 Print Method : Direct Thermal & Thermal Transfer Processor : 32-bit RISC CPU Memory : 512MB Flash memory 256MB SDRAM microSD Flash memory card reader for Flash memory expansion, up to 32 GB Resolution : 8 dots/mm (203 DPI) Print Speed : 356 mm (14")/second Print Width : 104 mm (4.09") Print Length : 25,400 mm (1000") Media : Media type : Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound) Label roll capacity : 203.2 mm (8") O.D. Media width : 20 ~ 114 mm (0.79" ~ 4.5") Media thickness : 0.06 ~ 0.28 mm (2.36 ~ 11 mil) Media core diameter : 3.81 mm / 76.2 mm (1.5”/ 3”) Label length : 5 ~ 25,400 mm (0.20” ~ 1,000”) Ribbon : Ribbon : 600 m long, max. O.D. 90 mm, 1" core (ink coated outside or inside) Ribbon width : 25.4 mm ~ 114.3 mm (1" ~ 4.5") Interface : 1 x RS-232 1 x USB 2.0 (High speed mode) 1 x Internal Ethernet, 10/100 Mbps 2 x USB host (Front side), for scanner or PC keyboard Display Panel : 3.5” color display, 320 x 240 pixel 6 operation buttons 1 LED (with 2 LEDs Green & Red) Sensor : Gap transmissive sensor (position adjustable) Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable) Head open sensor Ribbon encoder sensor Ribbon end sensor Font : Internal font 8 alpha-numeric bitmap fonts Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font Barcode : 1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post 2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec Graphics : N/A System Support : Windows MAC Linux Enviroment : Operation : 0 ~ 40°C (32 ~ 104°F), 25~ 85% non-condensing Storage : -40 ~ 60 °C (-40 ~ 140°F), 10~ 90% non-condensing Power Supply : Input : AC 100-240V, 4-2A, 50-60Hz Output : DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W Special Features : Enclosure : Die-cast print mechanism and base with bi-fold metal cover with large clear media view window Font & barcode rotation : 0, 90, 180, 270 degree Printer language : TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) Package Contents : Windows labeling software CD disk Quick start guide USB port cable Power cord Dimension (W x D x H) : 27.60 x 50.20 x 32.60 cm Net Weight : 15.60 Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm Gross Weight : 0.00 Volume : 0.00 ประกัน : 1 ปี
