SPECS
AUDIO SPECIFICATIONS
FREQUENCY RANGE
• 45-20,000 Hz
STEREO/MONO
• Mono
MAXIMUM SOUND PRESSURE LEVEL
• RMS: 116 dB SPL @ 1m
• Peak: 120 dB SPL @ 1m
CABINET PRINCIPLE
• Bass Reflex (2x Reflex Port)
POWER AMPLIFIERS
• 65W RMS Class D Amplifier
SPEAKERS
• 1x 6.5 inch Custom Designed Woofer, 1x 1 inch Custom Designed Horn Tweeter
TOTAL IMPEDANCE
• 4 ohms
ONBOARD LOOPER
• Up to 60 Seconds of Recording Time (Looper is for Channel 1 Only)
CONTROLS AND CONNECTIVITY

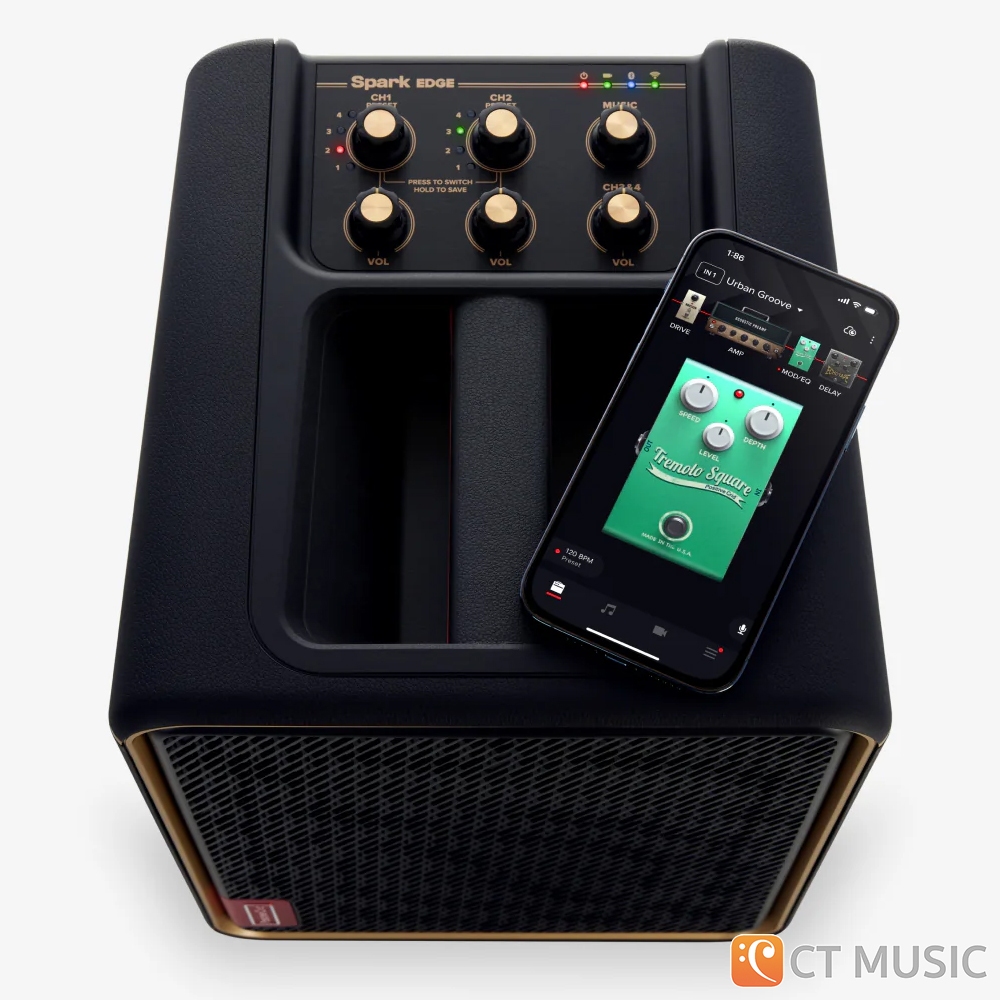

TOP PANEL CONTROLS
• Channel 1 Eight Customizable Preset Selector
• Channel 1 Volume Knob
• Channel 2 Eight Customizable Preset Selector
• Channel 2 Volume Knob
• Channel 3 & 4 Volume Knob
• Music Channel Volume Knob

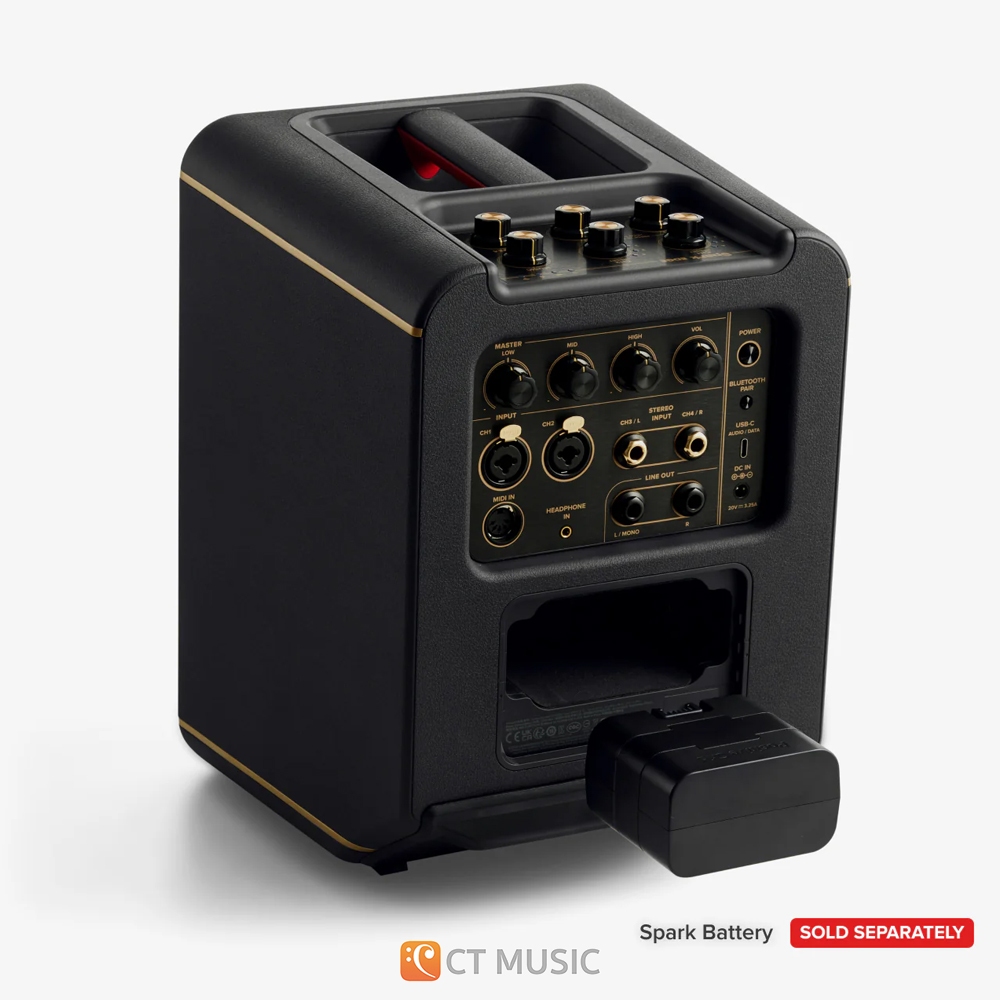

REAR PANEL CONTROLS
• Power Button
• Bluetooth Pair Button
• Master Controls (Low, Mid, High, Volume)
ONBOARD PRESETS
• 8 Fully Customizable Presets for Each Channel 1 & 2
COMPUTATIONAL AUDIO
• Sonic IQ Computational Audio
• Dedicated Computational Audio Chip
• Dynamic Range Compression
• Bass Enhancement
• Stereo Widening
• Auto EQ
ONBOARD TUNER
Guitar/Bass Tuner With LED Display
AMPS & EFFECTS
Channel 1:
• 36 Amp Models (for Electric Guitar, Acoustic Guitar, Bass and Vocal)
• 50 Effects (Noise Gate, Compressor, Distortion, Modulation/EQ, Delay, Reverb)
• Choose up to 3 Pre-amp Effects, 3 Post-amp Effects, and 1 Amp Model for Each Preset
Channel 2:
• 3 Amp Models (for Vocal, Bass & Acoustic Guitar)
• 50 Effects (Noise Gate, Compressor, Distortion, Modulation/EQ, Delay, Reverb)
• Choose up to 1 Pre-amp Effect, 2 Post-amp Effects, and 1 Amp Model for Each Preset
WIRED CONNECTIVITY
• XLR / 1/4″ Combo Input x2
• 1/4″ Instrument Input x2
• 1/8″ Headphone Output x1
• 1/4″ Line Output x2 (L/Mono & R)
• Din 5Pin MIDI Input x1
WIRELESS CONNECTIVITY
• Bluetooth 5.0
USB AUDIO
• USB Interface for Recording, Compatible with MacOS and Windows
• 2 In x 2 Out
• 24 Bit, 48 kHz Sample Rate
PHYSICAL UNIT
DIMENSIONS
• L 240 x W 242 x H 333 mm
• (L 9.44 x W 9.52 x H 13.11 inch)
WEIGHT
• 6.2 kg
• 13.66 lb
GRILLE
• Custom Black
ACCESSORIES
• Spark Battery
• Spark Control X
• Spark LINK
• Special Edition Grilles
INCLUDED IN THE BOX
BOX CONTENTS
• Spark EDGE Amplifier
• USB C to C Cable
• AC to DC Power Adapter
• Get Started Card
• Safety Instructions Card
POWER
MAIN INPUT POWER
• DC 20V, 3.25A
BATTERY TYPE
• 6,000 mAh Rechargeable Lithium-ion Battery (Optional, Spark Battery Sold Separately)
PLAYTIME
• Up to 10 Hours (On Mid-Volume)
CHARGING TIME
• 3 Hours
SOFTWARE
MOBILE APPS
• Spark App for iOS and Android
SPARK APP CORE FEATURES
• Smart Jam – 4 Drummers Included
• Auto Chords
• 100,000+ Tones On ToneCloud®
• Simple Looper
• Creative Groove Looper
• Spark AI (Beta)
• Video Recording
• Tuner
• Mixer View (Spark LIVE/EDGE Exclusive)
