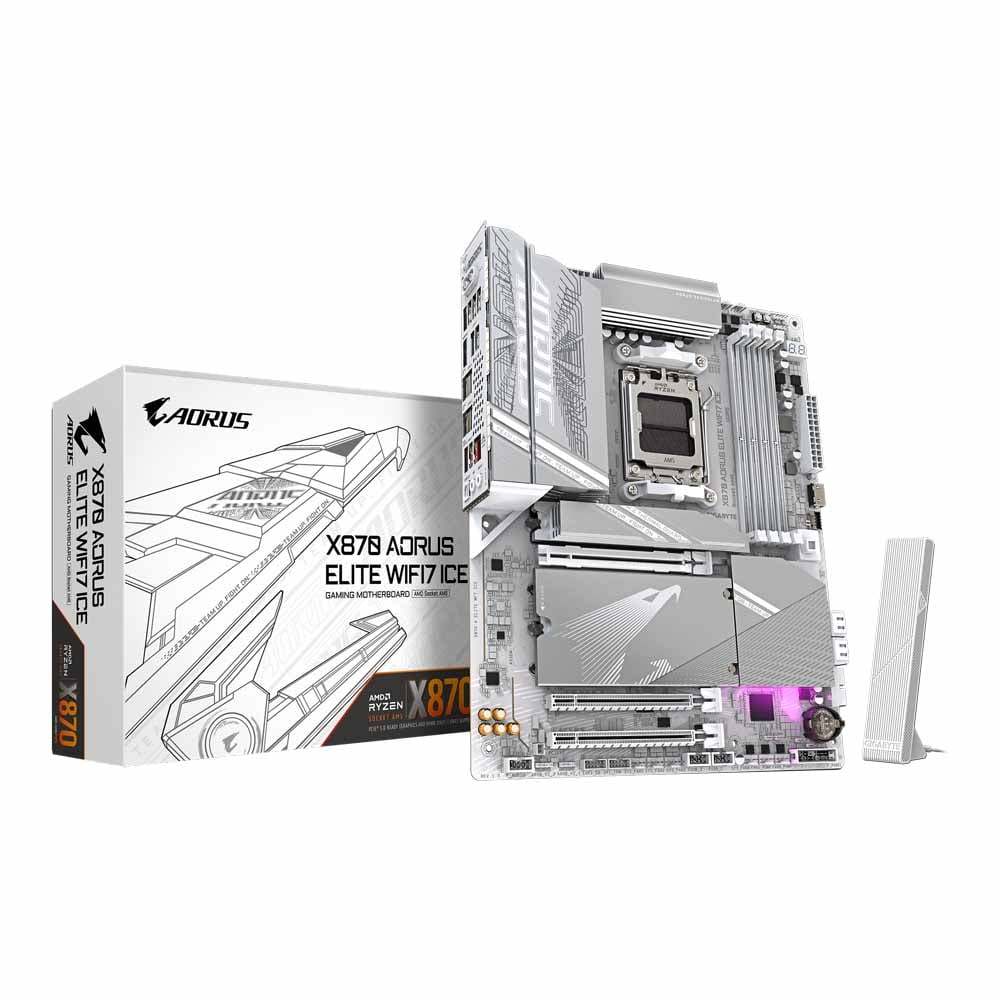

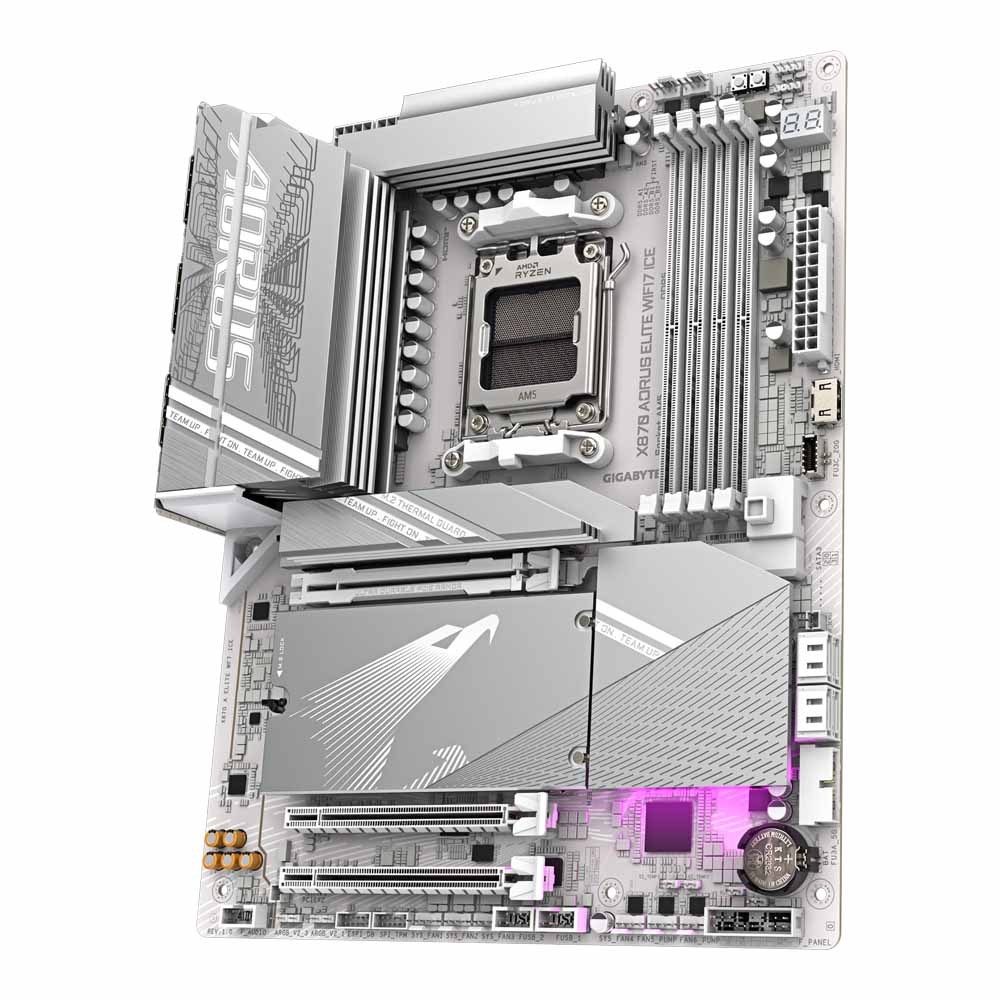

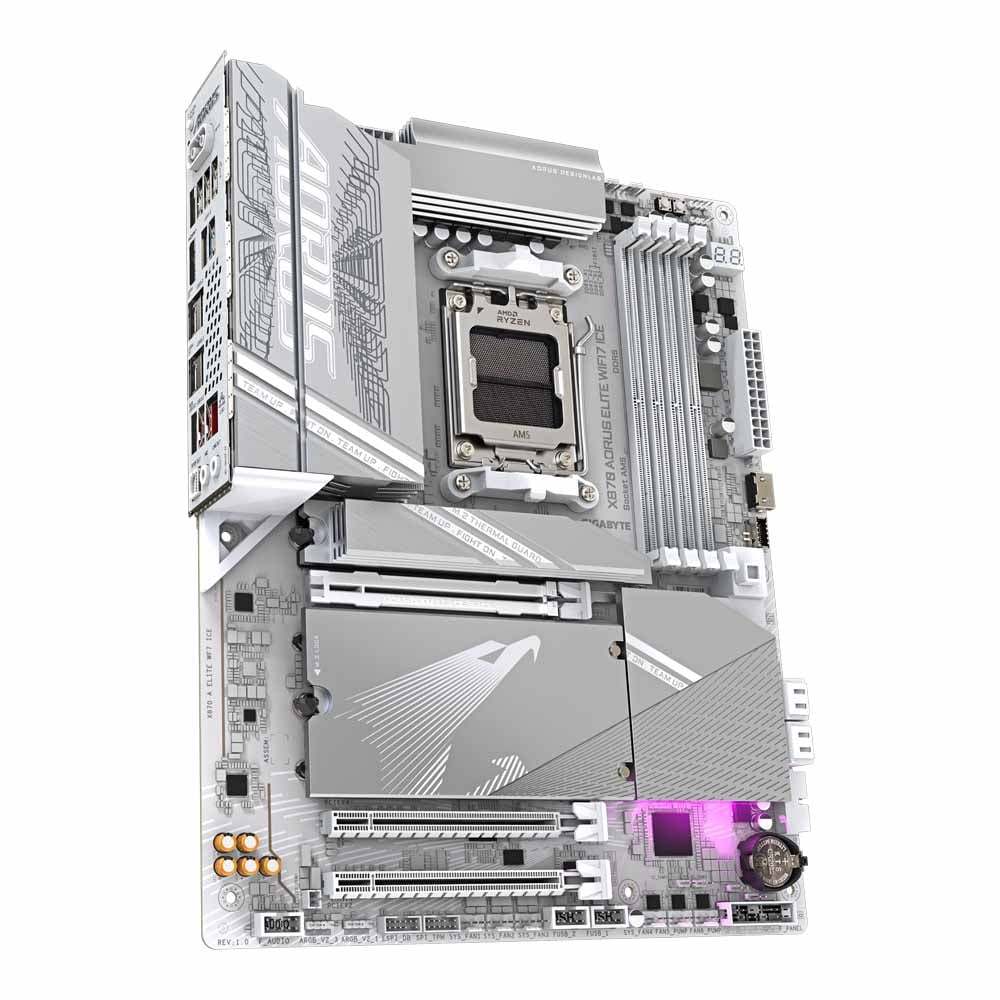

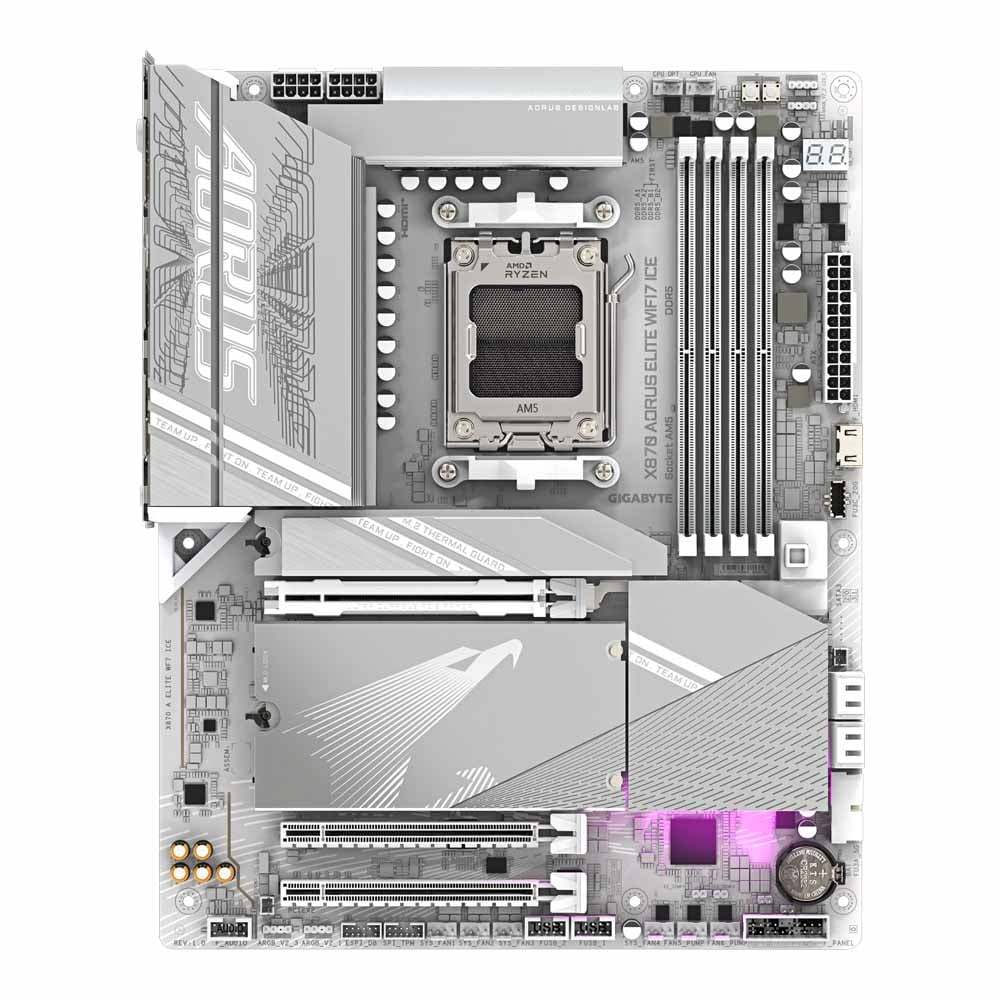

MAINBOARD (เมนบอร์ด) GIGABYTE X870 AORUS ELITE WIFI7 ICE (REV. 1.1) - AMD SOCKET AM5 DDR5 ATX

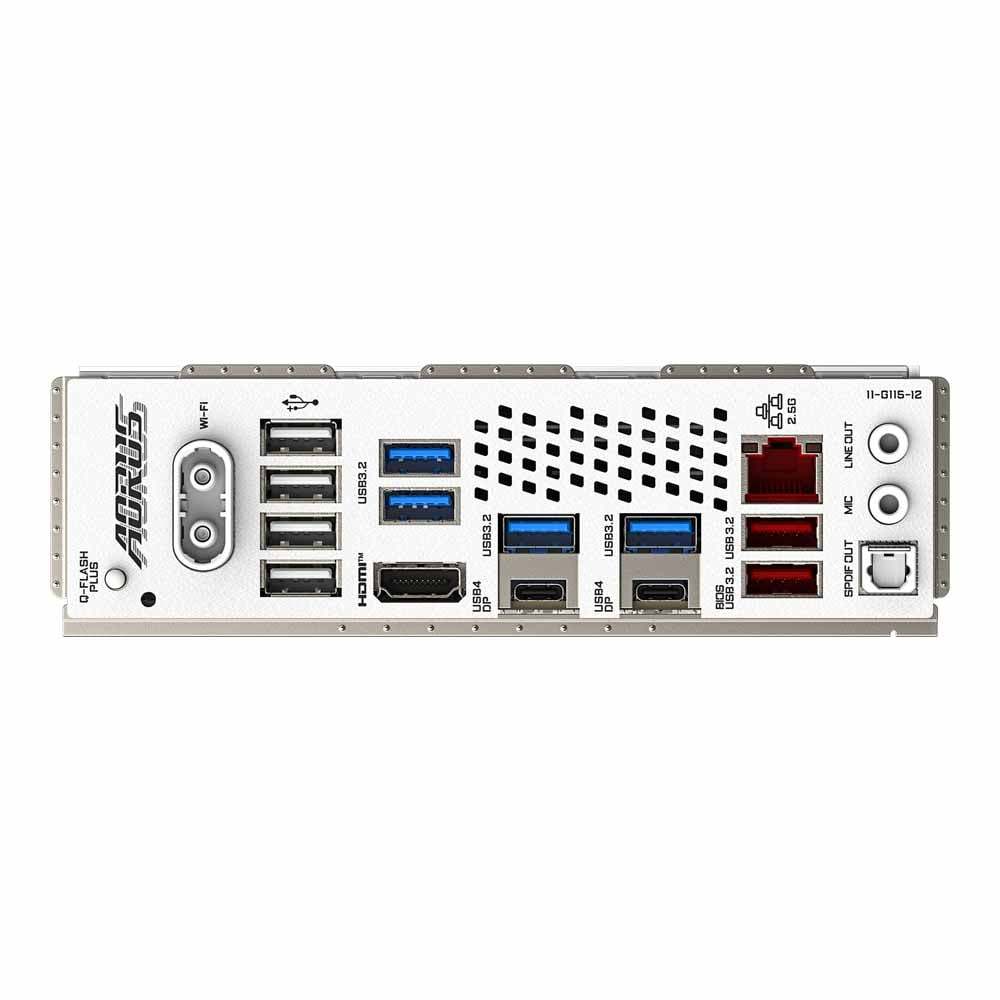

• Socket AM5 for AMD Ryzen 7000, 8000, 9000 Series Processors • AMD X870 • DDR5, 4 x DIMM • 1 x HDMI • 1 x front HDMI • 4 x M.2 • 4 x SATA3 • 1 x USB 3.2 Gen 2x2 Type-C header (front) • 2 x USB4 Type-C (DisplayPort) (rear) • 2 x USB 3.2 Gen 2 Type-A (rear) • 4 x USB 3.2 Gen 1 Type-A (rear) • 2.5GbE LAN • Wi-Fi 7 • Bluetooth 5.4 SPECIFICATION MODEL Brand : Gigabyte Model : X870 AORUS ELITE WIFI7 ICE CPU Socket : AM5 (7000 Series - Raphael) , AM5 (8000 / 8000 G Series - Phoenix) , AM5 (9000 Series - Granite Ridge) Wattage : 170W Chipset : AMD X870 Series : Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9 MEMORY Slot : 4 Memory Type : DDR5 Max. Capacity : 256 GB Speed : 4400 , 4800 , 5200 , 5200 (OC) , 5600 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC) , 6600 (OC) , 6666 (OC) , 6800 (OC) , 7000 (OC) , 7200 (OC) , 7600 (OC) , 7800 (OC) , 8000 (OC) , 8200 (OC) GRAPHIC & AUDIO Graphic : Requires a CPU with Integrated Graphics. — Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller: • 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz * Support for DisplayPort 1.4 version and HDR. — Integrated Graphics Processor with AMD Radeon Graphics support: • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support native HDMI 2.1 TMDS compatible ports. — • 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version (Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time Audio : Realtek ALC1220 CODEC - High Definition Audio - 2/4/5.1/7.1-channel - Support for S/PDIF Out — * The back panel line out jack supports DSD audio. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. STORAGE SATA 3 : 4 Port RAID : - RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. - RAID 0, RAID 1, and RAID 10 support for SATA storage devices M.2 : 4 x M.2 Connectors — • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs — • 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. — • 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs Port EXPANSION SLOTS Details : • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode * The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode. - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.) — Chipset: • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector. • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) Slot : • 1 x PCIe 3.0 x16 Slot • 1 x PCIe 4.0 x16 Slot • 1 x PCIe 5.0 x16 Slot NETWORK LAN : LAN : Realtek 2.5Gb Ethernet LAN Speed : 100 / 1000 / 2500 Mbps Wireless : Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - Bluetooth 5.4 - Support for 11be 160MHz wireless standard — (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) **Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. BACK PANEL I/O PORTS USB 2.0 : 4 Port USB 3.2 : • 2 x USB4 USB Type-C (DisplayPort) • 2 x USB 3.2 Gen 2 Type-A (red) • 4 x USB 3.2 Gen 1 Type-A Port HDMI : 1 Port Audio : • 2 x Audio jacks • 1 x Optical S/PDIF out Port Additional : • 1 x Q-Flash Plus button • 2 x antenna connectors (2T2R) LAN : 1 Port FORM FACTOR Form Factor : ATX Power Connector : 24 + 8 + 8 Pin Dimension : 30.5 x 24.4 cm WARRANTY การรับประกัน : 3 Years
