Type 3 surge protection plug - PLT-SEC-T3-230-P-UT/PT (2907923) [ไม่รวมbase ฐานรอง Surge]

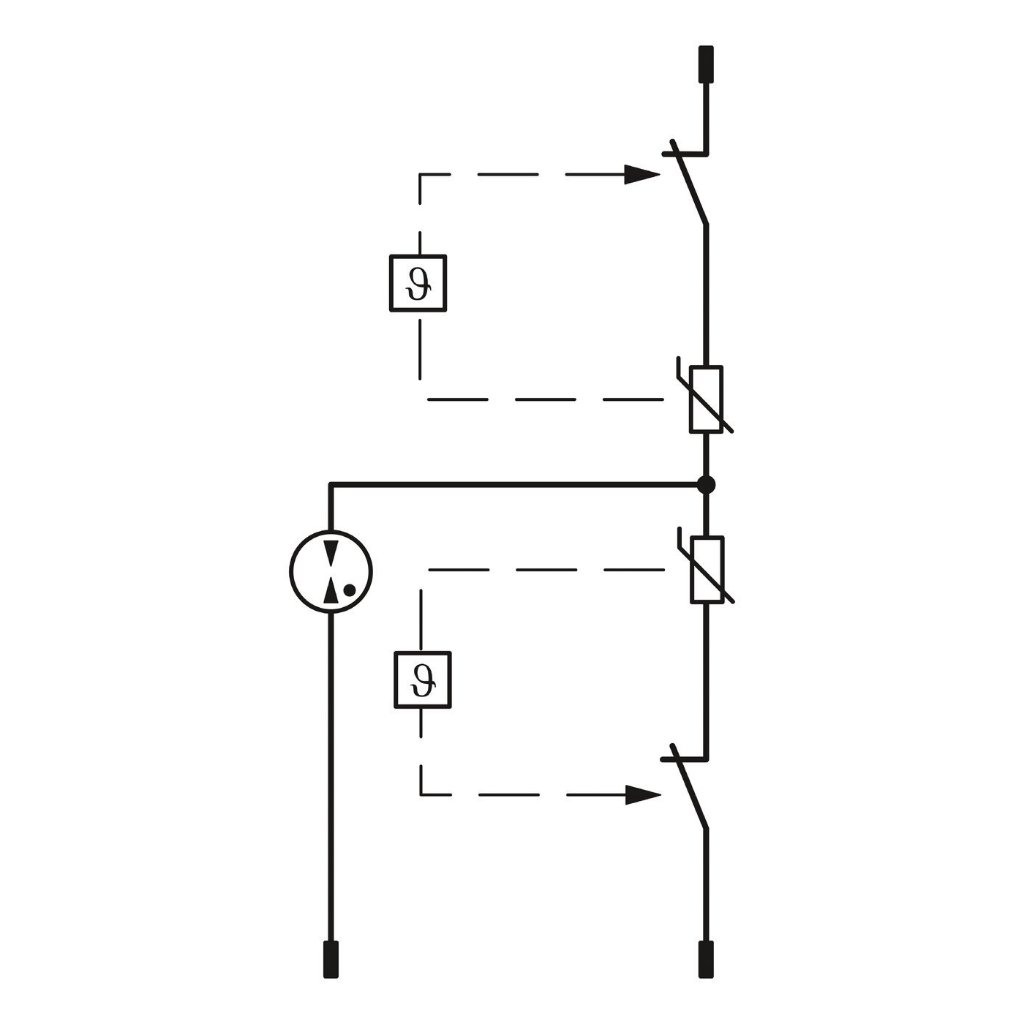

Type 3 surge protection plug - PLT-SEC-T3-230-P-UT/PT 2907923 [ไม่รวมbase ฐานรอง Surge] Replacement plug for type 2/3 surge protection from the PLT-SEC-…-UT/PT product series. Nominal voltage 230 V. IEC power supply system: TN-S / TT Type: Male Product type: Replacement plug Product family: SEC Family Number of positions: 2 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 IEC test classification: II / III T2 / T3 EN type: T2 / T3 Number of ports: One Protective circuit Mode of protection: L-N / L-PE / N-PE Direction of action: 1L-N & N-PE Nominal voltage UN: 240 V AC (TN-S) /240 V AC (TT) Nominal frequency fN: 0 Hz (60 Hz) Maximum continuous voltage UC: 264 V AC Residual current IPE: ≤ 5 µA Standby power consumption PC: ≤ 26.4 mVA (at UREF) / ≤ 26.4 mVA (at UC) Reference test voltage UREF: 264 V AC Nominal discharge current In (8/20) µs: 5 kA Maximum discharge current Imax (8/20) µs: 10 kA Combination wave UOC: 6 kV Voltage protection level Up (L-N): ≤ 1.25 kV (at UOC) / ≤ 1.4 kV (at In) Voltage protection level Up (L-PE): ≤ 1.4 kV Voltage protection level Up (N-PE): ≤ 1.4 kV TOV behavior at UT (L-N): 400 V AC (5 s / withstand mode) / 457 V AC (120 min / safe failure mode) TOV behavior at UT (L-PE): 457 V AC (5 s / withstand mode) / 457 V AC (120 min / withstand mode) / 1464 V AC (200 ms / safe failure mode) TOV behavior at UT (N-PE): 1200 V AC (200 ms / safe failure mode) Response time tA (L-N): ≤ 25 ns Response time tA (L-PE): ≤ 100 ns Response time tA (N-PE): ≤ 100 ns Short-circuit current rating ISCCR: 10 kA AC Max. backup fuse with branch wiring: 32 A (gG / B / C) Additional technical data Short-circuit current rating ISCCR: 0.25 kA DC (Without additional backup fuse in the DC branch wiring) / 5 kA DC (for 20 A gG / B backup fuse) Residual voltage Ures (L-N): ≤ 1.15 kV (at 2 kA) / ≤ 1.25 kV (at 3 kA) / ≤ 1.1 kV (at UOC = 4 kV) Residual voltage Ures (L-PE): ≤ 1.1 kV (at 2 kA) / ≤ 1.1 kV (at 3 kA) / ≤ 1.2 kV (at UOC = 4 kV) Residual voltage Ures (N-PE): ≤ 1.1 kV (at 2 kA) / ≤ 1.1 kV (at 3 kA) / ≤ 1.2 kV (at UOC = 4 kV) Maximum continuous voltage UC: 275 V AC / 240 V DC Mode of protection: (DC+) - (DC-) / (DC+/DC-) - PE IEC test classification (in accordance with IEC 61643-21): D1 Impulse durability (wire-wire): D1 - 500 A Impulse durability (line-earth): D1 - 500 A Pulse discharge current Iimp (10/350) µs (line-line) : 0.5 kA Pulse discharge current Iimp (10/350) µs (line-earth) : 0.5 kA Ambient conditions Degree of protection: IP20 Ambient temperature (operation) : -40 °C ... 80 °C Ambient temperature (storage/transport) : -40 °C ... 80 °C Altitude ≤ 6000 m (amsl (above mean sea level)) Permissible humidity (operation) : 5 % ... 95 % UL specifications Maximum continuous operating voltage MCOV: 264 V AC / 240 V DC Nominal discharge current In: 5 kA Mode of protection: L-N / L-G / N-G / (DC+) - (DC-) / (DC+) – G / (DC-) - G Nominal voltage: 240 V DC Power distribution system: Single phase / DC Nominal frequency: 50/60 Hz Measured limiting voltage MLV (L-N) : 1150 V Measured limiting voltage MLV (L-G) : 1180 V Measured limiting voltage MLV (N-G) : 1180 V SPD Type: 4CA Download datasheet *สินค้ารับประกัน 1ปี *ออกใบกำกับภาษีได้ *เงื่อนไขเป็นไปตามที่บริษัทกำหนด
