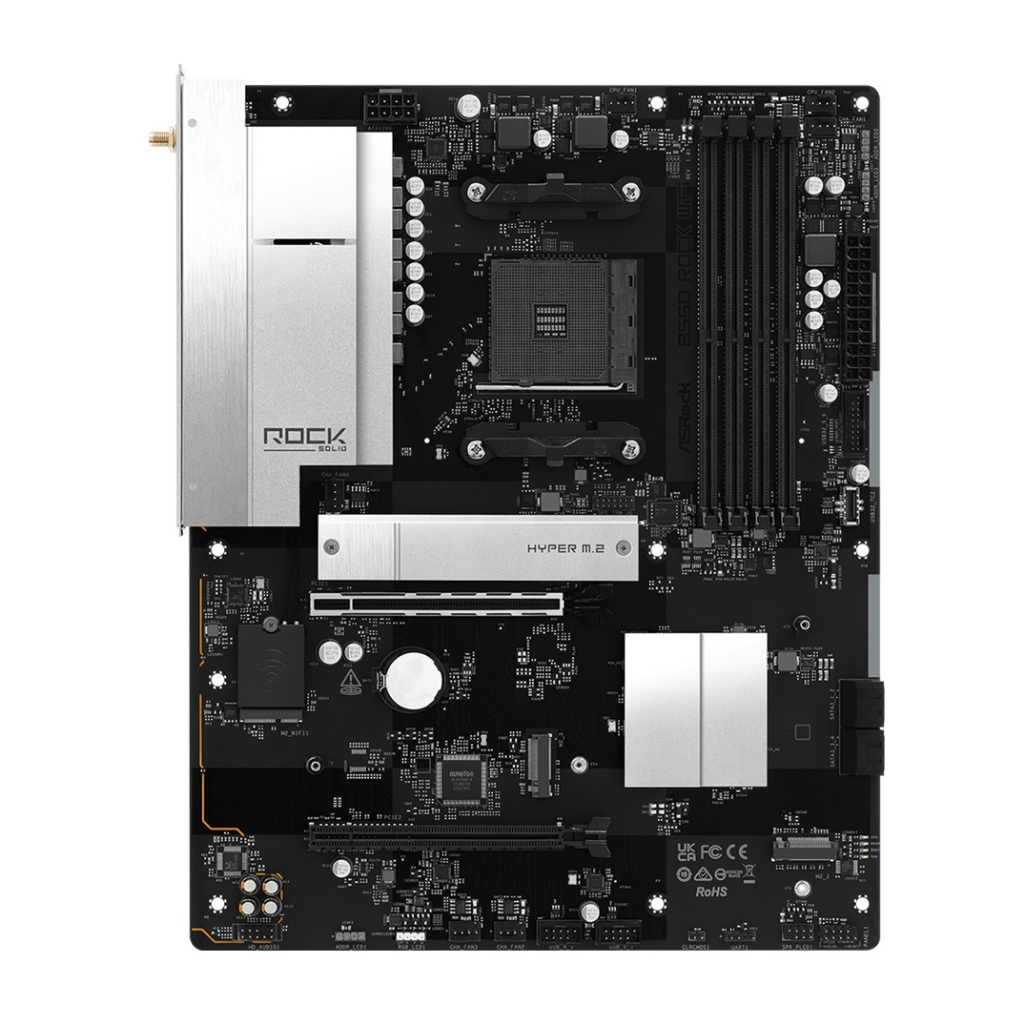

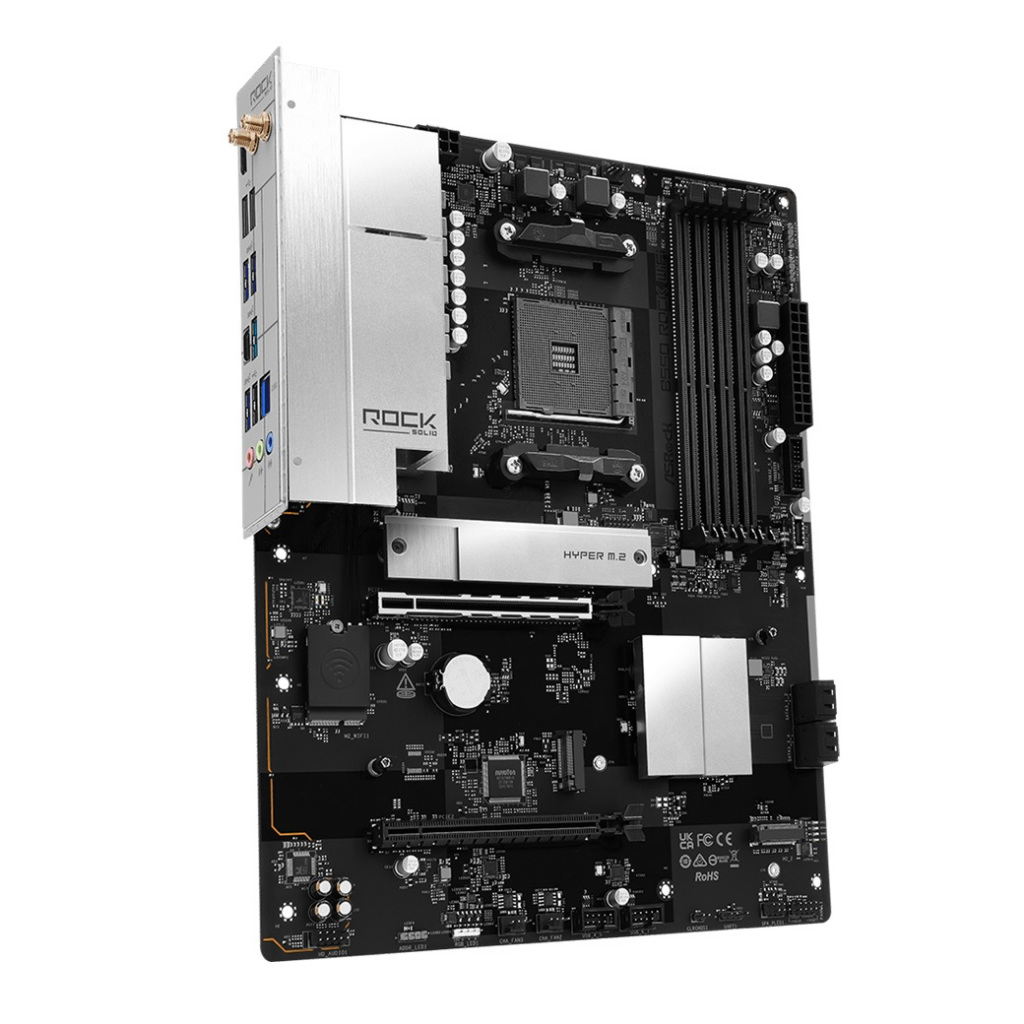

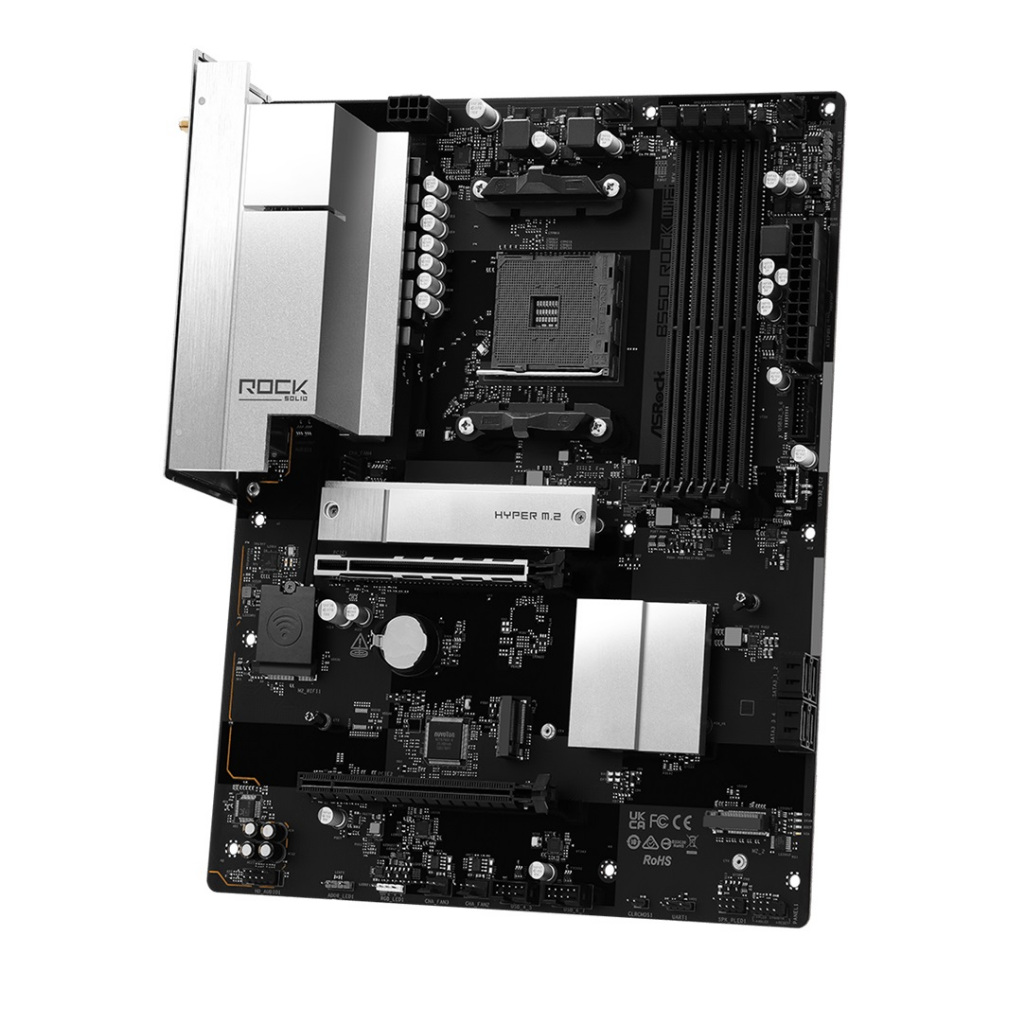

ASRock B550 Rock WiFi AM4 AMD Motherboards เมนบอร์ด

Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*1 10 Phase Power Design 4 x DDR4 DIMMs Supports Dual Channel, up to 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16 Graphics Output Options: 1 HDMI Realtek ALC897 7.1 CH HD Audio Codec 1 Hyper M.2 (PCIe Gen4x4) 1 Ultra M.2 (PCIe Gen3x4 & SATA3) 1 M.2 (PCIe Gen3x2) 4 SATA3 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 7 USB 2.0 (3 Rear, 4 Front) Realtek 2.5G LAN 802.11axe WiFi 6E + Bluetooth *Please refer to CPU support list for details. CPU - Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* *Please refer to CPU support list for details. Chipset - AMD B550 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control Wireless LAN - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. Slots AMD Ryzen series CPUs (Vermeer and Matisse) - 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE2: Gen3 x2 mode)* AMD Ryzen series APUs (Cezanne and Renoir) - 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE2: Gen3 x2 mode)* AMD Ryzen series APUs (Picasso) - 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE2: Gen3 x2 mode)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices USB CPU: - 1 x USB 3.2 Gen1 Type-C (Rear) - 3 x USB 3.2 Gen1 Type-A (3 Rear (USB32_12 and USB32_3)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_4), 2 Front) - 7 x USB 2.0 (3 Rear, 4 Front) *All USB ports support ESD Protection Rear Panel I/O - 2 x Antenna Ports - 1 x HDMI Port - 1 x USB 3.2 Gen1 Type-C Port - 4 x USB 3.2 Gen1 Type-A Ports - 3 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 2oz Copper PCB OS - Microsoft® Windows® 10 64-bit / 11 64-bit
