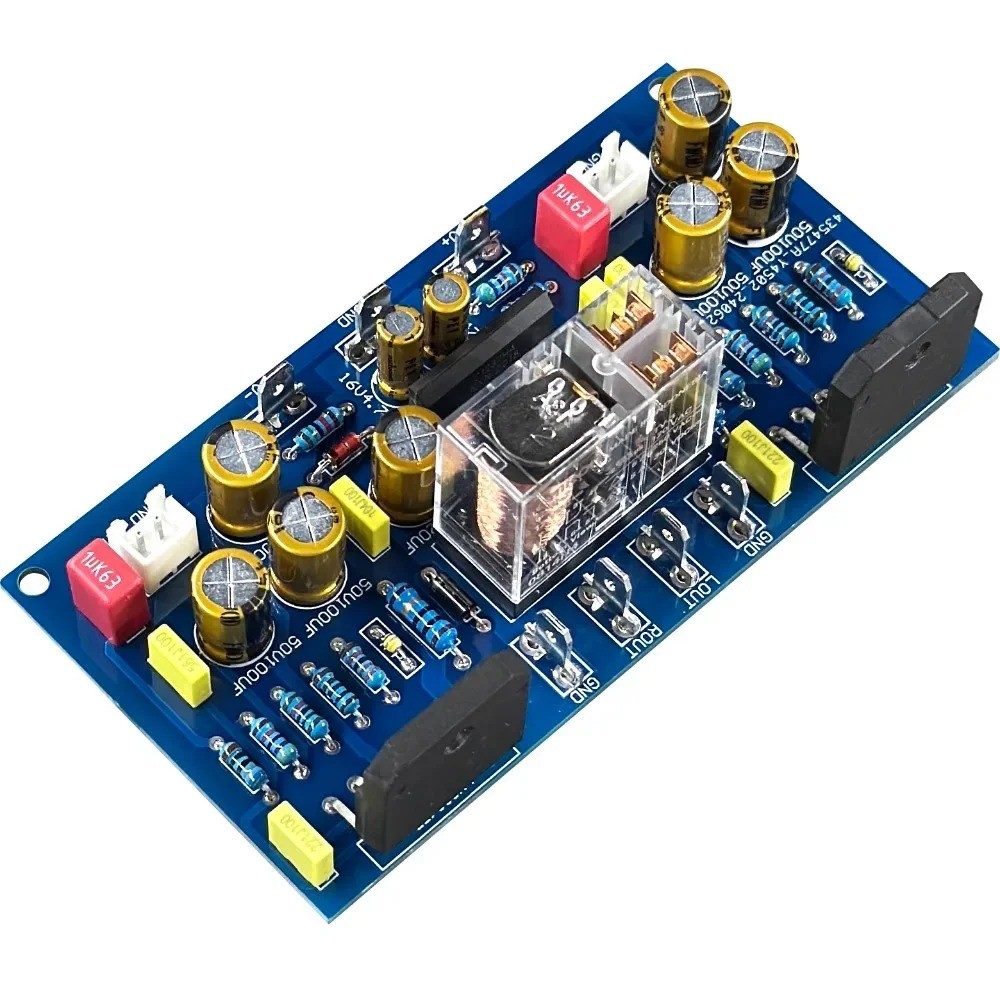

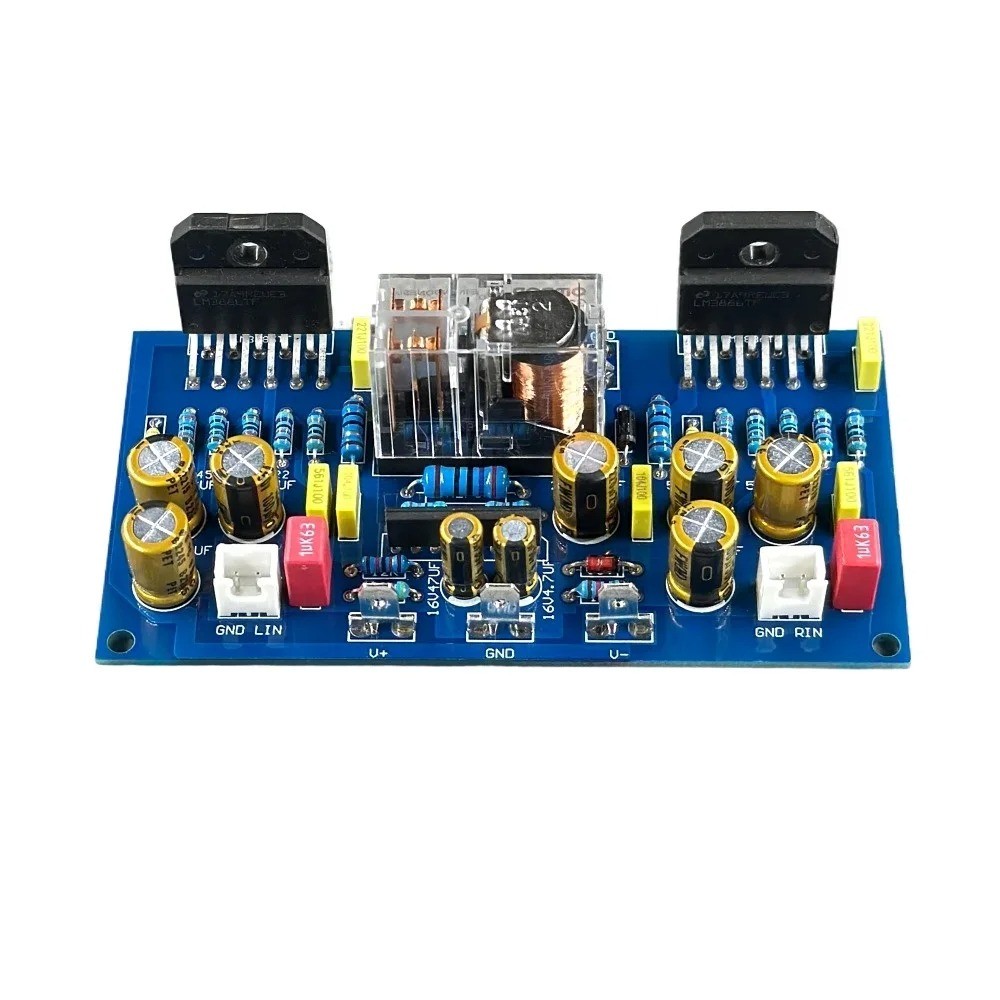

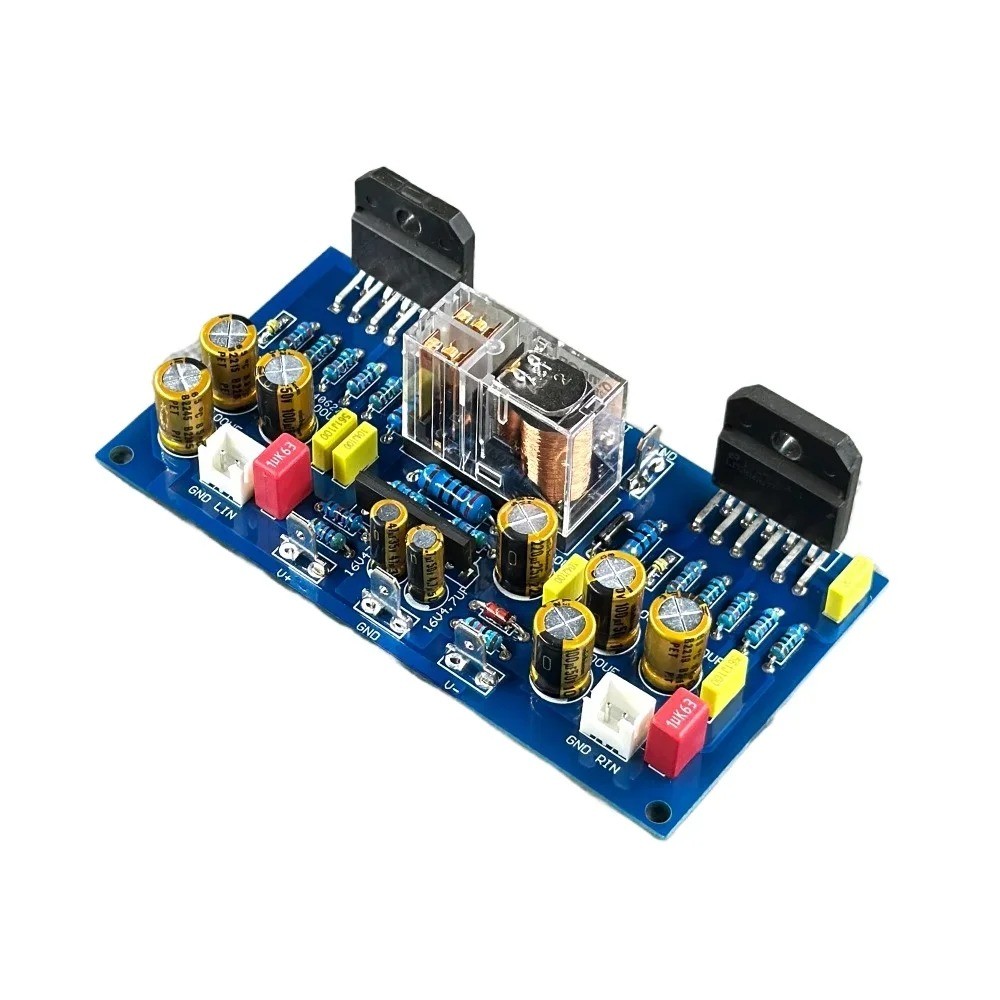

LM3886TF Dual Channel Amplifier Board 68W+68W HiFi Stereo Audio Power with Speaker Protection

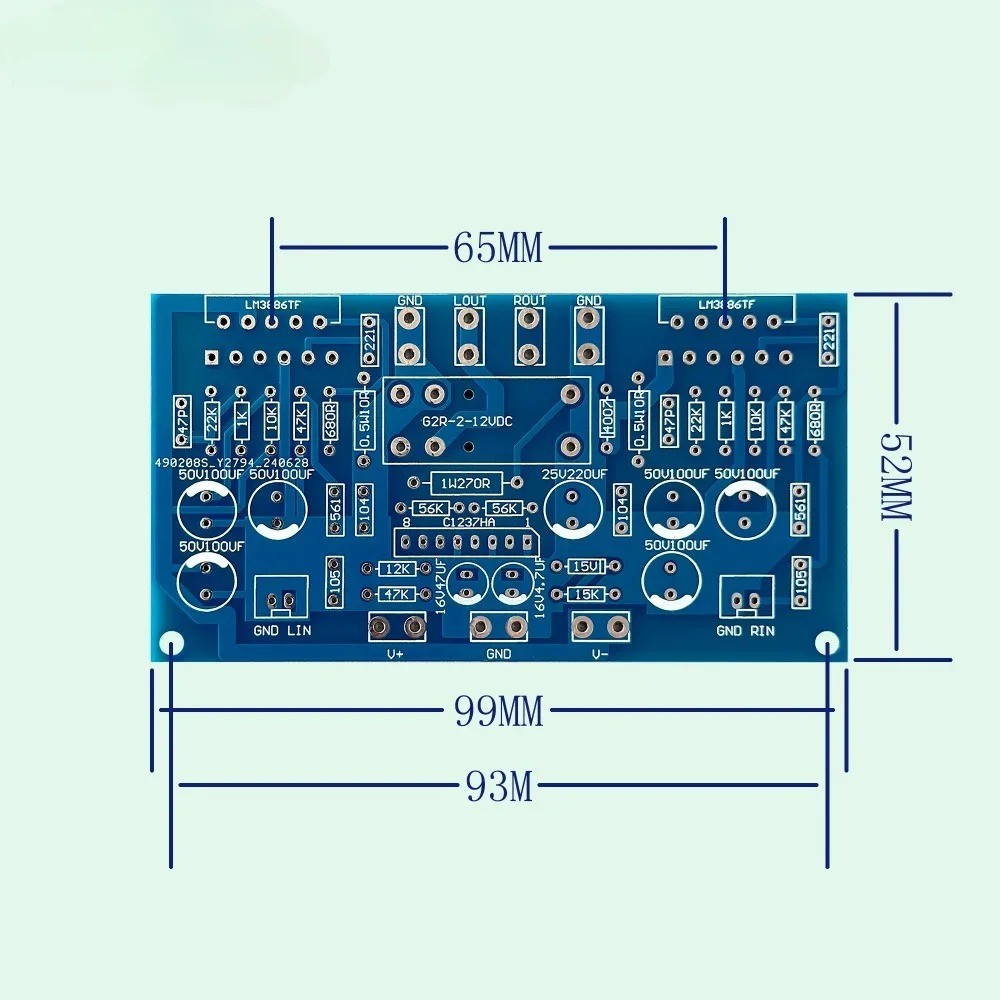

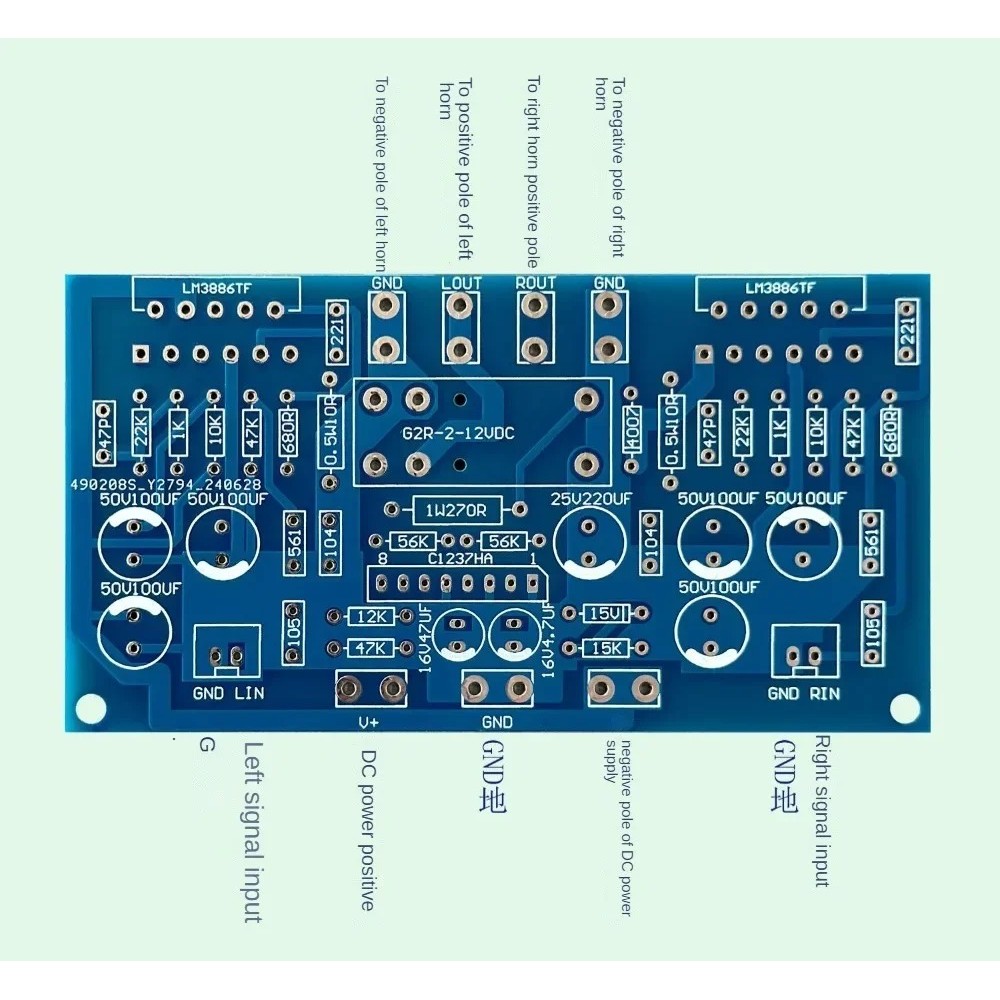

The power amplifier board for dual channel LM3886 amplification design, reference to Tsinghua Wugang circuit, integrated horn protection line, no current sound, no noise, output 68W,LM3886TF sound quality pure, is the United States semi-high-quality high-power analog amplifier IC, good debugging, the effect is better than the separation of power amplifier. Supply voltage: DC + / -15V-35V (8OHM) Dc + / -15V-28V (4 OHM) Output power: 68W+68W SNR: ≥92db Conversion rate: 19V/us Intermodulation distortion: 0.04% PCB size: 99 L *52 W *1.6 H (MM) Product volume: 99 L *52 W *30 H (MM) Net weight: 65g This chip of dual channel power amplifier board is imported and disassembled
