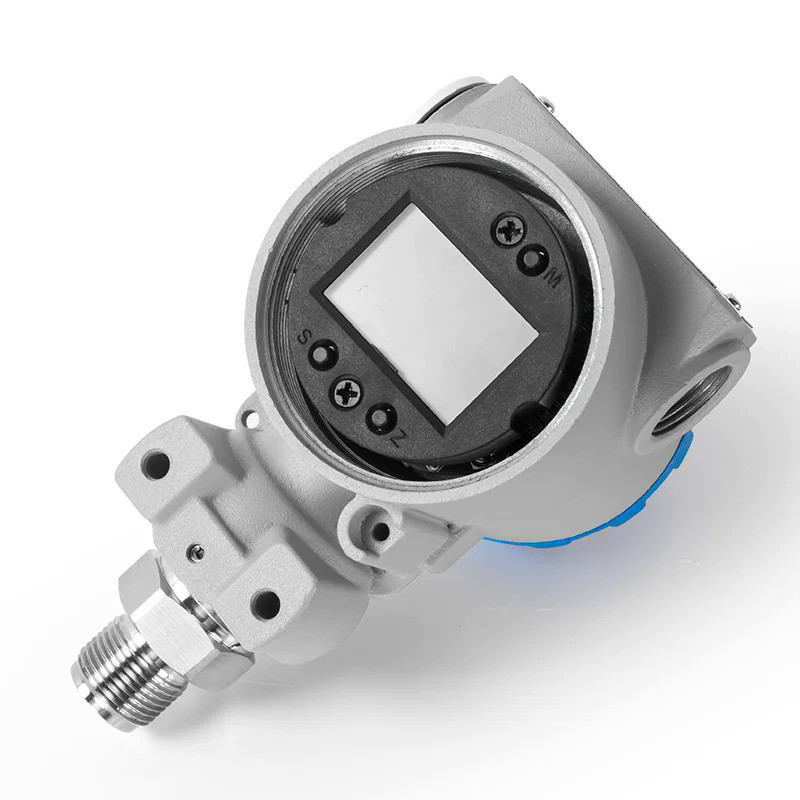

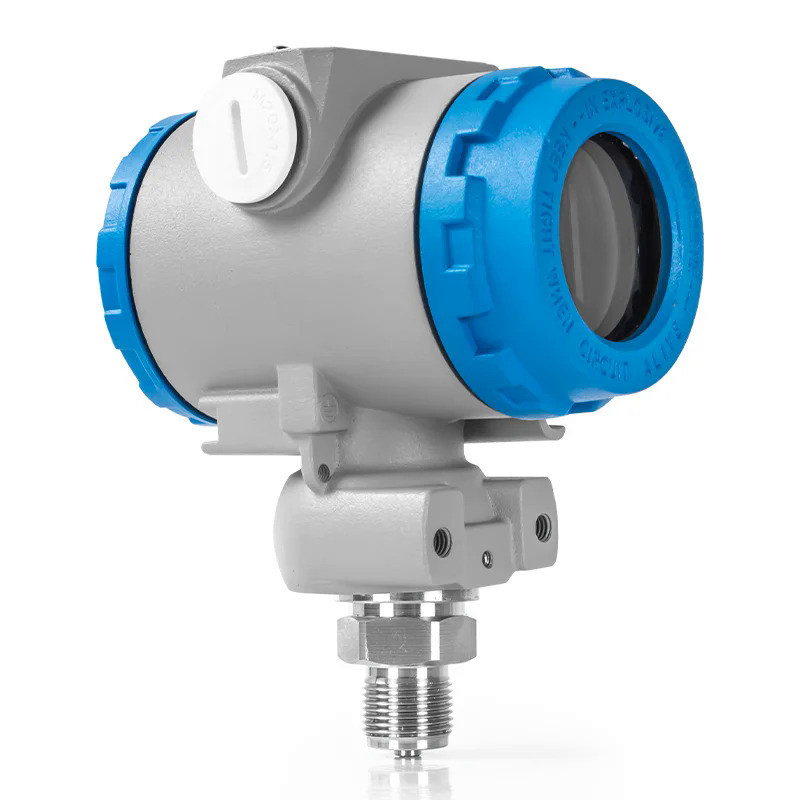

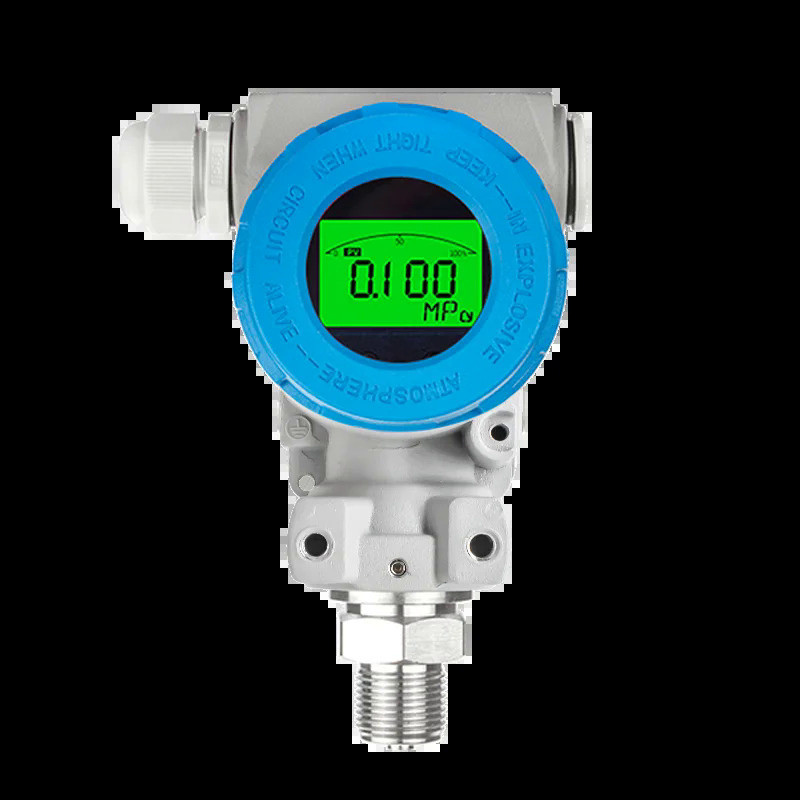

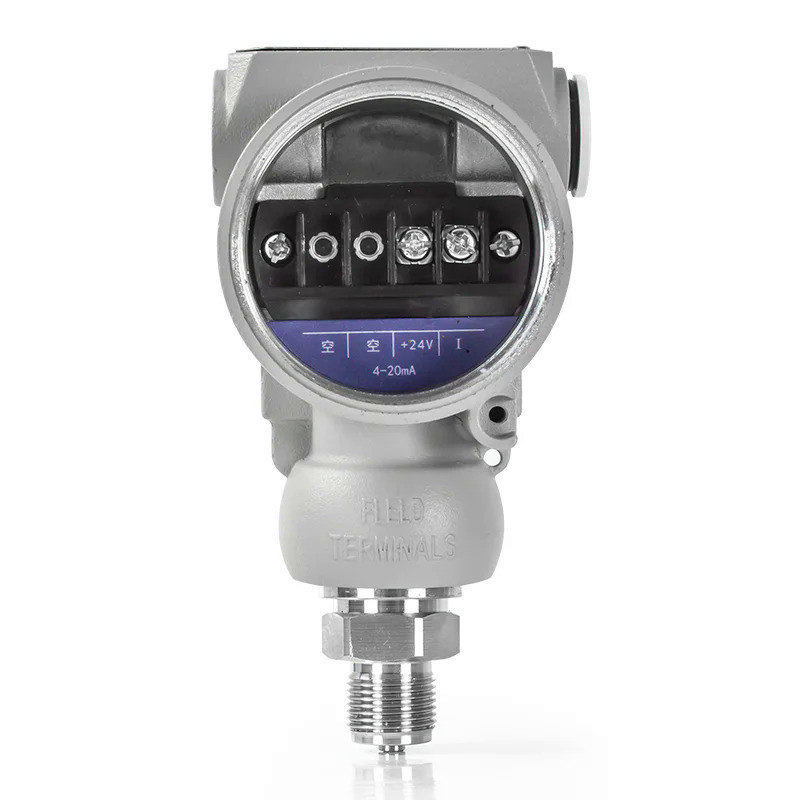

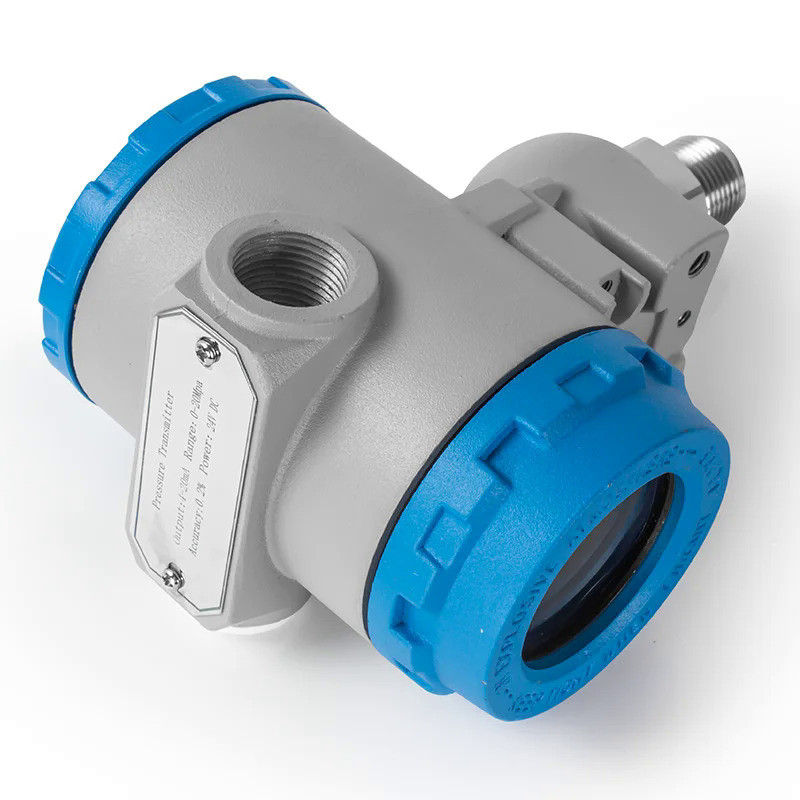

4-20mA LCD Stainless Steel Digital display pressure transmitter 2088 explosion-proof pressure sensor 100bar

Our Default: LCD display Power Supply:24VDC Output signal :4-20mA If you need other pressure range,output signal,Thread size,power supply,pls contact us or note it on the order,tks Paraments: EX proof :stainless steel material for the probe part ,The junction box is made of cast aluminum Overload pressure: 2 times full scale Measuring medium: gas and liquid compatible with 316L stainless steel Output signal: 4-20mA Power supply voltage: 24VDC default (12-36V) Accuracy: ±0.5%F.S Long-term stability: ≤±0.2%F.S/year Compensation temperature: -10～＋70℃ Medium temperature: -20～＋85℃ Storage temperature: -40～＋125℃ Response time: ≤1ms Pressure port: M20×1.5,G1/2,G1/4,G3/8,NPT1/4 Protection level: IP65 Features: ◆ CE ,FC ROHS conformity ◆ Low cost and high quality ◆ All stainless steel integrated structure ◆ Small size, convenient to install and operate ◆ RS485,4-20mA, various voltage output ◆ For applications such as air, water, oil ◆ Provide OEM, flexible customization Application: ◆ Intelligent IoT constant pressure water supply ◆ Engineering machinery, industrial process control and monitoring ◆ Energy and water treatment systems ◆ Steel, light industry, environmental protection ◆ Medical, agricultural machinery, testing equipment ◆ Flow measurement equipment ◆ Hydraulic and pneumatic control systems ◆ Air-conditioning unit and refrigeration equipment ◆ Water pump, air compressor pressure monitoring
