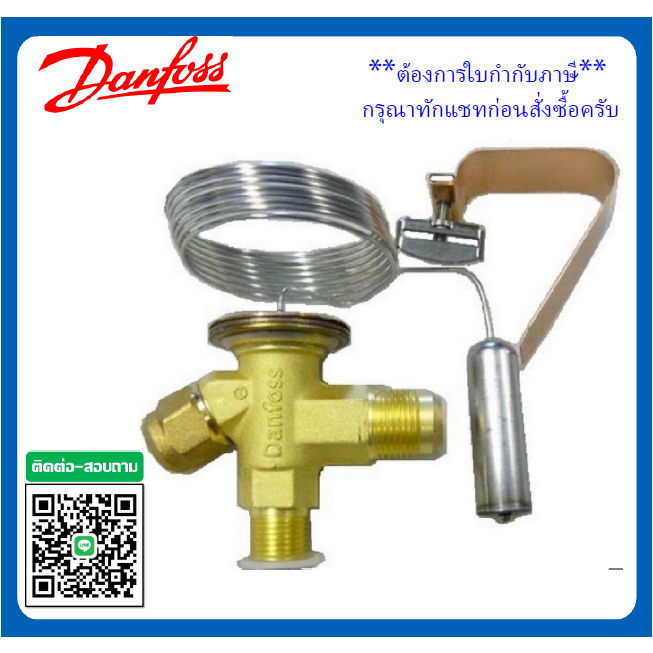

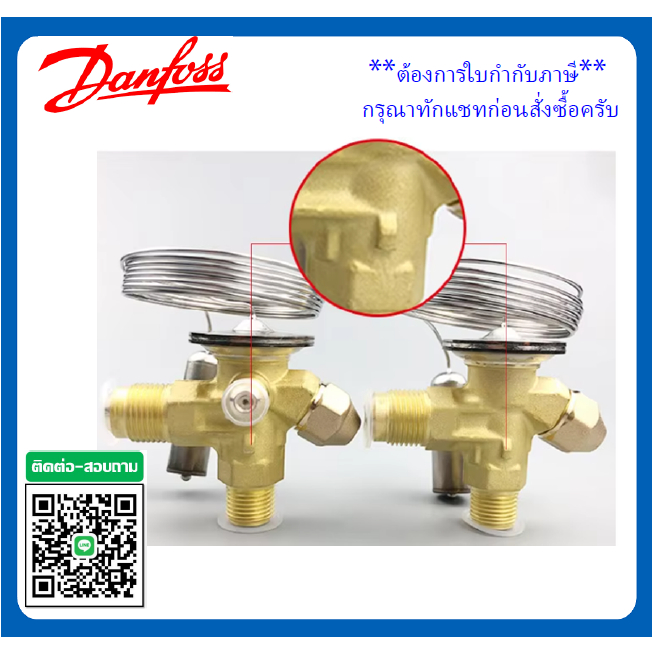

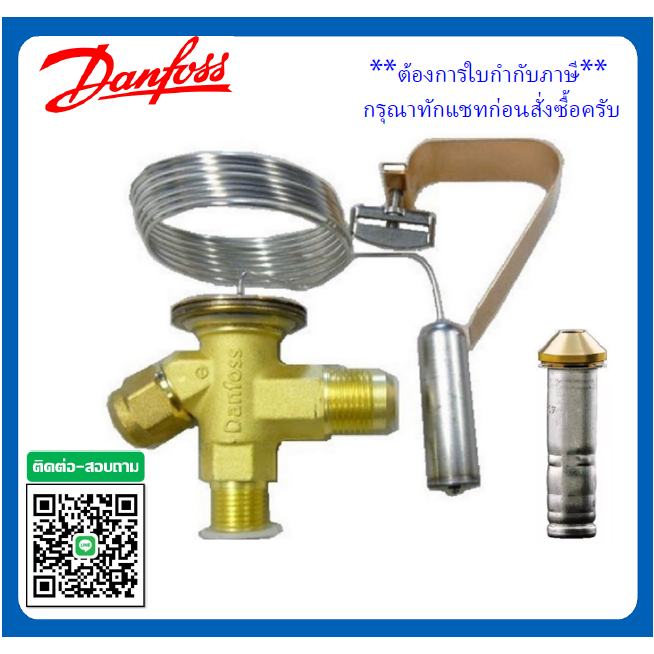

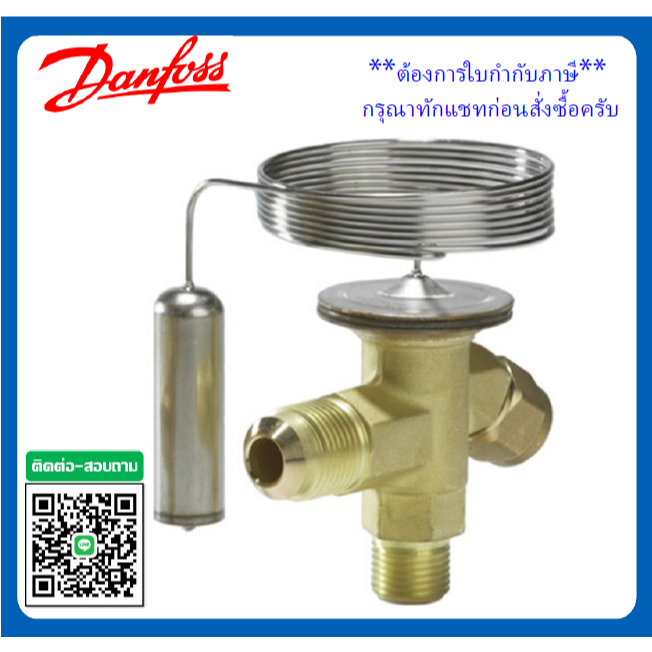

DANFOSS 068Z3206 Thermostatic expansion valve TX2 น้ำยา R22 / R407C เอ็กแปนชั่นวาล์ว วาล์วขยาย

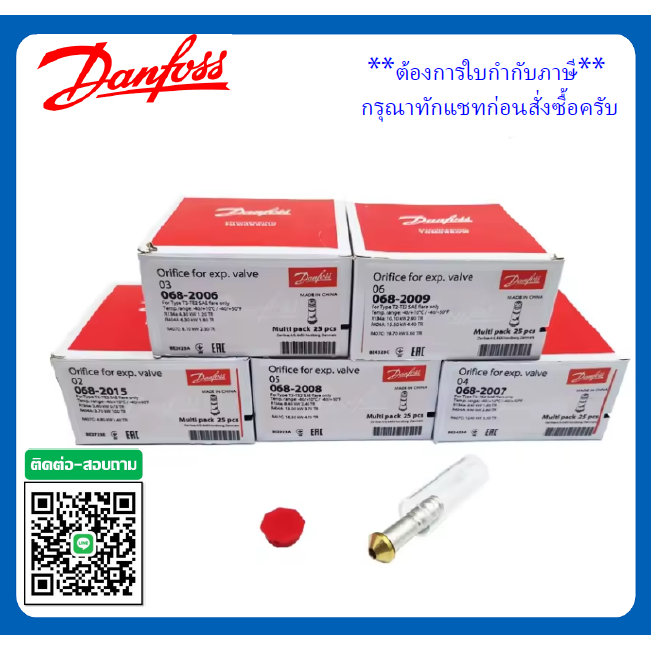

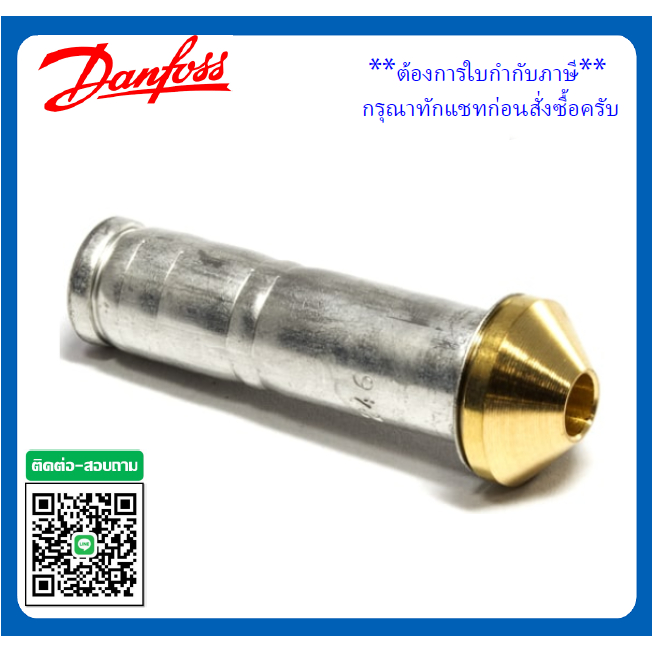

‼️กรุณาอ่านก่อนครับ‼️ 💥 สินค้าของแท้ 100%💥 📌Product name : Thermostatic expansion valve TYPE: TX2, R22/R407C 068Z3206 Temperature range [°C]: -40 - 10, Body material Brass Capillary tube length [in] 59 in Connection material Brass Direction Angleway Inlet connection type Flare Inlet size [in] 3/8 in Max. Working Pressure [bar] 34 bar Outlet connection type Flare Outlet size [in] 1/2 in Parts Program name T2/TE2 Pressure equalization Externally equalized tcond=38 ºC tevap=4.4 ºC tliq=37 ºC Refrigerants R22/R407C Temperature range [°C] [max] 10 °C Temperature range [°C] [min] -40 °C NO.0X (2,160 BTU) Code : 068-2002 NO.00 (4,440 BTU) Code : 068-2003 NO.01 (9,000 BTU) Code : 068-2010 NO.02 (12,600 BTU) Code : 068-2015 NO.03 (21,408 BTU) Code : 068-2006 NO.04 (33,960 BTU) Code : 068-2007 NO.05 (44,520 BTU) Code : 068-2008 NO.06 (53,040 BTU) Code : 068-2009
