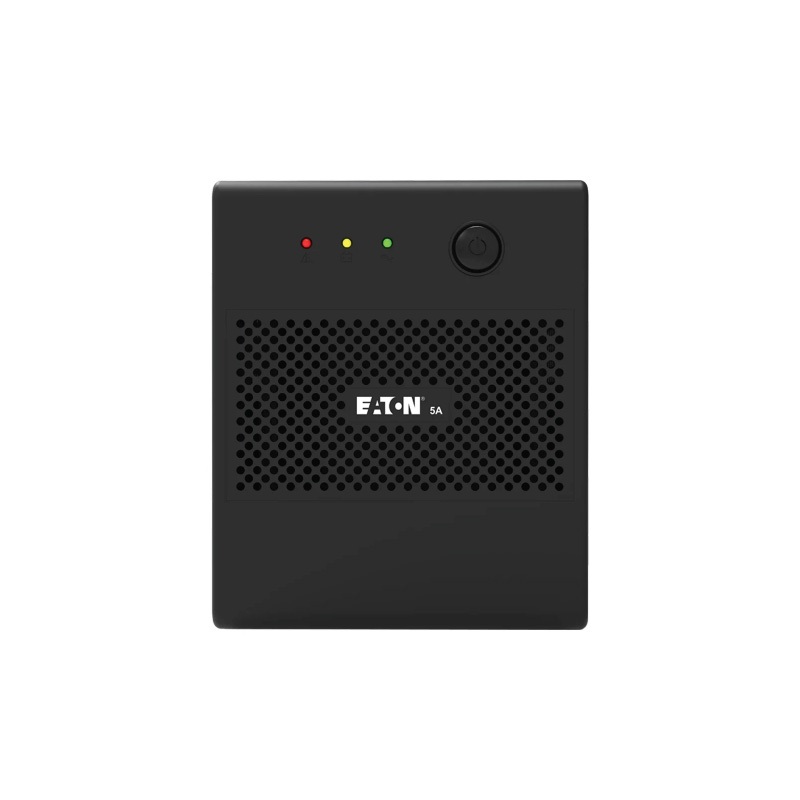

Eaton 5A 2200VA P-5A2200I 2200VA/1200W 4 Universal UPS Warranty 2 Years

TECHNICAL SPECIFICATIONS Model 5A2200I Rating (VA/W) 2200VA/1200W Format Tower Electrical characteristics Input voltage range 140–300 VAC Frequency range 60/50 Hz (Auto sensing) Surge protection Yes Generator compatible Yes Mute by power key Yes Circuit breaker Yes Output Output voltage 230 VAC Output voltage reg. (Battery mode) ±10% Battery wave form Stepped sine wave Protection PCBA current sensor (F/W protection) Output backup socket DIN model: (4) Schuko outlets NEMA model: (6) NEMA universal outlets UNI model: (4) Universal outlets Transfer time 2–6ms typical, 10ms max Battery Type 12V/9Ah x2 Floating Charging Voltage 27–27.6V Recharge time 4–6 hours recover to 90% capacity Typical battery runtime IT Load (100W) 60 min 50% load 8.5 min 75% load 1.8 min Interface On / Off switch Yes Indicator LED Communication–USB No Communication–RS232 No RJ11 protection No Physical Dimension D x W x H (mm) 370*138*165 Weight (kg) 11.7 Package Color box Customer service and support Warranty 2 years
